Concrete Pump for Sale

What is a Concrete Pump?Concrete pump machine is an effective tool for pumping various concrete materials. Under the influence of high pressure, concrete material can be pumped along the pipeline continuously. It not only can save a lot of labour, but improve working efficient. That’s why many customers would like to buy a concrete pump machine for his construction projects. The practicability advantage has won clients’ favorites.

trailer concrete pump equipment
Concrete Pump and Mixer Equipment
47m Boom Pump for Sale

How Many Types of Concrete Pumping Equipment? – Three Types of AIMIX Concrete Pump Machine

AIMIX concrete pump manufacturer also has produces different types of concrete pumping machine for global customers, mainly including trailer concrete conveying equipment, concrete mix pump and concrete pump truck. These are classifications based on concrete pump types. While, according to other standard, the pumping concrete machine can be divided as following:

As for engine, the concrete pump machine is divided into diesel concrete pump and electric concrete pump; the diesel concrete pouring machine is powered by diesel engine; the electric s valve concrete pump is motored by electricity. Both of them can work effectively. Customers can choose either of them.

In terms of capacity, there is small, medium and large concrete pump capacity. If you wanna buy one for self using, like houses, low-rises buildings, foundations, small one can totally satisfy your needs. Otherwise, you can choose larger pumpcrete capacity.

-What is Trailer Concrete Pump?

Trailer concrete pump equipment for sale is one of main pump for sale in AIMIX. It is well-received among users because it can move on construction sites. The trailer concrete pumping machine for sale is mounted on chassis, which can be easily dragged by trailer or tractor. Wider range capacity make it available applicable for various kinds of construction projects. Therefore, a lot of customers chose to purchase one for self using or renting.

In addition, two engines are free choices. Diesel trailer pump and electric concrete pump are available in AIMIX Group. As one of reliable concrete pumping machine companies, Aimix has exported countless sets of trailer concrete pumping machines to global market.

ABT40C Diesel Small Concrete Pump

ABT40C Diesel Concrete Pump Capacity: 40(m3/h)

  • Max. theoretical concrete output:40/26 m3/h
  • Diesel engine model:Weichai
  • Diesel engineering power:82Kw
  • Max. Theoretical Vertical Conveying Distance:120m
  • Max. Theoretical Horizontal Conveying Distance:500m
  • Max. aggregate diameter:Slick/scree:40mm
  • Total weight:4500Kg

ABT60C Trailer Mounted Pump

ABT60C Diesel Trailer Pump Capacity: 60(m3/h)

  • Max. theoretical concrete output:67/45 m3/h
  • Diesel engine model:Weichai
  • Diesel engineering power:129Kw
  • Max. Theoretical Vertical Conveying Distance:180m
  • Max. Theoretical Horizontal Conveying Distance:1000m
  • Max. aggregate diameter:Slick/scree:40mm
  • Total weight:6500Kg

ABT80C Diesel Concrete Pump

ABT80C Diesel Trailer Concrete Pump Capacity: 80(m3/h)

  • Max. theoretical concrete output:84/45 m3/h
  • Diesel engine model:Weichai
  • Diesel engineering power:176Kw
  • Max. Theoretical Vertical Conveying Distance:260m
  • Max. Theoretical Horizontal Conveying Distance:1200m
  • Max. aggregate diameter:Slick/scree:40mm
  • Total weight:6900Kg

-What is Concrete Mixer Pump?

Concrete mixer pump is also one kind of concrete pump machine. It is more advanced because of combination of concrete mixer and compact concrete pump, which can greatly improve concrete pump machine working efficiency and save a lot of cost, time and labour. Now in the market it is becoming more and more popular among customers. A lot of our old clients has purchased more than one set from us. We have embraced advanced manufacturing technology to make perfect Chinese pump machine concrete for our customers. Compared with trailer pump, it has smaller capacity. Therefore, the cement mixer pump is more suitable for small construction projects.

ABJZ30C Diesel Concrete Mixer Pump

ABJZ30C Diesel Concrete Mixer Pump

  • Max. theo. concrete output(L./H):30 M3/h
  • Max. theo. Vertical Conveying Distance:120 m
  • Max. theo. Horizontal Pumping Distance:400 m
  • Max. aggregate diameter:Slick/scree:20 mm
  • Total weight:5500 kg

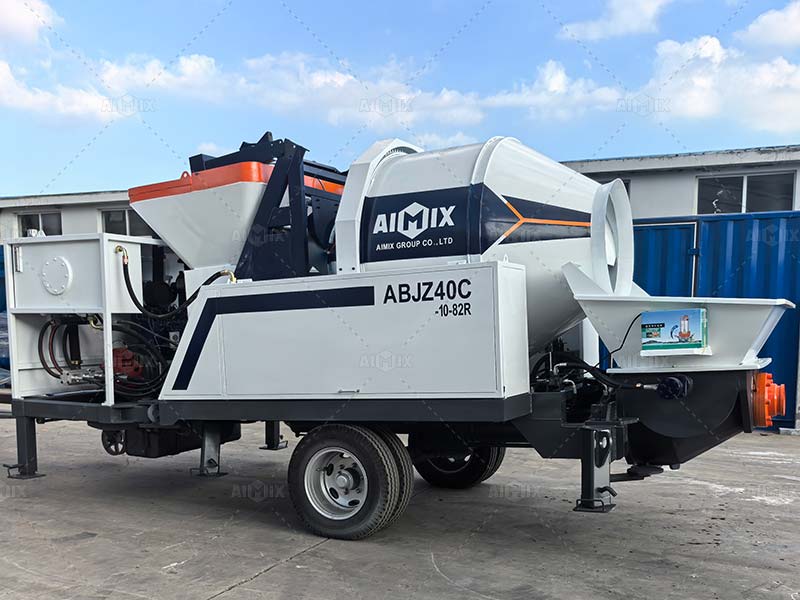

ABJZ40C Diesel Mixer Pump

ABJZ40C Diesel Concrete Mixer Pump

  • Max. theo. concrete output(L./H):40 M3/h
  • Max. theo. Vertical Conveying Distance:150 m
  • Max. theo. Horizontal Pumping Distance:600 m
  • Max. aggregate diameter:Slick/scree:40 mm
  • Total weight:6000 kg

30 m3/h Concrete Mixer Pump

ABJZ30D Electric Mixer Pump

  • Max. theo. concrete output(L./H):30 M3/h
  • Max. theo. Vertical Conveying Distance:120 m
  • Max. theo. Horizontal Pumping Distance:300 m
  • Max. aggregate diameter:Slick/scree:20 mm
  • Total weight:2300 kg
ABJZ40D electric concrete mixer and pump

ABJZ40D Electric Mixer Pump

  • Max. theo. concrete output(L./H):40 M3/h
  • Max. theo. Vertical Conveying Distance:120 m
  • Max. theo. Horizontal Pumping Distance:500 m
  • Max. aggregate diameter:Slick/scree:40 mm
  • Total weight:4500 kg

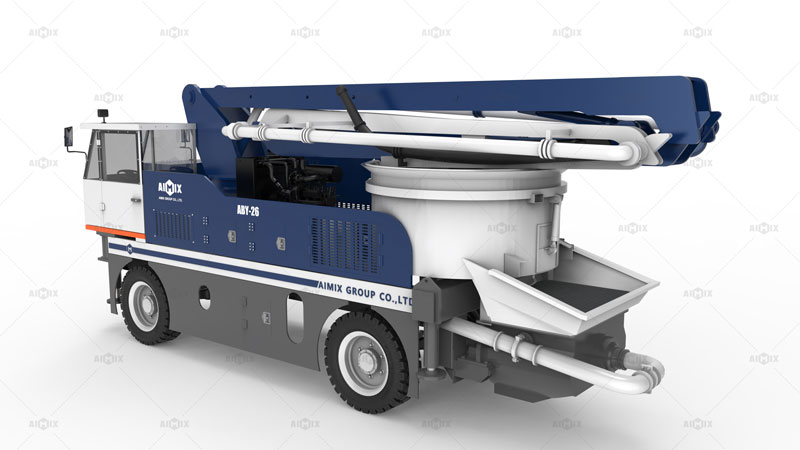

-What is Boom Concrete Pump?

Concrete boom pump, also name as pumpcrete equipment, is the biggest concrete pump among all three types of pumpcrete for sale in AIMIX. The concrete pumpcrete is able to transport concrete precisely through the boom system to designated locations, ensuring both quality and speed. Therefore, it combines fast driving, pumping and placing functions, which is more appropriate for large construction projects. Application in water conservancy, bridges, high-rise buildings and other industrial and civil construction projects are common. Due to operation with long booms, the concrete boom pump requires for open space. Operator can fully make use of it to improve working efficiency.

what is boom pump

How Profitable Is A Concrete Pumping Business?

The concrete pumping business can be profitable. Whether you plan to bought the concrete pump machine for self using or renting, it is profitable. However, the level of concrete pumping profitability can vary depending on several factors. Check these factors below.

Initial Investment

The initial investment in a concrete pumping machine can vary depending on factors such as the type of equipment (truck-mounted, trailer-mounted, or mixer pump), its capacity and features, and whether it is new or used. This investment includes the concrete pumping machine price, financing expenses, insurance, and any additional equipment or accessories required. If the concrete pump machine price, your return on the investment may be with low speed. First, you can check the AIMIX concrete pump price list for primary estimating on this page: https://aimixconcretesolution.com/how-much-is-a-concrete-pump/.

Demand for Concrete Pumping Services

The demand for concrete pumping services in a specific area plays a crucial role in determining the profitability of the business. Areas with a high volume of construction projects and infrastructure development tend to have greater demand, resulting in more opportunities for business growth and profitability.

Operating Costs

Operating costs associated with a concrete pumping business include fuel expenses, regular maintenance and repairs of the concrete pump equipment, insurance premiums, labor costs, and administrative expenses. It is important to carefully manage these costs to ensure profitability.

Apart from that, it is important to conduct a detailed financial analysis, considering factors such as projected revenue, operating costs, and the expected ROI, to assess the profitability of a concrete pumping business based on the investment in the equipment.

What Is A Concrete Pump Machine Called? – ABT and ABJ Series

AIMIX Group has its own special naming method for concrete pump products, which is different from the unified name of HBT in the market. Take ABT series trailer mounted pumps and ABJ series stirring pumps as examples:

  • A-AIMIX
  • B-pump
  • T-Trailer type
  • J-with mixer type
  • C-Diesel engine
  • D-Electric Engine

For example:

ABT40C – 40 m3/h trailer concrete pumping machine with diesel engine

ABJZ40D – 40 m3/h concrete mixer pump with electric engine

ABJZ40D-JS500 – 40 m3/h concrete mixer pump with electric engine; equipped with JS500 twin shaft concrete mixer

What Capacity about Concrete Pump? – Three Kinds of Pump

Trailer pump

Generally speaking, trailer concrete pump(tow behind concrete pump) is divided into two types: diesel concrete pump and electric concrete pump. We can provide you different concrete pump models. Concrete pump rates are 40, 60 and 80 m3/h . Accordingly, models are ABT40C, ABT60C, ABT80C diesel pump and ABT40D, ABT60D, ABT80D electric ones. Well, if you need pump capacity – 30, 50 and 90 m3/h. All of them are possible. Because our engineer can help customize pump for you.

trailer concrete pump machine capacity

Mixer pump

In comparison with trailer pump, it has small capacities about 30 to 40 m3/h. So, sometimes we also call it small concrete pump. In general, it is suitable for small construction projects, like rural and urban building, small bridges and harbors. While, same as trailer concrete pump construction, the concrete mixer with pump for sale has diesel type and electric type. In Aimix, models include ABJZ30C, ABJC40C, ABJZ30D, ABJZ40D equipped with JZC series concrete mixer; ABJS40D-JS500, ABJS40D-JS750D equipped with JS series forced mixer.

Mixer Pump Machine
Mixer Pump Machine

Boom Pump

Different with the trailer pump and mixer pump, the concrete pump truck is large concrete pumping equipment for sale. We name the capacity of boom pump as its boom length, not for the cubic yards of concrete per hour. Now, long booms about 14 to 57 m are possible in AIMIX, including 14m, 30m, 37m, 44m, 47m, 50m and 57m.

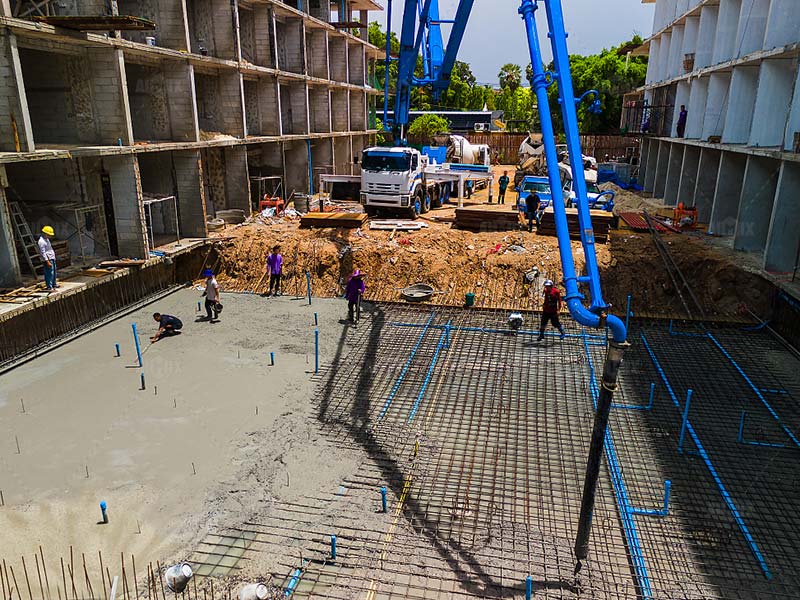

Boom Pumps Working on Site
Boom Pumps Working on Site

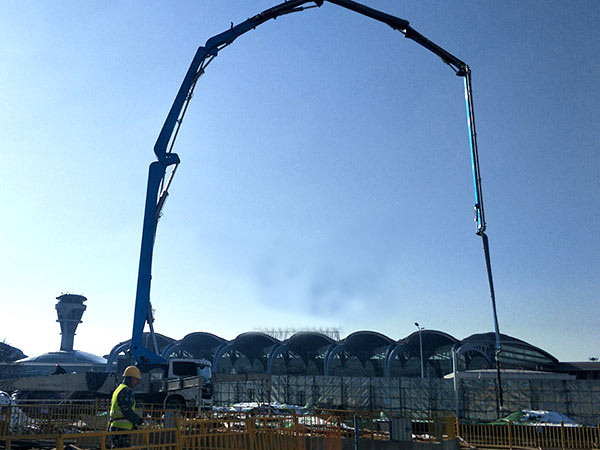

Pump Truck on Construction Site
Pump Truck on Construction Site
Concrete Boom Pump Working
Concrete Boom Pump Working

How Far Can Concrete Be Pumped? – Trailer and Mixer Pump Conveying Distance

Indeed, the pumpcrete concrete pumping distance is determined by various factors, such as the capacity of concrete pump, engines and others. In other words, different models of equipment for sale have various pumping distances. Here taking the trailer concrete machine with pump and mixing pump as example, fully introduction of how far the concrete mixture can be pumped.

Trailer concrete pump

The pumping distance include horizontal distance and vertical distance. Diesel concrete pump new and electric concrete pump have different pumping distance.
According to models, the pumping distance is as follows:

Vertical pumping distanceHorizontal Conveying Distance
ABT40C120m500m
ABT60C180m1000m
ABT80C260m1200m
ABT40D120m500m
ABT60D160m800m
ABT80D200m1000m

AIMIX ABT40C Diesel Concrete Pumps in Morocco

ABT40C Concrete Pumps in MoroccoMorocco Concrete Pump Working on Construction SiteAIMIX Concrete Pump in Morocco

Concrete Pump Mixer

Same as trailer pump, different concrete mixer pump models have various pumping distances. You can check mixer pump pumping distances below.

Theoretical Vertical pumping distanceTheoretical Horizontal Conveying Distance
ABJZ30C120m400m
ABJZ40C150m600m
ABJZ30D120m300m
ABJZ40D150m500m

Mobile Concrete Mixer with Pump
Mobile mixing pump in Philippines
Aimix Mobile concrete mixer pump

What Are The Characteristics of Concrete Pump Machine?

1. It adopts double pump, double circuit open hydraulic system, the main pump oil circuit and S valve swing oil circuit are independent of each other, which makes the system simple, prolongs the life of the components, higher reliability, and facilitates fault judgment and troubleshooting.

2. With anti-pump function, it is helpful to eliminate pipe blockage in time, and can be shut down for a short time.

3. The advanced S-pipe distribution valve is adopted, which can automatically compensate the wear gap and has good sealing performance.

4. Using wear-resistant alloy glasses plate and floating cutting ring, it has long service life. The maximum life of the glasses plate can reach more than 30,000 square meters.

6. Automatic centralized lubrication system can ensure effective lubrication during machine operation.

7. With remote control function, the operation is safer and more convenient.

8. All concrete pump parts and components adopt national standards, and the interchangeability is good.

9. The cooling system adopts a forced air-cooled large radiator device to ensure that the working oil temperature of the hydraulic system is controlled below 70°C, so as to ensure that the hydraulic system of the main engine is in a normal working state.

Remote Control Device
Remote Control Device
s valve
S Valve
Electric Control Box
Electric Control Box

What Structures of Pumping System?

This system consists of the hopper, concrete conveying cylinder, main oil cylinder, etc.

1. The hopper. The hopper, welded by steel plates, is used for storing concrete to make sure the normal process of feeding. It is used for feeding. In addition, there is a S valve in it.

2. Concrete conveying cylinder. The concrete conveying cylinder valve connects the hopper and water tank, in which there are two concrete pistons.

3. Main oil cylinder. The last part is main oil cylinder. It is plated with hard chromium on the surface in order to avoid rusting.

In order to maximize pumping efficiency, our concrete pump machine company always adopts high-quality parts. Pumping system has to endure a great impact when concrete pump starts working. So the parts have to be wear resistant. Take S valve as an example. S valve is in the hopper, which can compensate wear clearance automatically and get a great sealing performance. It consists of wear plate and wear ring. They are made of hard alloy, thus the service life of wear plate and wear ring is extended.

Concrete Pump Machine Hopper
Hopper
Concrete conveying cylinder of Concrete Pump Machine
Concrete conveying cylinder
Main Oil Pump of Concrete Pump Machine
Main Oil Pump

How Concrete Pump Works?

When the concrete pump machine starts to pump, the pumping system works in this way.

1. After pressure oil of the hydraulic system enters into the main cylinder, one piston rod is extended and the other piston rod is retracted.
2. Then, the concrete conveying piston, which connects the main cylinder piston rod, starts self-absorbing in the conveying cylinder when it has to retract.
3. The concrete in the hopper is sucked into the conveying cylinder under the influence of atmospheric pressure and stirring blade.
4. At the same time, under the action of oil pressure, the other main cylinder promotes the piston rod out of the cylinder. Meanwhile, concrete piston pushes concrete out of this conveying cylinder.
5. After this action is completed, the system automatically changes the direction and makes pressure oil get into the other main cylinder. Later, it will complete another travel of sucking and pumping.
In short, this a repeated process. Just in this way, concrete in the hopper is continuously sucked in and out of the conveying cylinder and pumped to the operation point. You can check how a concrete pump works through the following youtube video.

AIMIX Concrete Pump Video

Why to Choose AIMIX Concrete Pump Equipment? – Three Important Reasons

In the market, there are many concrete pump manufacturers. So, why to choose AIMIX Group? Here are some reasons.

1. AIMIX can provide you with excellent machine. And you can always get a reasonable price of concrete pumping machine. In addition, our pump for concrete has been exported to USA, Russia, New Zealand, Philippines, Guinea, Romania, Pakistan, Ukraine, Botswana, Uzbekistan, Kyrgyzstan, Oman, Inner Mongolia, etc. And the concrete pump machines are favored by various people all over the world.

2. We can promise you timely delivery. Delivery date is very important to production plan. Cooperating with us makes your production plan go well on time.

3. The customers can get perfect after-service from us. For example, we provide free training so that you can raise the operation proficiency. What’s more, we also have field service if you need.

Therefore, among various concrete pump companies and concrete pump brands in the market, AIMIX maybe is the best choice for you.

What Concrete Pump Service Can AIMIX Provide? – Pre-sale, On-sale and After-sales Service

AIMIX Group aims to provide one-step all-round service for clients. The service include pre-sale service, on-sale service and after-sales service.

Pre-sale service: Professional sales team patiently answer your questions, and make suitable solutions for your projects. Moreover, according to your scale of project, our sale would advise you to buy the most cost-effective and appropriate equipment from us.

On-sales service: After making orders, our sale will track order status and give feedback to customers in time, such as production progress, delivery, delivery pictures and videos, cargo transportation and arrival time.

After-sales service: Before the mobile concrete mixer pump machine is put into use on construction site, our sale would advise customers to check instructions seriously. Because it is important for them to get started. In this way can improve the pump service life. If there is something wrong with the machine during working, we will remotely instruct how to do concrete pump maintenance. Under the warranty, we promises to free change the concrete pump accessories. If necessary, we will arrange our engineers to check and maintain the pump at the construction site. Therefore, there is no need of worrying about AIMIX’ s service.

ABT40C Concrete Pump in Burma
Concrete Pump Service in Myanmar
After-sales Service in Myanmar
After-sales Service in Myanmar

What Should be Attention of Concrete Pump Operation?

1. The lubricating grease in the box should be observed every day. The scale that floats down is normal. If the grease is used less, it means that the lubrication point is clogged and needs to be checked and eliminated.

2. The water in the water tank needs to be replaced with clean water every day before work. The water level scale is below the position of the piston rod, and the water splashed from the high water level will easily burn the proximity switch.

3. It is better to use a grease gun to manually oil some points that need to be lubricated in the swing arm of the concrete cylinder.

4. There is a big nut behind the hopper. You need to use the tools in the toolbox worn in the factory to tighten the nut every day. Otherwise, the glasses plate in the hopper and the gap in the cutting ring construction work will become loose and will soon be broken. The manifestation of the situation is that the water cannot be pumped up when washing the pipe, which makes it impossible to clean the pipe normally.

5. Some parts with screws need to be checked and tightened frequently when the new equipment is just used.

6. In the process of pipe removal, after removing the pipe clamp apron, it is best to find a bucket with clean water, put the pipe clamp and apron just removed in the water to clean it, and when the water dries, find the waste oil and screw the pipe clamp The parts are wet in the oil drain, which will increase the service life of the pipe clamp apron.

View more operation procedures on this web page: https://aimixconcretesolution.com/how-to-operate-a-concrete-pump/.

Concrete Pump Machine Working on Site
Concrete Pump Machine Working on Site
Concrete Pump Operation
Concrete Pump Operation
Concrete Pumping on Site
Concrete Pumping on Site

How to Maintain Concrete Pump?

Concrete pumps are one of the most important forces in many construction sites and construction projects. Regular concrete pump maintenance is the best way to protect your concrete pump investment.

The maintenance of the concrete pump can save time and money, because the correct maintenance of the equipment means fewer problems and failures. Therefore, please keep the concrete pump fully running and pump concrete for as long as possible, and reduce the risk of danger when using such equipment. Like all machinery, concrete pumps need to be properly maintained and maintained.

In order to help extend the service life of concrete pumps and keep the pump running at maximum efficiency, AIMIX provides some important maintenance recommendations:

1. Lubrication is the most important aspect in the daily maintenance of concrete pumps. The operator should ensure that the boom is lubricated every week, and the boom and pipes are visually inspected. Most concrete pumps are equipped with an automatic lubrication system, which can automatically lubricate all parts that need lubrication. However, it is very important to check the automatic lubrication system every day to ensure that it is always full. If the automatic lubrication system fails, the operator can use the grease gun of the concrete pump to manually lubricate the parts.

2. Concrete pump operators should also make sure that they check the water level and oil level in the cleaning tank every day.

3. Don’t forget to check the overall condition of the vehicle, including tires and oil, because the industrial use of concrete pump engineering will cause abnormal wear and tear on different parts of the vehicle.

Considerate After-sales Service
After-sales service concrete pump machine
After-sales team for maintenance

4. In AIMIX, we can conduct annual concrete pump inspections. First, we carefully inspect all structures and wear parts for damage. This includes: piston, cutting ring, specification plate, stabilizer, hydraulic control, electrical control, hopper, boom and all pipes. Then, we check the maintenance of the machine, such as the lubrication of the machine, oil, water and other areas to check the condition and check for signs of wear.

5. In order to complete the service, we will check the technical data of the machine and check the nameplate, including checking the frame, guide rails and supports, pipe supports, fixed hooks, opening and closing speeds, and safe working load before carrying out a comprehensive boom inspection. For more information about the repair of the concrete pump, please contact us timely.

In AIMIX, there are many options about the concrete pump machine for sale, such as mixer pump, boom pump, trailer pump, line pump, stationary concrete pump, portable concrete pump, small concrete pump and cement mortar pump. Welcome to buy concrete pump to from AIMIX to start the concrete pump business. Contact us for further information! Leave a message in the following chart! Or email to us available: market11@aimixgroup.com. Then our sale will reply you as soon as possible!
