In small construction sites, concrete work is often limited by narrow access roads, tight working spaces, and the difficulty of manual concrete handling, where even short delays or interruptions can affect the overall pouring quality. In such conditions, selecting a small concrete pump for sale becomes a critical engineering decision for maintaining continuous and efficient placement.
At AIMIX, we specialize in providing concrete pumping solutions based on real construction conditions rather than standard equipment listings. Each concrete pumping solution is designed to match site constraints such as distance, volume, and accessibility in residential, municipal, and indoor projects. To define the right solution, we first examine the typical challenges faced on small job sites.
Why Small Projects Are More Challenging Than They Seem
Although small projects usually require less concrete, they often present greater construction challenges than expected. Based on AIMIX’s experience across residential, municipal, and commercial projects, limited access, smaller crews, tight schedules, and constantly changing site conditions often have a greater impact on efficiency than pumping capacity itself. Before selecting a small concrete pump, understanding these real jobsite constraints is the first step toward choosing the right concrete pumping solution.

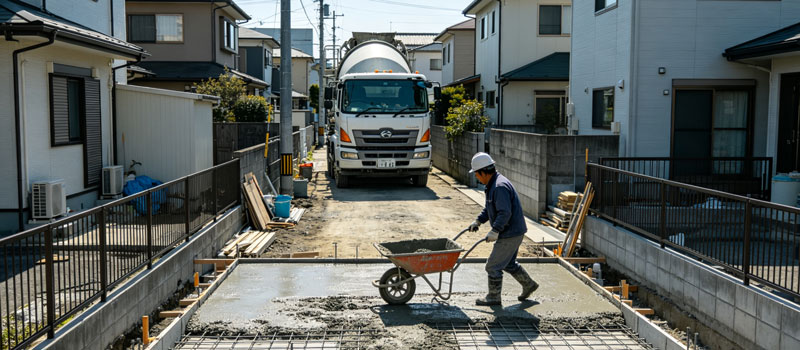

Limited Site Access Slows Down Concrete Placement
On many residential and urban construction sites, reaching the pouring point is often more difficult than the pouring itself. Narrow driveways, backyard entrances, and existing buildings frequently prevent large equipment from operating efficiently.
We often see situations such as:
- Concrete trucks stopping far from the pouring area
- Pipelines routed around walls, fences, or existing structures
- Extra labor required to transport concrete manually
As a result, site accessibility often determines how efficiently a project can be completed.

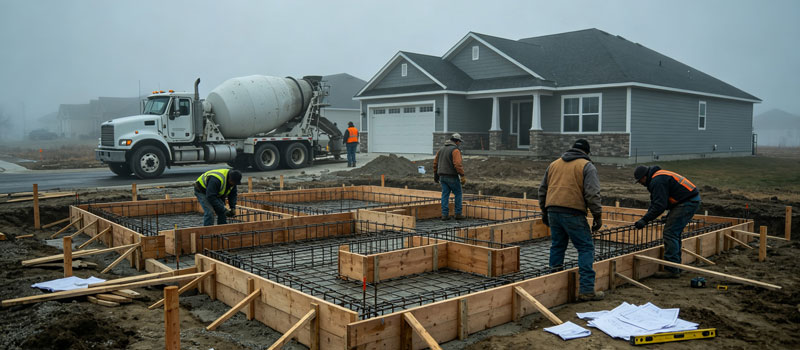

Tight Schedules Leave Little Room for Delays
Small projects usually work within short construction windows. However, concrete delivery, site preparation, and crew readiness do not always stay synchronized.
In many projects, we have found that:
- Concrete arrives before formwork or reinforcement is fully prepared
- Weather interrupts planned pouring schedules
- Limited manpower slows down continuous concrete placement
Consequently, even minor delays can affect both construction efficiency and concrete quality.

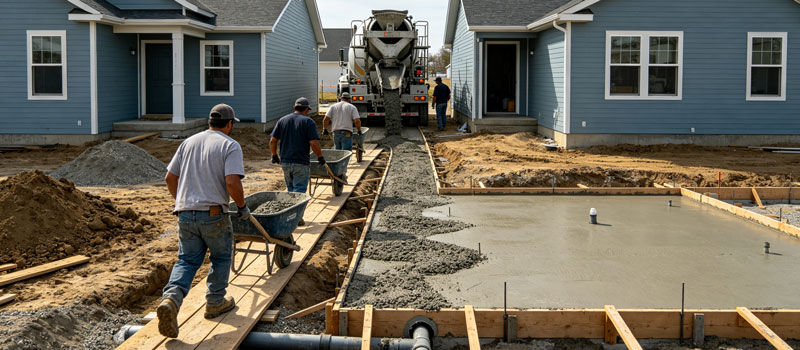

Limited Labor Reduces Overall Efficiency
Unlike large construction sites, small projects often rely on only a few workers to complete concrete placement. As the pouring area becomes farther from the truck, manual transportation quickly turns into the biggest productivity challenge.
Typical situations include:
- Repeated wheelbarrow transportation
- Long travel distances between truck and pouring point
- Continuous placement with limited manpower
Instead of placing concrete, crews often spend more time moving it.

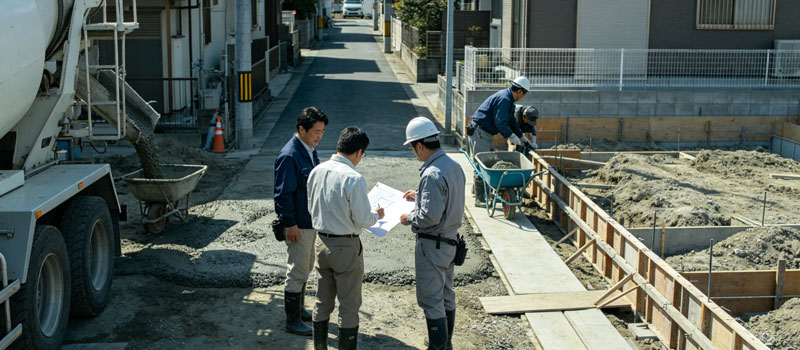

Changing Site Conditions Require Flexible Planning
No two small job sites are the same. In real projects, access, weather, structures, and local rules often change how concrete is placed.
For example:
- Limited working hours in residential areas
- Weather interruptions during pouring
- Pipeline or setup adjustments due to site obstacles
These changes affect pouring efficiency. Therefore, the pumping solution must adapt to real site conditions, not just equipment specs.
These challenges rarely exist on their own. In most projects, limited access, labor shortages, tight schedules, and changing site conditions often occur at the same time, making concrete placement far more demanding than expected.

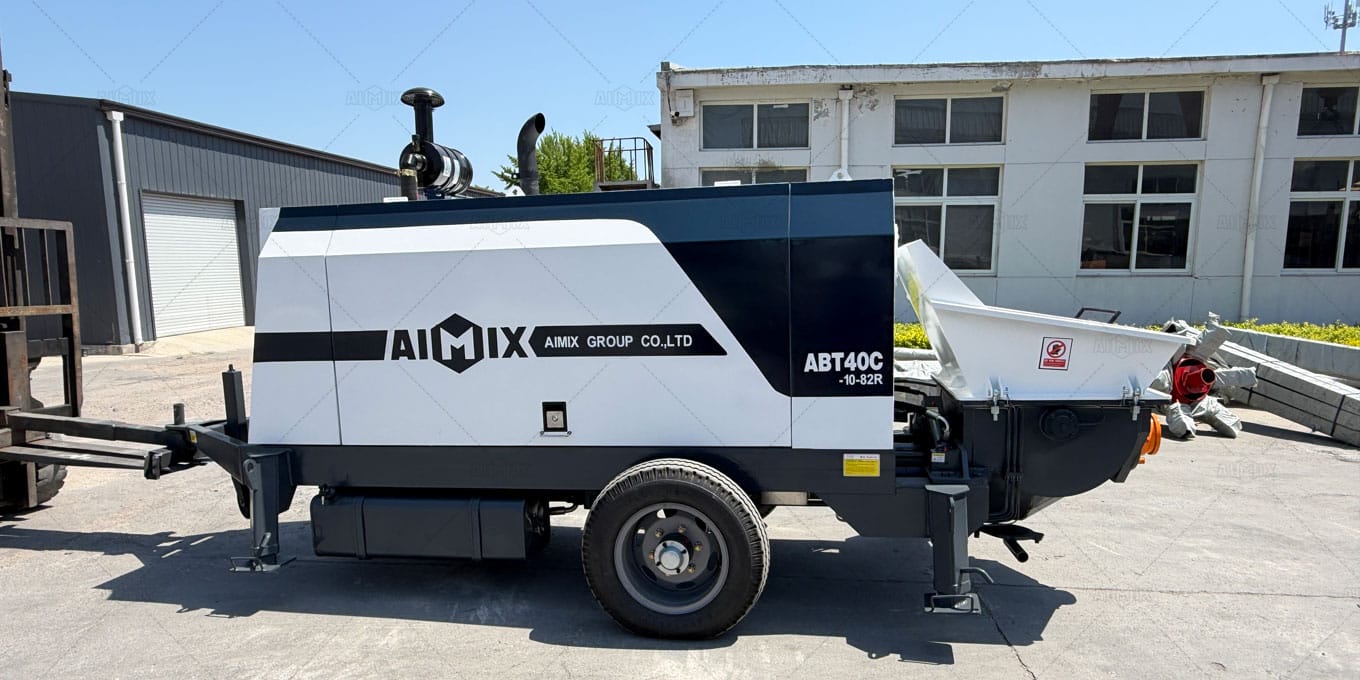

Based on our experience, improving project efficiency is not simply about choosing a machine with higher output. Instead, it starts with understanding the jobsite and matching the right mini concrete pumping solution to the actual construction conditions. In the next section, we’ll show how AIMIX develops practical small concrete pumps solutions for different project requirements.
Two Small Concrete Pumping Solutions for Different Jobsite Needs
Selecting the right small concrete pump solution for sale starts with understanding how concrete will be produced and delivered on site. Some projects require both mixing and pumping in one machine, while others only need efficient concrete placement with ready-mix supply. To meet these different construction needs, AIMIX offers two practical 30–40 m³/h small concrete pumping solutions, each designed for specific jobsite conditions.

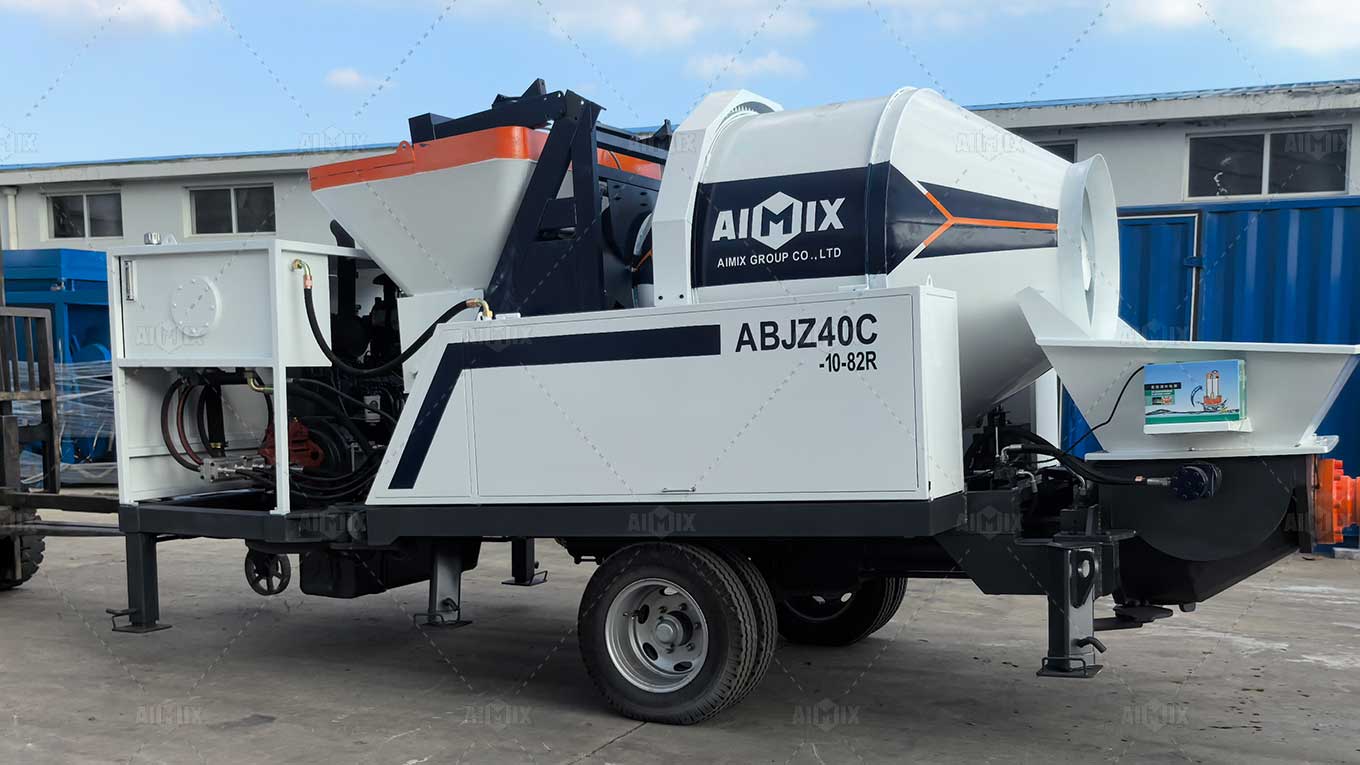

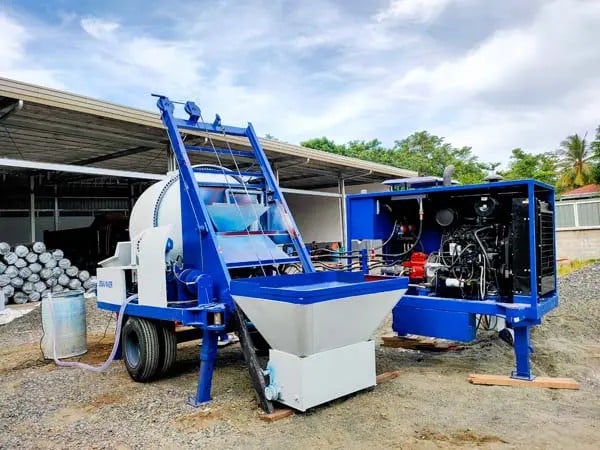

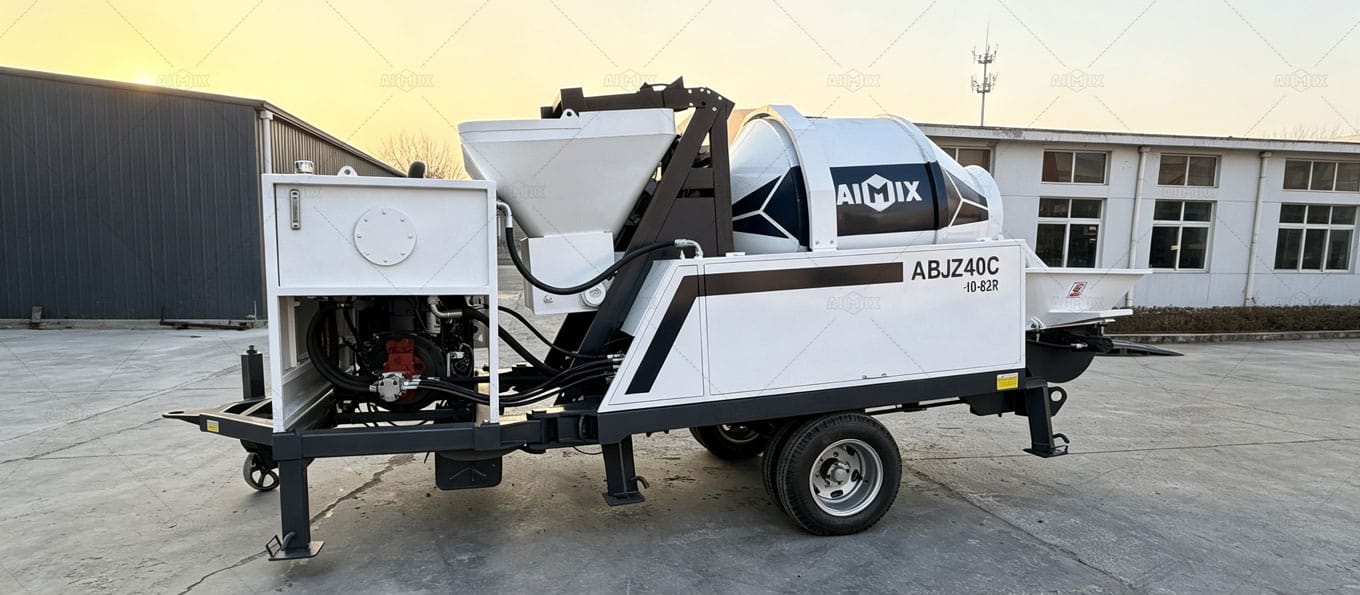

Solution 1: 30–40 m³/h Small Concrete Mixing and Pumping Solution
This solution is suitable for projects where both concrete production and placement need to happen on site, especially in areas without stable ready-mix supply.
Challenge:
- No nearby ready-mix concrete station
- Need to control concrete quality directly on site
- Limited transportation access in rural or remote areas
Solution:

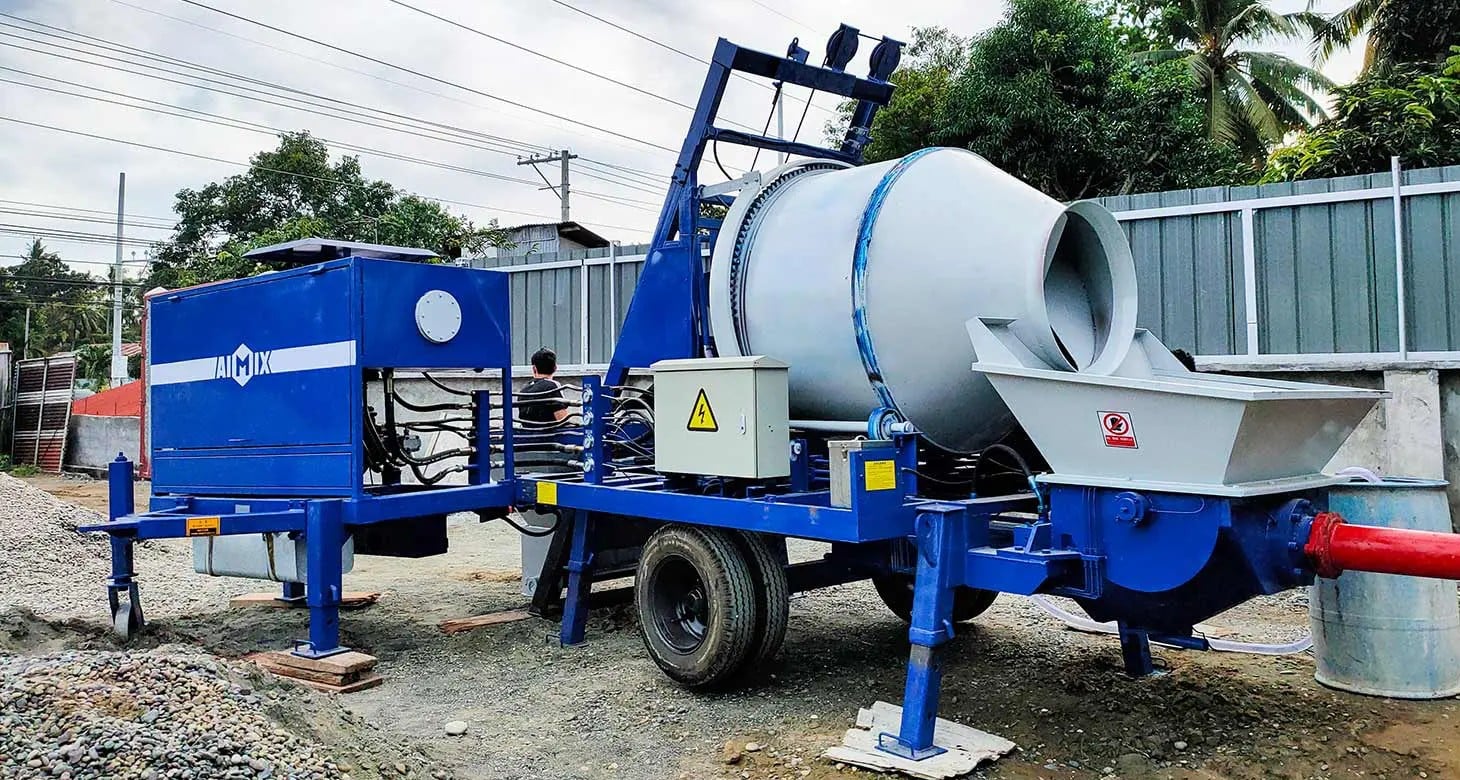

Use a 30–40 m³/h small concrete mixer pump, which integrates mixing and pumping into one continuous workflow. This allows concrete production and placement to proceed without interruption from external supply systems.
Benefit:
- Maintains continuous 30–40 m³/day output
- Reduces dependency on external concrete delivery
- Improves control over mixing timing and concrete quality
Typical application scenarios:
- Rural or remote construction sites without nearby batching plants
- Small residential foundations and villa projects
- Farm buildings and low-rise structural works
- Sites with limited transportation infrastructure

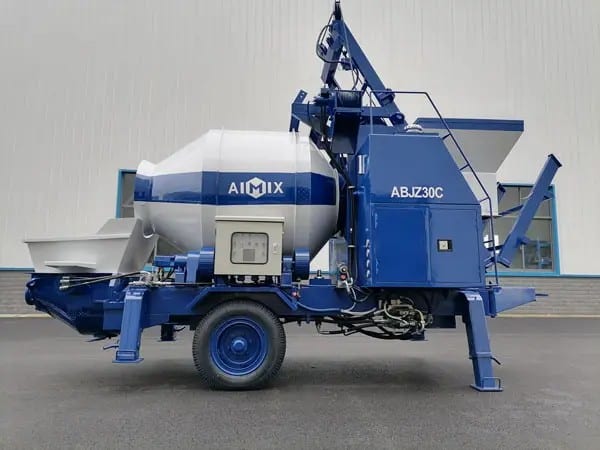

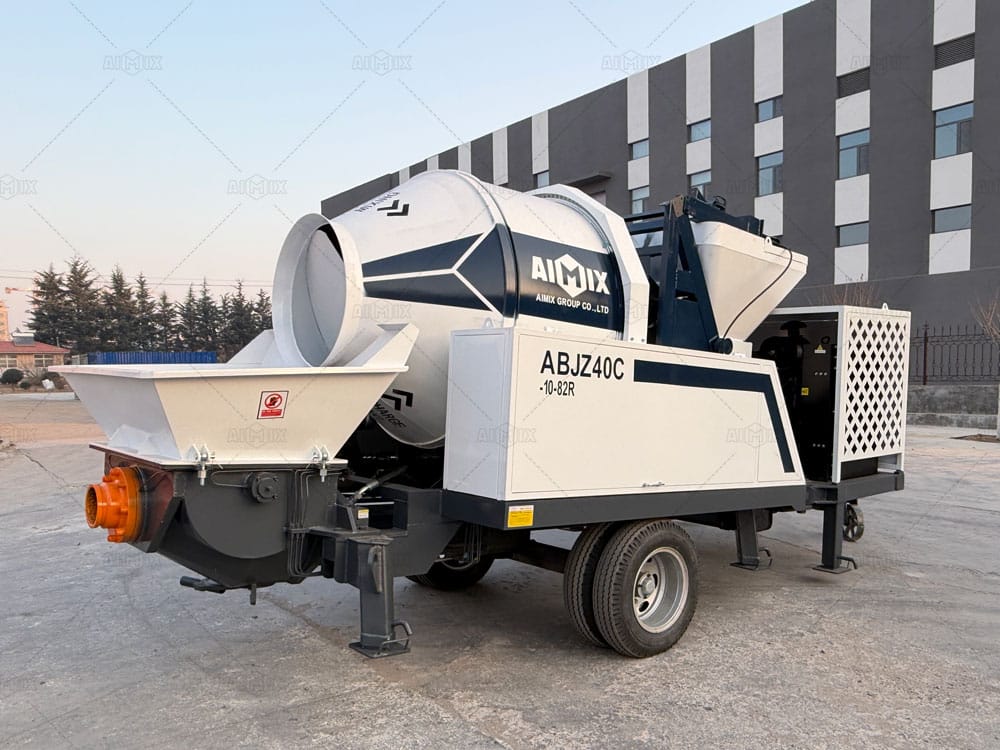

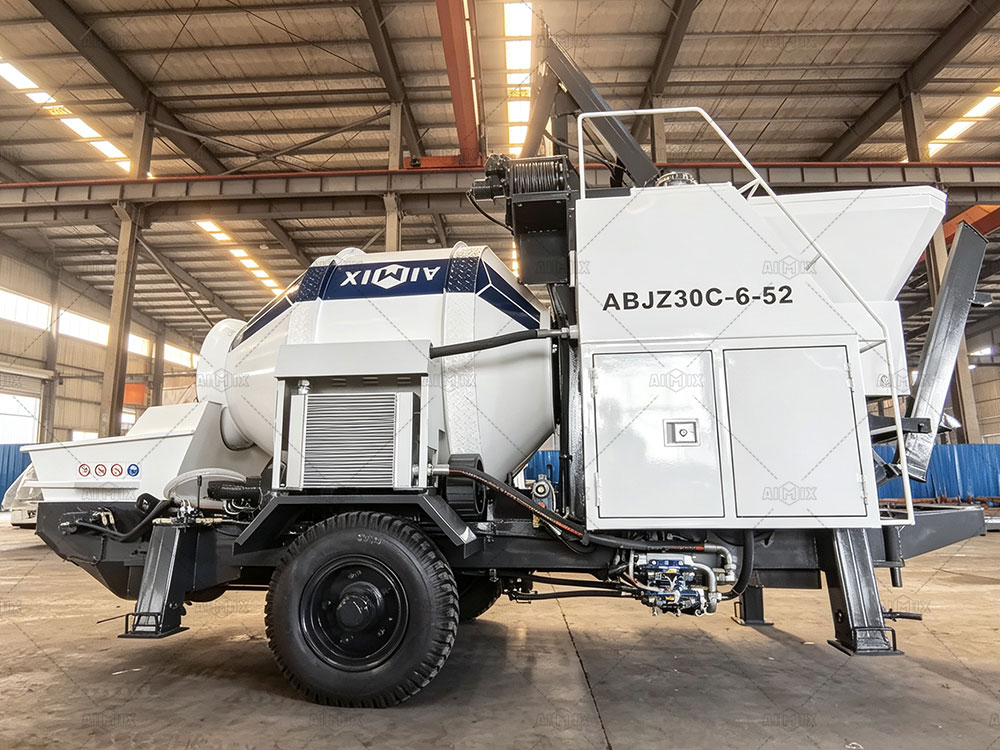

| Items | Units | ABJZ30C | ABJZ40C |
|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Diesel engine model | Weichai | Weichai | |
| Electrical engineering power | KW | 37 | 82 |
| Rotate speed | r/min | 1480 | 2200 |
| Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 32 |
| Mixing system pressure | MPa | 6-8 | 6 |
| Capacity of oil tank | L | 260 | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions:length×width×height | mm | 4500x1750x1600 | 600x2300x3150 |
| Total weight | kg | 3000 | 4500 |
Solution 2: 30–40 m³/h Concrete Pumping Solution
This solution is designed for projects where ready-mix concrete is available, and the main challenge lies in efficient placement and site access.
Challenge:
- Concrete trucks cannot reach the pouring point
- Manual handling slows down placement speed
- Tight working space limits direct unloading
Solution:
Adopt a 30–40 m³/h trailer-mounted small concrete pump for sale to deliver ready-mix concrete through a pipeline system directly to the pouring location. This ensures continuous placement even in restricted environments.
Benefit:
- Maintains stable 30–40 m³/h pumping performance
- Eliminates manual concrete transportation
- Improves pouring continuity and overall efficiency
Typical application scenarios:
- Residential or urban foundation works with narrow access
- Basement or indoor concrete pouring projects
- Municipal repair or sidewalk construction
- Construction sites with long pipeline delivery requirements

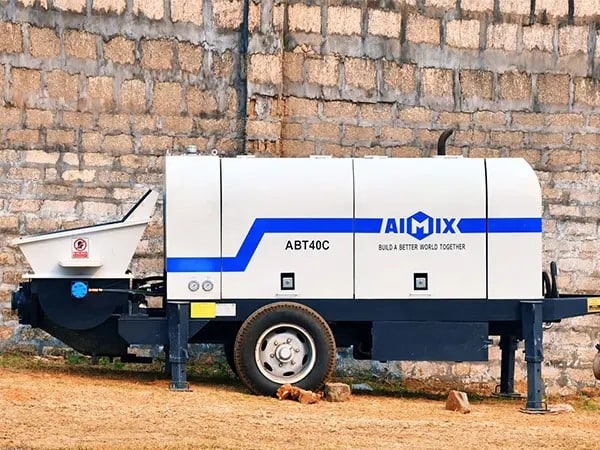

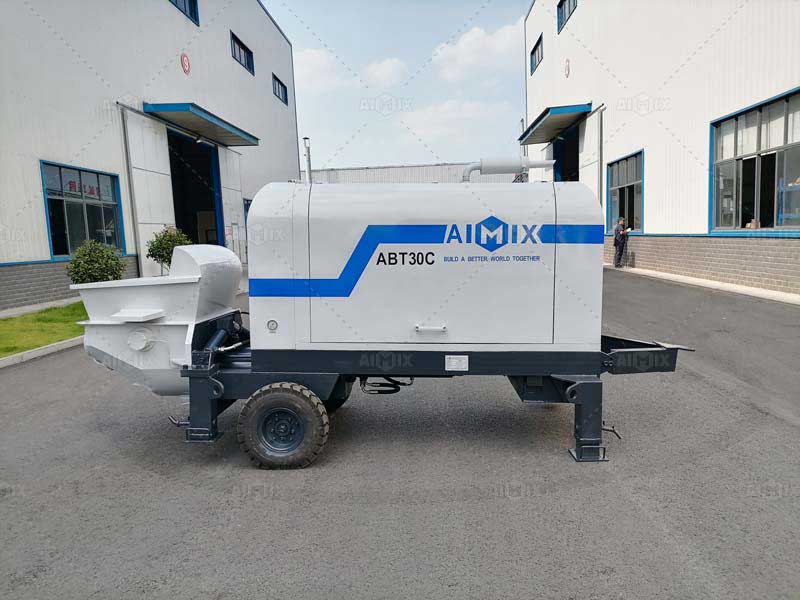

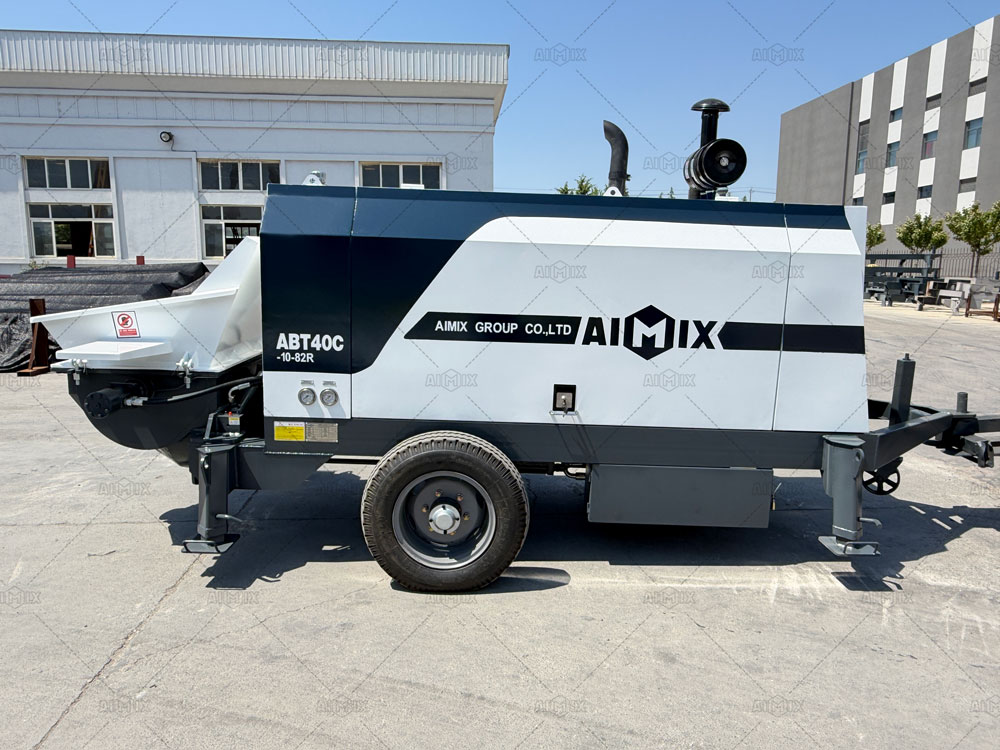

| Item | ABT30C | ABT40C |
|---|---|---|
| Maximum theoreticaI concrete deIivery capacity (m3/h) | 30 | 40 |
| Maximum pressure for pumping concrete (Mpa) | 6 | 10/8 |
| Maximum distance (verticaI/ horizontaI) (m) | 30/100 | 120/500 |
| Max. aggregate size (mm) | 40 | 40 |
| Hopper voIume * feeding height (L*mm) | 500*1000 | 400*1100 |
| Distributor vaIve type | s valve | s valve |
| Operation methods | PLC+wireIess, remote control | PLC+wireIess, remote control |
| HydrauIic oiI tank voIume (L) | 220 | 370 |
| HydrauIic system pressure (Mpa) | 25 | 32 |
| Power System Rated speed (r/min) | 1800 | 2200 |
| Power System Rated power (kw) | 52 | 82 |
| Engine brand | diesel engine Yuchai | Wechai |
| weight (kg) | 2650 | 4500 |
| Dimension (mm) | 3750*1550*2200 | 5000x1850x1700 |
Qucick View for Selection
| Feature / Condition | 30–40 m³/h Mixer Pump | 30–40 m³/h Trailer Pump |
|---|---|---|
| Concrete Supply | On-site mixing | Ready-mix required |
| Best For | Remote / rural sites | Urban / access-limited sites |
| Equipment Function | Mixing + pumping | Pumping only |
| Site Requirement | No batching plant needed | Needs concrete truck supply |
| Efficiency Focus | Self-sufficient workflow | Fast placement efficiency |
Why These Pumping Solutions Perform Better on Small Jobs
The performance of a small concrete pump solution is how well it aligns with real construction workflows. In small projects, efficiency depends more on flow continuity, setup flexibility, and labor coordination than raw output capacity.
Continuous Placement Improves Structural Consistency
-
Concrete quality in small projects depends heavily on uninterrupted placement. When pouring is inconsistent, the risk of weak bonding, segregation, and uneven compaction increases.
- Manual placement → intermittent flow and frequent interruptions
- Small Pumping solution → continuous pipeline delivery
Because these solutions maintain steady flow, they help ensure that each section of concrete is placed under consistent conditions. As a result, placement continuity has a greater impact on quality than pumping speed in small-volume projects.
Direct Delivery Reduces Unnecessary Handling
-
Every additional handling step introduces both time loss and quality risk. In many small job sites, crews often spend more effort moving concrete than actually placing it.
- Manual workflow → repeated transportation and repositioning
- Mini Concrete Pumping solution → direct delivery to pouring location
By delivering concrete directly through pipelines, these solutions eliminate unnecessary transfer steps. Consequently, the overall workflow becomes more stable and easier to control on site.
Flexible Deployment Supports Real Jobsite Conditions
-
Small construction sites rarely provide ideal working space. Instead, crews must adapt to narrow access, indoor areas, or backyard layouts where equipment positioning is limited.
- Compact equipment layout for tight spaces
- Adjustable pipeline routing for different site conditions
- Faster setup compared to large-scale systems
Both pumping solutions support this flexibility through:
Therefore, deployment flexibility becomes a key factor in maintaining construction progress under constrained conditions.
Thus, inefficiencies usually come from poor workflow matching, inconsistent placement, and unsuitable equipment selection. That is why the right concrete pumping solution can improve both construction efficiency and concrete quality in small projects.
How Small Concrete Pump Solutions Fit Different Construction Scenarios
Different construction projects require different pumping strategies. Instead of applying a single solution to all scenarios, AIMIX organizes small concrete pumping solutions based on real jobsite conditions. Below are four common project types where 30–40 m³/h small concrete pumps for sale are most frequently used.

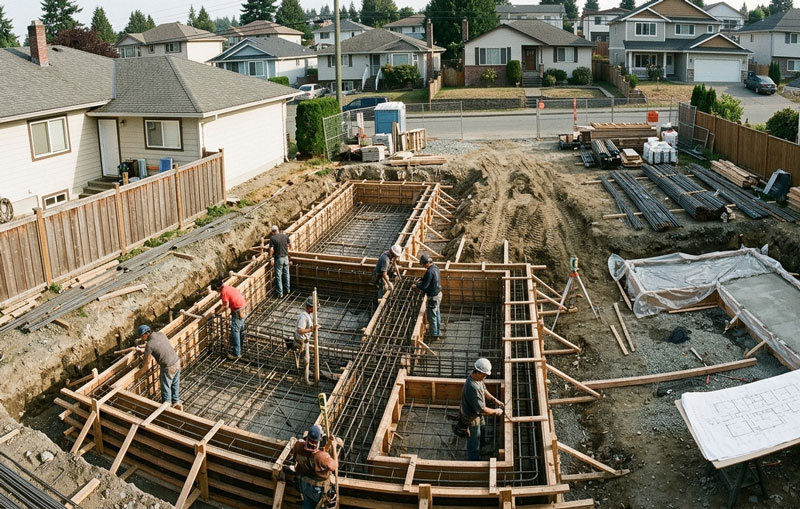

Residential Foundation Concrete Solution
Residential foundation projects often face limited site access and small working space. In many cases, concrete trucks cannot reach the pouring point directly, which leads to manual transportation and slower placement. In these projects, a 30–40 m³/h small concrete pump solution helps ensure continuous delivery from truck to foundation area.
Typical recommendation:
- Use line pump for ready-mix supply conditions
- Use small concrete mixer with pump for remote residential areas without batching plant

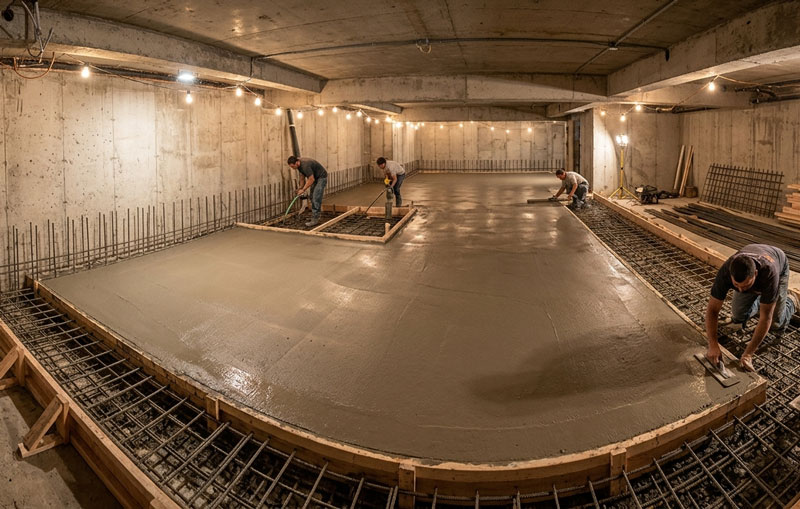

Indoor and Basement Pouring Solution
Indoor and basement projects usually involve low clearance height and narrow access paths. Large equipment cannot operate efficiently in these environments.
A compact pumping solution allows concrete to be delivered through flexible pipelines into confined spaces.
Recommended solution:
- 30–40 m³/h trailer-mounted concrete pump

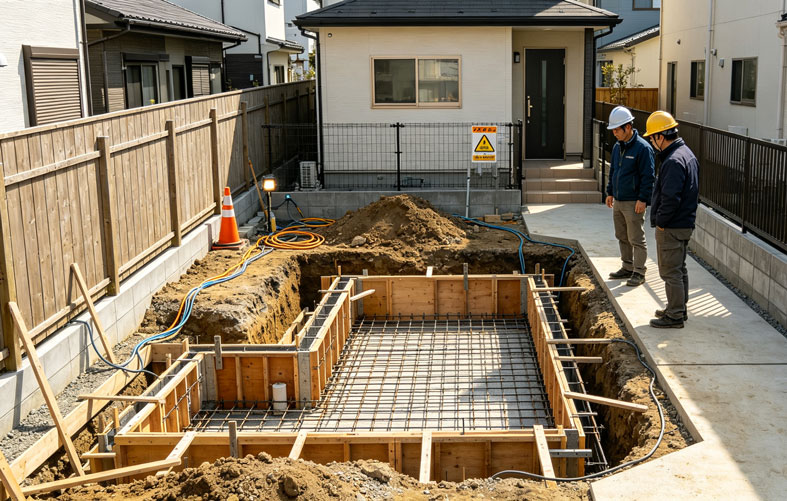

Backyard and Restricted Access Solution
Backyard construction often restricts equipment entry due to fences, narrow passages, or residential layouts. Direct truck access is usually not possible.
In these cases, pipeline extension becomes the key factor in successful placement.
Recommended solution:
- line concrete pump small size with flexible pipeline layout

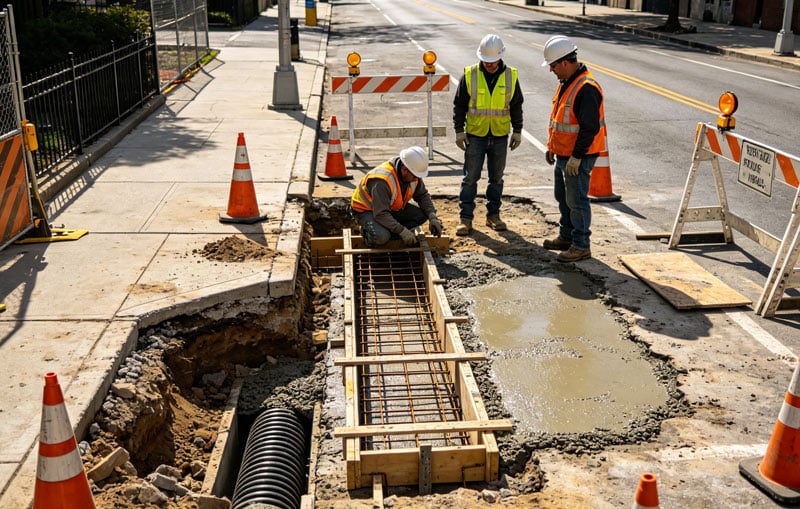

Municipal Repair and Small Infrastructure Solution
Municipal repair projects such as sidewalks, drainage, or road patching require fast setup and short-duration pouring cycles. Delays can directly affect traffic and project scheduling.
Recommended solution:
- 30–40 m³/h concrete pump small portable for fast deployment and efficient placement
Small Concrete Pump Solutions for Projects Around the World

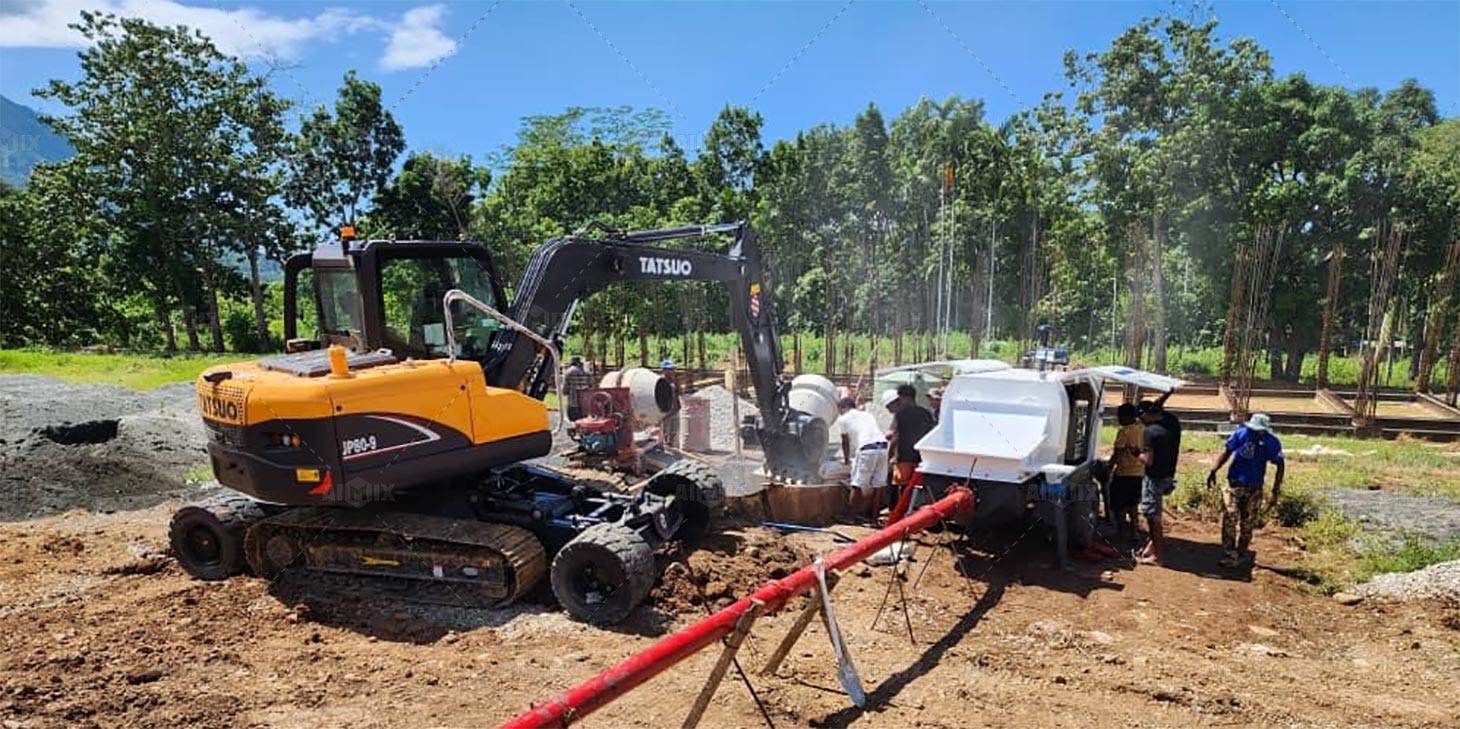

Residential Foundation Solution | Indonesia
- Project Location: Indonesia
- Project Type: Villa Foundation

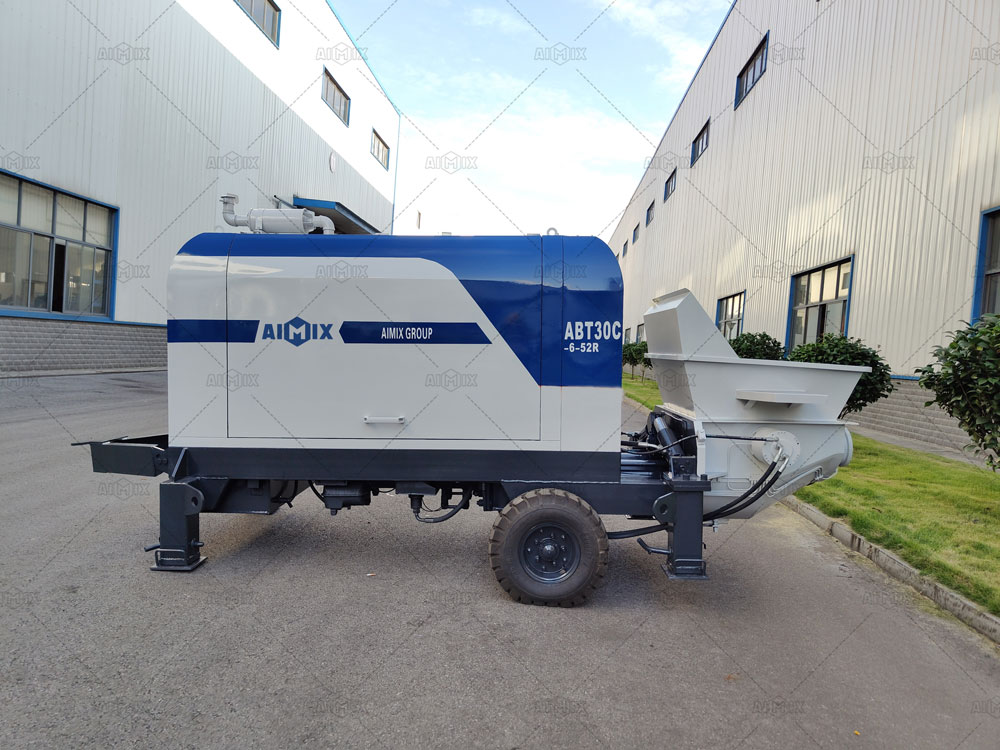

- Recommended Solution: ABT30C Trailer Pump
- Concrete Output: 30 m³/h
The contractor needed to complete a villa foundation within a limited schedule. In addition, the construction site had restricted access, making manual concrete transportation slow and labor-intensive.
Solution:
AIMIX recommended an ABT30C small pump for concrete (30 m³/h) to deliver concrete directly to the foundation through pipelines. The compact pumping solution fit the site layout and maintained continuous concrete placement.
Result:
- Completed the foundation pouring in less than three days
- Reduced manual concrete handling
- Improved overall construction efficiency
Customer Feedback:
“The pumping process was smooth, and the equipment worked reliably throughout the project. It helped us finish the foundation faster than expected.”

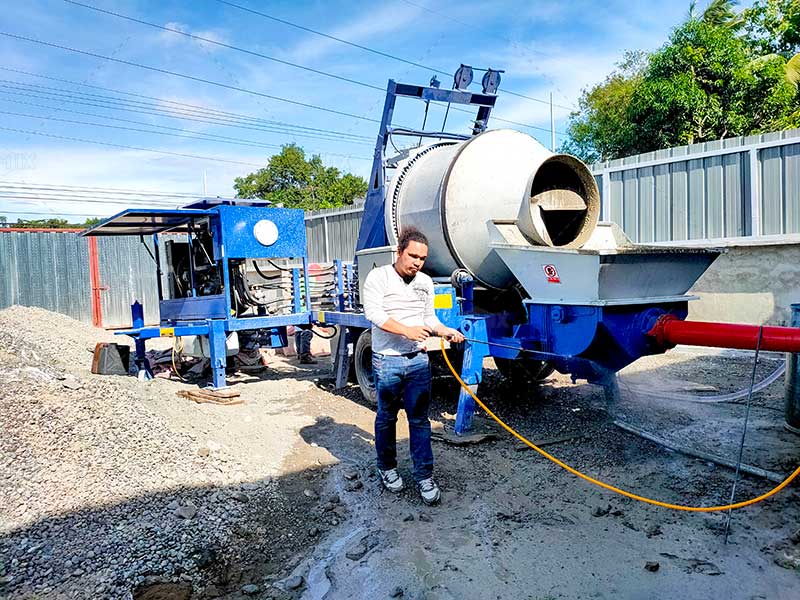

Hotel Construction Solution | Philippines
- Project Location: Manila, Philippines
- Project Type: complex hotel construction
- Recommended Solution: ABJZ40C Mixer Pump
- Concrete Output: 40 m³/h
Challenge:
The project involved a three-story hotel with narrow working areas and limited space for concrete placement. Maintaining continuous pouring across multiple floors was the main challenge.
Solution:
AIMIX recommended a 30–40 m³/h small concrete mixer and pump solution, allowing on-site concrete production and continuous pumping throughout the construction process.
Result:
- Shortened the construction schedule by 10 days
- Reduced interruptions during concrete placement
- Improved coordination between mixing and pumping
Customer Feedback:
“The integrated mixing and pumping system saved both time and labor. It was well suited to our construction schedule.”

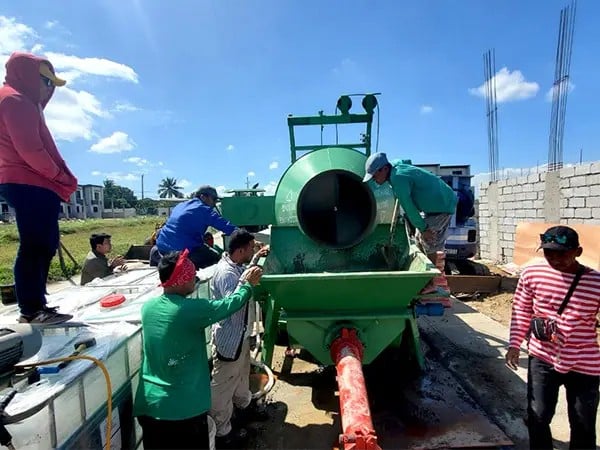

Warehouse Construction Solution | Philippines
- Project Location: Davao, Philippines
- Project Type: warehouse construction
- Recommended Solution: ABJZ40C Mixer Pump
- Concrete Output: 40 m³/h
Challenge:
The warehouse project required continuous concrete placement across a large floor slab. Meanwhile, the contractor wanted to reduce labor costs and avoid repeated manual concrete transportation.
Solution:
After evaluating the project conditions, AIMIX recommended the ABJZ40C 40 m³/h small concrete mixer pumping solution. By integrating concrete mixing and pumping into one continuous workflow, the project maintained a stable concrete supply while reducing manual handling throughout the pouring process.
Result:
- Reduced labor demand by approximately 10 workers
- Minimized concrete waste during transportation
- Saved about 10% of the overall concrete budget
- Improved construction efficiency through continuous pumping
Customer Feedback:
“The integrated pumping solution reduced both labor requirements and material waste. It helped us complete the concrete work more efficiently than expected.”
Slope Protection Solution | Malaysia
- Project Location: Malaysia
- Project Type: Slope Protection Construction
- Recommended Solution: ABJZ40C Mixer Pump
- Concrete Output: 40 m³/h
Challenge:
The project involved concrete placement on a coastal slope where uneven terrain and restricted working space made equipment positioning difficult. Maintaining continuous pumping under these conditions was the primary challenge.
Solution:
AIMIX recommended the ABJZ40C 40 m³/h small concrete mixer pump for sale. Its compact design and flexible pipeline layout allowed the equipment to adapt to the changing terrain and deliver concrete directly to the required locations.
Result:
- Maintained continuous concrete delivery on uneven terrain
- Reduced manual transportation on the slope
- Improved construction safety and efficiency
- Completed the project on schedule despite challenging site conditions
Customer Feedback:
“The pumping system adapted well to the project environment. It delivered concrete smoothly and helped us keep the construction schedule on track.”

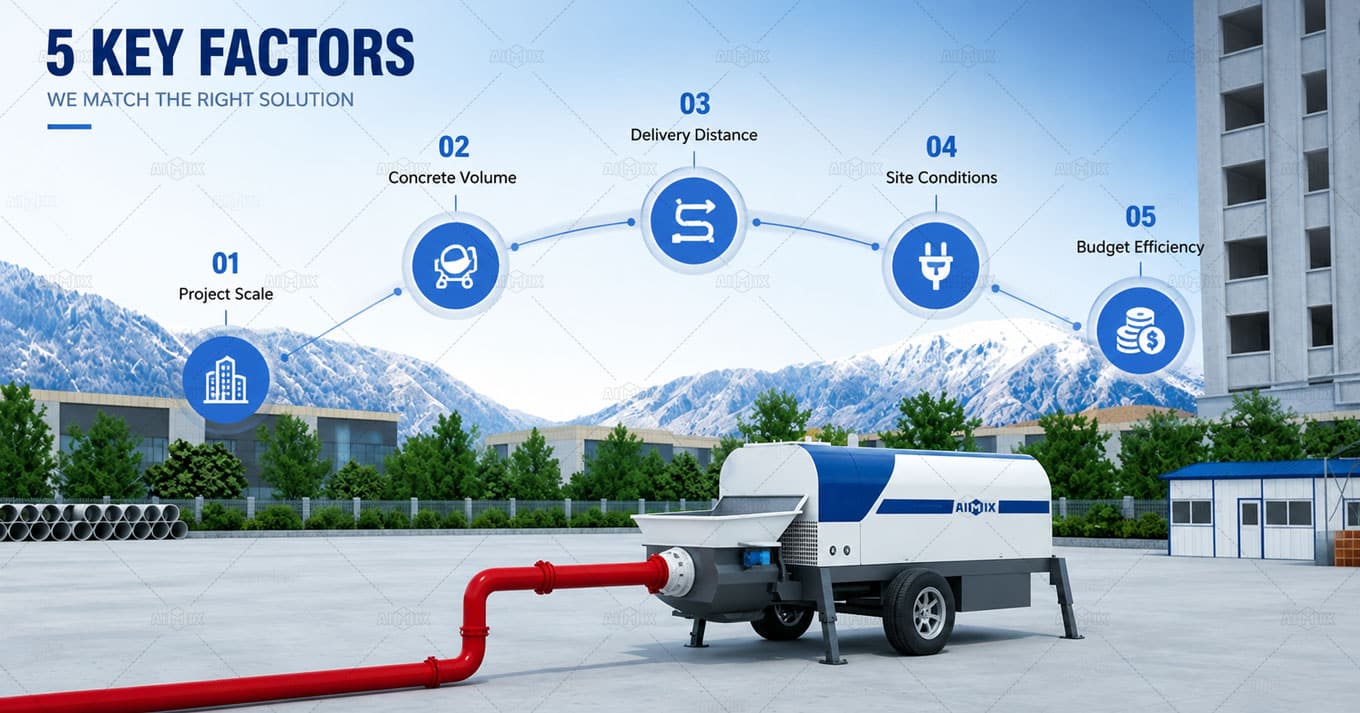

How We Match the Right Small Concrete Pumping Solution to Your Project
Selecting the right small concrete pump solution for sale is not a one-step decision. Instead, it requires a structured evaluation of real construction conditions. At AIMIX, we follow a clear engineering-based process to match each project with the most suitable pumping solution. This ensures both efficiency and construction stability on site.
Understand the Project Size and Structure
We first evaluate the overall scale of the project, including building type and structural requirements. Different project sizes often require different levels of pumping continuity and setup flexibility. For example:
- Small residential structures usually require compact and flexible solutions
- Medium construction projects often need stable and continuous pumping performance
Evaluate Daily Concrete Volume
Next, we analyze how much concrete is required per day and whether the pouring process is continuous or intermittent. This directly affects the required pumping stability.
- Low to medium volume projects → 30–40 m³/h pumping solutions are usually sufficient
- Continuous pouring projects → require stable flow without interruption
Analyze Delivery Distance and Site Layout
After that, assess both horizontal and vertical delivery distance, as well as site layout conditions. These factors determine pipeline configuration and pumping pressure requirements. In real construction projects:
- Short-distance sites require flexible pipeline routing
- Long-distance or vertical delivery requires stable pressure support
Check Power Supply and Site Conditions
We also consider the available power source and working environment on site. Some locations may have limited electricity or unstable power conditions, which affect equipment selection.
Therefore, we match the pumping solution based on:
- Available power supply (electric or diesel options)
- Site accessibility and working space limitations
Consider Budget and Operational Efficiency
Finally, we evaluate project budget and long-term operational efficiency. Instead of recommending the most powerful equipment, we focus on the most cost-balanced pumping solution.
In many cases:
- Right-sized equipment reduces unnecessary cost
- Proper matching improves overall construction efficiency
After analyzing all key factors, we match the project with the most suitable small concrete pump solution for sale. As a result, each recommendation is designed to ensure stable concrete placement and improve jobsite efficiency.
FAQs
How do I know which small concrete pump solution I need??
Concrete delivery distance (horizontal and vertical)
Daily concrete volume and pouring continuity
Site accessibility and working space conditions
Based on these conditions, we match either a small trailer pumping solution or a small mixer pumping solution to ensure stable performance on site.
What determines whether a mixer pump or trailer pump solution is better?
The decision depends mainly on the concrete supply method.
- If there is no ready-mix supply nearby, a mixer pump solution is more suitable
- If ready-mix concrete is available, a trailer pump solution is usually more efficient
This distinction is important because it directly affects workflow efficiency on site.
Can the same pumping solution be used for different types of projects?
In some cases, yes, but it depends on whether project conditions are similar.
For example, a solution designed for residential construction foundation work may also be suitable for small commercial buildings if the pumping distance, volume, and access conditions are comparable.
However, significant changes in site conditions usually require a re-evaluation of the pumping solution.
Is manual concrete handling still necessary when using a pumping solution?
In most cases, no. A small concrete pump for sale is designed to reduce or eliminate manual transportation.
However, in extremely complex sites, limited manual coordination may still be needed for final placement adjustments. The goal is to minimize handling, not completely eliminate site coordination.
What makes small concrete pumping solutions different from large-scale systems?
Small concrete pumping solutions focus more on flexibility and adaptability rather than maximum output.
They are designed to handle:
- Restricted access environments
- Smaller daily concrete volumes
- More variable jobsite conditions
In contrast, large systems are optimized for high-volume continuous production.
Still Not Sure Which Small Concrete Pumping Solution Fits Your Project?
Every construction project has different site conditions, access limitations, and concrete requirements. That is why selecting the right pumping solution is about understanding how your project actually works on site. If you are still unsure which small concrete pump solution is the most suitable, Contact us right now, then AIMIX engineering team can help you analyze your project step by step and recommend a practical solution based on your construction conditions.
