The ready mix concrete pump is a piece of construction equipment designed for pumping and transferring ready-mix concrete unloading from a concrete mixer truck to the desired location on the construction site.
You can choose the ready-mixed concrete pump for construction projects, like houses, buildings, roads, tunnels, bridges, dams, water conservancy, hydropower, and other construction projects. AIMIX has manufactured and exported countless units of ready mix pumps to global customers. First, check their applications.
Board Applications of Ready Mix Concrete Pump
In the construction of high-rise buildings, ready mix concrete pumps are essential for pumping concrete to elevated floors. They can reach great heights ensures a continuous supply of concrete, which is crucial for maintaining construction schedules and avoiding delays.

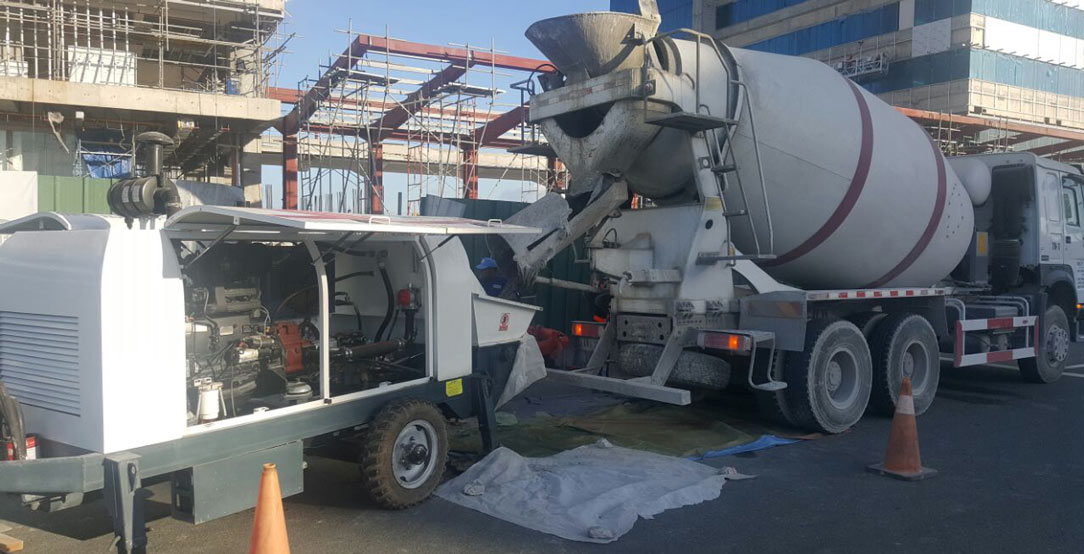

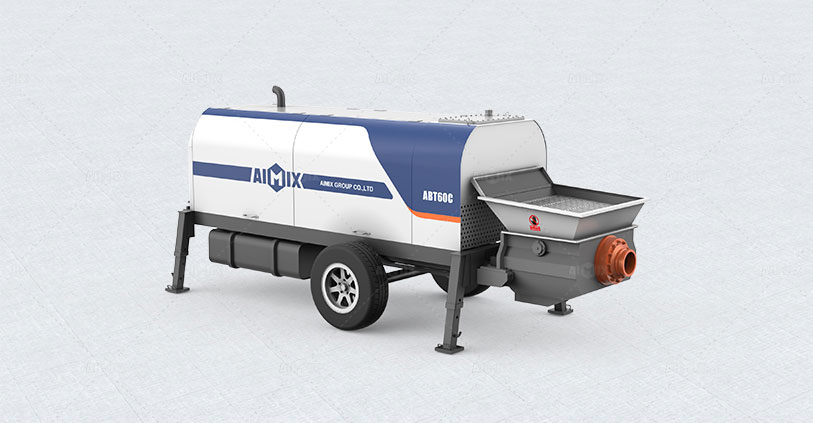

ABT60C Diesel Concrete Pump for Building Construction
- Item: ABT60C diesel concrete pump
- Applications: 6~7 stores buildings in the Philippines
In residential construction, rmc concrete pump is often used to place concrete for foundations. It used for handling different grades of concrete and deliver it precisely into the forms makes it ideal for foundation work.

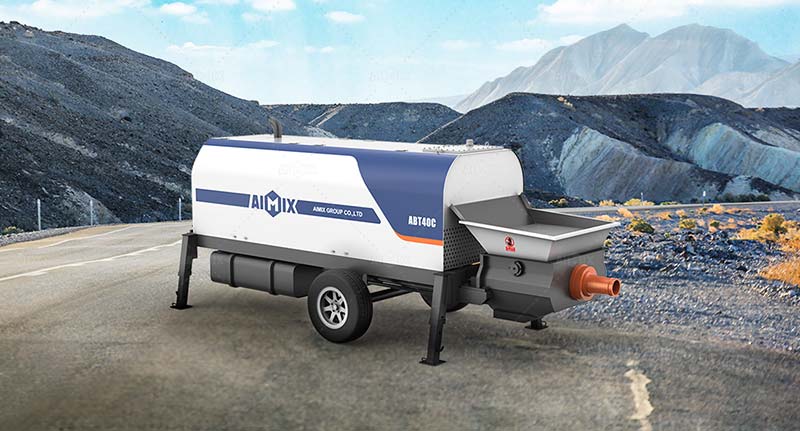

ABT40C Diesel Ready Mix Concrete Pump for Residential Low Rise Building Construction
- Item: ABT40C diesel concrete pump
- Applications: 2~3 stores residential building in Malaysia
When constructing warehouses, pompa ready mix streamlines the process by delivering large volumes of ready-mix concrete directly into the floor area. This helps reduce labor costs and enhances the overall speed of construction.
ABT40C Ready Mix Pump Used for Warehouse Construction
- Item: ABT40C diesel concrete pump
- Applications: warehouse construction in Myanmar
Varieties of Ready Mix Concrete Pumps For Choice – Diesel and Electric
Two primary varieties of ready mix concrete pumps in AIMIX Group include diesel concrete pumps and electric concrete pump pumps. Each of them offers unique advantages. You can choose one according to your specific requirements.

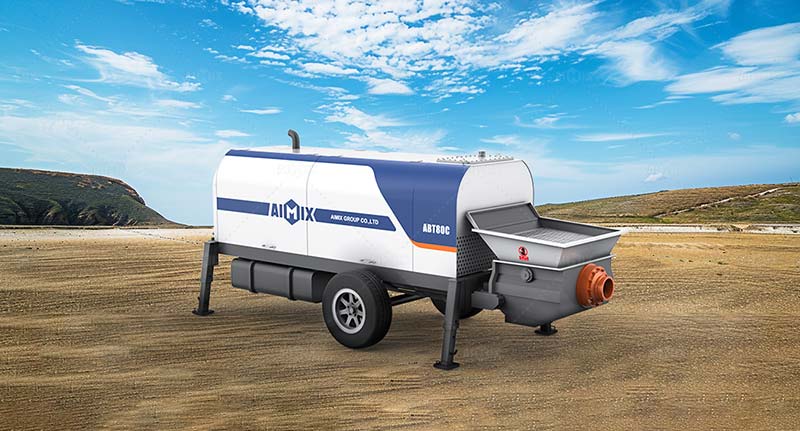

Diesel Ready-Mixed Concrete Pump with Large Fuel Tank
The diesel ready mix concrete pump for sale is known for its robust power. Thus, it is suitable for large-scale projects and challenging terrains. It can handle high volumes of concrete with ease, ensuring that large pours can be completed quickly. Besides, the diesel concrete pumps often come equipped with larger fuel tanks, enabling longer operational hours without the need for frequent refueling.
Here are several capacities for choice, including 40, 60, and 80 cubic meters per hour. Check its specifications below.
Diesel Type Concrete Pump Specification
| Items | Units | ABT40C | ABT60C | ABT80C | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
Electric Ready-Mix Pump with Enough Electricity Supply
The electric concrete pumps rely on a consistent power source. Therefore, it is more appropriate for those projects under the circumstances of enough electricity supply. And it produces zero emissions at the point of use, making it a more environmentally friendly option. This is particularly beneficial for projects in urban settings or areas with strict air quality regulations. Besides, the electric ready mix concrete pumps have lower operating costs compared to diesel ones. They require less maintenance and can be more economical in terms of energy consumption.

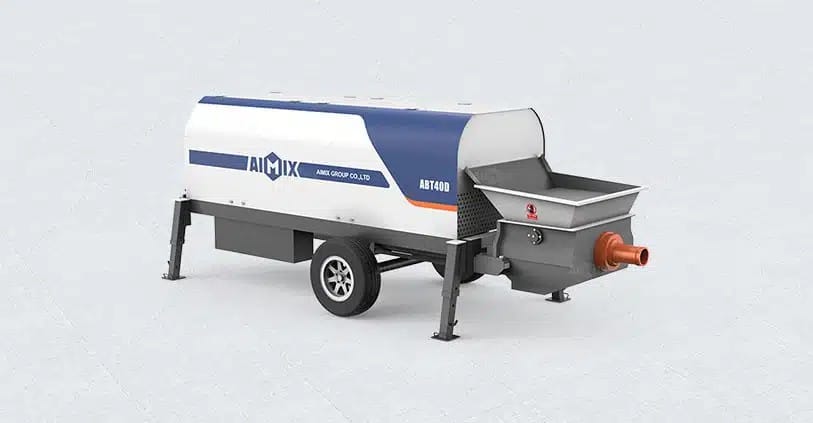

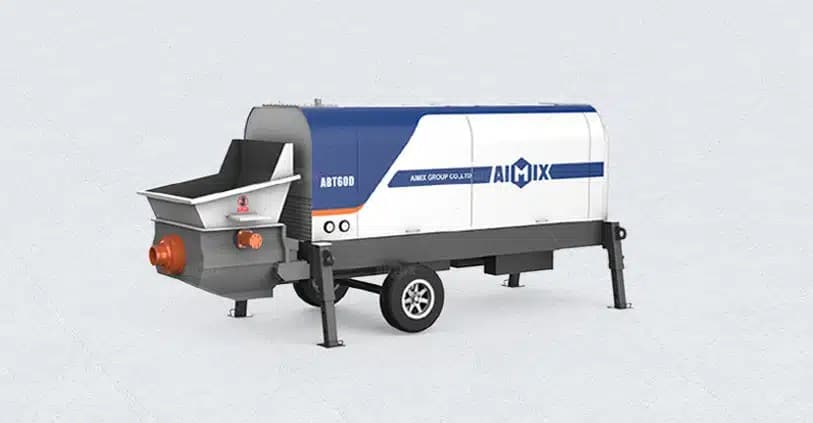

As for electric concrete pump, Aimix has produced some models, corresponding to diesel concrete pump, including ABT40D, ABT60D, and ABT80D.
Electric Type Pump Parameter
| Items | Units | ABT40D | ABT60D | ABT80D | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |
Guidelines for Selecting the Appropriate Ready Mix Pump for Your Project
When it comes to choosing the right ready mix pump for your construction project, a few thoughtful guidelines can make all the difference in ensuring things run smoothly. Here are some key guidelines to consider:
Know Your Project Needs
First, consider how much concrete you’ll need one day or one hour for your projects. It will help you figure out the ready mix pump’s capacity. Besides, it is necessary to think about how far and how high you need to pump the concrete. Different models of ready mix concrete pumps have specific capabilities, so make sure your choice can handle the required reach.
Choose the Right Type of Pump
As for ready mix pumps, there are diesel and electric types. If your projects environment is harsh, it is better to use the diesel type. If your projects need to working more quiet and have enough electricity, the electric ready mix pump is your best choice.
Evaluate Pump Specifications
Check the ready mix concrete with pump near me’s flow rate, usually measured in cubic meters per hour, to ensure it aligns with your project’s pace. For vertical pumping or longer distances, you’ll need a pump with a higher pressure rating. Make sure the static concrete pump can meet these demands without issue.
Budget Considerations
Estimate the cost of buying the concrete pump along with any additional gear like hoses or fittings. Also, don’t forget ongoing costs like fuel, maintenance, and potential downtime that might impact your budget.
Selecting the right concrete pump ready mix type requires careful consideration. By following the above guidelines, hope you choose a pump that will enhance your project’s efficiency and success. If you need professional advice, please consult us for details.
Effective Concrete Solution Boosting Your Project – Concrete Mixer Truck + Ready Mix Pump
As we all know, the concrete pumping machine delivers concrete mixture that comes from concrete mixer truck. Therefore, To effectively manage concrete delivery and placement on construction sites, these equipment combination is often employed.
- Concrete Mixer Truck: The primary role of a concrete mixer truck is to transport mixed concrete from the batching plant to the construction site and unload concrete mixture to concrete pumps.
- RMC pumping machine: The ready mix concrete pump can place concrete in hard-to-reach areas, such as high-rise buildings or tight spaces. It Allows for faster placement than manual methods, reducing labor costs and time.
Systems of Aimix Ready Mix Concrete Pumps
Generally speaking, ready mix pump consists of hydraulic system, electric control system, mechanical system, lubrication system and cooling system.
- 1. Hydraulic system: It is equipped with a single open hydraulic loop. Thus it is convenient to judge and remove the trouble. And then, cone sealing of all pipes makes the pipe joints seal reliably. Thanks to the adoption of emulsification technology of initiative and passivity recovery integration, the function of hydraulic system is more advanced.
- 2. Electric control system: It is time to mention our wire remote, which is easy to operate the ready mix concrete with pump far away. Of course, the element’s reliability is highest.
- 3. Mechanical system: Our spectacles wear plate and cutting ring use high wear materials, this makes the components’ life prolonged greatly.
- 4. Lubrication system:The hydraulic circuit will take high oil into a double distributor and prolong the life of piston and other sealings.
- 5. Cooling system:Because of the radiator equipment, the working oil temperature of hydraulic system is below seventy centigrade, which makes the pompa ready mix in normal status.
Why to Use Aimix Ready Mix Pump
Certificates Obtained
Aimix has gained certificate of quality certification. Thus, we promise to offer high quality concrete pump machine for gloable customers.
Safe operation
The customers can operate the ready mix concrete pump truck with safety. Because of electric control system, it is easy to control the working process through controlling panel and device.
Competitive Ready Mix Concrete Pump Price
Compared with other manufacturers, Aimix concrete pump manufacturer can provide competitive concrete pump price, affordable and accpetable. It is very worthwhile for customers to choose Aimix machine. In addition, it can get quick returns in 6 month.
Considerate after-sales service
Serving customers wholeheartedly is our aim. Therefore, Aimix has created a one-stop service platform to serve global customers. You can check the service description below.
Well Services Provided by Aimix
Choosing Aimix not only makes you get a quality concrete pump but also lets you enjoy nice services from the beginning of our cooperation. We have a complete service system. Service ranges from pre-sales to after-sales.
Pre-sales Service
When you find us online, the service begins. After you send us an inquiry, later our sale will proactively contact you. During communication, our sales would be always online and patient to answer your questions till you make confirmation of your choices. If you are skeptical about our products, it doesn’t matter. If possible, you can come to China to visit our factories and ready mix concrete and pump. In this way, we can also communicate with each other face to face. If you can’t come to visit, you can choose to visit the ready mix concrete pump truck working sites closest to you.
On-sales Service
After making orders in Aimix, we began to manufacture the ready mix pump truck. While the process of production, we will inform you of the production status regularly. With Strict quality control and standard management, we can totally ensure the quality and delivery date of concrete pumps. What’s more, we also deliver free pipes to you, which match the machine perfectly.
After-sales service
After selling, we would like to offer you free training. On one hand, you can learn some basic knowledge from our official website. On the other hand, our after-sales service department will provide extra training on how to judge and fix the working failures. It is our pleasure to help you prolong the life of the concrete pump.
Therefore, you don’t be worried about the issue of service. If you want to find ready mix concrete delivery and pumping near me, welcome to contact AIMIX for mobil pompa readymix details! Email: market11@aimixgroup.com. Then our sales will reply to you as soon as possible!
