Truck Mounted Concrete Pumps

Truck mounted concrete pumps are those pumps that have a truck for their chassis part as their name implies. It is used for pumping concrete to certain construction sites, such as buildings, bridges, harbors, tunnels, and so on. Due to being mounted on trucks, it can realize quick transportation among different construction sites. Moreover, it has a reasonable layout and compact design, which has won lots of customers’ favorite. More importantly, clients can invest in one with considerable returns.

Boom Concrete Pump Machine in AIMIX

Three Kinds of Truck Mounted Concrete Pumps for Choices

In AIMIX Group, there are three kinds of truck mounted pumps for sale, including truck mounted line pump, truck mounted mixer pump, and truck-mounted boom pump for sale.

  • Truck mounted line pump has combined excellent trailer concrete pump machine mechanism with high-quality chassis together;
  • The boom pump truck mounted is equipped with a concrete pumping machine and long booms for operation;
  • Truck mounted concrete mixer pump has equipped with the JS series twin shaft concrete mixer and concrete pumping machine.

You can check three different kinds of truck mounted pumps below. I would introduce them with details one by one.

Truck Mounted Concrete Boom Pump

  • Truck-mounted concrete pumps have a hydraulic boom that can extend vertically and horizontally, allowing concrete to be pumped to precise locations.
  • The truck-mounted concrete pumps are best suited for large-scale construction projects that require precise placement of concrete, such as high-rise buildings, bridges, and tunnels.
  • Boom pumps are also ideal for pouring concrete in hard-to-reach areas. They can reach high or faraway locations with ease, saving time and labor costs.
  • In AIMIX, there are different capacities for choices, like 26m, 30m, 33m, 38m, 40m, 47m, 50m, and 58m. Clients can choose the boom pumps for their projects.

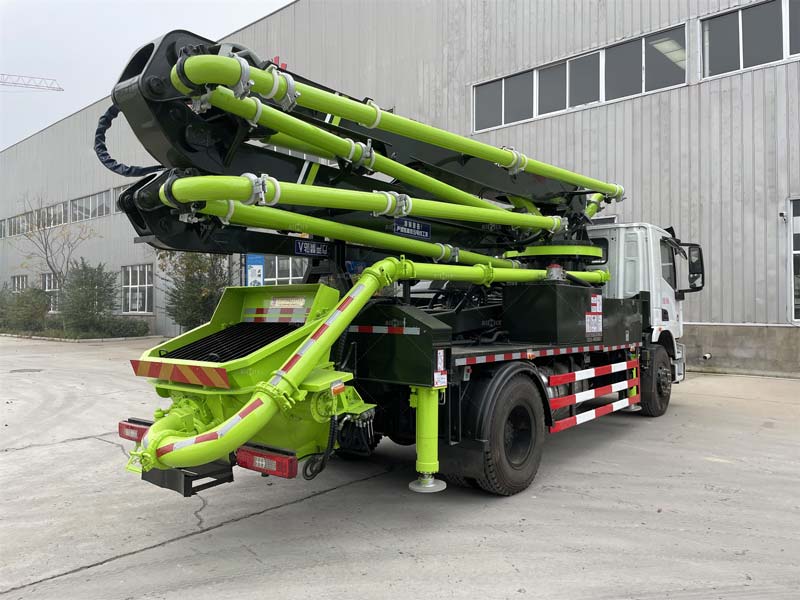

26m boom pump for sale

26m Boom Pump

Capacity: 120(m3/h)
  • Boom Vertical Height: 26m
  • Boom Horizontal Length: 21.6m
  • Boom Vertical Depth: 10.5m
  • Turntable Rotation Angle: ±360
  • Pumping System Oil Pressure: 31.5MPa

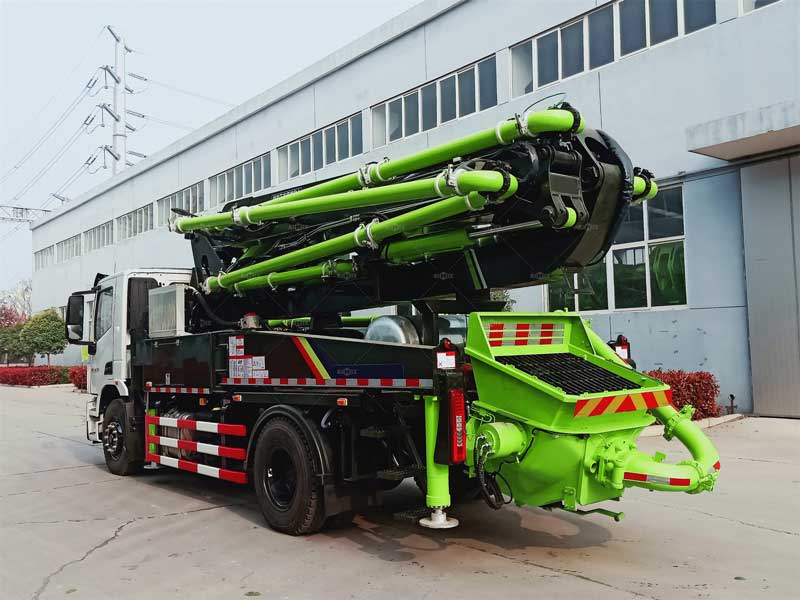

30m boom concrete pump for sale

30m Concrete Pump Truck

Capacity: 120(m3/h)
  • Boom Vertical Height: 30m
  • Boom Horizontal Length: 26.6m
  • Boom Vertical Depth: 20m
  • Aggregate Size: 40mm
  • Delivery Pipe Inner Diameter: 125mm

42M Boom Pressure Concrete Pump for Sale

42M Boom Pressure Concrete Pump

Rotation Angle: ±360
  • Boom Vertical Height: 41.1m
  • Boom Horizontal Length: 36.3m
  • Boom Vertical Depth: 24.6m
  • Aggregate Size: 40mm
  • Delivery Pipe Inner Diameter: 125mm

50m Boom Pump Truck for Sale

50m Boom Pump Truck

Capacity: 163/97(m3/h)
  • Boom Vertical Height: 50m
  • Boom Horizontal Length: 46m
  • Boom Vertical Depth: 36.5m
  • Feeding height: 1450mm
  • Drive Mode: 6×4

Truck Mounted Concrete Mixer Pump

  • Actually, the truck mounted concrete mixer pump is divided into two types in AIMIX Group. One is truck mounted concrete mixer with pump, the other one is truck mounted concrete mixer pump with boom.
  • Both of them are equipped with JS twin shaft concrete mixer to ensure efficient concrete mixture mixing.
  • The main difference exists in whether there is a long boom mounted on the truck. The one with boom is more suitable for large-scale construction projects, like high-rise buildings, bridges, tunnels, etc. It has different capacities for choices: 33m, 38m, 40m, 42m, and 45m.
  • And the truck mounted concrete mixer with pump for sale is with small capacity that is suitable for foundation work, houses, and low-rise buildings construction in rural and urban areas.

Truck Mounted Concrete Mixer Pump with Boom
Truck Mounted Concrete Mixer Pump with Boom
vs gray
Truck Mounted Concrete Mixer Pump
Truck Mounted Concrete Mixer Pump

Features of Truck Mounted Concrete Mixer Pump

    1. High core configuration. 90% of imported components are configured. The main oil pump adopts the Korean Kawasaki series, Simems/Sanling/Omron Electric components, etc. The truck mounted concrete pump core components are all international and domestic famous brands, with high standards, good quality, mature and stable systems, and high-cost performance.

    2. Safe and reliable. With long-life wear-resistant duct technology, the circuit uses an integrated wiring harness, fewer fault points, high reliability, a dedicated pump truck controller, reliable operation, and high maintainability; using the new national four engine, up to 95% of the suction; Large-diameter hydraulic control system, reducing energy consumption to a minimum, energy saving and environmental protection

    3. Preferred brand. The maintenance cost of the concrete pump truck mounted is small, high quality, quick return, and trustworthy.

    4. Convenient. This truck mounted concrete pump for sale is easy to move and can be driven to different places. After the lorry mounted concrete pump arrives, no need for installation, you can adjust the pipe according to your requirements.

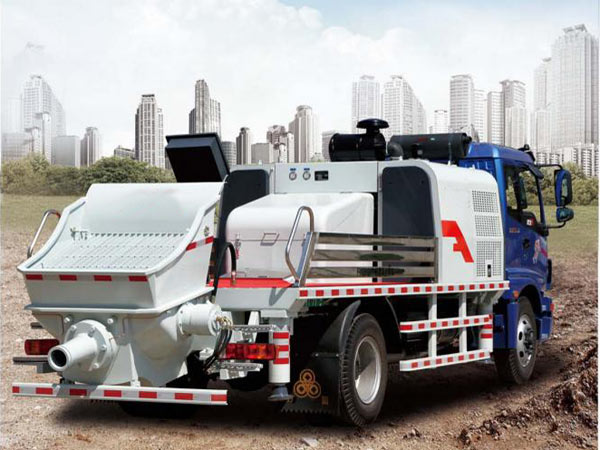

Truck Mounted Concrete Line Pumps

  • Truck mounted line pumps for sale have a flexible hose that can be extended to deliver concrete to a variety of locations.
  • They are suitable for small to medium-sized construction projects, such as residential buildings, and can be used to pour concrete into slabs and foundations.
  • In AIMIX, the line pump capacities have wide ranges from 30 m3/h to 90 m3/h, like 30, 40, 60, 80, and 90 m3/h. Customers need to select the truck mounted concrete line pump for sale according to the scale of construction projects.

Truck-mounted Concrete Pumps
Aimix Truck-mounted Concrete Pumps
Truck-mounted Concrete Pumps in Aimix

Working Videos of Truck Mounted Pumps On-site

26m Boom Concrete Pump Truck Working for House Construction

36m Truck Mounted Boom Concrete Pump for Building Construction


Leading Configurations Of Aimix Truck Mounted Concrete Pump

  • 1. Power system: adopting different brands of diesel engines, like Deutz, Wechai, Yuchai, Cummins brand, etc.
  • 2. Main oil pump: truck-mounted concrete pump uses Rexroth / Japan Kawasaki series. The variable plunger pump is used to ensure the smooth operation and reliability of the system. Moreover, it has an overpressure overflow function, which can effectively protect the main pump and the diesel engine.
  • 3. Chassis: chassis with domestic leading quality for a long period of time, with advantages of mature and reliable / strong power / comfortable driving / perfect maintenance network / excellent performance / cheap price, etc. In addition, it can reach the national emission standard.
  • 4. High suction technology: The optimized inner wall of the hopper is smooth and has no accumulation of material. With the smooth transition of the S tube and the precise blade angle, it is easier to suck the maximum limit of the concrete into the concrete cylinder, which can improve the suction efficiency by about above 90%.
  • Truck-mounted Concrete Pumps Components

  • 5. Hydraulic hose joint: The hydraulic hose joint adopts American Eaton brand products to ensure the safety of the hydraulic system and no leakage.
  • 6. Radiator: The radiator uses a plate-fin air-cooled radiator to ensure that the system works at the highest temperature allowed.
  • 7. S valve: S valve is made of high manganese steel as a whole, and the wear-resistant surface is welded with anti-wear material.
  • 8. Glasses plate, cutting ring: made of durable hard alloy inlay to improve service life.
  • 9. Piston: The piston is precision-processed from imported materials. Therefore, it has excellent quality hydrolysis resistance, wear resistance, and high-temperature resistance. Highly modular and standardized, which greatly saves the preparation time for repair and replacement parts. Eyeglasses adopt built-in installation, large maintenance space, and easy replacement.
  • 10. Lubrication system: The lubrication system of truck mounted concrete pumps for sale uses automatic multi-point lubrication technology, and one-to-one lubrication with better effect, which can effectively extend the service life of wearing parts.
  • 11. Electrical part: The electrical part of truck mounted pump adopts Schneider components to improve the reliability of the electrical control system.
  • 12. Automatic protection technology: Diesel engine start protection; electrical system fault and short circuit protection; diesel engine water temperature is too high and oil pressure is too low automatic protection; diesel engine speed limit protection; emergency stop button.

Quality And Service Assurance for Truck Mounted Pump

Quality Assurance

1. We have focused on concrete pump manufacturing for decades. As one of the professional truck mounted concrete pump manufacturers in China, we have accumulated over 30 years of experience to ensure its quality.

AIMIX Concrete Pump Factory
AIMIX Concrete Pump Factory

2. There is a large technical engineering team and a large manufacturing factory in China. We would upgrade the equipment to meet customers’ demands.

3. AIMIX truck mounted concrete pump company has obtained CE and ISO certificates to guarantee the quality of truck mounted pumps for sale.

Concrete Pump CE certificate

Service Assurance

1. Aimix Group has a high-quality after-sales service team with excellent technology, is well-equipped, honest, and trustworthy, and can escort your equipment anytime and anywhere.

2. Multi-level, multi-mode, and high-efficiency service training has continuously improved the skills of the service team and made every service engineer an industry technical expert.

3. Besides, pre-sale, in-sale and after-sale provide you with quality services in an all-around way, providing you with a convenient and fast “one-stop” overall solution and an effective saving system to protect your equipment from worry-free use and maximizing the cost of your savings.

Aimix Concrete Pump Service

If you intend to buy a concrete pump truck mounted and want to get the truck mounted concrete pump price, welcome to contact us without hesitation. Contact us via the following inquiry form, email, tel, and WhatsApp. Later our sale will reply to you soonest!
