Nowadays, the self loading concrete mixer is gaining increasing popularity in the market. With the rapid development of infrastructure construction, the self loading concrete mixer for sale has become the primary choice of small volume concrete production solution for the global users.
If you are in the field of construction, never miss the useful self loading mixer. First, let me intoduce you about it briefly.
What is Self Loading Concrete Mixer?
The concrete self loading mixer is equipment used in the construction sites to mix and transport the concrete mixture. It is equipped with a mixing drum that can blend the ingredients cement sand, gravel, and water into a homogenous mixture. It has has main functions as follws:
- Self Loading: It can automatically load the raw materials needed for the concrete mix through bucket.
- Self Batching & Weighing: It can measure and mix the correct proportions of materials, ensuring consistency and quality in the produced concrete mixture.
- Self Mixing: The mixer drum blends the materials thoroughly.
- Transporting: It can move to different locations on the construction site, delivering the mixed concrete exactly where it’s needed.
Therefore, the self loading cement mixer for sale has integrated the functions of self loading, weighing, mixing, discharging, and transporting concrete mixture into one. Essentially, it has replaced three pieces of equipment: wheel loader, concrete mixer, and concrete truck. Functionally, it can also be regarded as a mini mobile concrete batching plant. With its convenient and portable features, it is well-received by global customers. Next, let’s explore hottest models of self loading mobile concrete mixers in AIMIX Group.

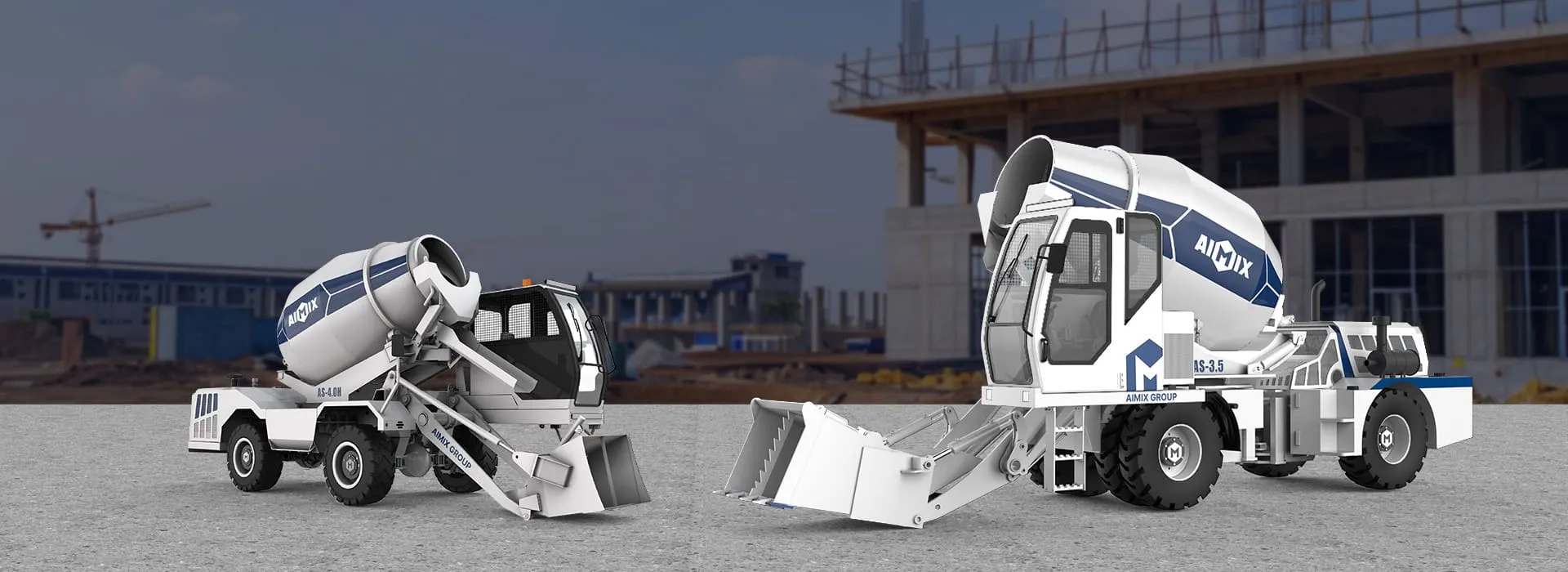

Various Models of Self Loading Concrete Mixers Available
AIMIX classifies its self-loading mixer trucks into 6 different models based on their production capacities. These models include AS-1.2, AS-1.8, AS-2.6, AS-3.5, AS-4.0, AS-5.5, and AS-6.5. Accodringly, their capacities are 4.8, 7.2, 10.4, 14, 16, 22, and 24 m3/h. Here is an explaintion of self loading concrete mixer capacity and model as follows:
Taking the AS-3.5 model for example,
AS-3.5: The 3.5 m3 refers to the volume of concrete produced in one batch, which is 3.5 m3 per batch. Generally, at a normal working pace, it can produce approximately 4 batches per hour. Therefore, the output of AS-3.5 is roughly 14 cubic meters per hour.

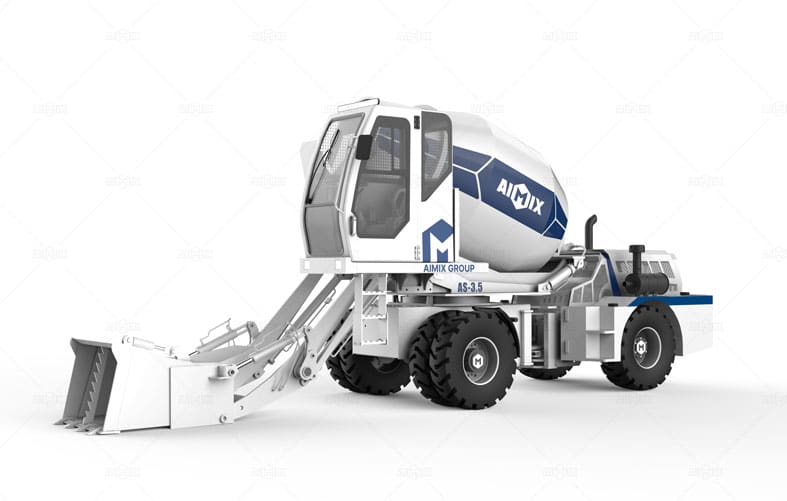

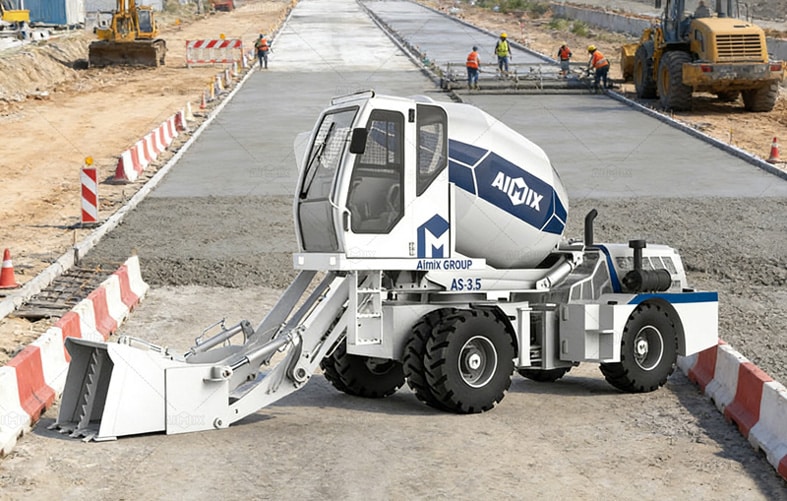

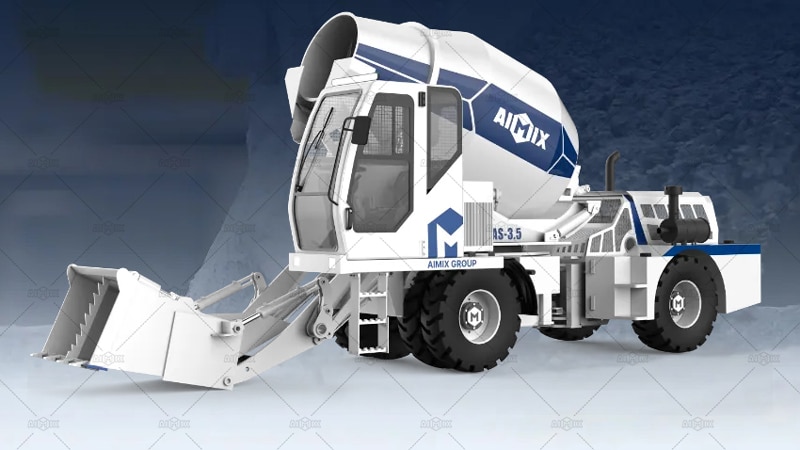

Hottest Models – AS-3.5 and AS-4.0

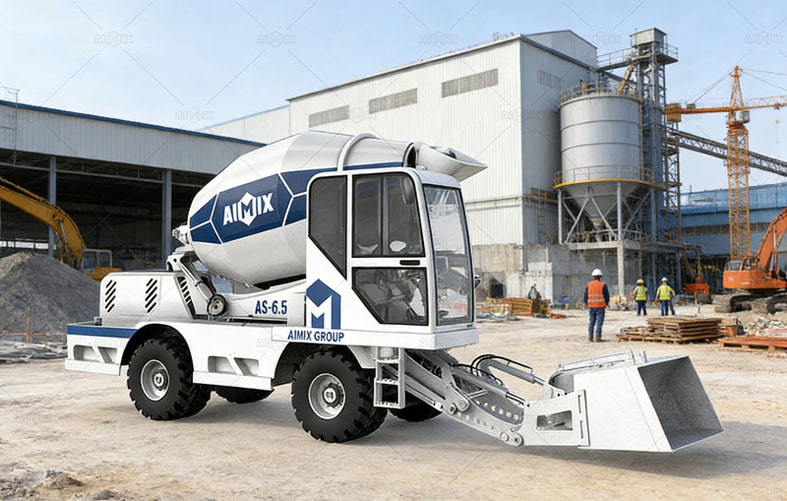

Other Models – Also Excellent Options
Model | AS-6.5 | AS-5.5 | AS-4.0 | AS-3.5 | AS-2.6 | AS-1.8 | AS-1.2 |
---|---|---|---|---|---|---|---|
Overall size (L*W*H) | 8450x3050x4830 | 8450×3100×4580 | 7640×2870×4750 | 7830×2680×4170 | 7860×2750×4100 | 7300×2650×3750 | 6400x2550x3300 |
Wheel base(mm) | 2850 | 3350 | 2480 | 2900 | 2800 | 2600 | 2300 |
Total weight (Kg) | 12520 | 11500 | 9200 | 7900 | 7100 | 6100 | 5000 |
Max. Speed (km/h) | 40 | 42 | 35 | 30 | 30 | 30 | 30 |
Max. gradeability (%) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Min. turning radius (mm) | 4800 | 6200 | 4800 | 5300 | 5300 | 5300 | 4700 |
Min. ground clearance (mm) | 350 | 380 | 330 | 380 | 380 | 380 | 280 |
Engine power (kw) | 92 | 92 | 91 | 91 | 78 | 78 | 55 |
Fuel tank (L) | 370 | 180 | 120 | 120 | 75 | 63 | 63 |
Hydraulic tank (L) | 278 | 180 | 120 | 120 | 75 | 63 | 63 |
Oil tank (L) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Water tank (L) | 1465 | 840 | 920 | 620 | 500 | 400 | 400 |
Water supply | Time relay | ||||||
Weighitng method | Automatic hydraulic weighing system | ||||||
Mixer drum capacity (L) | 9000 | 7800 | 6000 | 4740 | 3580 | 2680 | 1700 |
Drum speed (r/min) | 16.5 | 20 | 17 | 13-20 | 13 | 13 | 13 |
Typical Construction Fields for Self Mixing Concrete Trucks
The ability of self loading mixer truck to mix and transport concrete on-site makes it invaluable across a range of projects. From residential and commercial buildings to roadworks and industrial sites, the self loading mixers are adapted to meet the diverse needs of various construction fields.
In general, the self loading concrete mixer has been widely applied in these industries, including civilian construction building, road&bridag construction, and precast concrete elements production. Here I will explain its application with the case of AIMIX self loading concrete mixer machine.
The self loading transit mixer has greatly boosted civilian construction. It is ideal for tight urban sites and residential projects. Here are some projects it can be applicable:
- Low-story building construction
- Residential housing developments
- Commercial and retail building projects (shopping mall, hotel)
- Institutional buildings (schools, hospitals, government facilities)
- Industrial facilities (manufacturing plants, warehouses)
Self Loading Concrete Truck Mixer For Foundation Work

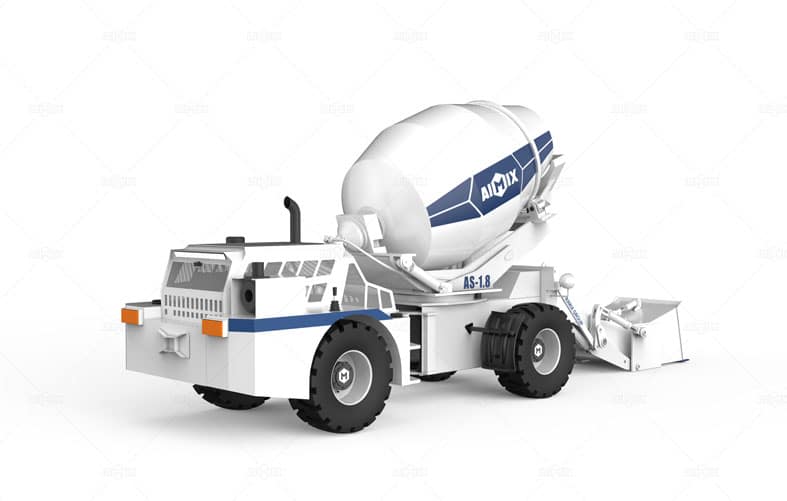

- Model: AS-1.8
- Project: Substation Foundation
- Place: The Philippines
Self Loading Mobile Concrete Mixture For Factory Construction
- Model: AS-3.5
- Project: Factory Building
- Place: In Indonesia

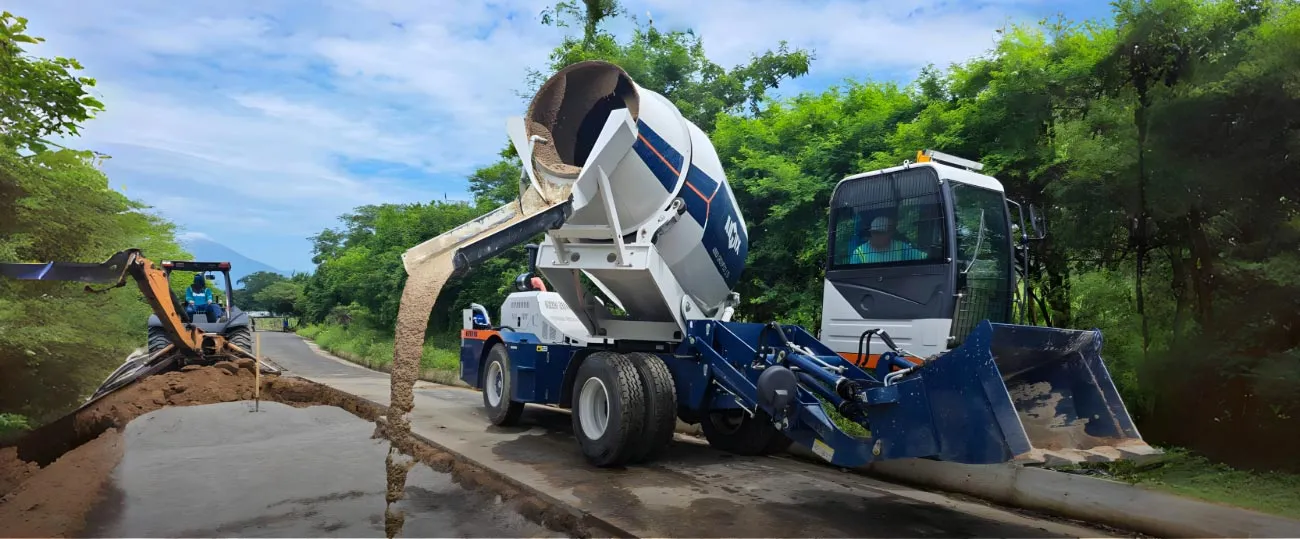

The self loading mixers power road construction by efficiently mixing and delivering concrete directly to the site. It can easily access to various terrains, speeding up the paving process. It provides efficient concrete road solution for these projects:
- Road resurfacing and rehabilitation
- Highway and expressway projects
- Parking lot and driveway paving
- Curb and sidewalk installation
- Rural and urban street repairs
Concrete Mixer Loader For Concrete Road Construction in Rural Area
- Model: AS-3.5
- Project: Road Construction
- Place: Jambi, Indonesia

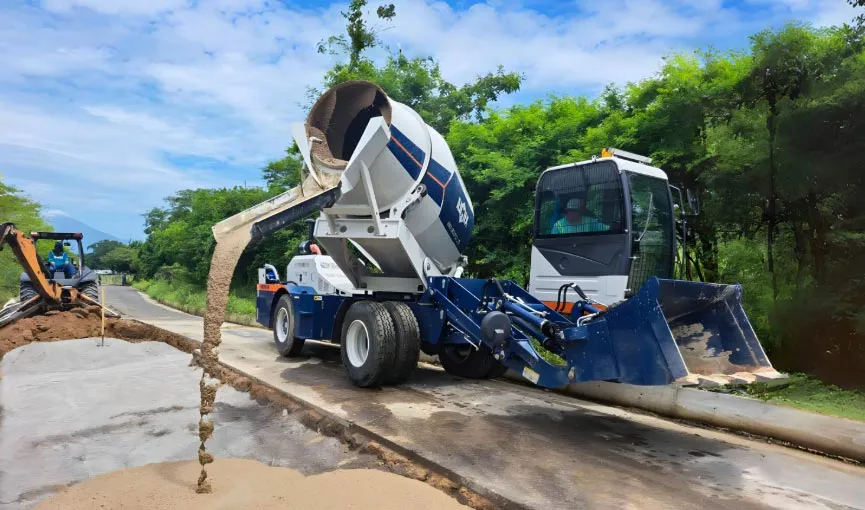

Self Loading Truck Mixer Used For Concrete Road Widden Project
- Model: AS-4.0
- Project: Road Widden
- Place: El Salvador
Auto Loading Concrete Mixer For Road Construction
- Model: AS-2.6 and AS-3.5
- Project: Road Construction in Moroccan Desert
The key application of concrete mixer truck self loading in the precast concrete elements production field is to ensure a consistent and high-quality supply of concrete for the casting of various precast components, such as beams, columns, slabs, and panels. Its application fields are as follows:
- Precast paving stones and curbstones
- Precast small utility structures (such as small manholes, water collection tanks)
- Small building precast panels and interior walls
- Precast retaining walls and noise barriers

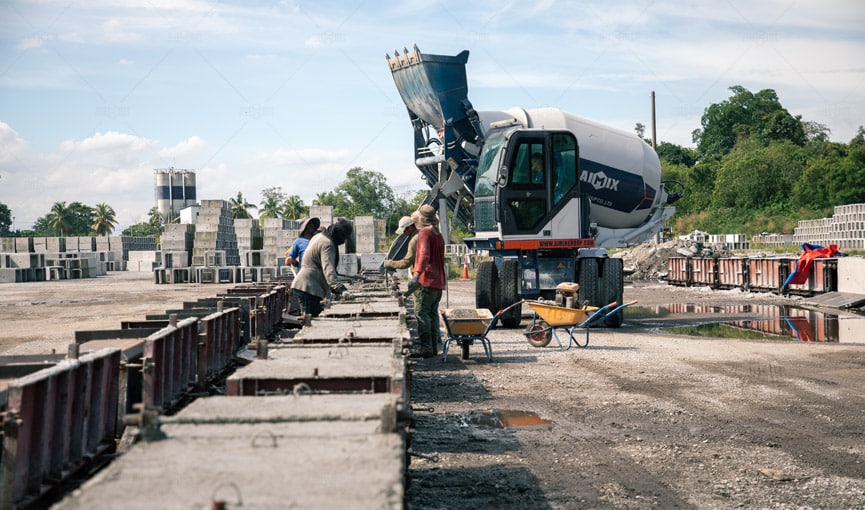

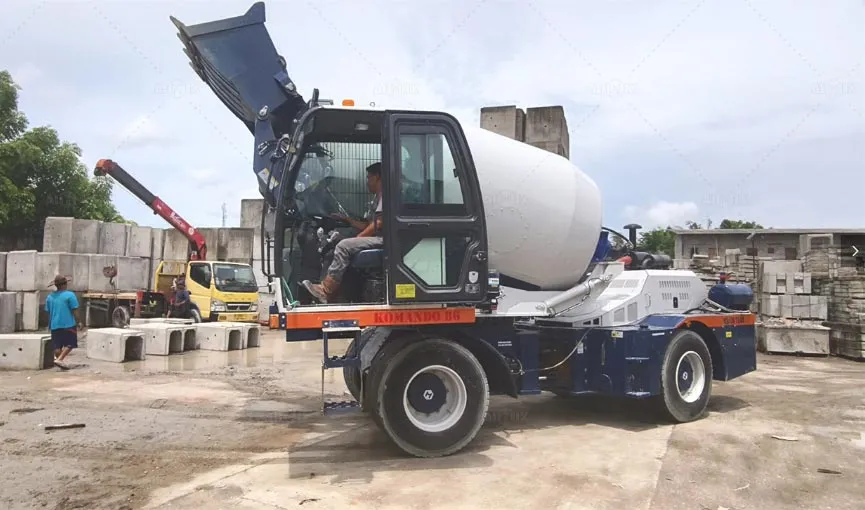

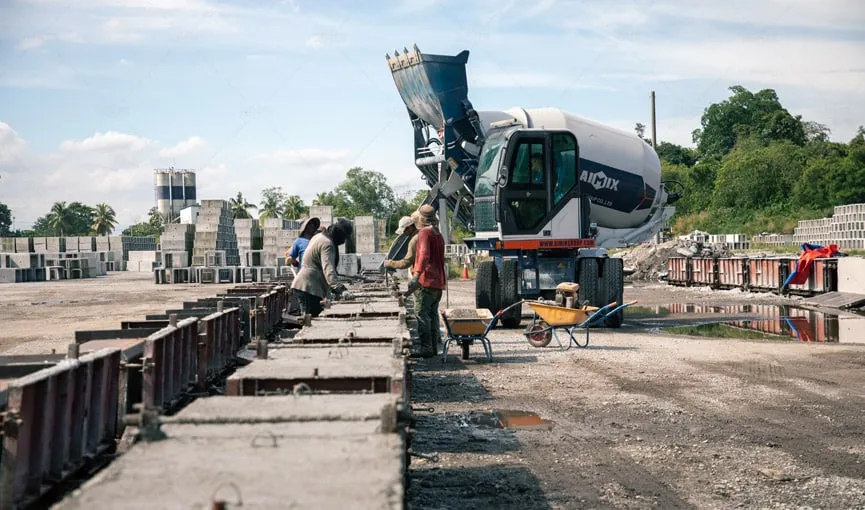

Mixer Beton Self Loading For Precast Concrete Elements Production
- Model: AS-4.0
- Project: Precast Concrete Elements in Indonesia

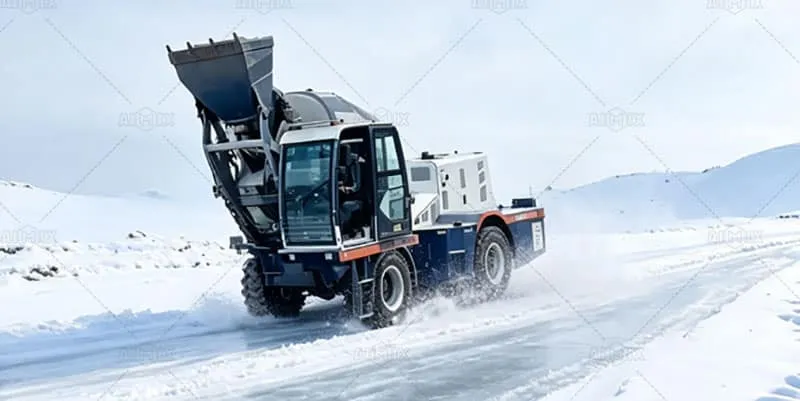

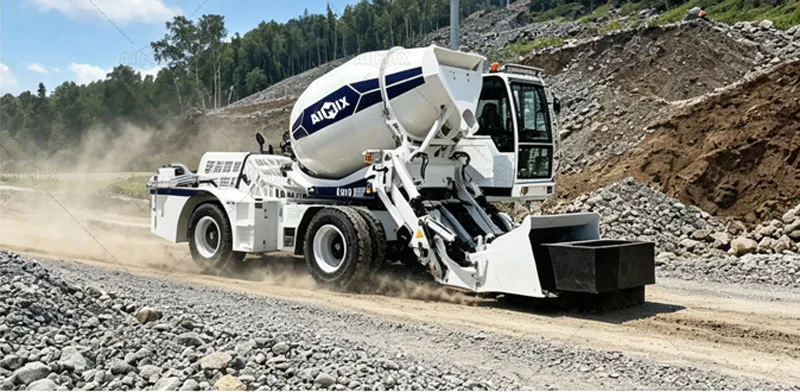

The self loading rough terrain concrete mixers shine in the above industries. Their main function is concrete production and transportation. However, for some projects, how to transport concrete to the final location where construction is required after arriving at the site is another problem. In this case, you may need another equipment – concrete pumping machine. Next, I will demonstrate how both combined equipment can power construction projects..

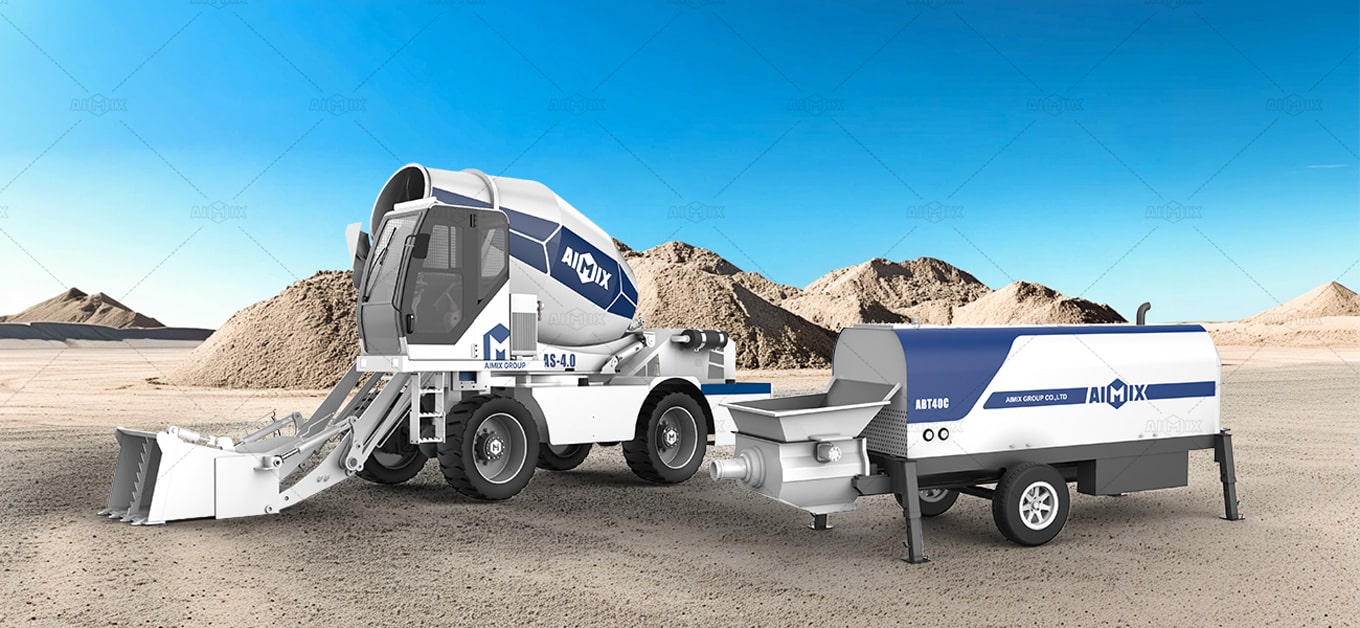

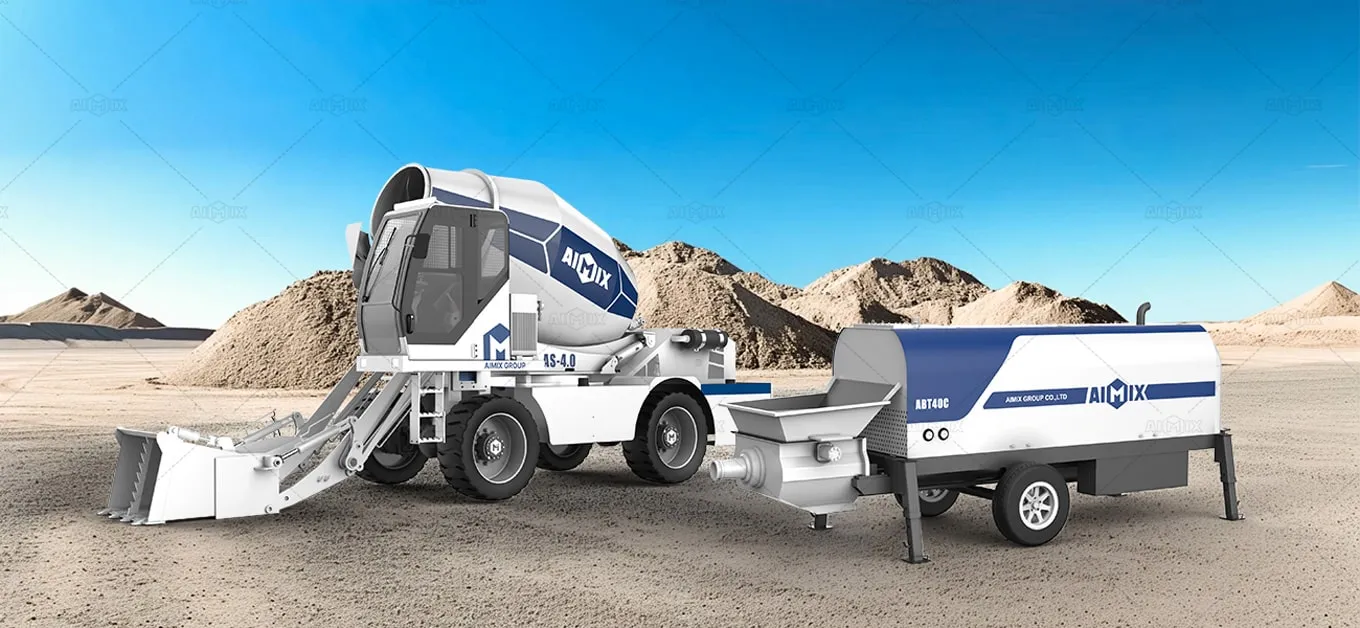

Concrete Mix & Pump Solutions for Projects – Self Loading Concrete Mixer and Concrete Pump
Th self loading concrete transit mixer and concrete pump is suitable for on-site concrete pouring and pumping projects. It is capable of mixing, transporting, and pumping concrete mixture, offering a flexible and efficient solution for various kinds of projects.
Based on the project needs of different customers, we have launched several model combinations for selection. Model matching includes: AS-3.5+ ABT40C, AS-4.0+ABT60C, AS-2.6+ABT40C, AS-5.5+ABT60C, etc. These collaborations clients used all worked well on-site. Here are some videos feedback from clients for reference.

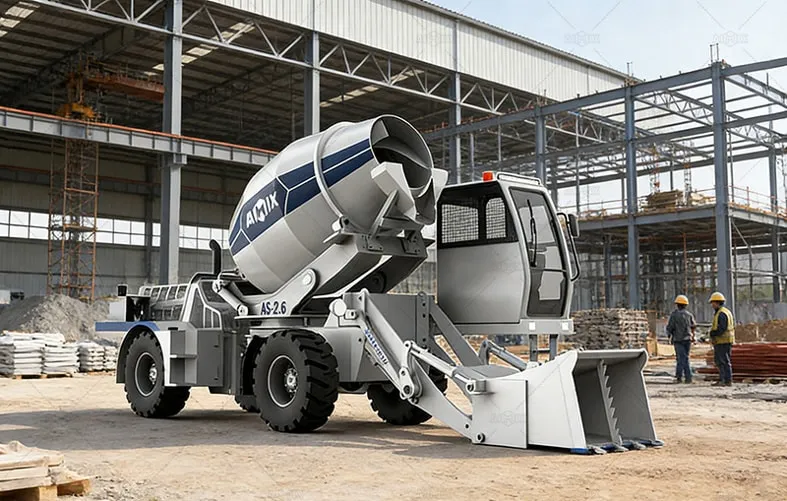

AS-2.6 Self Loader Mixer + ABT40C Diesel Concrete Pump for Building Construction
- Capacity: 10.4 m3/h of self loader concrete mixer and 40 m3/h small concrete pump
- Introduction: The initial requirement from the customer was to purchase a simple mobile batching plant and a concrete pump. The compact mobile concrete plant for sale could address the need for on-the-spot concrete production and could be easily relocated along with project sites. However, the customer came across promotional posters for our combination solution on the website, which piqued his interest. After our introduction, the customer found this integrated solution to be the most optimal. Furthermore, opting for the combination solution appeared to be a cost-saving measure compared to purchasing a mobile batching plant and a concrete pump separately.

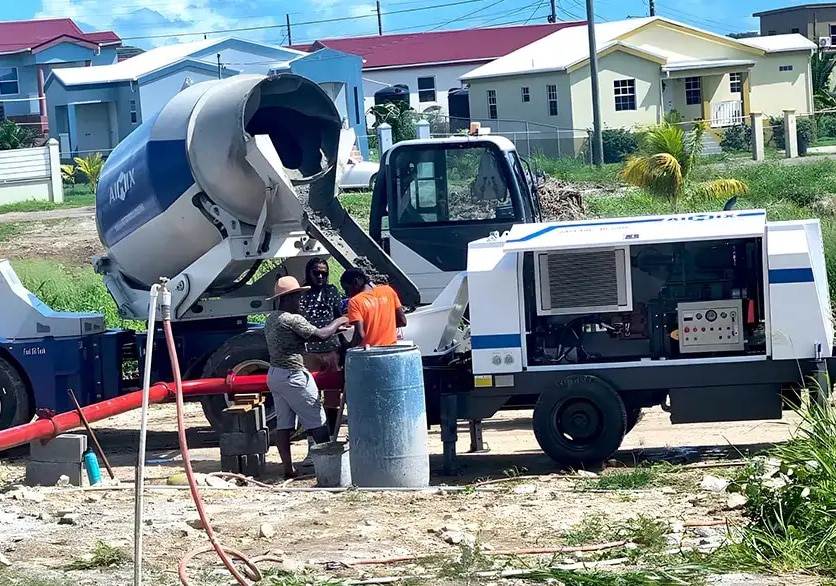

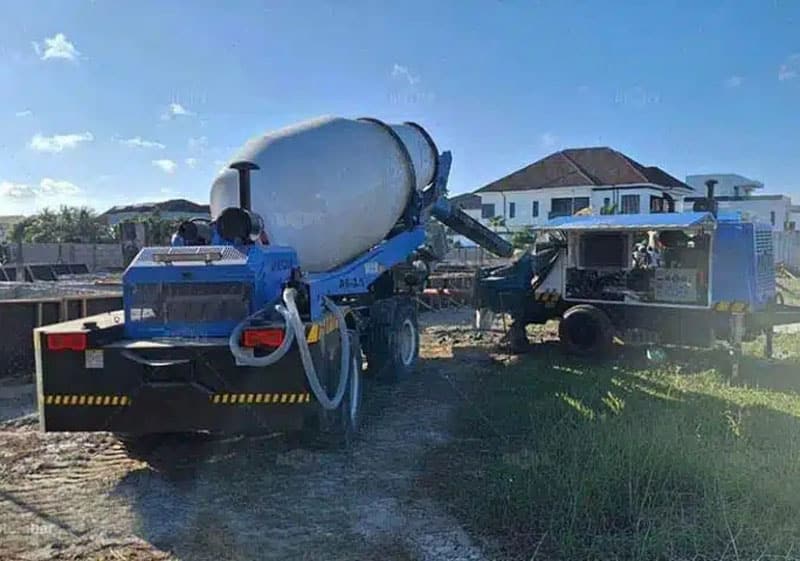

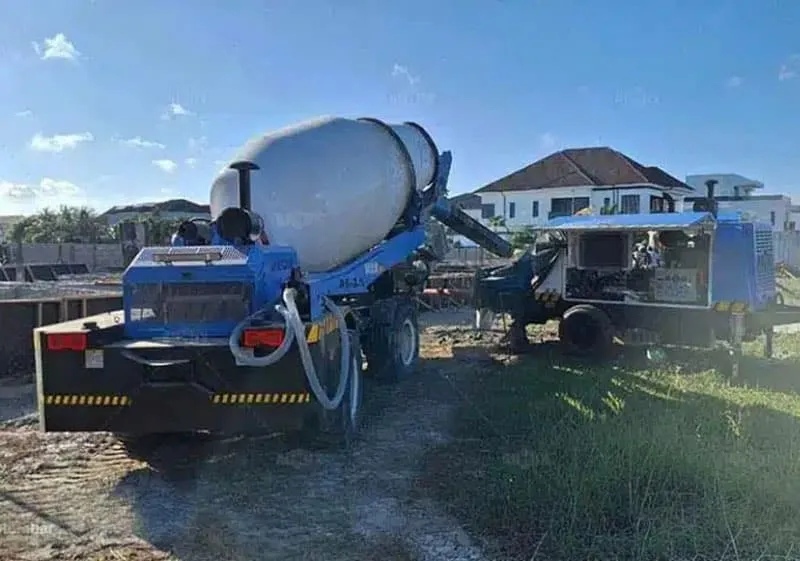

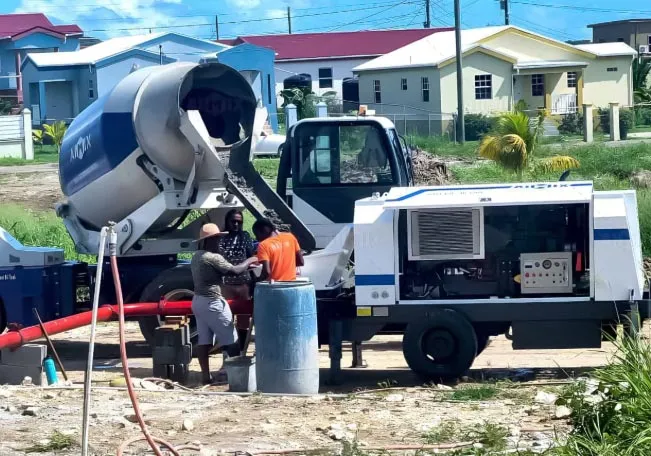

AS-3.5 + ABT40C Self Loading Concrete Mixer with Pump for House Construction
- Capacity: 14 m3/h of self loading mixer and 40 m3/h portable concrete pump
- Introduction: AIMIX sales team came to visit customers in Indonesia. At the construction site, our sales have checked the working status of the equipment. The customer was satisfied with the self loading concrete mixer with pump and thumped up our considerate after-sales service. Then the sales team taught him how to maintain the self loading concrete mixer machine to prolong its service life. Here is the video that was taken at the construction site.

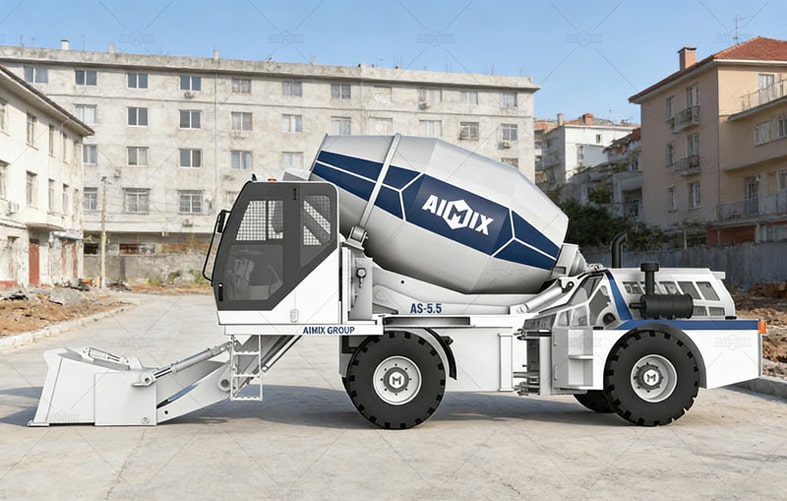

AS-5.5 Self Loading Mixer + ABT60C Concrete Pump Used Foundation Construction
- Capacity: 22 m3/h of self loading mixer and 60 cubic meters per hour of line pumpcrete
- Power: powered by diesel engines
- Introduction: Initially, the customer expressed a keen interest in the self loading truck mixer after witnessing its performance on-site. He believed it was well-suited for his infrastructure projects. Consequently, we provided him with a quote for the AS-5.5 model. However, the challenge was how to transport the mixture to the construction site. Fortunately, we had just introduced collaborative engineering machinery that could address his concerns. He heeded our advice and ultimately purchased the self loading concrete mixer with pump.
According to the commonly used combinations mentioned above, it is evident that the preferred concrete pump choices for the combination are the 40 and 60 models. Here, I will briefly introduce them.
ABT40C and ABT60C – Preferred Concrete Pump Models in Integrated Concrete Solution
The concrete pump machine plays an indispensable and crucial role in engineering machinery collaboration due to its powerful pumping capabilities. It can transport the mixture to the desired location through pipelines. ABT40C and ABT60C are all diesel concrete pumps, which are favored by clients. Checking their pumping ability below:
- ABT40C: 120m Vertical Conveying and 500m Horizontal Conveying Distance
- ABT60C: 180m Vertical Pumping and 1000m Horizontal Pumping Distance
Detailed elaboration on the use of concrete pumps will not be reiterated here. For further information, please refer to the trailer concrete pump product page if interested.
Whether choosing this solution depends on whether you have concrete pumping needs. If you have specific needs, please let us know and we will provide a customized concrete solution for you.
When you want to purchase equipment whether from home or abroad, the self loading mixer price within budget is also your concerns. In the following parapgrph, I will introduce you the self concrete mixer price.

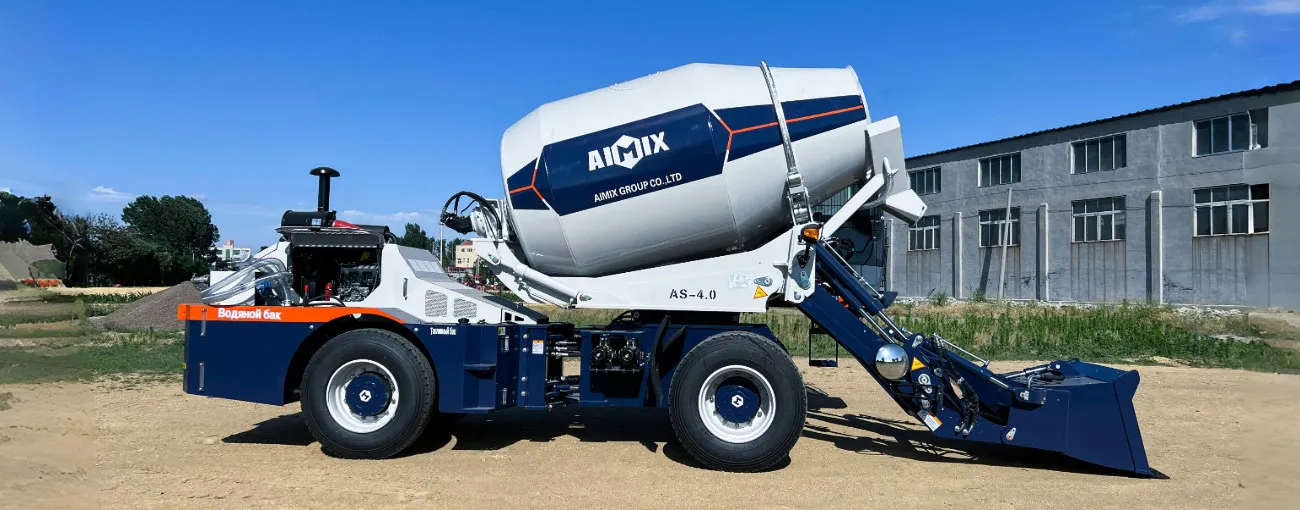

Self Loading Concrete Mixer Price List For Reference
Best self loading concrete mixer price for sale in Aimix Group is a concerning factor when customers sent us inquiries. To be honest, our self loading mobile concrete mixer price is reasonable and competitive among all China self loading concrete mixer manufacturers and suppliers. Because we have our own factory in China, we do not have other fees to pay.
Well, in the market, the price of self loading concrete mixer is affected by different factors, such as manufacturers, raw materials, models, capacities, main components, customized service, after-sales service, etc.
In AIMIX, the self loading transit mixer price is determained mainly by the model and capacity. Capacity is larger, self loading concrete mixer machine price is more expensive. Here are the price ranges of each model of self loading mixer for sale. Check them in the chart below.
Models | Prices |
---|---|
AS-1.8 Price Range | $14,000 to $16,000 |
AS-2.6 Price Range | $18,000 to $21,000 |
AS-3.5 Price Range | $24,000 to $30,000 |
AS-4.0 Price Range | $32,000 to $42,000 |
AS-5.5 Price Range | $45,000 to $48,000 |
AS-6.5 Price Range | $50,000 to $58,000 |
As the table shows, the self loading concrete mixer truck price is not fixed. It depends on many factors. If you want to get the latest price of any self loading concrete machine model, welcome to contact our sales right now. Send your requirements via email: market11@aimixgroup.com. Or leave a message in inquiry forms.
As mentioned above, the prices may be related to the services provided by the self loading concrete mixer manufacturers. What kind of services can AIMIX self loading transit mixer manufacturer provide you? Please continue reading.
Services Provided by AIMIX for Portable Self Loading Concrete Mixer
AIMIX Group aims to provide the best service for global customers, including pre-sales service, on-sales service and after-sales service. Among them, the after-sales service is what the customers are concerned with. AIMIX Group promises to offer considerate after-sales service for our customers. Our service includes:
- 1. One-year weary part warranty. Under the warranty, clients can request for components changing when it is out of order.
- 2. Visiting, checking, and maintaining equipment on construction sites. AIMIX would visit clients regularly at least one time every year.
- 3. 6 branch offices were established to provide prompt local service. Besides, we have self loading mixers in stock in some oversea branch offices. Clients can have a visit before buying.
- 4. Remote monitoring, guide, and operation. If there is something wrong with the self propelled concrete mixer, AIMIX engineers can guide you on how to repair it online.
- 5. If necessary, offer turnkey service. There is nothing for clients to do after he pays for the mixer. AIMIX would arrange for everything until it is put into use for concrete production.
With top-notch service guarantees, AIMIX is your trusted choice. AIMIX delivers not only one-stop services but also ensures the premium quality of the self loading mixers. You can check its features below.
Prominent features of Self Loading Mobile Mixer
- 1. Combined with trailer concrete pump or cement mixer pump, they are integrated and multipurpose equipment that can achieve self loading, mixing, weighing, transporting, unloading, and pumping.
- 2. The mixer drum of the auto loading concrete mixer can realize horizontal rotation 270 degrees, multi–directional unloading.
- 3. The tank body and blades are all made of high-strength wear-resistant steel and its service life can be increased by 30%.
- 4. Feeding hopper and removable chute adopt multi-layer high strength wear-resisting lining plate to increase the service life by 50%.
- 5. Unique four-dimensional mixing technology, blade fast and efficient, fast discharging speed, and low residual amount.

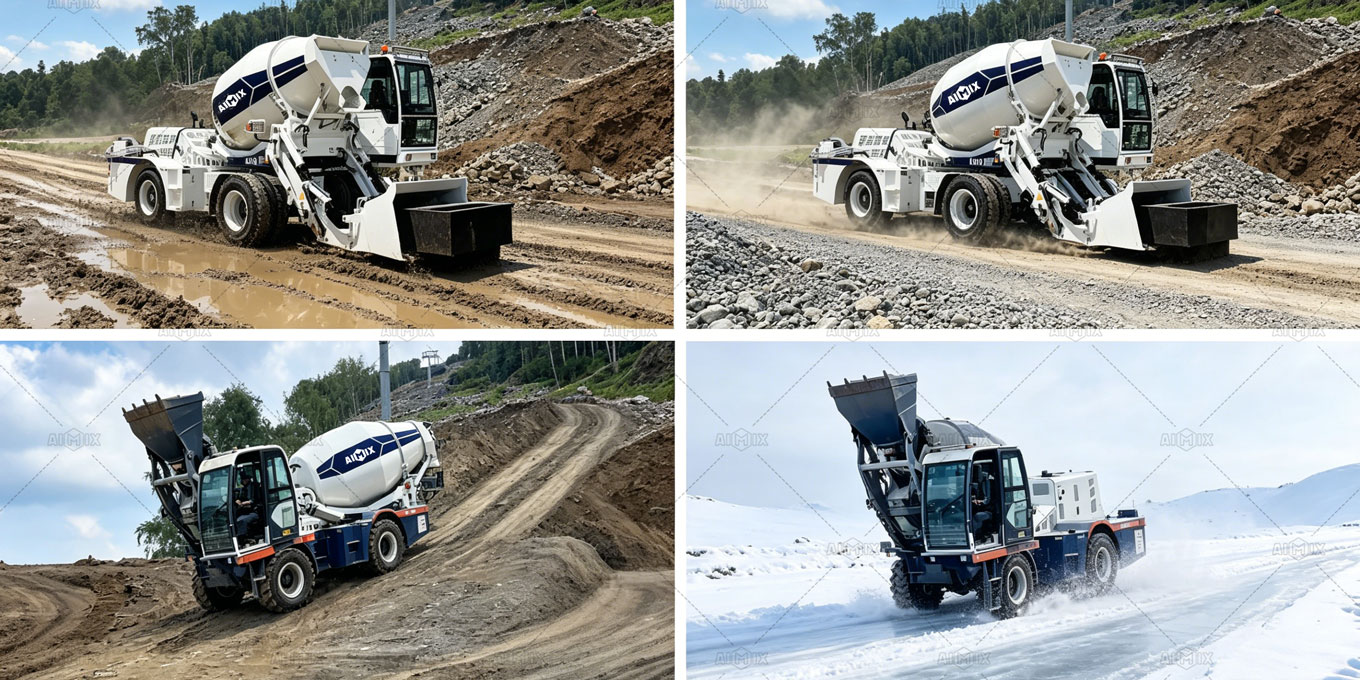

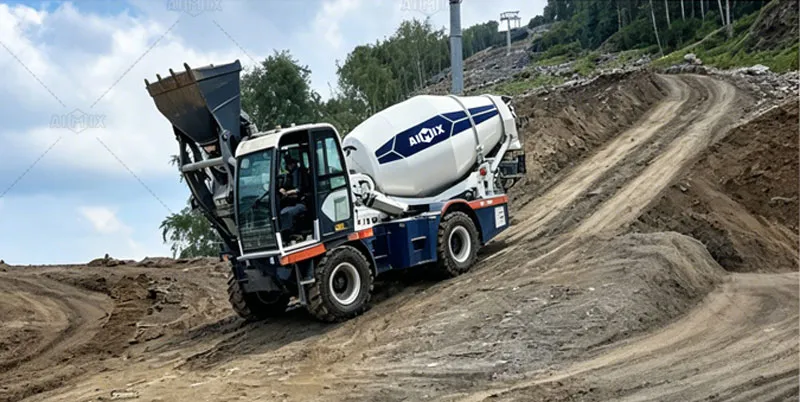

- 6. Four-wheel drive with strong power. Therefore, it can adapt to a variety of complex construction environments.
- 7. We can customize the position of the cab according to your requirement, left or right.
- 8. The self loading concrete mixer with pump for sale can reduce your time, labour and cost. Only several people are needed for the operation.

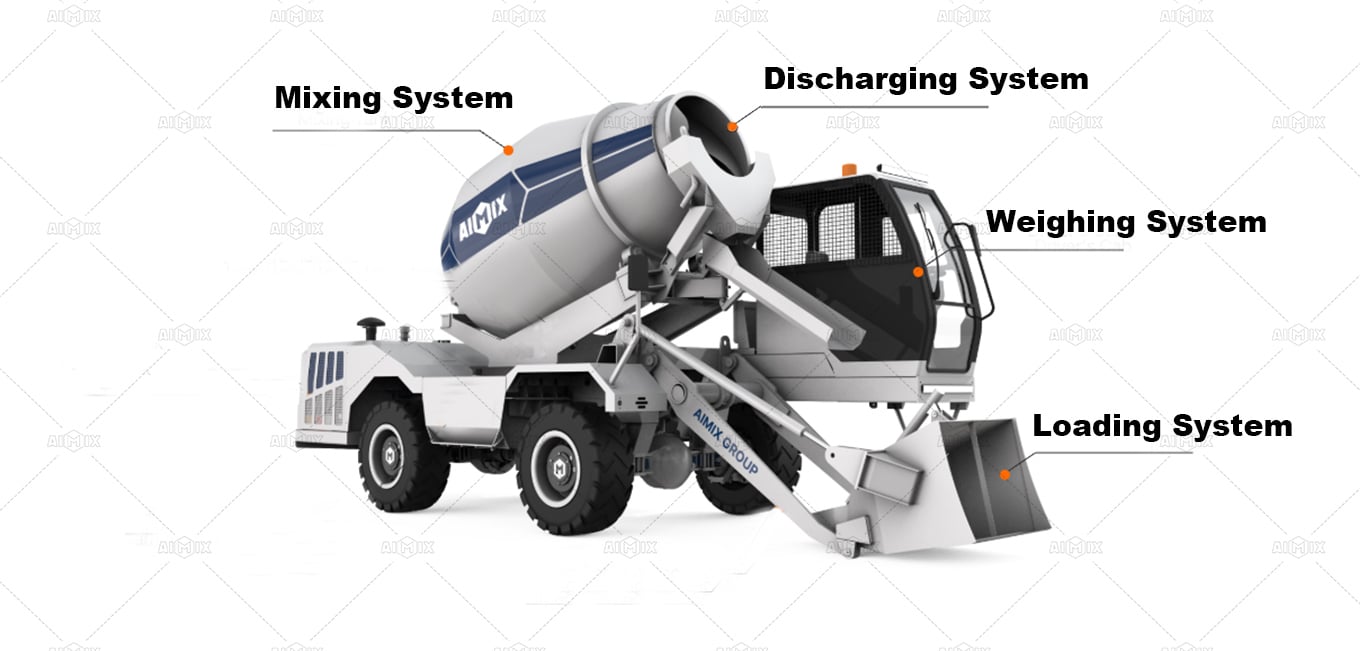

Systems of Self Loading Mixture
Loading System
The shovel is controlled by a hydraulic system, which can be controlled by a function lever. The self loading cement truck can load material easily. Besides, blades are installed in the shovel in order to cut cement bags automatically, which can avoid cement waste.
Mixing System
After loading the concrete mixture, the material will be blade in the mixer drum. Add water into the mixer barrel during mixing and transporting. The double screw design of the mixer tank can ensure the concrete mixture quality. Besides, it is made of high manganese steel, which can ensure a long life span.
Weighing System
We have adopted new advanced weiging system. It can control the aggregate weighing error within 1% and the water weighing error within 2%. In addition, the self weighing system is equipped with multiple ways to count production volume according to time or the concrete nummer. More importantly, it adopts 13.3-inch industrial-grade touch screen, which is easier and convenient to operate.
Discharging System
Because the mixer tank of the self loading mixture can rotate at 270 degrees, the self loading transit mixture can discharge the concrete at 2 meters high in various directions. The operator can control the discharging process through a handle shank in the driving cab. Moreover, the ROPS-FOPS system equipped can ensure the operator’s safety.
Wheel System
The self loading transit mixture machine adopts steel wire super-resistant engineering tires to ensure its load capacity
Now that we’ve covered the various systems of a self loading concrete mixer, let’s dive into how this equipment operates. Understanding the working mechanism will give you a clearer picture of its efficiency and convenience on the job site.
How Does Self Loading Concrete Mixer Work?
Using the self loading mixer bucket to load the raw materials into the mixing drum.
The mixing drum rotates in one direction to mix the materials. The self loading mobile concrete mixer for sale has a control panel that allows you to control the speed of the drum and the amount of water to add.
Transport the concrete mixture to the desired location. The operator can control the discharge direction and speed of the mixer using the hydraulic system.
Use the hydraulic system to pour the concrete out of the drum. Control the process to ensure that the concrete is placed exactly where it is needed.
After the concrete is discharged, the mixer needs to be cleaned. Clean through the self-cleaning system or high-pressure water jets.
The operator can then repeat the process of loading, mixing, transporting, and cleaning as needed to continue mixing concrete on-site.
This video thoroughly showcases the entire working process of the self loading concrete mixer, giving you a clearer understanding of its workflow. After long time use of the equipment, the various issues on it may inevitably arise. However, with regular maintenance, you can avoid many problems. Besides, it also can ensure that the self loading mixer continues to operate smoothly and efficiently.
Proper maintenance is crucial for extending the lifespan of the self-loading mixer, as well as enhancing its efficiency and safety. Next, I will provide detailed maintenance tips that are commonly used, hoping they will be helpful for your practical work.

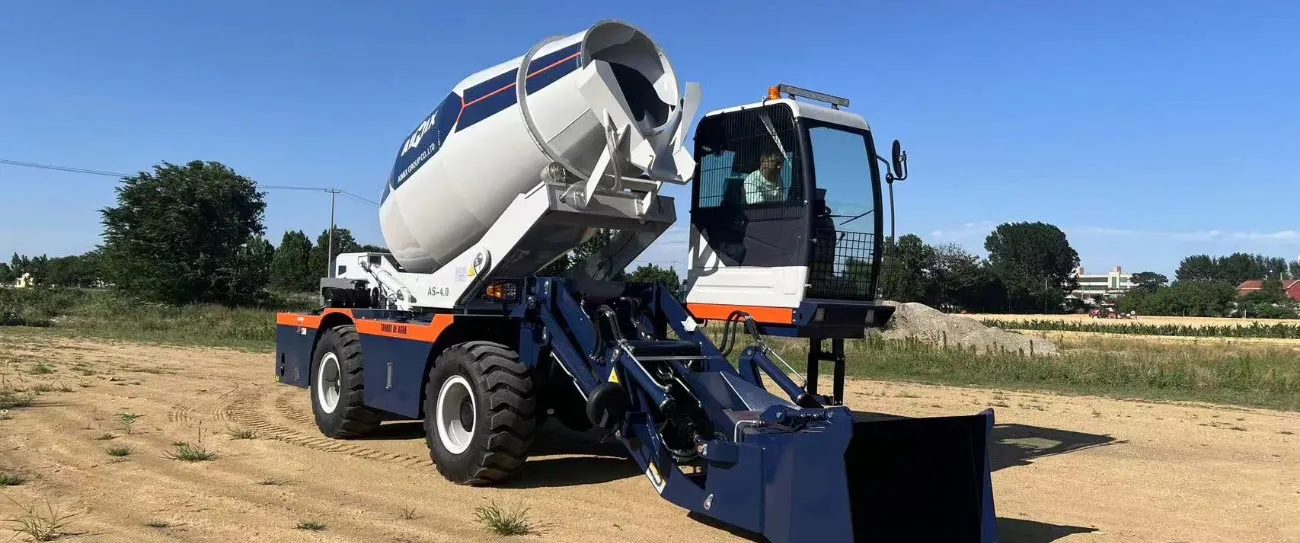

Maintenance Tips for Self Loading Mixer Machine
The maintenance work mainly include the following aspects, check them below:
Regular Inspections
Conduct routine checks to identify any wear and tear or potential issues early. Focus on critical components like the drum, hydraulic system, and drive mechanisms.
Clean After Each Use
Thoroughly clean the mixer drum after every use to prevent the buildup of concrete residue. This helps avoid clogs and ensures smooth operation.
Check Fluid Levels
Regularly monitor and top up hydraulic fluid, engine oil, and other essential fluids to maintain optimal performance and prevent damage.
Lubricate Moving Parts
Ensure that lubricate all moving parts, such as joints and bearings, according to the AIMIX Group manufacturer’s recommendations to reduce friction and wear.
Inspect and Replace Worn Parts
Regularly inspect parts such as blades, bearings, and seals for signs of wear. Replace any damaged or worn components promptly to avoid further damage.
Calibrate the Weighing System
Periodically calibrate the weighing system to ensure accurate measurement of materials, which is crucial for producing high-quality concrete.
AIMIX typically provides operation manuals and maintenance plans when delivering equipment to you. If it encounters problems during operation, you can refer to the instruction manual for repair. If you are still unable to resolve the issue, please promptly contact the AIMIX after-sales service team, and we will help you solve the problem.
Differences Among Self-loading Mixer, Drum Mixer and Concrete Mix Truck
You may have doubts when choosing the product that aligns with actual requirements, especially when confusing it with concrete mixing tank trucks and drum concrete mixers. Here is the comparasion.

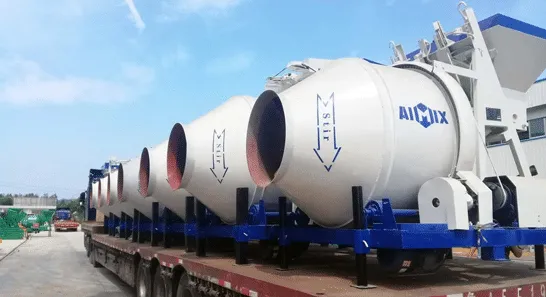

Differ with Drum Mixer
Compared with ordinary drum concrete mixer, the self loading mixer has multi-function. The obvious advantage is to save a lot of labor. Because the concrete mixer self loading is fully automatic. It just spends one person to operate and maintain. The ordinary drum concrete mixer generally needs 4~5 labor to load materials.

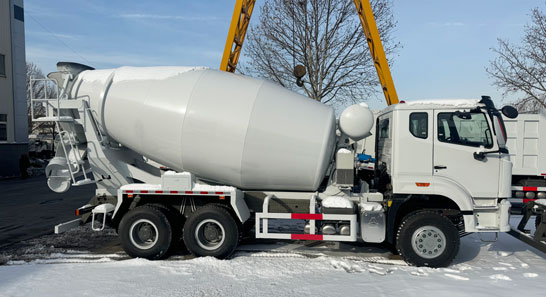

Distinguish from Concrete Mixer Truck
Compared with concrete mixer trucks, the self loading feed mixer for sale has an outstanding feature: self loading material. Actually, the self batching concrete truck is one kind of concrete mixer truck for sale in the market. It is newly designed to meet customers’ construction requirements. Both are convenient construction vehicles that stir and transport concrete to working sites, but for self loading concrete mixing trucks, they also can feed, mix, meter, and discharge on their own.
While, for tractor self loading concrete mixer truck for sale, the cab is at the center of this equipment, the view of the operator is higher than the mixing cylinder, therefore, the sight line on the left, right, and front is very good, there is absolutely no visual blind area and lead to safety accidents such as furrow. Furthermore, in this kind of design of structure and position in the cab, the center gravity of the equipment is always at the center of the device, which ensures the stability of the concrete mixer self-loading during the process of construction mixing and movement mixing. On the contrary, in some trucks on the market now there will be obvious jitter and deviation from the center of gravity in the process of movement, thus, mixing quality and construction safety can’t be protected well. Thus, self loading concrete mixer is your best choice to ensure safety.

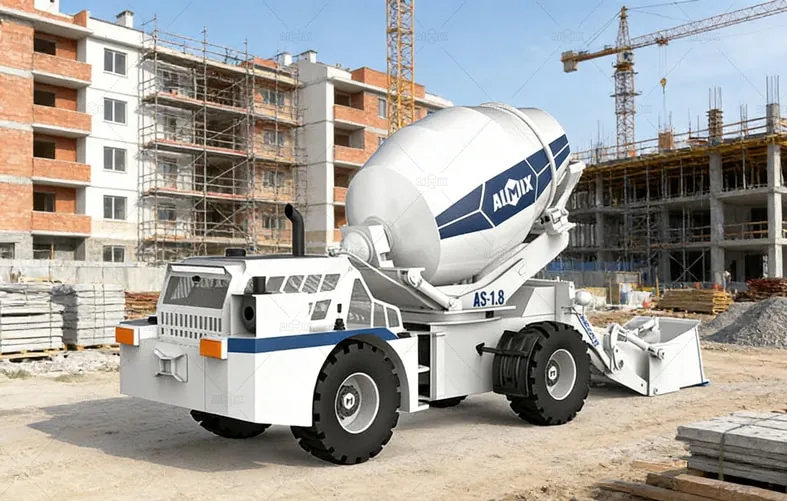

Other Choices – Small Self Loader Concrete Mixer – Self Loading Concrete Pan Mixer
If you think that the ordinary self loading mixer machine is a little large for your project. There are another option – customized self loading pan mixer. Compared with the ordinary concrete batching vehicle in AIMIX, the self loading concrete pan mixer is equipped with small pan mixer rather than a drum concrete mixer. In this way can the self loading transit concrete mixer reach a small capacity, for example – AS-1.6 Self loading pan mixer. There will be more choices for customers. The rough terrain concrete mixer can better match customers’ construction projects.
Global Reach, Local Impact: AIMIX Self Loading Mixers Everywere – Cases Show

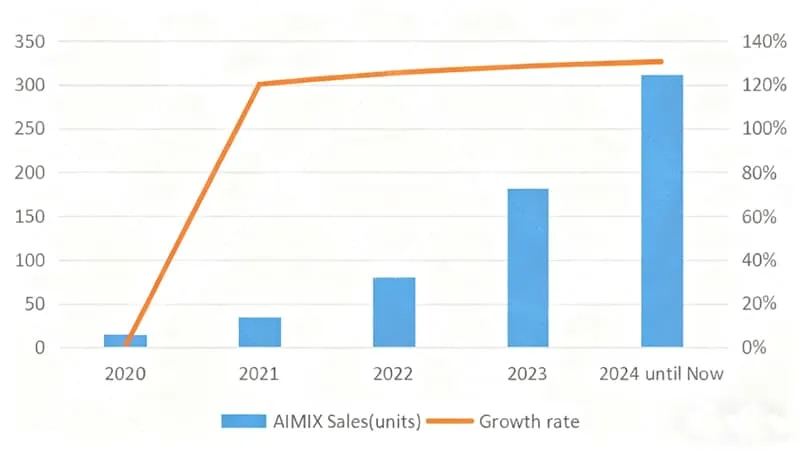

Actually, AIMIX self loading concrete mixers for sale have been used by global users. Up to now, AIMIX has exported countless sets of self loading mixers to over 100 countries. These countries include the the Philippines, Indonesia, Malaysia, Russia, Uzbekistan, Kazakhstan, Myanmar, Germany, United States, United Kingdom, Vietnam, Thailand, Sri Lanka, Nigeria, Malawi, Kenya, Namibia, Somalia, Dominican, Saudi Arabia, Peru, Mexico, South Africa, Australia, etc. Here are some cases of exporting and customer feedback and reviews on our equipment.

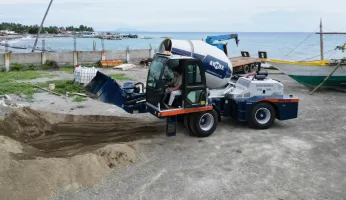

AS-3.5 for Foundation Construction in Indonesia
AS-3.5 for Foundation Construction in Pekanbaru, Indonesia
AS-3.5 Self Loader Mixer Machine for Flood Protection Project in Taytay, Rizal, Philippines
AS-1.8 For Foundation Construction
AS-5.5 For House Construction
AS-3.5 For Road Construction
AIMIX AS-1.8 Self Loading Concrete Mixer Working in Manila, Philippines
As the video shows, AIMIX AS-1.8 best self loading cement mixer for sale was working now at the construction site. The project is located in Manila, Philippines. The mini self-loading concrete mixer can meet the construction requirements.
6 Sets of Self Concrete Mixer Machine in the Philippines
We delivered 6 sets of self loading mixers to Bataan, the Philippines in Feb 2020. The customer has various construction projects. Therefore, he decided to buy 6 sets with huge discounts. After the mixers arrived in the Philippines, the customer checked and highly praised our equipment.
Installing, Testing and Debugging AS-3.5 Self Loading Mixer Truck in Malaysia

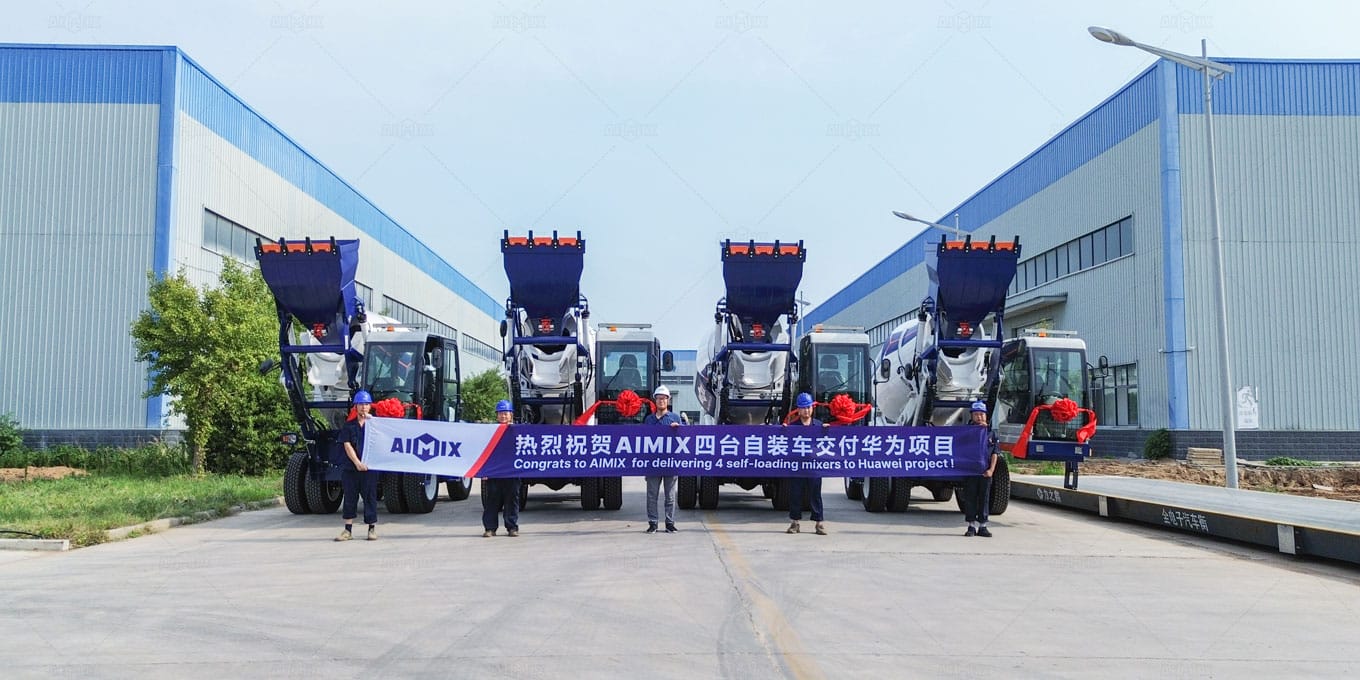

4 Units of Self-loading Mixer Ready to Malaysia

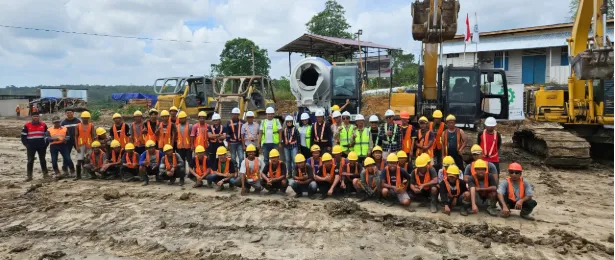

AIMIX AS-3.5 Concrete Mixer Loader Arrived in Nigeria
In April, the customer in Nigeria has test and debug it after receiving the concrete mixer truck self loading. Because we have sent the unloading and installation instructions PPT and videos. He can make it easier. In general, we load the self loading mixer via a container. Therefore, the client can assemble the AIMIX self contained concrete mixer truck simply. After the mixer arrived, customers just need to assemble it according to the videos.

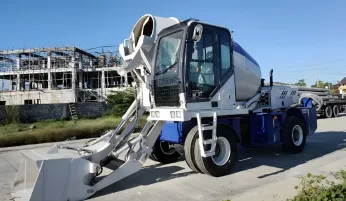

Portable Self Concrete Mixer Truck in Myanmar for Factory Warehouses Construction
In Feb, we have installed and debugged our mixer beton self loading in Myanmar successfully. After the self loading concrete mixture arrived there, we arranged for engineers to commission it as soon as possible. After one week’s work, it could normally work on construction sites.
ABT40C Mobile Concrete Pump and AS-2.6 China Self Loading Mixer for Building Construction in The Dominican Republic
ABT60C Diesel Concrete Pump and AS-4.0 Self Loading Concrete Mixer China for House Construction in Uzbekistan
Self Concrete Mixer in Uzbekistan
In recent years, we have exported many sets of self loading rough terrain concrete mixers to Uzbekistan. There is a large demand for this kind of machine for small construction projects. 2.6 m3, 3.5 m3, and 4 m3 are all available there. If you wanna have a visit on sites, our sale will guide you before purchasing.
Youtube Shorts – Self Loading Mixer Machine Working Videos Feedback from Global Clients
Contact Us
As one of well-known famous self loading concrete mixer suppliers in China, we can offer you high-quality machines with considerate service. Aimix self loading concrete mixer manufacturer has owned more than 30 years of manufacturing experience. Therefore, with advanced technology and experience, our machine will never let you down.
If you want to get the best self concrete mixer machine price, welcome to contact us right now! Contact us available by the following form or email: market11@aimixgroup.com. Our sale will reply you as soon as possible.
Bonjour.Je recherche une bétonnière avec conducteur et le modèle de AS-1.2 pourrait convenir. Merci de me faire parvenir la documentation et une proforma exw.
We are looking for a Self loading and discharging a Drum concrete mixer, with a capacity of 1 m³ and also 2 m³.
But it should be take in consideration that our product density is max. 250Kgs/m³, therefore, material used in process of manufacturing of drum concrete mixer body and electric motor, should be chosen much lighter than ordinary drum concrete mixer, comparing with the final product density, means 250kg/m³. We are looking for your suggestions and finally your quotations as FOB China Ports.
Require the AS 5.5.Self loader concrete mixer with ABT60C concrete pump. Also provide details on maximum pump distance available. Location is Lagos, Nigeria.
Interested in AS-4.0, to be transported to Ghana by sea. I need only one set for my construction project. Please send me your best price.
Please get me the best price for this machine, I need the self loading concrete mixer for business in Germany. Thank you.
Hi, I i’d like to receive a quote for the as-4 and as-5.5. Thank you.
Can I get price for self loading concrete mixer 4m3? Export to Ethiopia. Send me the total cost including shipping cost please.
Plz send us complete details for further any our requirement against the self concrete transit mixer. AS3.5 and AS-4.0 models. Thx
Cost of diesel self loading concrete mixer with pump and also specifications from 2. 6 m3.to 6.5m3. Cif Nairobi City. Send quotation through my email please!
I need a quote for a self loading concrete mixer with pump attached to it. Do you have the self loading concrete mixer in stock in South Africa?
Hello, I want to buy AC-4.0. i live in Belarus . what will be the price of the car? export to Belarus
