Concrete batching plant for sale is a complete set of special equipment for producing fresh concrete. Its function is to respectively feed, transport, store, batch, weigh, mix and discharge the raw materials of concrete, cement and admixtures, water, sand, stone, and additives according to the preset mixing ratio. Nowadays, It has been widely applied for different projects in the construction industry, such as municipal engineering construction, water conservancy construction, electric power construction, bridge construction, railway construction…… To satisfy the customer’s construction demands, we have manufactured some types of concrete batch plants for sale. Check them below.
Different Types of Concrete Batching Plants for Sale
In Aimix, there are two main classification criteria for the concrete batching plant sale. One is mobility; the other one is the aggregate feeding way.
- According to the mobility, we divide it into a stationary concrete plant and mobile concrete batch plant.
- In terms of the aggregate feeding way, it is divided into hopper batching plant and belt concrete plant sale.
It is necessary for the customers to choose the right type of concrete batch plant for their construction. You can check the following description about each one.

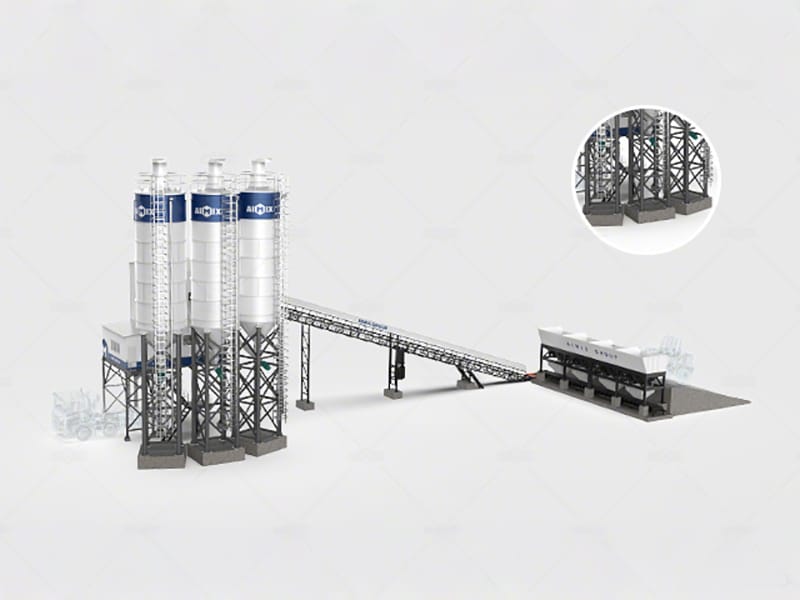

1. Stationary Concrete Batching Plant for Sale
Stationary concrete batching plant for sale manufactured by Aimix Group has wide capacities ranging from 25 m3/h to 240 m3/h, including 25 m3/h, 35 m3/h, 50 m3/h, 60 m3/h, 75 m3/h, 90 m3/h, 120 m3/h, 180 m3/h, 240 m3/h. Because Aimix stationary concrete plants are named as AJ series. Therefore, models are AJ25, AJ35, AJ50, AJ60, AJ75, AJ90, AJ120, AJ180, AJ240.
In general, it is installed and fixed at the construction. Thus, it is not easy to move it for various construction projects. It has the advantages of good stability, high automatic degree, high performance, and high productivity. So a lot of customers would like to purchase one with large capacity above 90 m3/h as for a commercial concrete batch plant. However, if the customer wants to invest in one for houses, buildings, and road construction projects, he can choose a small concrete plant with capacity about 25 m3/h to 60 m3/h. You can check some models of stationary concrete plants below.
Model | Bucket type | Belt type | ||||||
AJ-25 | AJ-35 | AJ-50 | AJ-75 | AJ-60 | AJ-90 | AJ-120 | AJ-180 | |
Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 60 | 90 | 120 | 180 |
Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 | 2×18.5 | 2×30 | 2×37 | 2×55 |
Mixing Cycle Period (s) | 67 | 72 | 72 | 72 | 60 | 60 | 65 | 65 |
Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 | Φ60 | Φ80 | Φ80 | Φ80 |
Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 | 4×7 | 4×15 | 4×15 | 4×20 |
Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 3/4 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.3 | 4.3 |
Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 | ≈40 | ≈68 | ≈93 | ≈101 |
Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | ≈110 | ≈160 | ≈220 | ≈290 |
Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase |

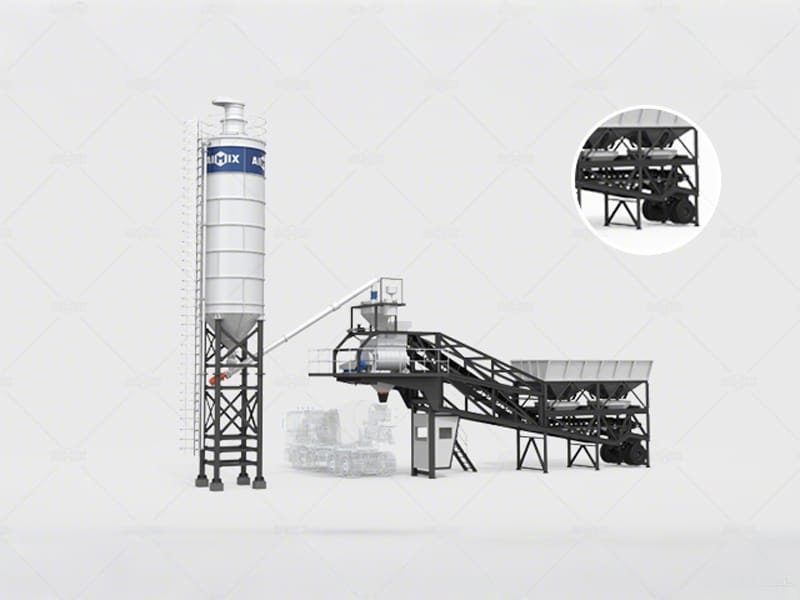

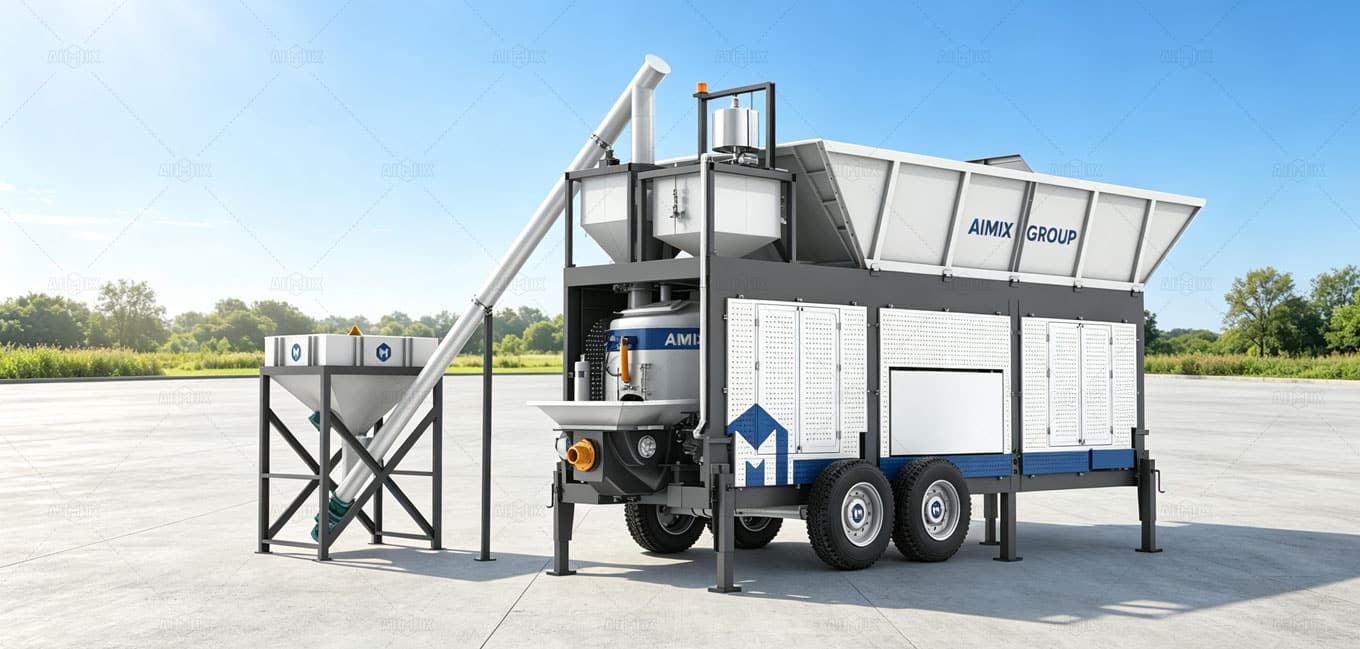

2. Mobile Concrete Batching Plant for Sale
The mobile concrete batch plant for sale is concrete production equipment that integrates the whole systems of the concrete plant into one trailer unit, which is easy to move, assemble and disassemble. That’s also the biggest outstanding feature compared with the stationary concrete batching plant. In general, the capacity of Aimix mobile concrete batching plant for sale is under 90 m3/h, such as 25 m3/h, 35 m3/h, 50 m3/h, 60 m3/h, and 75 m3/h. Models include AJY25, AJY35, AJY50, AJY60, and AJY75. Due to its feature of flexible movement, it is widely applicable for mobile construction projects of highways, bridges, ports, hydropower, and others. All of the mobile concrete plants for sale have adopted a belt-feeding way to transport the aggregate materials, which greatly improves the working efficiency. Here are some models for selection! Choose an ideal one below.
Parameters/Model | AJY-25 | AJY-35 | AJY-60 | AJY-90 |
Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 |
Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
Cycle Period (s) | 60 | 60 | 60 | 60 |
Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×1 |
Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
Traction Type | Semi-trailer | |||
Control Mode | Full Automatic Computer PLC Control | |||
Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase |

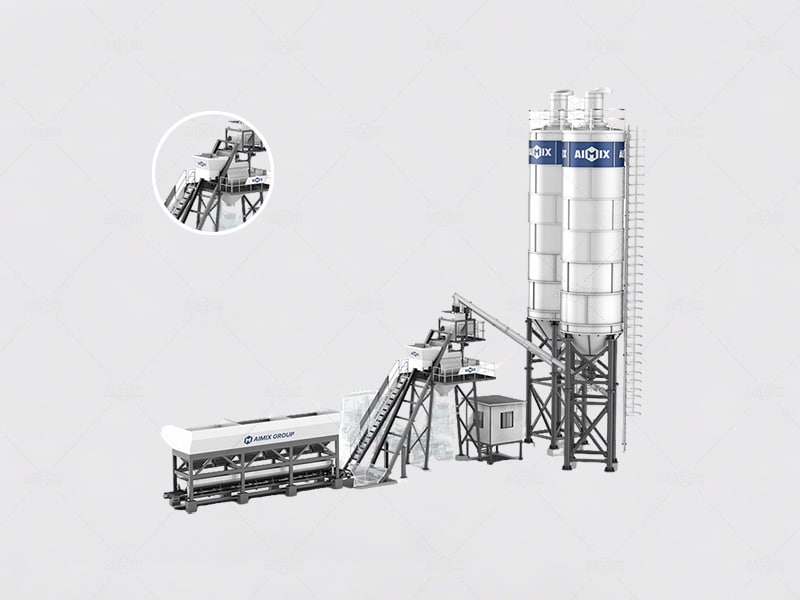

3. Hopper Batching Plant for Sale(AJ25, AJ35, AJ50, and AJ75)
- The hopper-type concrete plant uses a lifting bucket to transport the aggregate materials. It has the characteristics of compact and simple structure and quick installation.
- The production capacity of the hopper-type concrete mixing plant provided by Aimix ranges from 25 cubic meters to 75 cubic meters per hour. The hopper feeding way is commonly applied to the stationary concrete batching plant. Therefore, the models of hopper concrete batch plant sale include AJ25, AJ35, AJ50, and AJ75.

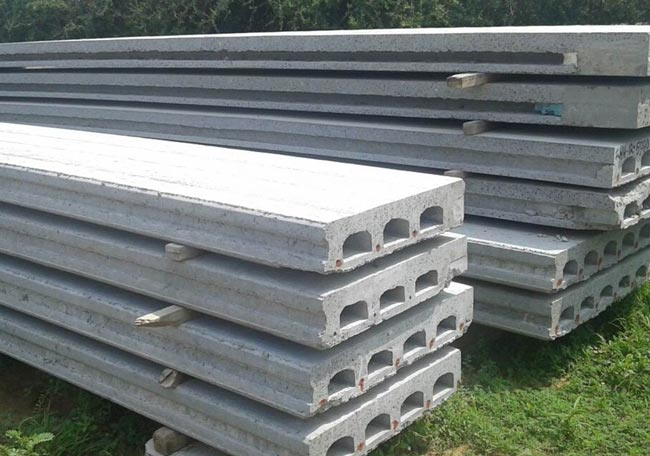

- Hopper concrete mixing plant for sale is usually used for small ready-mixed concrete projects, brick-making lines or precast concrete products, etc. Therefore, a lot of customers buy it not only for producing concrete required for engineering but also for commercial concrete plants to sell commercial concrete.

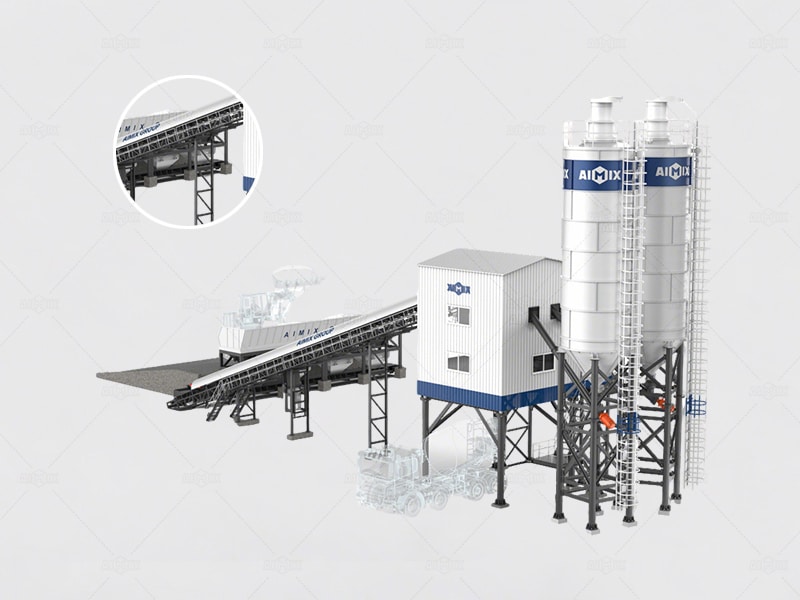

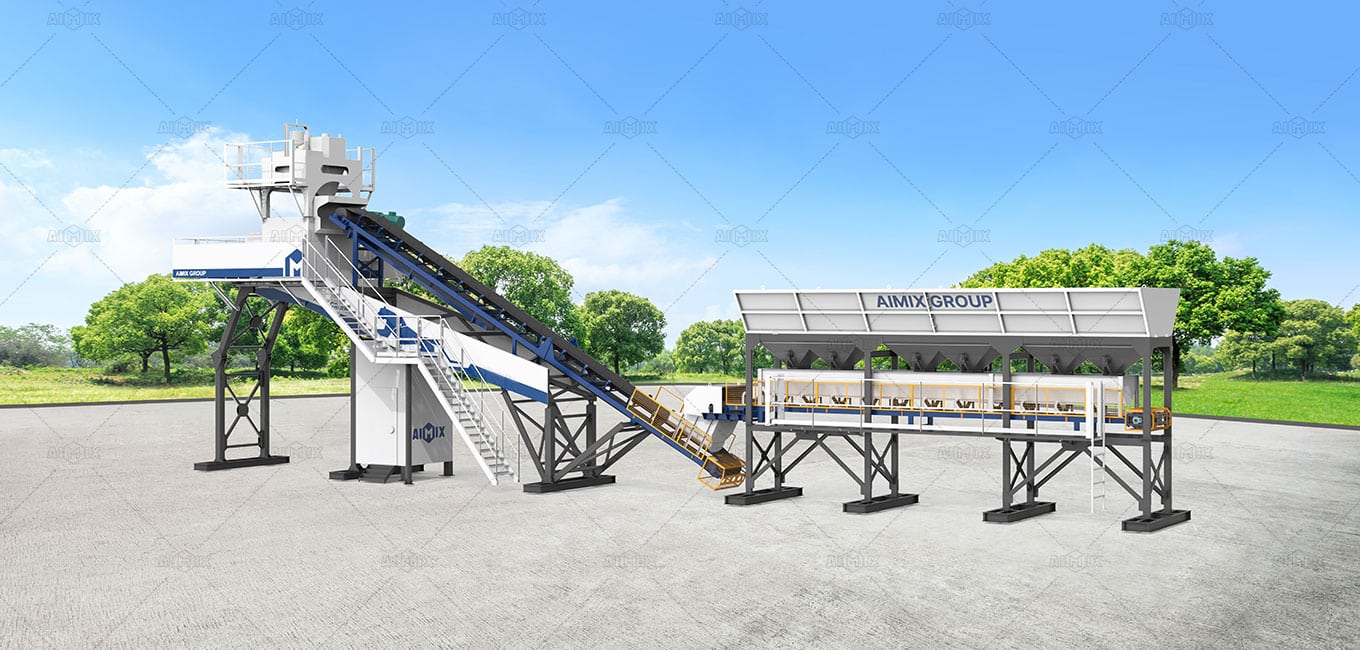

4. Belt Batch Plant for Sale(AJ60, AJ90, AJ120, AJ180, AJ240 and AJY Series)
- The belt concrete plant for sale adopt a belt conveyor to deliver the aggregate from the concrete batching machine to the concrete mixer.
- The feeding method of the belt conveyor has the advantages of large conveying distance, high efficiency, and low failure rate.
- The Belt-type concrete batching plants for sale can be used to produce various types of concrete for different applications, including ready-mixed concrete, ultra-high-strength concrete, reinforced concrete, etc.
- Because the production is stable and efficient, it is more suitable for large-scale engineering usage.
- Both parts of the stationary concrete batching plant and portable concrete plant adopt the belt feeding way. Therefore, the models of belt batch plants for sale in Aimix include AJ60, AJ90, AJ120, AJ180, AJ240, AJY25, AJY35, AJY50, AJY60, and AJY75. You can check some of them below.
Belt Type Concrete Mix Plant Working Video
Wide Application of Aimix Concrete Mixing Plants for Sale Worldwide
Until now, Aimix has exported over 300 sets of concrete batching plants to global customers. Our ready mix concrete manufacturing plant for sale has covered over 100 countries all over the world, including the Philippines, Indonesia, Uzbekistan, Myanmar, Malaysia, Pakistan, East Timor, Kenya, Bangladesh, Sri Lanka, Kazakhstan, Uruguay, Qatar, Mongolia, United Arab Emirates, Saudi Arabia, South Africa, etc. Most customers have sent positive feedback on Aimix concrete plants for sale near me. They would take some pictures and videos of concrete plants working on-site. Check some cases of them at the construction sites.

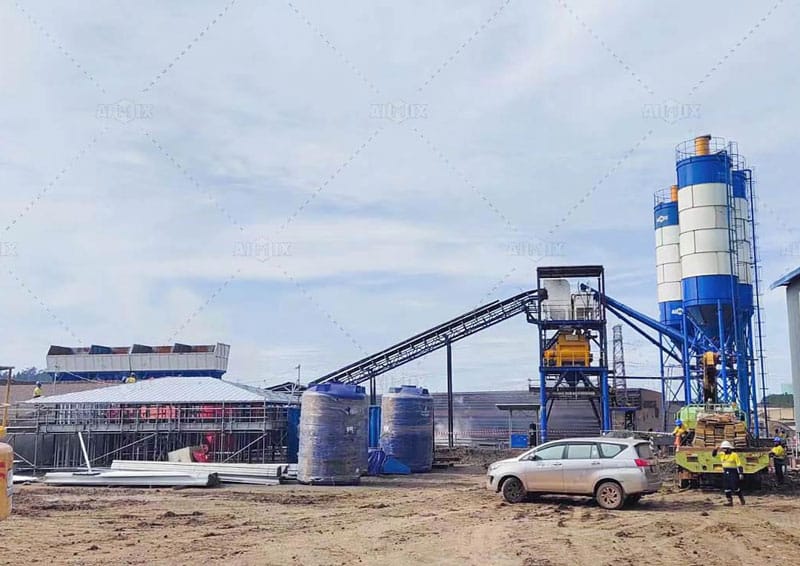

1. AJ90 Stationary Concrete Plant for Hydropower Construction In Indonesia

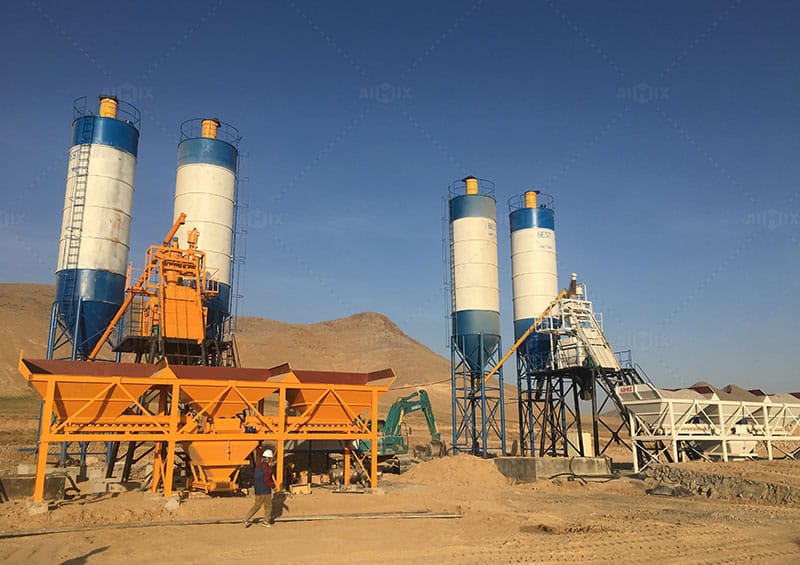

2. Two Sets of AJ50 Hopper Batching Plant for Highway Construction In Uzbekistan
3. AJ35 Small Concrete Batch Plant for Building Construction in Myanmar
4. AJY35 Mobile Concrete Plant for House Construction in The Philippines
5. AJY35 Mini Mobile Concrete Plant for Power Engineering Construction in Uzbekistan

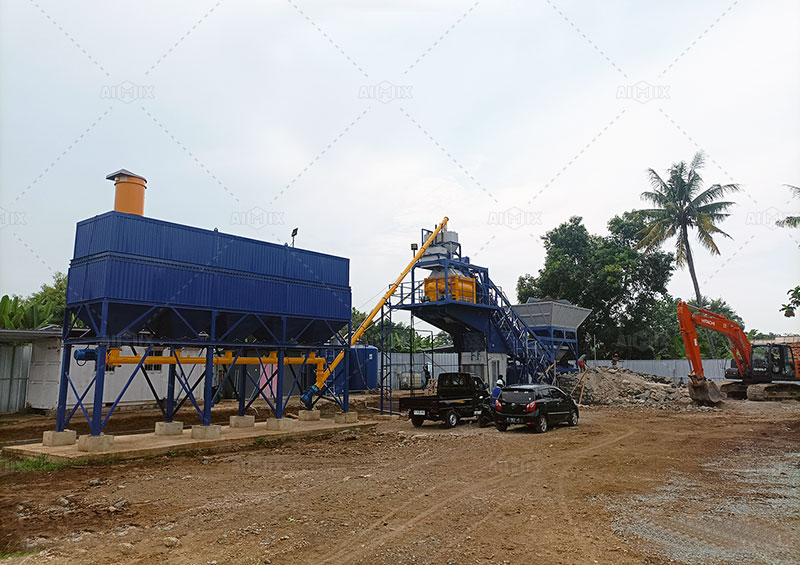

6. AJY60 Portable Concrete Batch Plant for Commercial Concrete Business in The Philippines
Main Systems of Concrete Mix Plant for Sale
In general, the concrete mixer plant for sale consists of six main systems, including material storage system, material conveying system, material weighing system, material mixing system, and electric control system. Check these systems below.
Material Storage System
The aggregate materials are stacked in the open air generally. The powder is stored in the cement silo. The cement silo is a container for storing bulk cement. The traditional cement silo is vertical, and it is exported as pieces due to the consideration of packing when exporting. After arriving at the site, bolts are used to assemble them.
Material Conveying System
For aggregate conveying, there are two ways of aggregate feeding: lifting hopper and belt conveyor. The delivery way of buckets can save land space. And the belt conveyor can improve transportation efficiency. For the powder conveying, it is delivered through screw conveyor.
Material Weighing System
The material weighing system can directly affect the quality of finished concrete mixture by controlling the proportion of raw materials. Therefore, the weighing scales are accurate. The aggregate is scaled by the concrete batching machine. There are different bins for choices according to the types of aggregate materials.
Electric control system
The electric control system is the key system that controls the whole cement batch plant for sale. It is equipped with PLC control computer and control panel. Therefore, customers can operate and maintain it easily and conveniently.
Working Process of Aimix Cement Batching Plant for Sale
1. Use a wheel loader to load the raw material into the concrete batching machine.
2. After the material is weighed in the concrete batching machine, it is delivered into the concrete mixer through belt conveyor or lifting hopper.
3. Deliver the powder material in silo to the concrete mixer after weighing.
4. Water and additive are pumped into the concrete mixer after weighing.
5.The concrete mixer would blend the materials together and produce fresh concrete mixture.
6. Unload the concrete mixture into the concrete mixer truck. The truck transports the concrete to the construction sites.
There is a working video that can help you better understand the working process.
Why Choose Aimix?
In the market, there are so many concrete batching plant manufacturers for choices. Why choose the Aimix brand among them? Here are some reasons why Aimix can stand out.
- 1. Having accumulated over 30 years of manufacturing experience, Aimix has mature technology to produce new concrete batch plant for sale.
- 2. Aimix has gained CE and ISO certificates to ensure the quality of concrete plants.
- 3. To meet customers, Aimix R & D team always upgrades the manufacturing technology to customize the equipment.
- 4. Aimix’s new concrete batching plant for sale has various types for selection, including stationary type, portale batch plant, small capacity, large capacity, dry mix type, and wet mix type…… Customers can select an ideal one for their projects.
- 5. We have exported countless sets of concrete plants all over the world. Before making the order, we can arrange for customers to visit nearest concrete plant on-site if necessary.
- 6. Considerate after-sales service is available for the sold cement mixing plant for sale, including installing, testing, debugging, training, wearing parts providing under one year warranty.
- 7. To better serve customers, Aimix has established 6 branch offices in these countries, including Pakistan, Uzbekistan, The Philippines, Malaysia, Indonesia, and Russia.
Based on above outstanding advantages, Aimix has enough strength to provide high-quality concrete plants for customers. If you are interested in the equipment, welcome to contact us for latest price. Contact us through the following chart, email and WhatsApp now!
