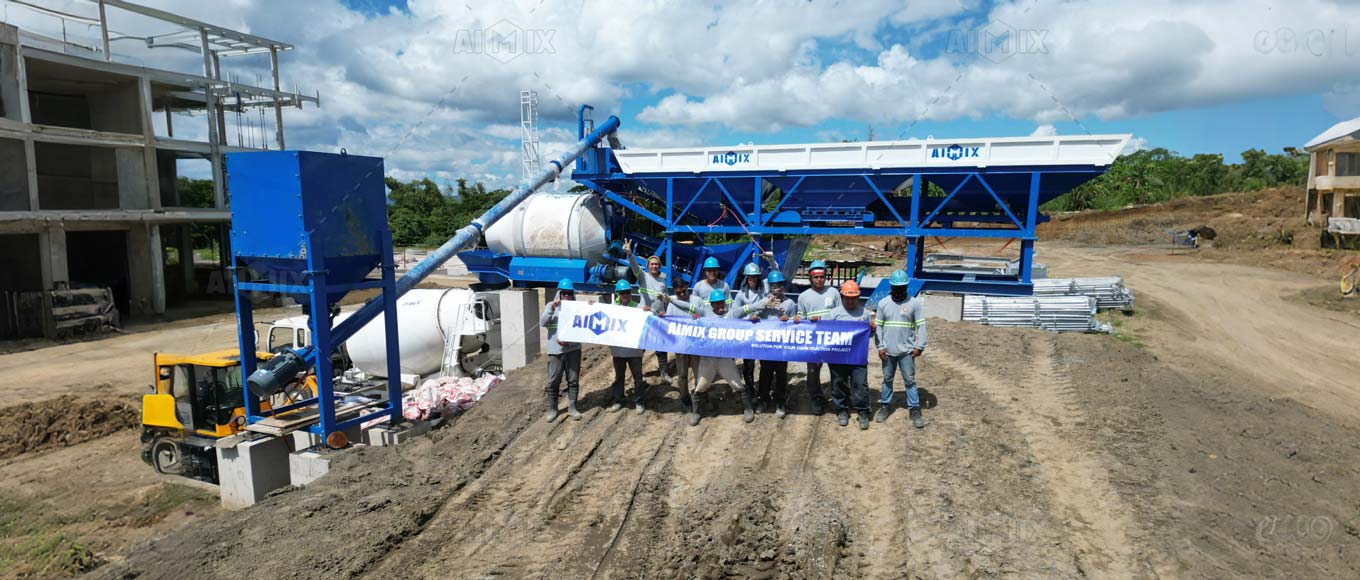

Small concrete batch plant for sale in the market mainly satisfy parts of customers’ construction demands who need to reduce investment costs. Or some construction projects just need a small volume of concrete mixture per hour but demand for a long time. In addition, the small concrete plant for sale manufactured by Aimix Group has the advantages of small size, small capacity, lightweight, and compact structure. It is widely applied for concrete block factories, precast factories, residential houses and building projects, and other small-size projects. You can browse Aimix’s small concrete plants for sale below.
Various Kinds of Small Concrete Plants in Aimix Group
From the point of view of flexible mobility, there are main two kinds of small concrete plants for sale. One is the stationary concrete plant; the other one is the small portable concrete batch plant. Check the following description of both.

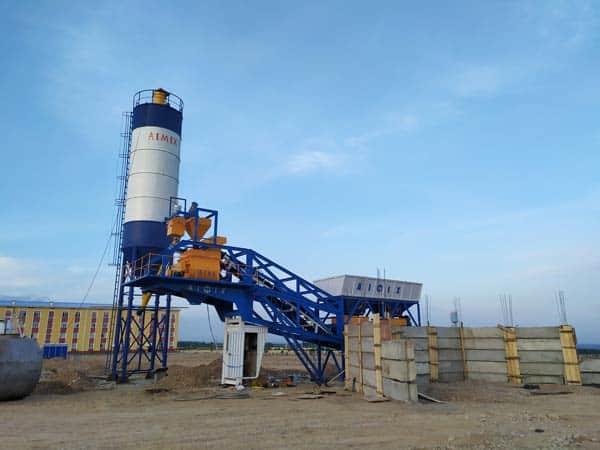

Small Stationary Type – AJ25, AJ35, and AJ50
- AJ25, AJ35, and AJ50 are the models of small stationary concrete plants in Aimix. Their capacities of them include 25 m3/h, 35 m3/h, and 50 m3/h.
- All of them adopt JS series twin shaft concrete mixer to ensure even concrete mixture production. Models of concrete mixers are JS500, JS750, and JS1000.
- Because of the small capacity, it has been some customers’ first choice, especially for residential houses and building projects all over the world.
- In general, the stationary concrete plant can be used for a long time. Because it is not easy to move once it is erected on-site. A lot of customers would take full use of it.
Here are some cases of small stationary concrete plants working at construction sites. The customers have sent us positive feedback through pictures and videos. Check them below.
- Project: House construction
- Configuration of main components: PLD800 concrete batching machine + JS500 twin shaft concrete mixer + 50T cement silo
- Construction item: Government building construction
- Customer’s configuration choices: PLD1200 concrete batching machine + JS750 twin shaft concrete mixer + two units of 30T cement silos

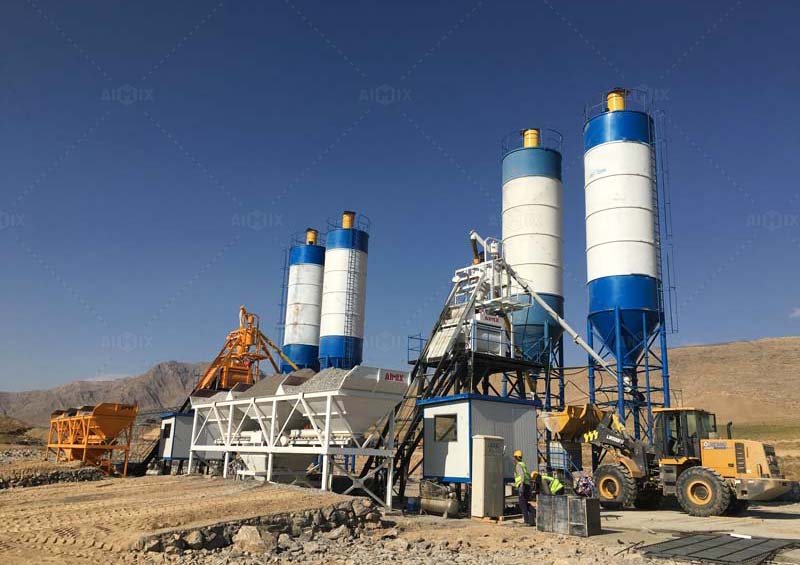

- Project: Highway construction
- Configurations: three bins concrete batcher + JS1000 compulsory concrete mixer + two units of 50T cement silos
| Model | AJ-25 | AJ-35 | AJ-50 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
| Mixing Cycle Period (s) | 67 | 72 | 72 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 |
| Powder Storage Silo (ton) (Optional) | 1×50 | 2×50 | 1×100 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||

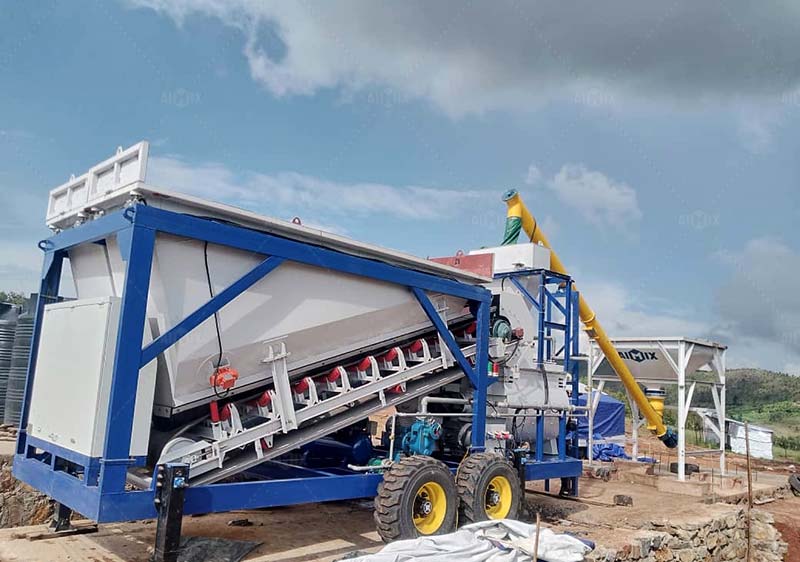

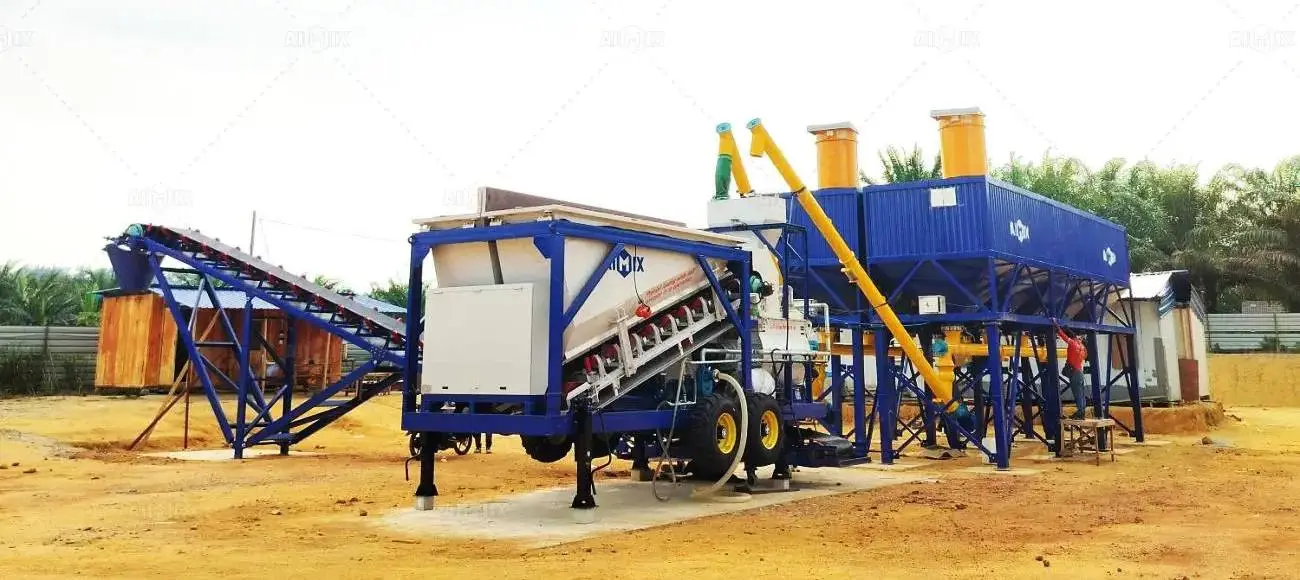

Small Mobile Type – AJY25, AJY35, and AJY60
Compared with the small stationary type, the small portable concrete plant for sale has the advantage of easy movement on-site. That’s also the significant reason why clients choose it.
- With the feature of flexibility, it can be dragged to various construction sites for different projects through a tractor.

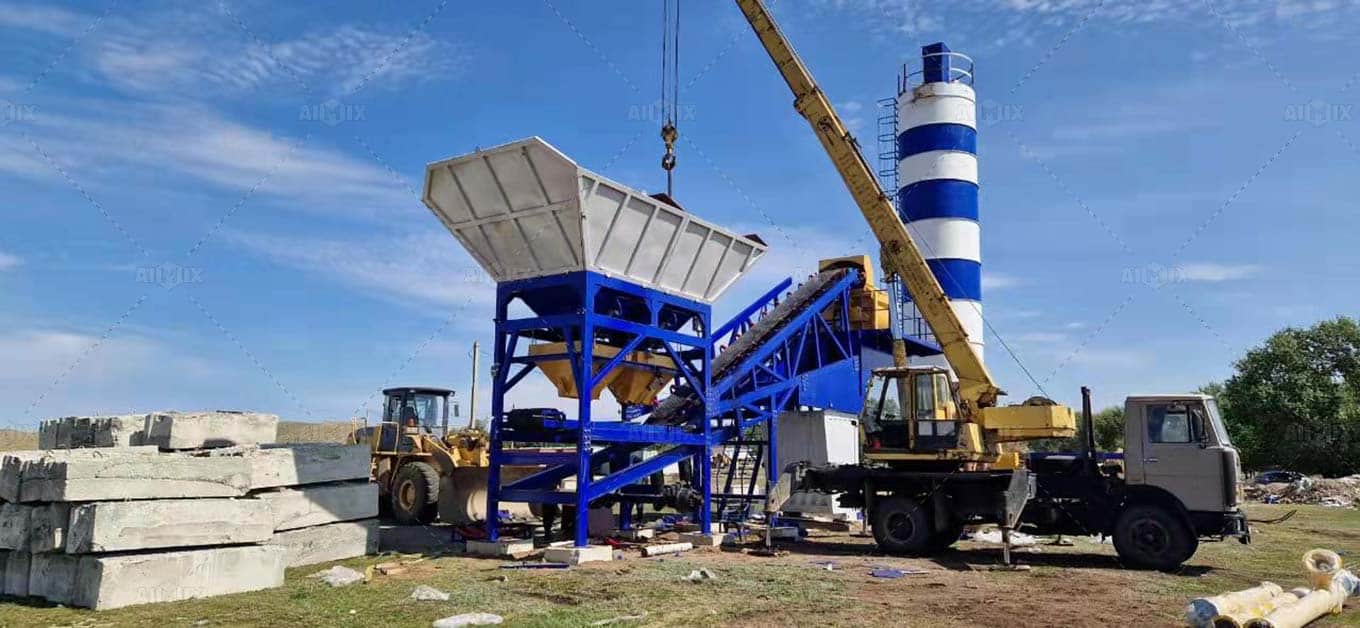

- AJY25, AJY35, and AJY60 are the main items of small concrete batching plants sale. Accordingly, their capacities are 25, 35, and 60 m3/h.
Clients have chosen mobile concrete plants for various kinds of projects. Check some applications below.
- Construction item: Isolation hospital construction
- Customer’s configuration choices: PLD1200 concrete batching machine + JS750 twin shaft concrete mixer + two units of 30T cement silos
- Customer’s Project: Commercial concrete business
- Main configurations: two bins of concrete batcher + JS1000 twin shaft mixer + 100T cement silos
| Model | Belt Type | ||
| AJY-25 | AJY-35 | AJY-60 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
| Mixing Cycle Period (s) | 67 | 72 | 72 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 3×5 |
| Category of Aggregate | 2/3/4 | ||
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 |
| Overall Weight (ton) | ≈15 | ≈22 | ≈26 |
| Installation Power (kW) | ≈61 | ≈73 | ≈92 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||
Newly Designed Small Mobile Concrete Batching Plant
Compared with the above mobile concrete plant for sale, the newly designed type is equipped with different kinds of concrete mixers, such as reversible drum mixer, planetary concrete mixer, vertical shaft concrete mixer….. Among them, many customers have chosen the mobile concrete plant with a reversible mixer. Check this kind of mobile concrete plant below.

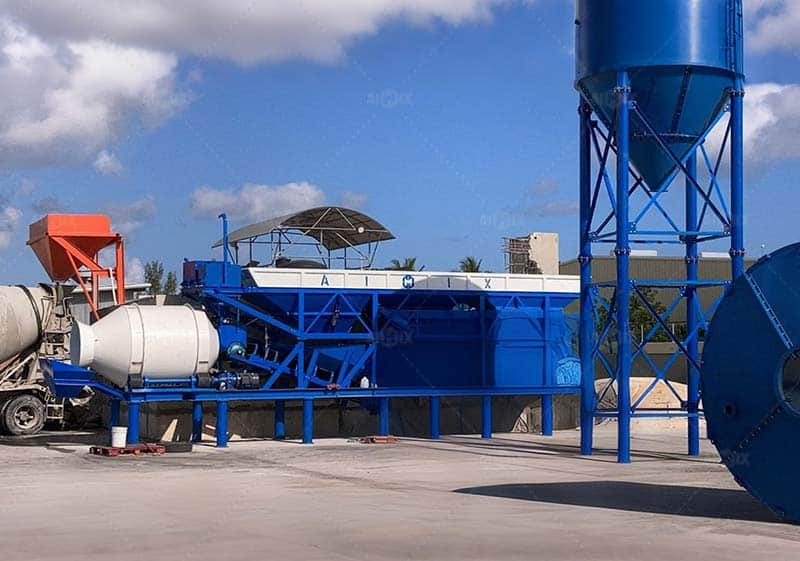

Small Concrete Plant with Reversible Mixer
Standard Configurations: PLD series concrete batching machine + drum concrete mixer + conveying belt + cement silo(optional)

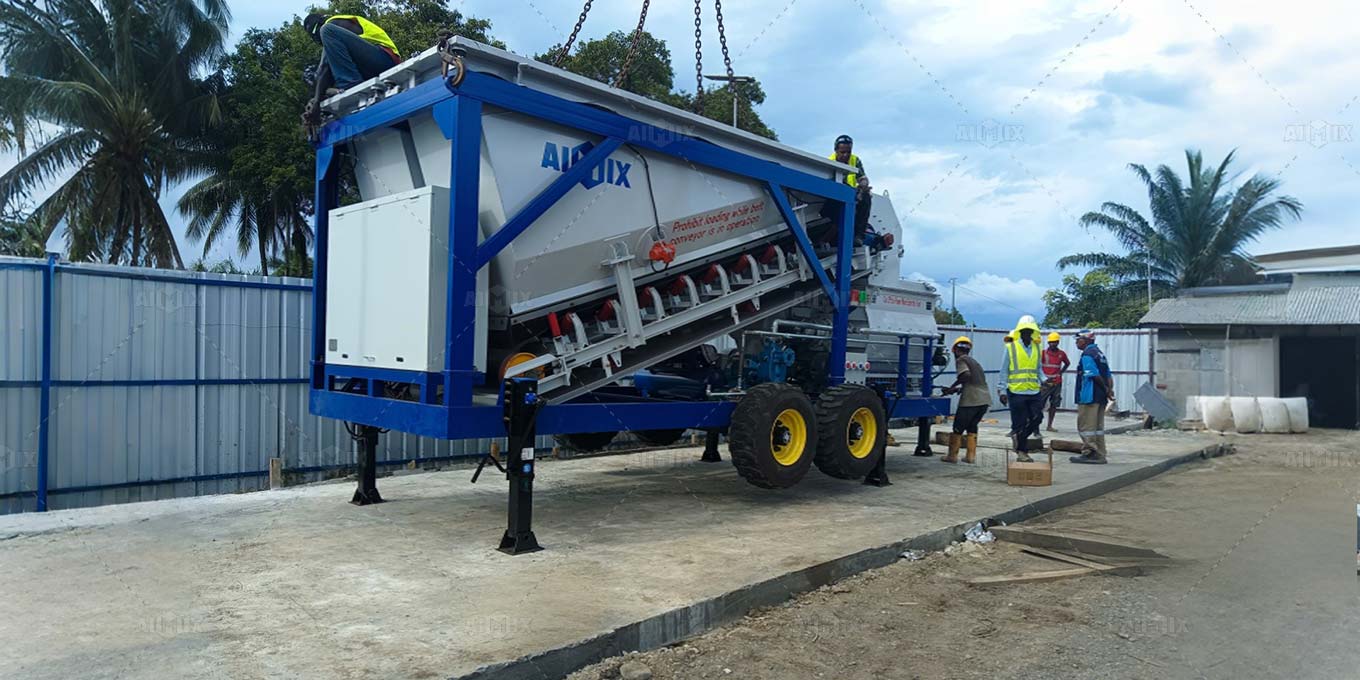

The main components, like concrete batcher and concrete mixer, are mounted on the chassis. It can be moved easily via tractor dragging. The cement silo is an optional component. However, it is important for concrete production. Therefore, some customers would like to buy a not-closed and simple silo to reduce costs. There are some cases of this compact concrete plant working on-site.
Apart from the portable concrete batch plant with a reversible mixer, there are some other options. Please check them below.
Features of Universal Small Concrete Mixing Plant
- 1.The small batch concrete plant has modular design and reasonable layout. Therefore, it is convenient for operators to assemble and disassemble at the construction sites.
- 2.Because of its small size, the small ready mix concrete plant has small footprint, which requires less site space.
- 3.It has adopted JS series twin shaft concrete mixer, which has high mixing quality, high efficiency, and high productivity. Thus, whether dry hard, semi-dry hard, plastic, or various proportions of concrete, it can achieve even mixing.
- 4.Main electrical components of electric control system are adopted foreign famous brands. It is convenient for customers to exchange spare parts. In addition, the service life is also longer.
- 5.Full automatic controlling. All of Aimix’s small concrete batch plants for sale are equipped with electric control systems. The whole operation can be controlled through control panel or computer program. Besides, it is also convenient for customers to operate and maintain.
How Does The Small Mixing Plant Work?
Use the wheel loader to load the raw material, such as cement, fine aggregate, and coarse aggregate, into the concrete batching machine.
The concrete batching machine would weigh the aggregates accurately. Then transport the materials to the concrete mixing machine through hopper or the belt conveyor.
The cement stored in the cement silo would be delivered to the mixer machine after being weighed through a screw conveyor.
The water and additive would be pumped into the twin shaft mixer.
The compulsory concrete mixer machine would mix the materials evenly.
After several seconds blending, the concrete mixture was produced. Then unloading it into the concrete mixer truck. The truck would transport the concrete to the construction sites.
Here is the working video of how the small rmc plant works at the construction site. You can check it below.
Five Systems of Small Concrete Mixer Plant
The small concrete plant for sale mainly consists of five main systems, including the material weighing system, material conveying system, material storage system, concrete mixing system, and electrical control system. Check the system details below.
Material Weighing System
To produce high-quality concrete mixture, every one of the raw materials has a dedicated weighing scale. The aggregate adopts accumulative weighing batches in the concrete batching machine. And the cement, water, and additive have their own electric digital weighing scales.
Material Conveying System
The material conveying system is to transport the aggregate, cement powder, water, and additive from the storage system to the central mixing system.
- The belt conveyor or hopper is used for delivering the aggregate.
- A screw conveyor is employed to transport the cement material.
- The pumps are widely used to transport liquid additives and water.
Material Storage System
For different kinds of raw materials, it needs various storage systems.
- In general, the powder material, like cement and fly ash, is stored in the cement silo with dust filtering mechanisms.
- The aggregate is stacked in open spaces or in warehouses.
- The additives meanwhile are stored in fully-sealed steel containers.
Concrete Mixing System
The mixing system is the core part of the small concrete mixing plant for sale. Generally, it adopts the twin shaft concrete mixer to blend the concrete mixture uniformly. While, some customers would like to choose other kind kinds of concrete mixers, like planetary concrete mixer, drum concrete mixer, vertical shaft concrete mixer, etc.
Electric Control System
It is not difficult to find that the small concrete batching plant for sale is with a fully automatic control system. A plant using a fully automatic control system has a central PLC computer and a large number of sensors throughout the entire small batch plant. Therefore, it is convenient for customers to control and operate.
What is A Small RMC Plant Price?
The prices of small concrete batch plants are what the clients are concerned about. Generally, the small concrete plant price is cheaper than large capacity automatic concrete mixing plant. Thus, the small rmc plant cost usually is affordable and under budget.
The small concrete batch plant prices range from $16,000 to $90,000. The total cost differs with different models, sizes, specifications, and configurations. Therefore, the prices depend on the customer’s requirements. You can consult our sales for the latest quotation on the specific model of the small concrete batch plant for sale.
Choose Aimix Manufacturer
Aimix Group has stood out among various concrete plant manufacturers. Here are some reasons why you can choose us for safety.
- 1. Aimix Group is one of the leading professional concrete batch plant manufacturers and suppliers in China.
- 2. It has owned over 40 years of manufacturing experience since 1982. With mature experience and advanced technology, we have upgraded our concrete plants many times.
- 3. Having obtained CE and ISO certificates, we ensure the machine is of high quality and stable performance.
- 4. Reasonable concrete plant price. Aimix has its own manufacturing factory. We can provide a low ex-factory price for our clients.
- 5. Thoughtful service. We are dedicated to offering considerate service for global customers, including pre-sale, on-sale, and after-sales service. Besides, 5 branch offices have been established to provide after-sales service for customers, including these countries: Philippines, Malaysia, Indonesia, Pakistan, and Uzbekistan.
Apart from that, Aimix has exported over 150 units of small batching plants all over the world. If you are interested in our machine, welcome to contact us for the latest prices right now! Leave your requirements in the chart below. Or email, tel, and WhatsApp us! Then we would reply to you soonest!
