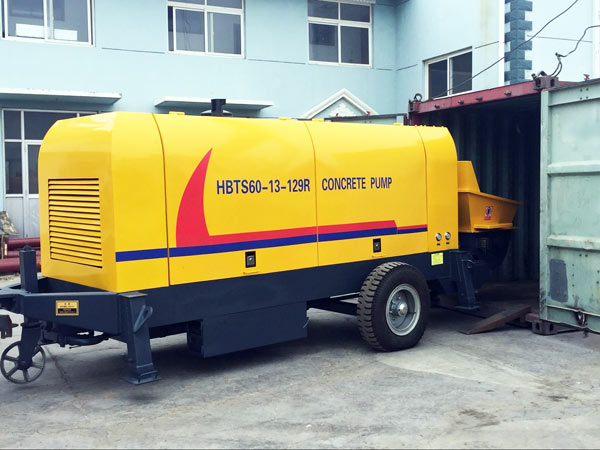

Manual concrete pump is a concrete machinery which is used for continuous transport along pipelines. As one professional concrete pump manufacturer, Aimix produces different kinds of manual pumps, including diesel manual pump and electric manual pump.

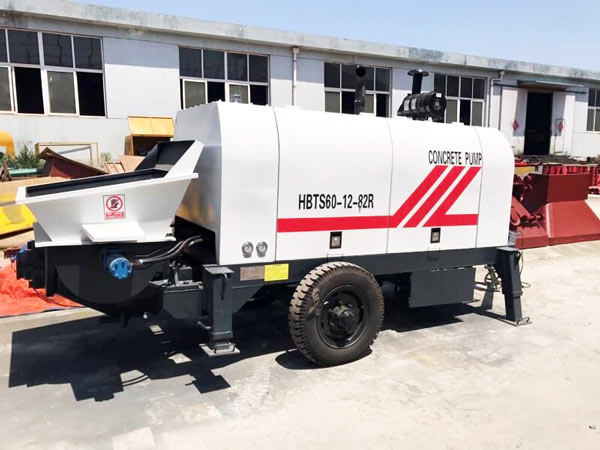

Manual diesel concrete pump refers to the pump which uses diesel engine as motor system. Compared with electric type, it usually has a larger power on equal conditions. The output of our diesel pump ranges from 40 cubic meters per hour to 80 cubic meters per hour. It is more suitable for somewhere there is no electricity.
We have such diesel models for your reference: ABT40C, ABT60C and ABT80C.
| Items | Units | ABT40C | ABT60C | ABT80C | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 | |

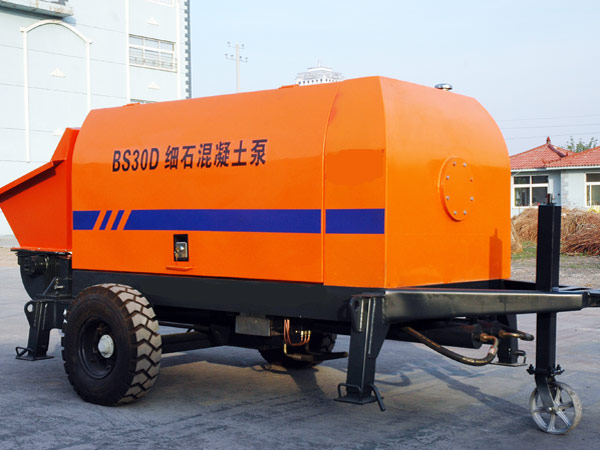

Electric manual pump is driven by motor. With the advantages of environmental protection concept and the popularization of electricity, this is really popular in the construction market.
When it comes to manual electric concrete pump, we have more models for you to choose, including ABT40D, ABT60D and ABT80D.
| Items | Units | ABT40D | ABT60D | ABT80D | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 | |
Next, let’s look for some reasons why customers are attracted by this kind of pump.
Why manual concrete pump is popular?
1. The pumping efficiency is increased by using advanced S distribution valve. S valve consists of wear plate and cutting. The adoption of rigid and wearable alloy materials prolongs the service life of wear plate and cutting ring. Besides, there is floating wear-resisting ring on S valve, which compensates its rubbing loss automatically and has good tightness.
2. It has anti-pump function, which helps the concrete in the conveying cylinder back to the hopper. By doing this, it can reduce clogging.
3. The hydraulic system adopts open-type system, which leads to a fast speed of commutation and high efficiency.
4. It is equipped with advanced air cooling system instead of water cooling system. Thus there is no need to connect with water source, which is more convenient.
5. Adopted with central automatic lubrication system, the maintenance becomes much easier.

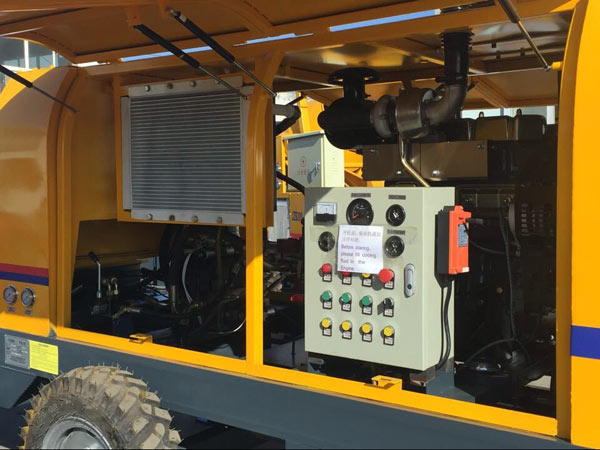

6. It’s highly maneuverable because of its nice electric control system. We have convenient wire remote equipment and imported program controller.
7. With high pumping pressure, it can meet the demands of high-rise construction and long-distance construction.
8. With high device and stable function, it has a low failure rate, which saves the cost of subsequent maintenance.

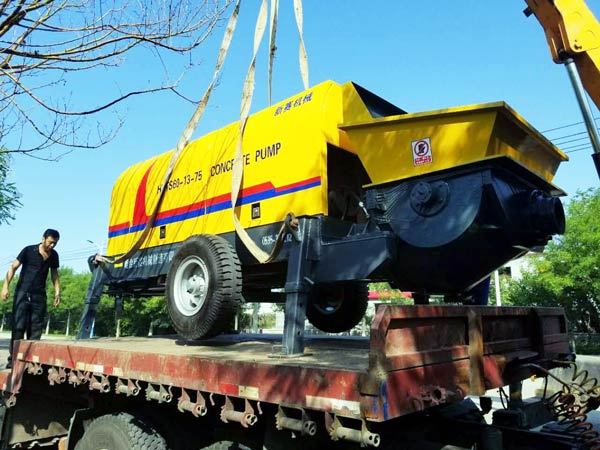

Since Aimix manual has so many strong points, they have exported to a lot of foreign countries.
How does manual concrete pump work?
When the manual ready mix pump is dragged to the construction site, then you need to set up pipelines. Because only with the help of pipelines, concrete can be sent to high-rise place. So what will happen when the pump starts working?
At first the concrete is sucked into one of the concrete conveying cylinders. When concrete pistons begins to move, and then the S valve in the hopper also begins to move and push the concrete out of the conveying cylinder and make it get into the pipelines. This is the first turn. After that, the system changes the direction to the contrary automatically, then concrete was sucked into the other concrete conveying cylinder and start another pumping process.
After introducing the features and working principle of our manual concrete pumping machine, I guess you may have the idea of purchasing it. Besides, you can also get portable concrete pump from us. Please feel free to contact us at any time, and your inquiry will be replied within twenty four hours.
