One Machine, Two Functions – Twice the Efficiency
Ready StockFast Delivery
Export countries 150+Global 100+ Service Outlets
Are you struggling with the inefficiency of separate mixing and pouring processes? The innovative concrete mixer with pump would be your ultimate all-in-one solution that slashes time and manpower while boosting output. This integrated concrete mixing pump not only blends concrete mixture, but delivers it directly to the placement point, eliminating costly delays and manual handling. It has been the primary choice for contractors and builders applying to their construction projects.
Three Concrete Mixer with Pump Types, One Solution for Your Job Site
To meet diverse construction challenges, AIMIX has launched three types of concrete mixer pumps for sale. One is with a drum concrete mixer, one is with the planetary mixer, and the last one is with a boom. They’re dedicated concrete mixing and pumping solutions for different operating scenarios. Check their differences, and there’s always a model that matches your construction project needs.
If your project requires concrete strength of C30 or below and you’re looking for the ultimate value for money, this classic drum type mixer pump for sale is your ideal partner. Utilizing the proven principle of drum rotation and gravity-fed concrete, it’s designed specifically for mixing low to medium-strength concrete. Its simple structure reduces purchase costs and maintenance requirements, providing a reliable concrete solution for a wide range of applications, including residential and rural construction.

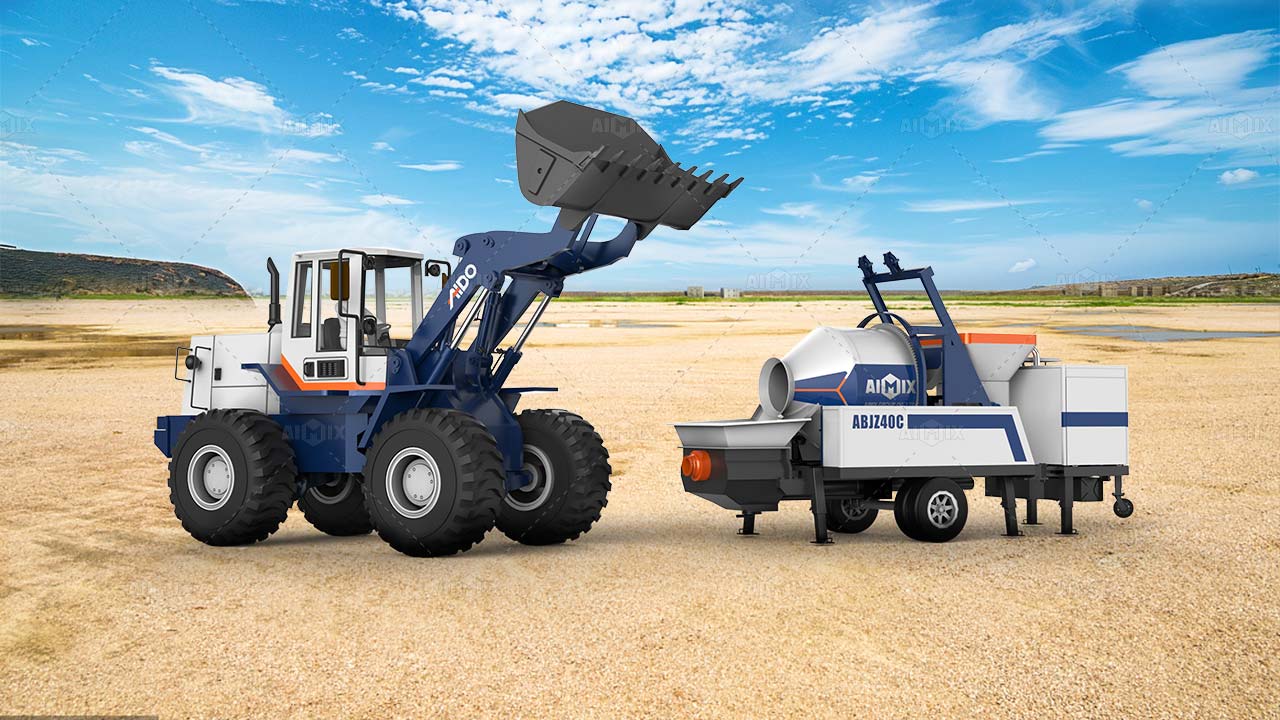

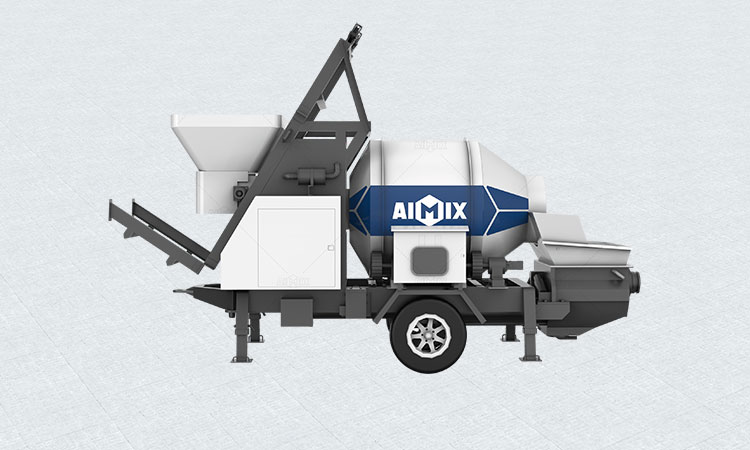

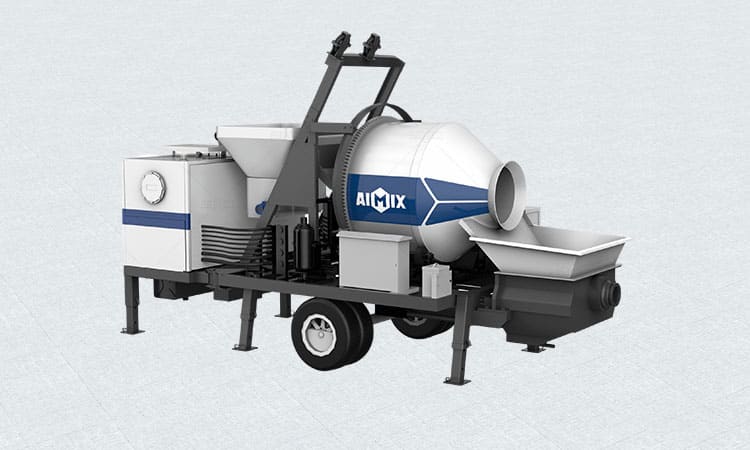

Classic ABJZ Series – Concrete Pump with Drum Mixer – Flexible and Economical Option

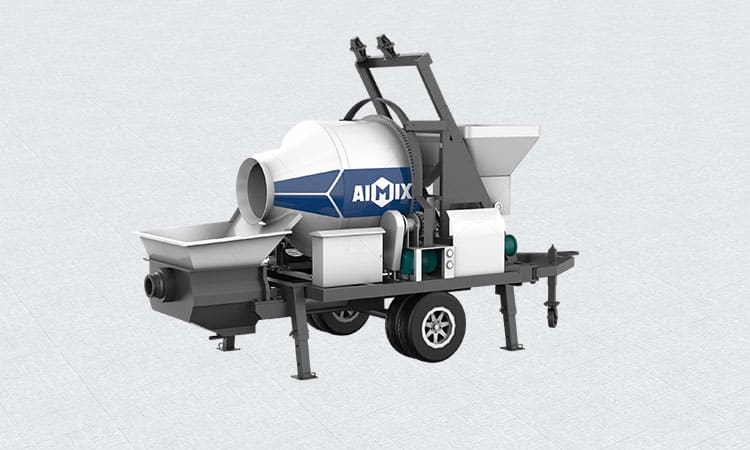

Models: ABJZ30C, ABJZ40C diesel type; ABJZ30D, ABJZ40D electric type
Applications: Suitable for small to medium-sized urban construction, residential buildings, road maintenance, etc
30 and 40m³/hConcrete Output
Diesel or ElectricPower Type
Horizontal Pumping300-500m
Vertical Pumping120m
Are you still troubled by uneven concrete mixing, low working efficiency, and the mismatch between mixing and pumping capacity on construction sites? The AIMIX ABJW series planetary concrete mixer with pump is specially designed to solve these problems.
New ABJW Series – Concrete Pump with Vertical Shaft Planetary Mixer – Efficient Mixing Capability
Equipped Planetary Mixer: Dual hydraulic drive, mixing without dead angle, more uniform mixing
Capability: 2.5 m³ mixing tank; Achieve 40-60 m³/h capacity
40-60 m³/hConcrete Output
⬆120m; ➡300mPumping Distance
WeichaiDiesel Engine Model
S ValveDistribution Valve
AIMIX also introduces the ABY series concrete mixer pump with placing booms, available in both wheeled and crawler types. It is a powerful 3-in-1 solution that integrates mixing, pumping, and placing into a single, highly efficient machine. Equipped with a high-efficiency planetary mixer, the ABY boom mixer pump ensures superior concrete homogeneity and stable mixing quality. Its intelligent placing boom offers outstanding reach, flexible operation, and precise concrete distribution, making it ideal for a wide range of construction applications, including residential buildings, commercial projects, industrial foundations, and infrastructure works.

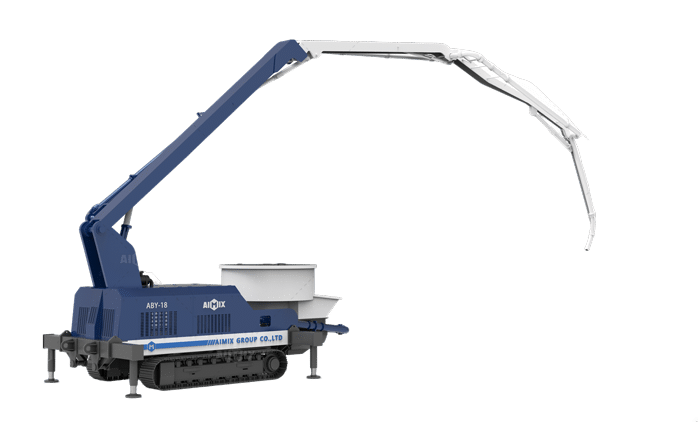

Crawler Boom Concrete Pump with Planetary Mixer – 15m and 18m
Crawler Chassis: Designed to navigate various terrains with ease, ensuring stable and efficient operation.
Smart Control System: Choose between intuitive panel control or convenient remote control for precise operation.
50(m3/h)Max. Pumping Capacity
2-4 km/hCrawling Speed
±180Rotation Angle
3Boom sections

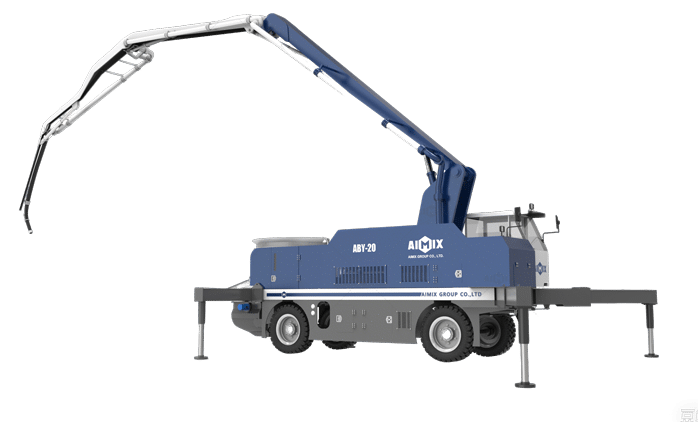

Wheeled Boom Pump with Planetary Mixer – 20m and 26m
Effortless Mobility: Equipped with durable tires for smooth and easy movement on flat roads without licence limited.
Enhanced Efficiency: Planetary mixer boosts mixing performance, increasing productivity by 20%.
20-26mHorizontal Pump Distance
15-21Vertical Pump Distance
5Boom Sections
Panel or WirelessControl
Quick Overview of Different Series for Your Selection:
| Series | Models | Capacity | Mixer Type | Concrete Grade | Engine Type | Pumping Distance | Suitable Projects |
|---|---|---|---|---|---|---|---|
| ABJZ Series Drum Concrete Mixer Pump | ABJZ30C, ABJZ40C, ABJZ30D, ABJZ40D | 30-40 m³/h | Drum Mixer | C30 and below | Diesel or Electric | Horizontal: 300-500m Vertical: 120m | Rural housing, residential buildings, road maintenance, small to medium urban projects; Pumping up to 8 floors |
| ABJW Series Planetary Concrete Mixer Pump | ABJW40C, ABJW60C | 40-60 m³/h | Vertical Shaft Planetary Mixer | C40-C50 high-grade concrete | Weichai Diesel Engine | Horizontal: 300m Vertical: 120m | High-rise buildings, commercial projects, industrial foundations, infrastructure works; Pumping up to 10-15 floors |
| ABY Crawler Type Boom Concrete Pump Mixer | ABY-15, ABY-18 | 50 m³/h | Planetary Mixer | C40-C50 high-grade concrete | Diesel Engine | Horizontal fabric radius: 15-18m; Vertical pumping height: 10-13m | Mountainous areas, bridge foundations, slope protection, rural and infrastructure projects; |
| ABY Wheeled Type Boom Concrete Pump Mixer | ABY-20, ABY26 | 89 m³/h | Planetary Mixer | C40-C50 high-grade concrete | Diesel Engine | Horizontal fabric radius: 20-26m; Vertical pumping height: 15-21m | Residential and commercial buildings, industrial foundations, urban construction; |
Applications of Concrete Mixer Pumps in Construction Industries
The construction industry is a broad and diverse field that involves the construction of everything from residential and commercial buildings to industrial facilities and infrastructure projects. The concrete mixer pump trailer is appliable various fields, such as residential construction, commercial construction, industrial construction and concrete road construction. Here are some cases of AIMIX concrete pump applications for reference.

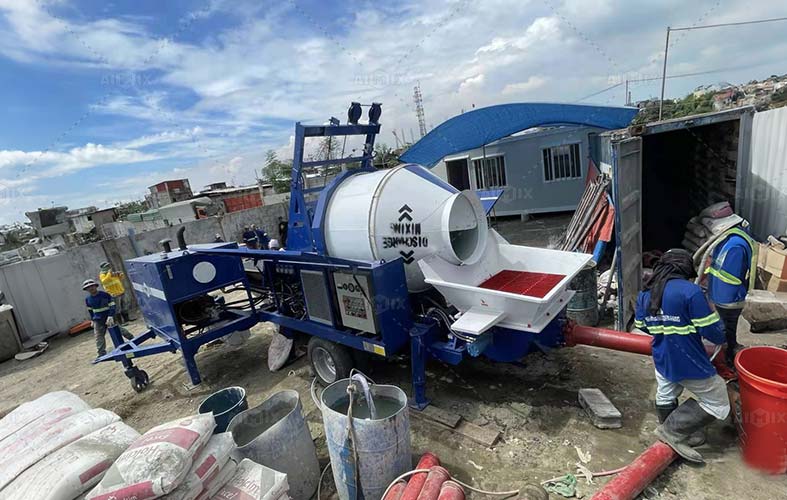

ABJZ40C – Diesel Mixer Pump for Factory Construction
- Model: ABJZ40C; 40 m³/h
- Pumping Distance: 120m vertically; 500m horizontally
- Power type: Weichai brand diesel engine
- Site Manager Reviews: “It has greatly improve working efficiency. Now it can produce over 10 cubic meters concrete mixture per hour. Strongly recommending for this equipment!”
ABJZ40C – Diesel Concrete Pump Mixer for Warehouse Construction
- Model: ABJZ40C; 40 m³/h
- Project location: Philippines
- Pumping Distance: 120m vertically; 500m horizontally
- Project Contractor Reviews: “Now my warehouse construction project is almost finished thanks to the use of the AIMIX concrete pump and mixer. It has accelerated the progress of the project. ”
ABJZ40C – Diesel Concrete Mix Pump for Road Work
- Projects: concrete road construction
- Pumping Distance: 120m vertically; 500m horizontally
- Civil Engineer Reviews: “ABJZ40 model can pump concrete for a long distance, up to 500 meters. During the construction of the entire 3km roads, we only moved it a few times, and it was very convenient to move.”

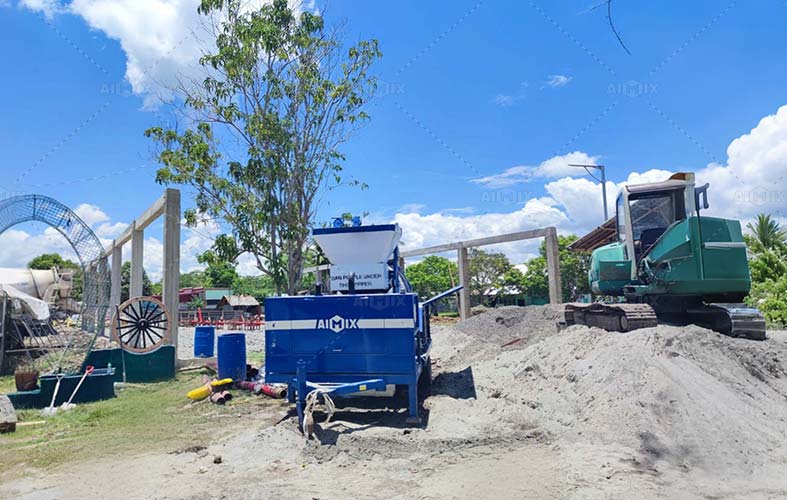

ABJZ40C – Diesel Mixer Concrete Pump for Mosque Construcion
- Capacity: 40 m³/h
- Pumping pressure: 10Mpa
- Pumping Distance: 120m vertically; 500m horizontally
- Construction Site Operator Reviews: “It completely replaced the original method of using concrete mixers to produce concrete and manually transporting concrete. The mixer pump concrete have helped me save costs, especially labour costs.”

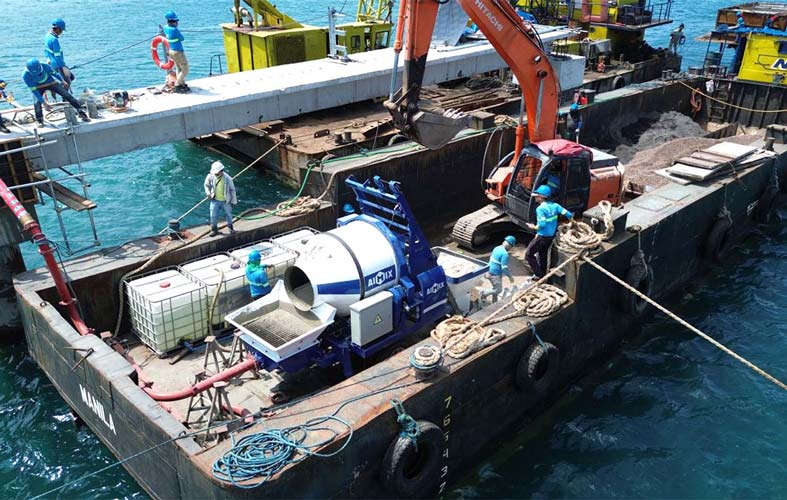

ABJZ40D – Electric Concrete Pump Mixer for Seaside Work
- Project items: Seaside Trestle Project
- Pumping Distance: 120m vertically; 500m horizontally
- Marine Construction Supervisor Reviews: “My project is very challenging because it is to be constructed at sea, which increases the difficulty of pumping. However, I am very satisfied with the pumping solution provided by AIMIX.”
On-site Working Video Collections
🌊 They Put Me on a Boat… Now I’m Pouring Concrete at Sea!
🚢 Marine Working Condition:
The project demonstrates stable concrete pumping performance in offshore and wave-affected environments.
The equipment maintains continuous output despite vessel movement, proving strong adaptability and pumping consistency at sea.
🏗️ Call Me A Underground Hero, Foundations Are My Specialty!
🧱 Deep Foundation Performance
This foundation work shows reliable performance in structural and underground pouring scenarios.
The pump delivers stable pressure for deep foundation and continuous reinforcement zone casting.
🏠 Your Next New House? Let me Help Create It!
⚡ Off-grid Construction Capability:
This residential construction case highlights efficient on-site mixing and pumping in rural conditions.
The diesel-powered engine system ensures stable operation where grid electricity is limited, improving construction speed and flexibility.
🚛 New Owner Take me Home, Get This Job Pumping!
🔧 Fast Deployment & Startup
This delivery-to-operation case demonstrates quick deployment and immediate productivity on-site.
It highlights easy setup, stable pumping start-up, and reliable performance for small-to-medium construction projects.
Customized Concrete Solutions: Batching & Mixing & Pumping Concrete for Your Projects
For projects that require both accurate concrete production and on-site pumping, there are two practical equipment configurations: an integrated system that combines batching, mixing, and pumping in one unit, and a concrete batching machine + separate concrete mixer pump. The right configuration depends on site space, production requirements, mobility, installation conditions, and the desired level of equipment integration.
Solution 1. AJP40 Integrated Concrete Production & Pumping Solution
—— One Machine for Complete On-Site Concrete Production & Pumping
Configuration: AJP40 integrates aggregate batching, concrete mixing, and concrete pumping into one compact machine. The complete process is controlled within a single equipment system.
How it works:
Aggregates and other materials are accurately weighed and fed into the mixer. After mixing, the fresh concrete is directly pumped to the required placement point
Suitable for:
- Projects with limited equipment layout space
- Sites requiring quick installation and relocation
- Small- to medium-scale concrete production and pumping
- Projects where reducing the number of separate machines is important
Benefits of The Integrated Concrete Solution:
- Consistent Concrete Quality: High-precision batching and advanced mixing technology ensure accurate material proportioning and uniform concrete quality, even for high-grade concrete applications.
- Uninterrupted Concrete Production:The complete batching, mixing, and pumping workflow supports continuous output, helping maintain smooth and efficient concrete placement.
- Quick Deployment and Flexible Operation:The integrated structure with foldable hydraulic legs enables easy transportation, fast installation, and rapid start-up at different construction sites.

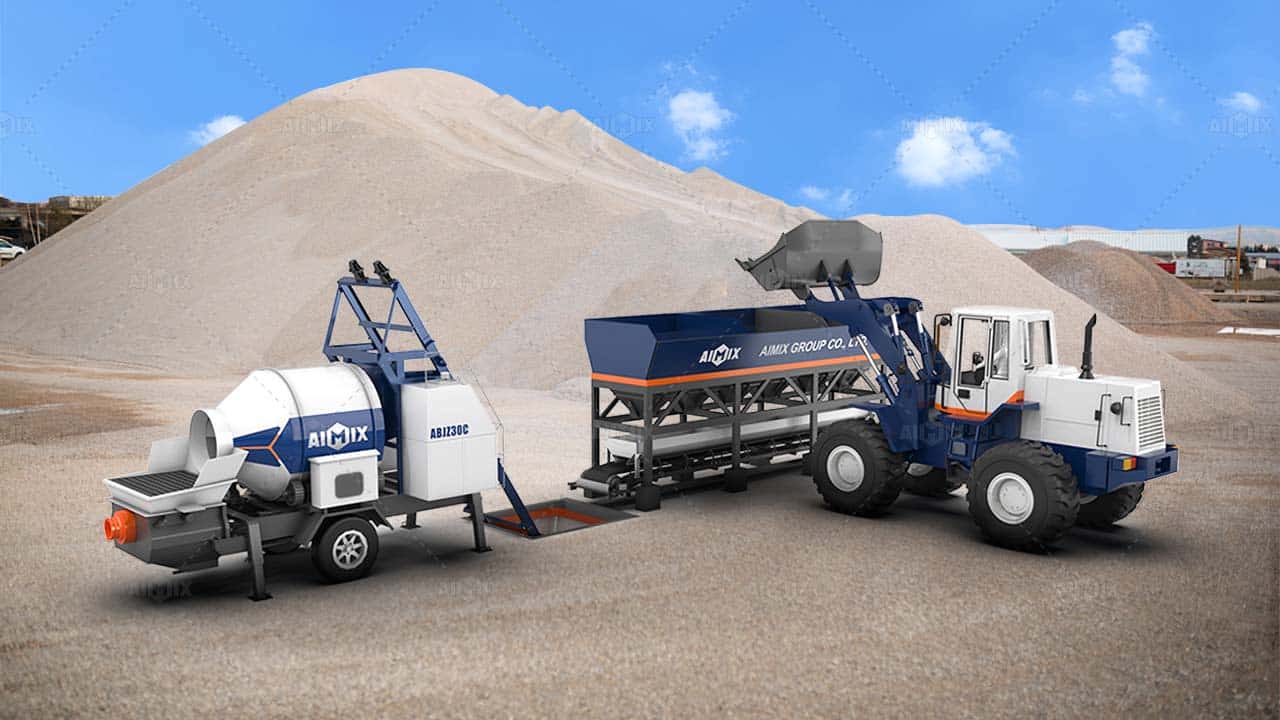

Solution 2. Concrete Batching Machine + Concrete Mixer Pump
—— Flexible Equipment Combination for Controlled Concrete Production
Configuration: This solution uses a concrete batching machine for aggregate proportioning together with a concrete mixer pump for concrete mixing and pumping. Each machine performs a dedicated function within the production process.
How it works:
The batching machine weighs and feeds aggregates according to the required mix proportion. The batched materials are then supplied to the concrete mixer pump, where they are mixed and pumped to the construction point.
Suitable for:
- Projects requiring independent batching and pumping equipment
- Sites with sufficient space for separate equipment layout
- Projects where equipment functions need to be configured independently
- Applications requiring flexible equipment replacement or future adjustment
Benefits:
- Flexible site arrangement: Separate equipment can be positioned according to the available space, material flow, and concrete placement requirements.
- Controlled concrete proportioning: The batching machine provides accurate aggregate weighing and feeding, helping maintain consistent mix proportions.
- Flexible capacity matching: Batching capacity and mixer-pump output can be selected according to the project’s concrete demand.
- Independent equipment adjustment: Each machine can be configured, maintained, or upgraded separately as project requirements change.
Integrated Solution vs. Concrete Batching Machine + Mixer Pump Solution
Both solutions can complete concrete batching, mixing, and pumping. The main difference is how these functions are organized: the integrated solution combines them into one machine, while the traditional solution uses separate batching and mixing-pumping equipment. The following comparison helps match each configuration to different project requirements.
| Comparison | Integrated Concrete Batching, Mixing & Pumping Plant | Concrete Batching Machine + Concrete Mixer Pump |
|---|---|---|
| Equipment structure | One integrated machine | Two independent machines |
| Functions | Batching + Mixing + Pumping integrated | Batching + Mixing + Pumping performed by separate equipment |
| Site layout | Compact layout with fewer equipment units | Requires space for separate batching and mixer-pump equipment |
| Installation | Integrated installation and quick deployment | Separate equipment installation and connection |
| Operation | Centralized operation of the integrated system | Coordination between batching and mixer-pump equipment |
| Equipment flexibility | One integrated unit for the complete workflow | Individual equipment can be selected or adjusted separately |
| Suitable project conditions | Compact sites, frequent relocation, and simplified deployment | Sites with sufficient space and a preference for independent equipment configuration |
Specifications
When determining if a particular model is suitable for your projects, you should consider its main parameters. Review their specifications below.
| Items | Units | ABJZ30C | ABJZ40C |
|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Diesel engine model | Weichai | Weichai | |
| Electrical engineering power | KW | 37 | 82 |
| Rotate speed | r/min | 1480 | 2200 |
| Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 32 |
| Mixing system pressure | MPa | 6-8 | 6 |
| Capacity of oil tank | L | 260 | 350 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions:length×width×height | mm | 4500x1750x1600 | 600x2300x3150 |
| Total weight | kg | 3000 | 4500 |
| Items | Units | ABJZ30D | ABJZ40D |
|---|---|---|---|
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | 400 |
| Outlet diameter | mm | Φ150 | Φ150 |
| Winding motor power | KW | 5.5 | 5.5 |
| Stir the motorPower | KW | 4.5 | 4.5 |
| Water pump motor powe | KW | 0.55 | 0.55 |
| Electrical engineering power | KW | 37 | 45 |
| Rotate speed | r/min | 1480 | 1480 |
| Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 26 | 26 |
| Mixing system pressure | MPa | 6-8 | 6-8 |
| Capacity of oil tank | L | 260 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 4200x2300x3150 |
| Total weight | kg | 3000 | 4500 |
| Item | Unit | ABY-15 | ABY-18 | |
|---|---|---|---|---|
| Parameter | Maximum theoretical delivery volume | M3/h | 50 | 50 |
| Maximum outlet pressure | MPa | 6 | 6 | |
| Distribution valve type | S valve | S valve | ||
| Inlet and outlet switching interruption time/switching frequency | 0.3-0.5/19 | 0.3-0.5/19 | ||
| Transmission cylinder material | High quality steel chrome plated | High quality steel chrome plated | ||
| Main cylinder specifications (cylinder diameter x stroke) | mm | Ø125ｘ1000 | Ø125ｘ1000 | |
| Cylinder diameter x stroke | mm | Ø230ｘ1000 | Ø230ｘ1000 | |
| Outlet diameter | mm | 180 | 180 | |
| Operational Controls | Panel and wireless remote control | Panel and wireless remote control | ||
| Powertrain | Rated power | KW | 110 | 110 |
| Rated speed | rpm | 1800 | 1800 | |
| Hydraulic system | Main oil pump model | K3V112 | K3V112 | |
| Manufacturer | Kawasaki | Kawasaki | ||
| Main oil pump displacement | Ml/r | 112 | 112 | |
| Main oil pump quantity | 1 | 1 | ||
| Main hydraulic system form and control | Open loop electric proportional control | Open loop electric proportional control | ||
| Main system rated pressure | Mpa | 32 | 32 | |
| Distribution system pressure | Mpa | 32 | 32 | |
| Hydraulic oil tank capacity | L | 450 | 450 | |
| Boom Frame Parameters | Length of one arm | mm | 5150 | 6000 |
| Length of two arms | mm | 4300 | 4760 | |
| Length of three arms | mm | 2550 | 4760 | |
| Turntable angle | ±180 | ±180 | ||
| Diesel Engine | Rated power | kW | 110 | 110 |
| Control voltage | V | 24 | 24 | |
| Maximum speed | r/min | 1800 | 1800 | |
| Concrete Mixer | Disc type | m3/h | 1.5 | 1.5 |
| Other parameters | Hydraulic oil cooling method | Air Cooling | Air Cooling | |
| Overall dimensions (length x width x height) | mm | 6000*2200*2900 | 6500*2200*3100 | |
| Tracks | T | 10 | 10 | |
| Travel speed | Km/H | 45326 | 45326 | |
| Overall weight | kg | 12500 | 13500 | |
Most Important Specifications of Concrete Mixer Pump You Should Pay Attention to:
- Output Capacity: how much concrete the pump can deliver per hour, like 30m³/h, 40m³/h, and 60m³/h. Higher capacity suits large-scale projects.
- Power Source: Diesel or electric. Diesel engine mixer pump suit for remote sites without stable electricity; electric type is suitable for where the site has reliable power supply , common for urban projects.
- Max Horizontal and Vertical Pumping Distance: Ensure the mini concrete mixer and pumping machine can reach all parts of your construction site, especially for high-rise buildings or extensive road projects.
- Max aggregate diameter: estimate aggregate particle size and ensure it is within range to avoid frequent concrete pipe blockage.

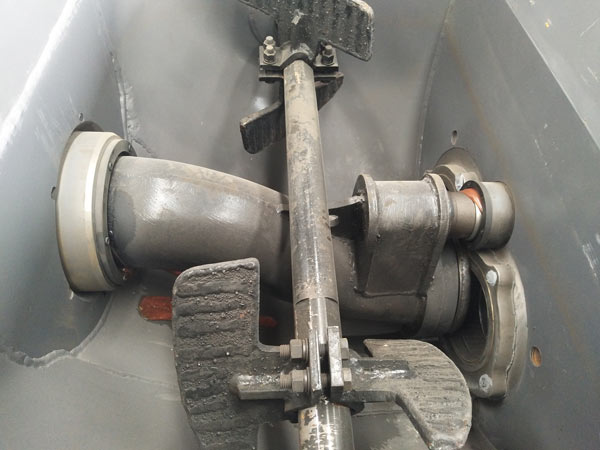

- S Valve (Distribution System): a key concrete distribution mechanism used in modern concrete pump systems. Compared with gate or rotary valve systems, the S Valve we adopted offers smoother switching, better sealing performance, and improved resistance to wear.
Choose A Suitable Concrete Mixer Pump Model According to Your Project Needs
Choosing the right concrete mixer pump machine model is crucial for the success of your construction projects. The appropriate model can significantly impact the efficiency, quality, and cost-effectiveness of your operations. Whether you’re working on which kind of project, selecting the suitable concrete mixing and pumping machine ensures that your specific needs are met. Here are some important aspects that you need to consider carefully.
Project Type & Concrete Demand
-
The nature and scale of your project dictate the required output and concrete mixer pump type.
- Small to Medium-scale Projects: Residential buildings, villas, rural construction, and irrigation channels typically require a lower output of 30-40 m³/h.
- Large-scale & Commercial Projects: Industrial plants, high-rise buildings, and bridgesdemand higher output, like 50 and 60 m³/h or more, and often more powerful pumping pressure.
- Specialized Projects: For projects with limited access, complex terrain, or wide sites, like ports or tunnels, mobility and reach become crucial.
Pumping Distance & Height
-
Determine the maximum distance the concrete needs to be pumped, both horizontally and vertically. This is a primary factor in selecting the concrete mixing pump’s engine power and pressure. Always provide a buffer beyond your calculated distance to account for pipeline bends and resistance.
Site Conditions & Power Availability
-
The infrastructure at your construction site is a decisive factor.
- Diesel type: Ideal for remote sites or new projects with no stable electricity supply. They offer excellent mobility and power but have higher noise levels.
- Electric type: Best for sites with a reliable and sufficient power supply (check voltage requirements, e.g., 380V/415V). The electric concrete pumps are quieter, more cost-effective to run, and produce zero emissions, making them suitable for indoor or urban projects.
Concrete Mix Design & Material Properties
-
The pump must be compatible with the concrete you are using. Inform the manufacturer about the mix design, including:
- Aggregate Size: Maximum size of stone or gravel.
- Slump Value: The workability of the concrete.
- Special Mixes: Such as lightweight concrete, fiber-reinforced concrete, or mortar, which may require specific pumping systems.
Mobility & Access
- Wheeled Models: Excellent for moving between different sites or on large, open areas with good road access.
- Tracked Models: Perfect for confined spaces, soft or uneven terrain, and projects requiring superior on-site maneuverability without a trailer.
After considering the above aspects carefully, you can primarily select a model of concrete mixer with pump machine is more appropriate for you. And there is a simple recommendation on the selection according to projects.
| Types of Projects | Recommended Models |
|---|---|
| Rural and urban and rural 2-8-story houses, small foundations, small infrastructure projects | ABJZ30, ABJZ40, ABJW40 |
| Small and medium-sized residential projects, commercial buildings, Small prefabricated component factory | ABJZ40, ABJW60 |
| Tunnel construction, water conservancy projects, terrace construction, mountain villas, swamp backfill, etc. | Crawler type ABY15 |
| Small and medium-sized industrial parks, municipal projects, and township community construction | Wheeled type ABY20 and ABY26 |
If you still have no idea, you just need provide key information about the projects as listed above for us. AIMIX sales manager will guide you to choose a right concrete pump with mixer machine. Feel free to contact us now!
International Certifications & Quality Assurance
All Aimix concrete mixer pumps for sale are manufactured under strict quality control standards and comply with international certification requirements. Our concrete pumping equipment has obtained CE certification and is produced in accordance with the ISO quality management system, ensuring reliable performance, operational safety, and stable manufacturing quality for global construction projects. These certifications demonstrate that the equipment meets international standards for design, production, and safety, helping you reduce procurement risks and improve project reliability.
Global Service & Engineering Support for Reliable Concrete Pumping Worldwide
Aimix delivers a global engineering support system to ensure stable and efficient construction operations. With 100+ service outlets worldwide, we offer fast response, localized support, and full lifecycle maintenance for every concrete mixer pump machine.
🌍 24/7 Technical Support (≤6h Response)
Our engineers provide 24/7 online support with a guaranteed response within 6 hours. We assist with troubleshooting, model selection, and project consultation to ensure smooth operation.
🏗️ Project-Based Concrete Pump Model Selection
We recommend suitable models based on output, pumping distance, and site conditions, ensuring each solution matches your construction needs — from small housing projects to large infrastructure works.
⚙️ Customized Production with Full Transparency
We support customization of key configurations such as engine type, engine brand, and pumping pressure. Customers receive real-time photos and videos during production to ensure full specification confirmation before delivery.
👷 On-Site Commissioning & Operator Training
Engineers provide installation, commissioning, and operator training to ensure correct concrete pump setup and efficient operation. Remote guidance is also available for urgent projects.
📦 Global Service Network & Fast Spare Parts Supply
With 100+ global service outlets, including branches, distributors, and service partners, Aimix provides fast technical support and spare parts supply worldwide.
Critical parts such as S-valves, wear plates, cutting rings, and seals are available in Indonesia, Malaysia, Uzbekistan, Guinea, Ghana, helping reduce downtime and maintain efficient project operation.
🛠️ Lifecycle Maintenance & Equipment Reliability Program
We implement a structured maintenance system for you, covering hydraulic systems, pumping cylinders, and S-valve assemblies.
Regular inspections and preventive maintenance services significantly reduce failure risks and extend your equipment service life under heavy-duty working conditions.
Although AIMIX can provide best concrete mixing pump trailer service, you may be still worried about whether you can gain returns after investment. You can get some details about the ROI of pump mixer concrete.
Is a Concrete Mixer Pump Worth the Investment? – ROI Analysis
The return on investment (ROI) of a concrete mixer pump is a crucial factor for contractors and investors when evaluating its profitability. Compared with traditional mixing and manual transportation methods, it helps you reduce labor costs, shorten project timelines, and improve daily construction efficiency.
Estimated Price Range for Different Types
To help you budget, here is the current market price reference for AIMIX concrete mixer pumps:
| Types | Price Ranges |
|---|---|
| Electric Concrete Mixer Pump | USD 21,000 – 25,000 |
| Diesel Concrete Mixer Pump | USD 25,000 – 34,000 |
| Crawler Boom Mixer Pump | USD 72,000 – 100,000 |
(Note : Actual prices may fluctuate based on shipping costs and optional customized configurations.)
Calculating Your ROI: A Real-World Example
To give you a clearer picture, let’s compare a standard ABJZ40C diesel mixer pump with traditional manual labor on a typical 100m³ foundation project:
| Comparison Item | Manual Mixing & Transport | AIMIX Mixer Pump (ABJZ40C) |
|---|---|---|
| Labor Required | 10 – 15 workers | 4 – 5 workers |
| Daily Output | 15 – 20 m³ / day | 70 – 100 m³ / day |
| Labor Cost (Estimated) | $300 / day | $100 / day |
| Time to Finish 100m³ | 5 – 6 days | 1 day |
Result: By saving $200 in labor per day and finishing projects 5x faster, most of our clients in the Philippines, Indonesia, Jamaica report a Full Payback (ROI) within 3 to 5 months .
- Output Capacity: Higher output means faster concrete placement and shorter project duration.
- Labor Savings: Reduced manpower for mixing, transporting, and pouring concrete.
- Daily Working Hours: Longer operating time improves equipment utilization and profit generation.
- Project Type: Housing, foundation, road, and infrastructure projects have different profitability levels.
- Material Costs: Cement, aggregates, and fuel or electricity consumption directly affect operating cost.
- Rental Potential: Rent out the machines when projects are on break, creating a second revenue stream
By assessing these variables, you can estimate how quickly you can recover investment and generate profits. If you need assistance in calculating your ROI based on specific project needs, our sales team is available to provide detailed guidance!
How Does A Cement Mixer With Pump Work?
There are six steps through the whole construction process.
Drag the cement mixer with pump to the construction site with the help of a tractor
Set the cement pump mixer at a proper place and then connect delivery pipe with the it.
Feed concrete into the mixer.
Concrete is mixing in the drum.
Concrete gets into the pumping system and then goes out through pipelines.
Clean the pipe in order to avoid the waste of spare concrete or the blockage in pipelines.
What Are the Differences Between Concrete Mixer Pump and Trailer Concrete Pump?
Trailer pump and concrete drum mixer pump are the main hot-sale concrete pumping equipment in AIMIX. A lot of customers are puzzled about what differences between them and which one should be chosen for their construction projects.
Whether Equipped with Mixer
The main difference between trailer mounted pump and mixer pump is whether have concrete mixer or not. The small concrete mixer and pump is the combination of concrete mixer and concrete pump. It has a double function: mixing and pumping. While the trailer type is just one piece of pumping equipment. Both of them are mobile concrete pumps.
Capacity Difference
Another difference is capacity. Trailer concrete pump has a wider range of capacities about 40 m3/h to 80 m3/h, which is suitable for medium and large construction projects. While the cement mix pump has a smaller capacity of about 30 and 40 m3/h, which is appropriate for small and medium construction items, such as roads, houses, low-rises buildings, and bridges…..
Price Differences
Larger capacity, higher price. Under the same capacity, the mobile concrete mixer with pump price is higher than trailer concrete pump price. Because, it has an additional concrete mixer equipped.
Thus, if you only machine with only pumping function, trailer pump is enough for your project. If you want to add its mixing function, the concrete mixer pump will be your best choice. If you want to get best mobile concrete mixer pump price, welcome to contact us.
FAQS
What is the typical lead time and delivery schedule?
- Standard Models: For popular models like the ABJZ40C, we usually have units in stock, and shipment can be arranged within 7-10 working days.
- Customized Orders: If you require specific voltage, color, or specialized mixing systems, the production cycle is typically 20-30 days.
- Logistics: We provide full tracking services from our factory to your nearest port.
What are the performance requirements for pumped concrete?
- a. Aggregate grading should be good; a proper mix of large and small stones is recommended. Sand should be medium sand of around 3mm, and stone powder should not be used.
- b. Concrete slump should be controlled between 14–22 cm, ideally around 18 cm; adjustments can be made during mixing according to user requirements.
- c. Maximum aggregate size should not exceed 40 mm.
What is the engine oil replacement interval?
If you operates the machine for 8 hours per day, the engine oil should be replaced approximately once every 3 months.
How to prevent and handle pipe blockages during pumping?
Pipe blockage is a common concern for operators. Based on our 15+ years of site experience, we recommend:
- Prevention: Ensure the concrete slump is between 12cm-23cm and the aggregate size does not exceed 1/3 of the pipe diameter.
- Solution: Our equipment is equipped with a reverse pumping function. If a blockage occurs, simply activate the reverse switch to suck the concrete back into the hopper, re-mix it, and then resume normal pumping. This feature saves 90% of manual cleaning time.
How to clean it after one day’s work?
- a. Continue pumping until all remaining concrete in the hopper is discharged.
- b. Reverse pump 2–3 strokes to release pressure in the pipeline.
- c. Turn off the main power.
- d. Clean the hopper outlet and remove residual concrete; rinse with water.
- e. Clean and flush the pipeline using water and cleaning (sponge) balls.
- f. Circulate clean water through hopper, S-valve, and pipeline using forward/reverse pumping.
- g. Flush until only clean water comes out.
- h. Run idle pumping for a few minutes, then drain all remaining water and shut down.
- i. Rinse the entire machine, especially all concrete-contact parts.
How does the mixer pump machine perform in high-temperature or high-altitude environments?
- Heat: For tropical climates (like the Middle East or SE Asia), we equip our machines with an Air-Cooling System (or optional Water-Cooler) for the hydraulic oil to keep temperatures below 70°C.
- Altitude: At altitudes above 2,500m, diesel engines lose power. In such cases, we offer Turbocharged engines to maintain the necessary pumping pressure.
Build Your Future with a Partner You Can Trust
With 15+ years of manufacturing expertise, ISO/CE certifications, and a global network of service centers, AIMIX ensures your concrete mixer with pump stays productive from day one to year ten. Still have questions? Our engineers are ready to provide the technical answers you need. Contact us now to get the best factory price and a complimentary wearing parts kit with your first order!
