30m³/h Capacity – Small Investment, Quick Returns
Ready StockFast Delivery
Export countries 150+Global 100+ Service Outlets
The mini concrete pump for sale is a compact, portable solution built specifically for tight-access and hard-to-reach job sites. It delivers fresh concrete where full-size concrete pump trucks simply cannot go – narrow urban plots, backyard renovations, indoor basements. If your project has space limitations, limited concrete demand, or tight margins that can’t absorb pump truck hire fees, this mini concrete pumping machine is your answer. Small in footprint. Serious in output. Designed to pay for itself fast.
Is Your Project Ready for a Concrete Mini Pump?
If you’re working on small to medium-scale construction projects, oversized equipment creates more problems than it solves – higher costs, impossible logistics, and wasted capacity. Here are four clear signs a mini concrete pump is the right machine for your job.
Your job site has space limitations
If your access route involves a narrow alley, a residential driveway, or a single-width gate, standard pump trucks cannot enter. With a width typically under 2.2 meters, the mini size pumping equipment fits through standard doors and narrow passageways. Park it close and run the pipeline the rest of the way, no wheelbarrows needed.

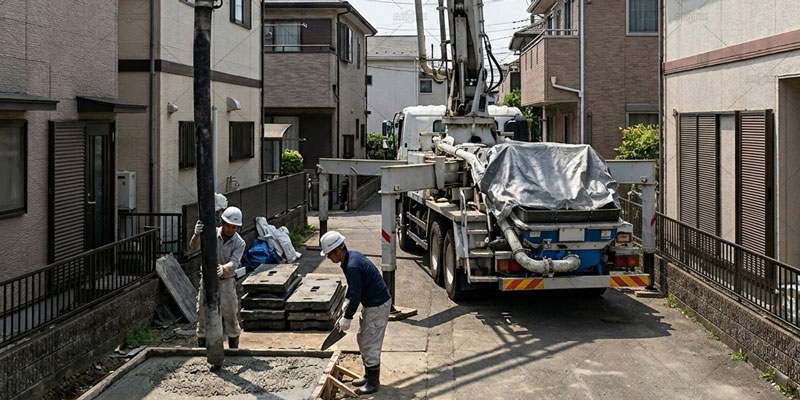

Your concrete demand is modest but consistent
Pouring 10-30 m³ at a time? A full-size concrete pump truck charges for capacity you never use, often with a minimum call-out fee. While, With a steady 30 m³/h output, the mini pump matches small-batch demand perfectly. A typical 60 m² slab (roughly 7-9 m³) finishes in under 20 minutes of pumping time.
Your project sites change frequently
If you’re a contractor moving between different job sites every few days. You need equipment that moves as fast as you do. The trailer-mounted design of small pumping concrete machine tows behind any standard pickup truck. You can hook up, unhook, and get pumping fast, typically in under 20-30 minutes once on site. More setups per week, more billable days per month.
Your labor costs are hurting your margins
Manual concrete placement requires 8-15 workers just for transfer and placement. Slow, exhausting, and expensive. However, one mini pump operated by 3-4 workers replaces a manual crew of 10-15. Lower labor costs, faster pours, better margins from day one.
If any of these situations sound familiar—tight access, modest volumes, frequent moves, unreliable supply, or rising labor costs—you already know a concrete mini pump makes sense. The next question is simpler: which type matches the way you work?
That depends entirely on where your concrete comes from. Some contractors have reliable ready mix plants nearby. Others work miles from the nearest batching facility. This single difference determines which type of portable mini concrete pump machine for sale will serve you best. Below, we break down the two types of AIMIX mini concrete pumps for sale.

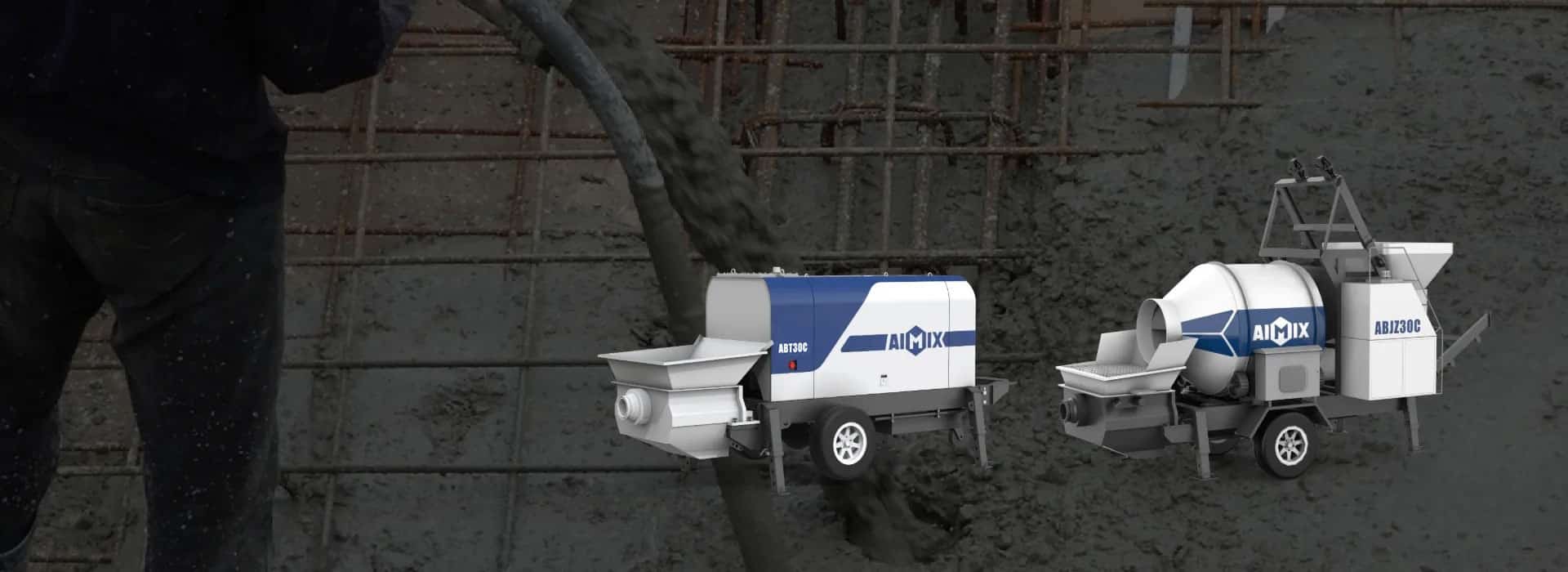

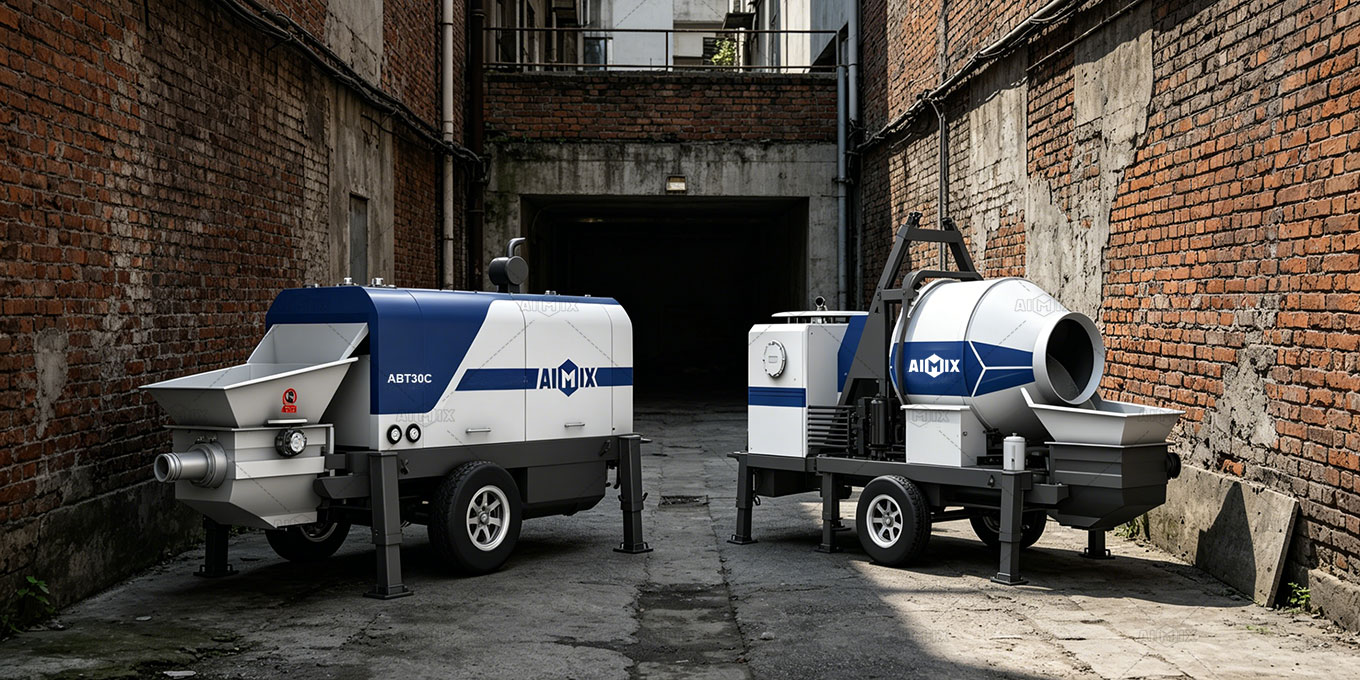

Two Types of Mini Concrete Pumps for Sale

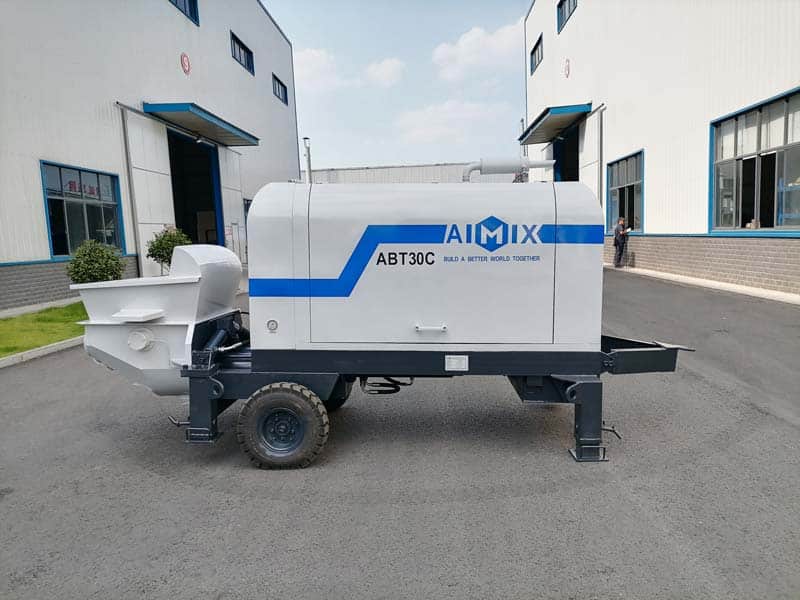

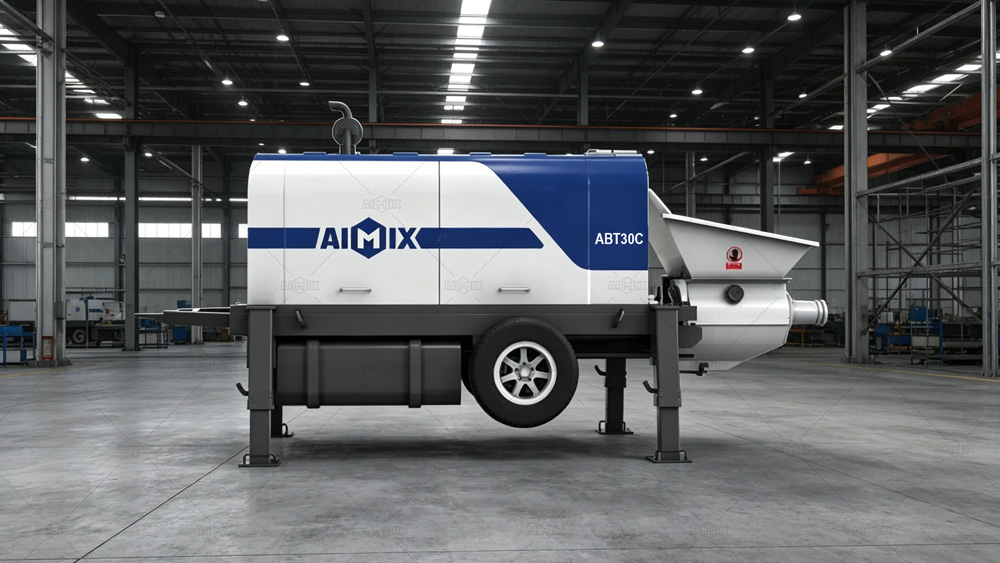

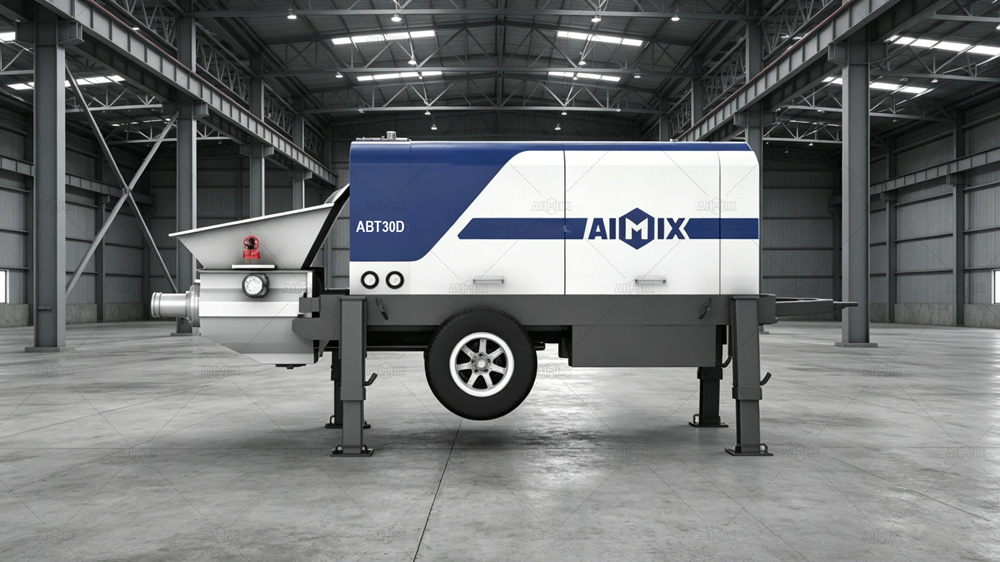

30 m³ Mini Trailer Concrete Pump
The mini trailer pump machine is best for contractors who have reliable access to ready-mix concrete from a nearby batching plant or who already own a self loading mixer truck. It only has one job: take ready-mixed concrete from a hopper and push it through a pipeline to your pour location. It doesn’t mix. It pumps. This is the simplest, most cost-effective option if you already have a concrete supply chain in place. Where does your ready-mixed concrete come from? Typically, two sources:

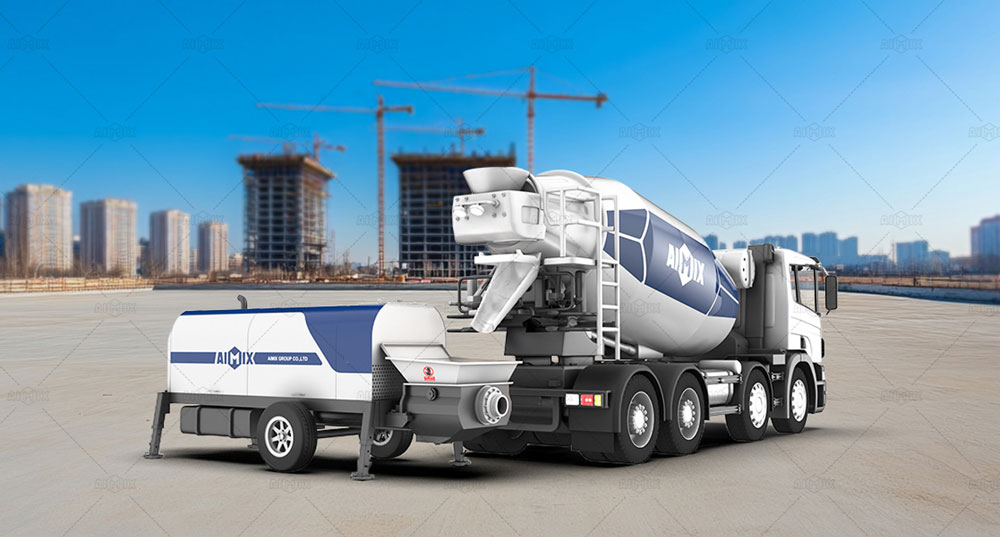

Option A: A commercial concrete batching plant near you. Buying ready-mix concrete
- A nearby ready mix plant produces and delivers fresh concrete via mixer truck.
- The truck discharges directly into the pump’s hopper.
- The pump pushes it up to 30m vertically or 100m horizontally.
- Best for urban or suburban projects with reliable ready-mix suppliers.

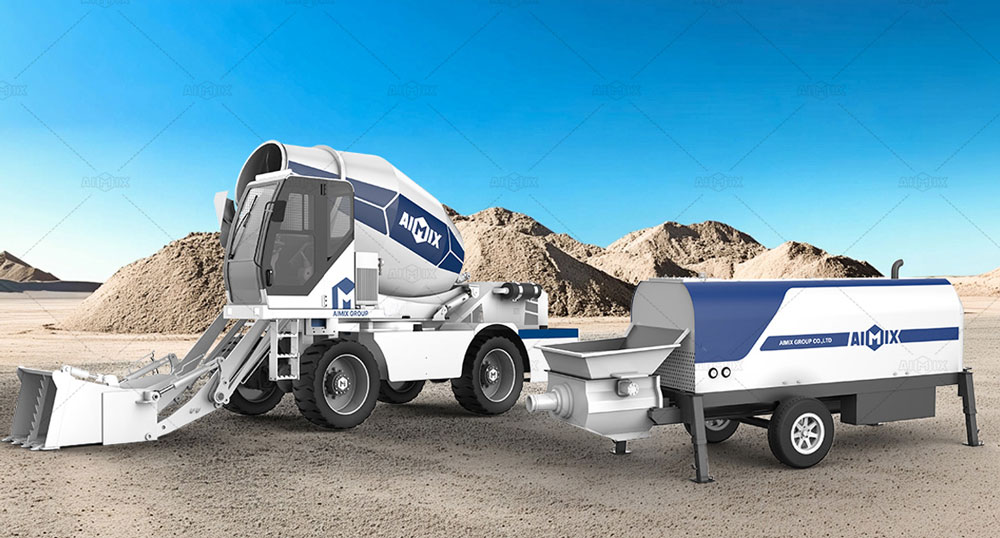

Option B: Your own self-loading concrete mixer truck. Producing concrete on-site
- You produce concrete on-site through self loading mixer — no external concrete plant, no delivery fees, no waiting.
- The self concrete mixer loads aggregates, mixes, and discharges fresh concrete straight into the pump’s hopper.
- The pump places it. One fleet, full autonomy.
- Especially effective when your construction sites are widely distributed and need frequent relocation.
Available Models:

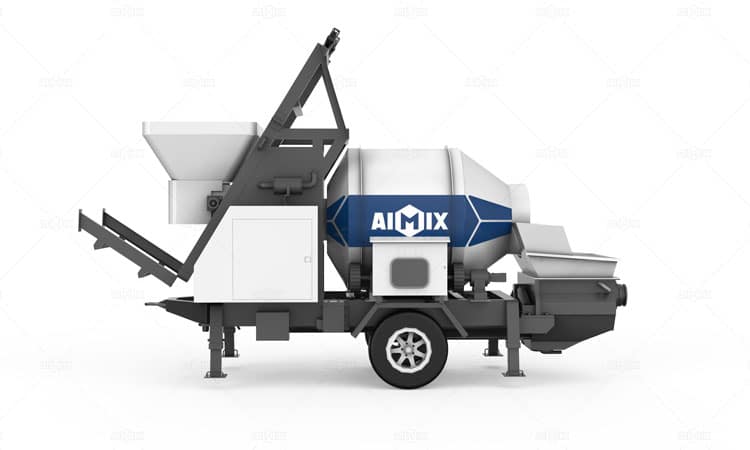

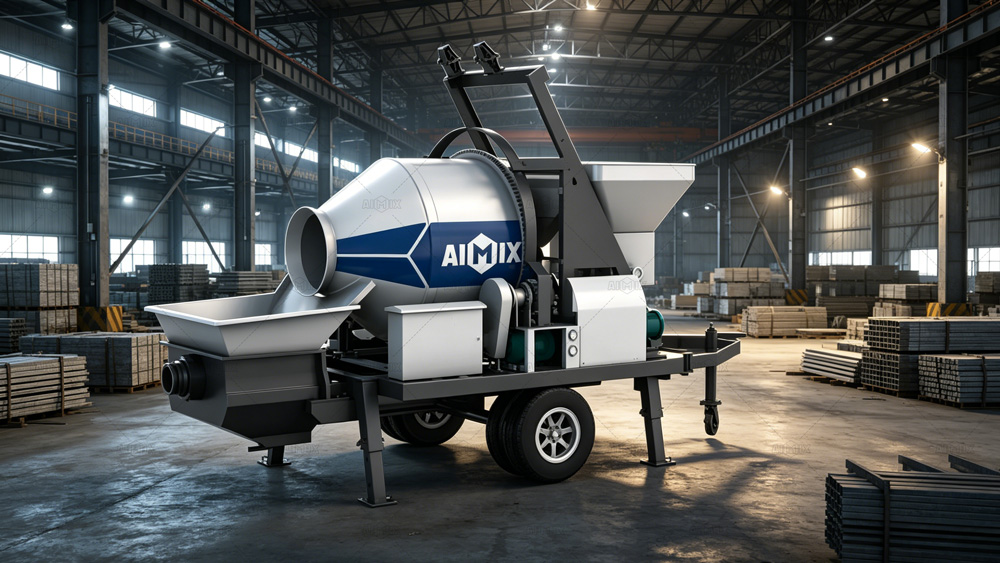

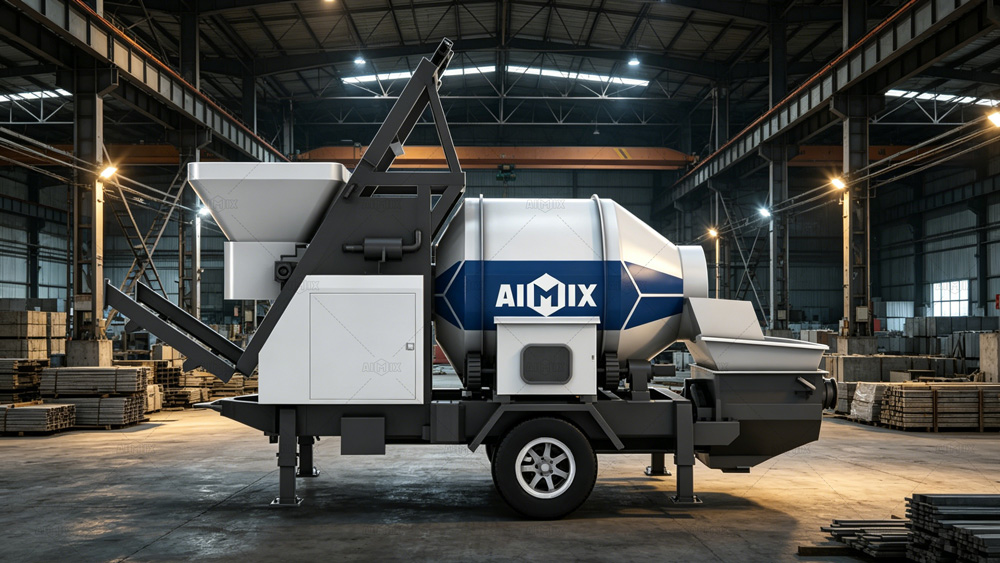

30 m³ Mini Concrete Mixer Pump
The mini concrete mixer with pump is more suitable for contractors working in remote locations, areas with unreliable ready-mix supply, or any project where producing concrete on-site makes more economic sense. It combines two functions into one machine: it mixes concrete from raw materials (cement, sand, aggregate, water) and then pumps the freshly mixed concrete directly to the pour point.
This mini concrete mixer pump equipment eliminates the need to rely on external mixing plants. For rural residential construction, agricultural buildings, road repairs, and infrastructure projects in remote areas, this self-sufficient mode of operation is often the practical pumping solution.
Your choice between these two types isn’t about quality or performance. It’s purely about logistics:
- If a ready-mix truck can reliably reach your site or already owned a self loading mixer truck ➡ Choose a trailer pump.
- If you need to make your own concrete on site ➡ Choose a mixer pump.
Still weighing your options? The comparison table in the next section puts both types side by side across every factor that matters.
Which Type of Mini Concrete Pump is Right for Your Project?
You’ve seen the types and models of mini mobile concrete pumps for sale. Now the practical question: given your specific project conditions, which machine should you invest in? This comparison focuses on what actually matters on a job site — concrete supply, labor, cost, and daily operation.
Head-to-Head Comparison: Trailer Pump vs. Mixer Pump
| Decision Factor | Mini Trailer Pump (ABT30C / ABT30D) | Mini Mixer Pump (ABJZ30C / ABJZ30D) |
|---|---|---|
| Concrete Source | External ready-mix plant or mixer truck | On-site mixing from raw materials |
| Best For | Sites with reliable commercial concrete supply within reasonable distance | Remote sites, areas with no ready-mix access, or where on-site mixing saves money |
| Typical Projects | Urban residential slabs, small commercial floors, basement waterproofing, driveway replacement, indoor renovation | Rural house foundations, farm structures, road patching, isolated infrastructure, island or mountain construction |
| Function | Single function: pump only | Dual function: mix + pump |
| Daily Crew Required | 3-4 workers | 4-5 workers (1-2 extra for raw material loading) |
| Upfront Investment | Lower — simpler machine, fewer components | Slightly higher — integrated mixing system adds cost |
| Operating Cost | Fuel/electricity only; no raw material handling | Fuel/electricity plus labor for material loading; offset by lower concrete material cost |
| Concrete Cost per m³ | Depends on ready-mix supplier pricing | Typically lower — you buy cement and aggregates at bulk rates |
| Supply Chain Risk | Dependent on batching plant schedule and delivery reliability | Fully independent — you control production timing and volume |
| Minimum Pour Volume | No minimum — pump what the truck delivers | No minimum — mix exactly what you need, zero waste |
| Mobility | Lighter, easier to tow between frequent site changes | Slightly heavier, same trailer-towable design |
| Pumping Distance | 30m verticlal; 100 meters horizontal | 30m verticlal; 100 meters horizontal |
Diesel vs. Electric: The Secondary Decision
| Power Type | Choose Diesel If… | Choose Electric If… |
|---|---|---|
| Diesel (ABT30C / ABJZ30C) | Your sites have no reliable grid power; you work outdoors in rural or undeveloped areas; you need complete off-grid independence. | — |

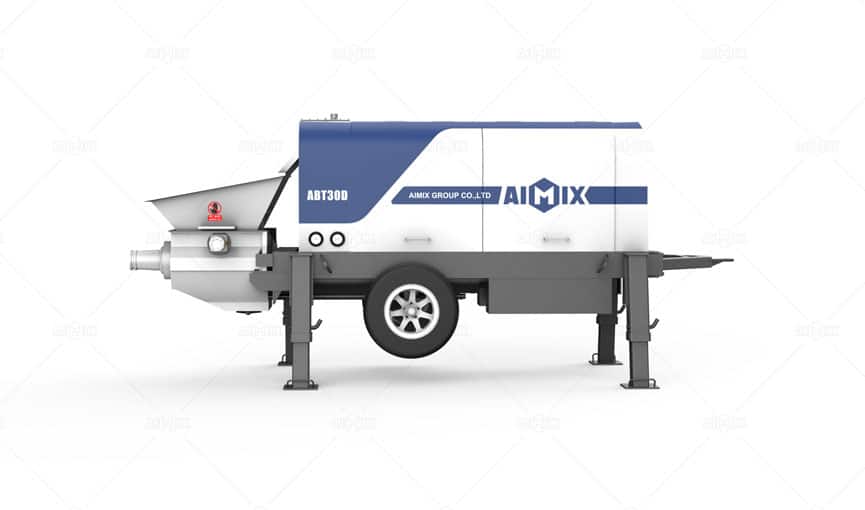

| Electric (ABT30D / ABJZ30D) | — | Your work is primarily indoors, in enclosed spaces, or in areas with strict noise and emission regulations; you have stable 3-phase power (380-440V / 50-60Hz) on site. |
Three Common Scenarios to Guide Your Decision for Reference
Scenario 1: Urban Contractor with Ready-Mix Nearby
Best choice: ABT30C or ABT30D. Ready-mix supply is not your problem. The simpler, lower-cost mini concrete line pump is all you need. Mini concrete pump with diesel engine is for outdoor access; electric type for enclosed corridors.
Scenario 2: Rural Contractor Far from Any Batching Plant
You’re building farm structures in a remote area. The nearest ready-mix plant is 90 minutes away and charges steep delivery fees for small loads.
Best choice: ABJZ30C. Stockpile raw materials on site and produce concrete on your own schedule. Diesel power keeps you independent from grid availability.
Scenario 3: Renovation Contractor Working Indoors
Your projects are in basements, underground garages, and enclosed commercial spaces — tight access, limited ventilation, strict noise rules.
Best choice: ABT30D or ABJZ30D. Electric motor means zero fumes and lower noise. Trailer pump if a mixer truck can park nearby; mixer pump if access is too tight and you prefer to batch on site.
Still unsure? Contact us and provide with your project details — location, typical pour volume, concrete source situation, and power availability. We’ll recommend the exact model that fits your workflow.
Specifications

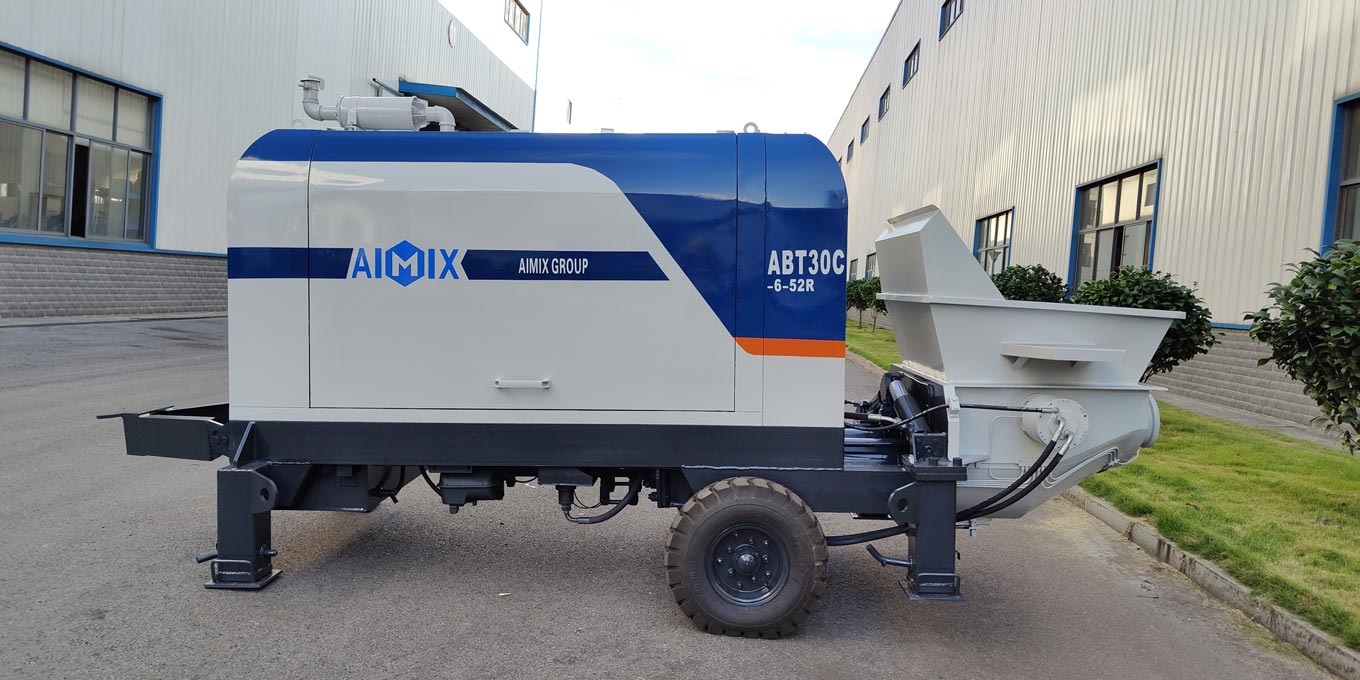

| Item | ABT30C | ABT30D |
|---|---|---|
| Maximum theoreticaI concrete deIivery capacity (m3/h) | 30 | 30 |
| Maximum pressure for pumping concrete (Mpa) | 6 | 6 |
| Maximum distance (verticaI/ horizontaI) (m) | 30/100 | 30/100 |
| Max. aggregate size (mm) | 40 | 40 |
| Hopper voIume * feeding height (L*mm) | 500*1000 | 500*1000 |
| Distributor vaIve type | s | s |
| Operation methods | PLC+wireIess, remote control | PLC+wireIess, remote control |
| HydrauIic oiI tank voIume (L) | 220 | 220 |
| HydrauIic system pressure (Mpa) | 25 | 25 |
| Power System Rated speed (r/min) | 1800 | 1480 |
| Power System Rated power (kw) | 52 | 30 |
| Engine brand | diesel engine Yuchai | Electric |
| weight (kg) | 2650 | 1500 |
| Dimension (mm) | 3750*1550*2200 | 3950*1380*1600 |
| Item | ABJZ30C | ABJZ30D |
|---|---|---|
| Maximum theoreticaI concrete deIivery capacity (m3/h) | 30 | 30 |
| Maximum pressure for pumping concrete (Mpa) | 6 | 6 |
| Maximum distance (verticaI/ horizontaI) (m) | 30/100 | 30/100 |
| Max. aggregate size (mm) | 40 | 40 |
| Hopper voIume (L) | 400 | 400 |
| Mixing method | FreefaII | FreefaII |
| Mixer feed capacity (m³) | 0.56 | 0.56 |
| Mixer discharge capacity (m³) | 0.45 | 0.45 |
| Distributor vaIve type | s | s |
| Operation methods | PLC+wireIess, remote control | PLC+wireIess, remote control |
| HydrauIic oiI tank voIume (L) | 220 | 220 |
| HydrauIic system pressure (Mpa) | 25 | 25 |
| Power System Rated speed (r/min) | 1800 | 1480 |
| Power System Rated power (kw) | 52 | 30 |
| Engine brand | diesel engine Yuchai | Electric |
| weight (kg) | 5100 | 1500 |
| Dimension (mm) | 5500*2100*2550 | 3950*1380*1600 |
Broad Applications of Mini Concrete Pumping Machine Globally
Nowadays, the mini concrete pump machine is widely used by contractors and builders for different uses. Due to its hot sale, AIMIX has exported the equipment to over 50 countries, like Indonesia, Philippines, Australia, Nigeria, Kenya, Malaysia, etc. You can check their applications in different countries.
ABT30C Diesel Concrete Pump Working in Indonesia
- Model: ABT30C Diesel Trailer Pump
- Place: Kalimantan, Indonesia
- Construction items: building construction
- Construction Manager reviews: “We were worried the humidity would kill the engine, but this little pump just kept going. Viscous concrete, day after day — no clogging, no breakdowns. For a machine this size, I didn’t expect that kind of toughness.”
ABT30C Mini Diesel Trailer Pump In Indonesia
- Model: ABT30C Mini Trailer Pump
- Place: Manokwari, Papua, Indonesia
- Project: foundation construction
- Site Operator reviews: “I’m not a pump specialist, just a regular operator. But I picked this up in no time. The remote control lets me stand right at the pour point and stop it instantly when needed. Light machine, but handles our foundation work no problem.”

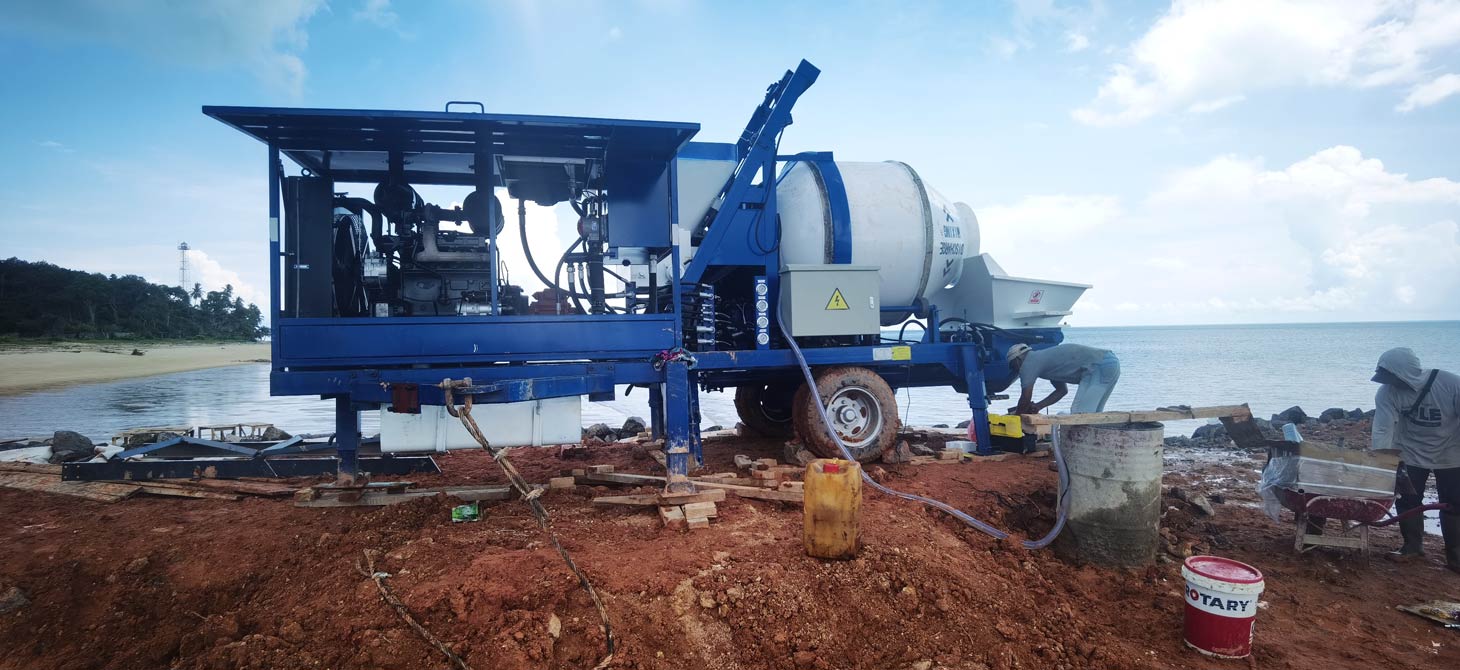

ABT30C Diesel Concrete Pump for Seaside Project
- Model: ABT30C Mini Trailer Pump
- Place: Siargao, Philippines
- Construction items: Seaside Resort
- Construction Foreman reviews:”On an island, you can’t just call someone when equipment goes down. It ran our entire schedule without a single clog. High pressure, long pipe runs — did everything we asked. The project finished when we said it would.”
ABT30C Mini Line Pump Operating in Dominican Republic
- Model: ABT30C mini diesel pump
- Place: Dominican Republic
- Items: Low-rise building construction
- Site Supervisor reviews: “One online training session and my crew knew what they were doing. The fuel consumption surprised me the most — way lower than I budgeted for. When you’re running multiple projects back to back, those savings add up fast.”
ABJZ30C Mini Concrete Mixer Pump in Jamaica
- Model: ABT30C Mini Concrete Mixing Pump
- Place: Jamaica
- Construction items: house construction
- Project Contractor reviews: “Mixing and pumping in one machine cut my labor in half. I don’t wait on ready-mix trucks anymore. And when I needed spare parts, they showed up quick — not weeks, days. For a small contractor like me, that reliability is everything.”
Different countries. Different projects. Different roles. But the feedback points to the same things: easy to learn, cheap to run, tough in harsh conditions, and keeps the job moving. So what makes all of that possible? The real-world benefits below come directly from how these pumps are designed and built.

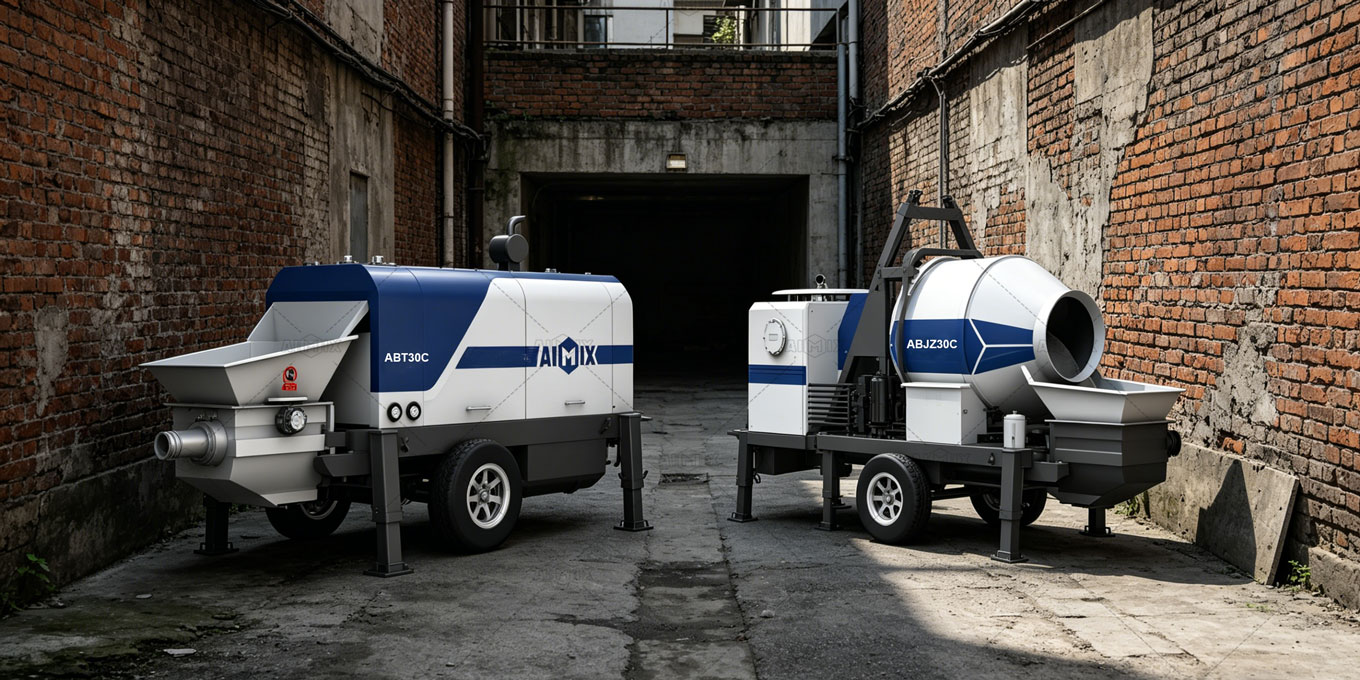

Benefits of Using Mini Concrete Pump for Construction
Size doesn’t always matter in the world of concrete pumping, and the jual concrete pump mini sometimes boasts many benefits that larger boom pumps cannot. Read on to discover the benefits of mini concrete pump for sale can bring to your project.
Pour Where Trucks Can’t Go
The entire unit is under 2.2 meters wide — narrow enough for standard doorways, side gates, and basement corridors. A high-pressure S-valve pushes concrete through 100mm pipelines up to 100 meters horizontally, so the pump stays outside while concrete flows to the pour point. No wheelbarrows. No manual transfer.
Slash Your Labor Costs Per Pour
A PLC control panel and wireless remote let one operator manage the entire pump from the pour point, up to 50 meters away. The steady 30 m³/h output replaces the need for 10-15 workers on manual concrete transfer. Three to four workers can handle placing and finishing while the machine does the hauling.
Pump Through Any Weather Without Losing Pace
The fully enclosed hydraulic system protects against rain, dust, and jobsite debris, while the diesel models run independently of grid power. Concrete flows at a constant rate regardless of ground conditions. No crew slogging through mud with wheelbarrows — the pipeline delivers the same output in any weather.
Finish Pours in Hours, Not Days
The S-valve distribution system ensures smooth, continuous concrete flow without clogging — even with low-slump, stiff mixes up to 40mm aggregate. For a typical 60-80 m² residential slab, pumping completes in 2-3 hours. Your crew wraps up the pour and moves on the same morning.
Why Choose AIMIX Group – Reliable Mini Concrete Pump Manufacturer
Buying a concrete pump is choosing a manufacturer who stands behind it. Here’s why AIMIX Group has earned repeat business from contractors in over 150 countries.
30+ Years of Manufacturing, Not Just Trading
AIMIX Group has been manufacturing concrete equipment for over three decades. That matters because a concrete pump manufacturer who designs and builds their own machines understands every component — from the hydraulic system to the S-valve to the trailer chassis. We hold ISO and CE certifications, and our in-house R&D team continuously refines each model based on field feedback from real job sites.
Factory-Direct Price Without the Markup
Because we manufacture our own equipment, there’s no distributor adding 20-30% to your mini concrete pump machine price. The mini concrete pump price in AIMIX typically ranges from $16,000 to $25,000 for trailer pump and mixer pump models — competitive price that doesn’t cut corners on components. Most global users consistently tell us the build quality matches or exceeds machines priced significantly higher.
Service That Doesn’t End After Payment
Pre-sale, our team walks you through model selection based on your actual project conditions. During production, we provide progress updates and factory photos. After delivery, our engineers offer online installation guidance and operation training (typically 30-40 minutes to full competence).
If an issue arises, our after-sale team responds and solves them immediately through online or offline. Spare parts ship within days from stocked inventory, and our global network of 6 branch offices, 100+ service outlets means local support is closer than you might think.
Ready to get a quote or discuss which model fits your project? Contact us directly via WhatsApp or email or filling out the following inquiry form. Tell us about your project, and we’ll recommend the right pump with a detailed quotation.
