Self loading concrete mixer for sale UK has been widely applicable for construction industry in the local area, mainly for those projects, such as roads, building, houses, bridges, tunnels, harbors, parking lots…… It is outstanding among construction equipment due to its versatility. Because the self loading mixer can realize self loading, batching, weighing, mixing, and discharging into one. Some contractors regard it as three machines: concrete mixer, concrete truck and mini mobile concrete batching plant. Therefore, it is deserved to be invested into! Let’s check its wide applications first!
Applications of Self Loading Concrete Mixers
AS-2.6 Self Loading Mixer for House Construction
Two Units of Self Loading Mixers for Building Construction
AS-3.5 Self Loading Concrete Mixer for Foundation Construction
AS-4.0 Self Loading Concrete Truck Mixer for Foundation Construction

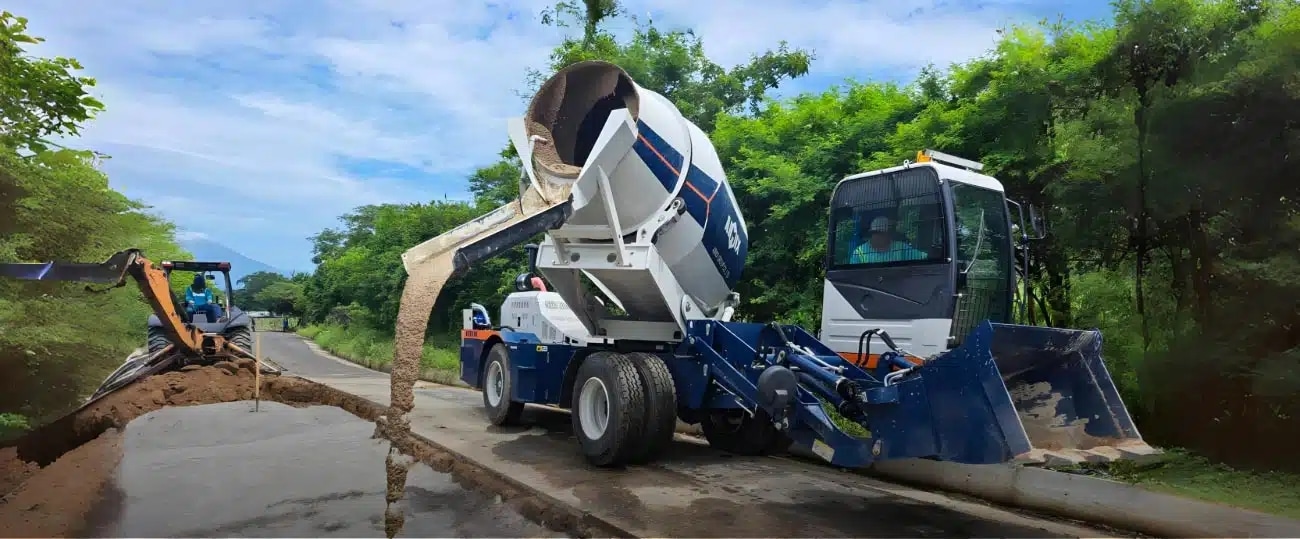

AS-4.0 Self Loading Mixer Truck for Road Construction
AS-2.6 Self Loading Mixer for Precast Concrete Elements Pouring
Different Capacities of Self Loading Concrete Mixers for Sale in UK
- AIMIX Group is one of the professional and reliable concrete mixer manufacturers, has served global customers with high-quality equipment and considerate service!

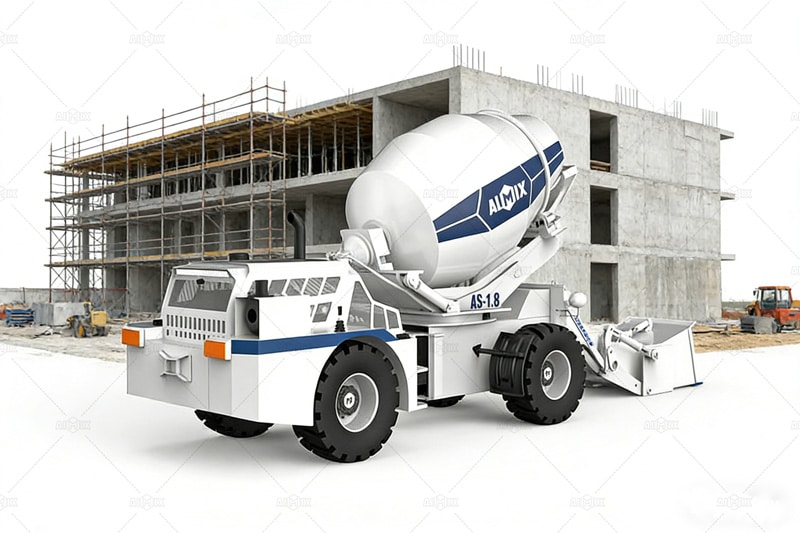

- To meet customers’ demands in the UK construction market, there are several capacities for reference. Capacities include: 1.8 m3, 2.6 m3, 3.5 m3, 4.0 m3, 5.5 m3 and 6.5 m3. Accordingly, models are AS-1.8, AS-2.6, AS-3.5, AS-4.0, AS-5.5 and AS-6.5.
- Among them, AS-1.8 and AS-2.6 are small self loader mixers; AS-3.5 and AS-4.0 are medium-sized self loader mixers for sale and well-received among clients; and AS-5.5 and AS-6.5 are large concrete mixers self loading. Clients can choose anyone according to the size of the projects.
- If you don’t know which model would be suitable for your project, welcome to consult our sales for suggestions! We would recommend the ideal one!

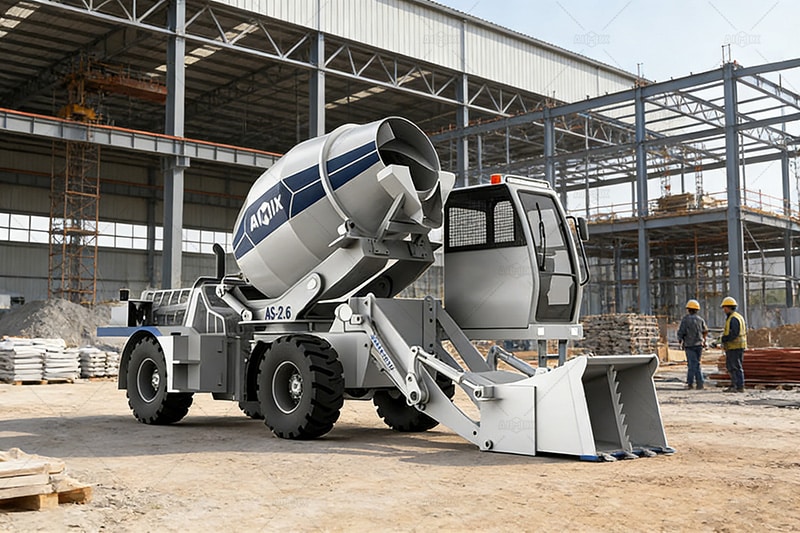

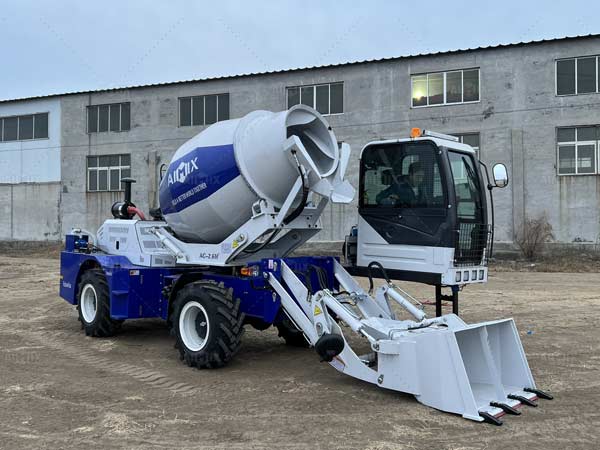

AS-2.6
- Mixer Drum Capacity: 3580L
- Drum Speed:13 r/min
- Max. Gradeability: 30%
- Engine Power: 78kw
- Water Tank: 500L

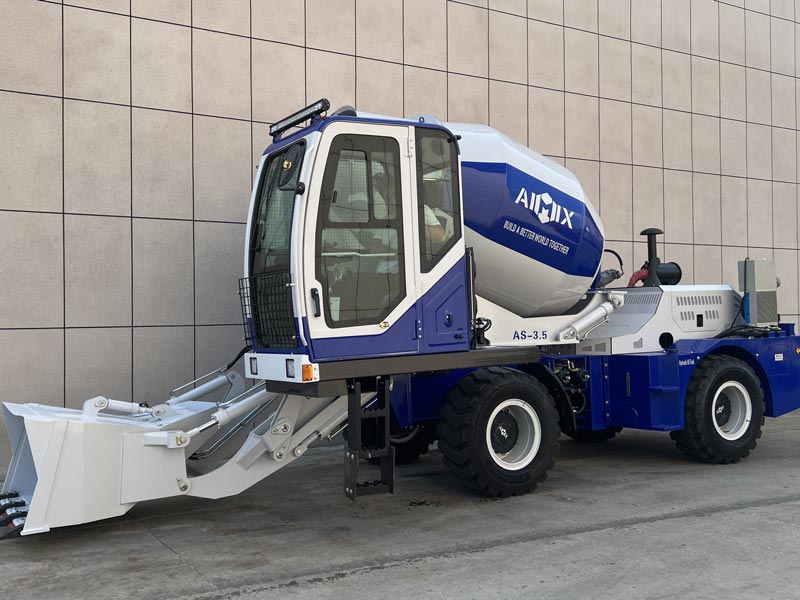

AS-3.5
- Mixer Drum Capacity: 4740L
- Drum Speed:13 r/min
- Max. Gradeability: 30%
- Engine Power: 91kw
- Water Tank: 620L

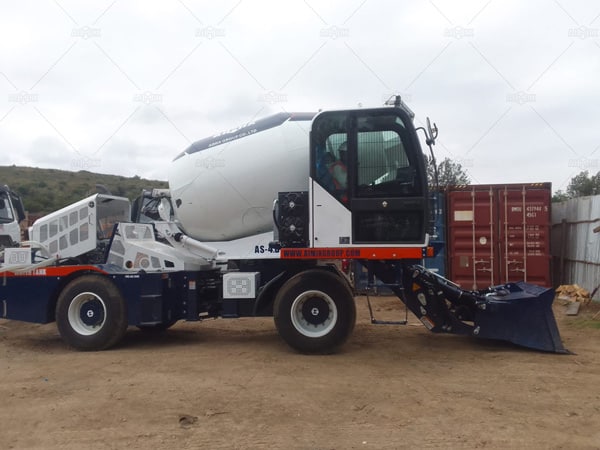

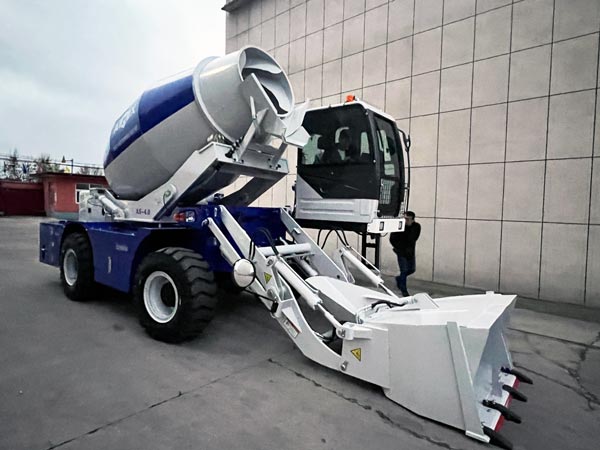

AS-4.0
- Mixer Drum Capacity: 6000L
- Drum Speed:17 r/min
- Max. Gradeability: 30%
- Engine Power: 91kw
- Water Tank: 920L

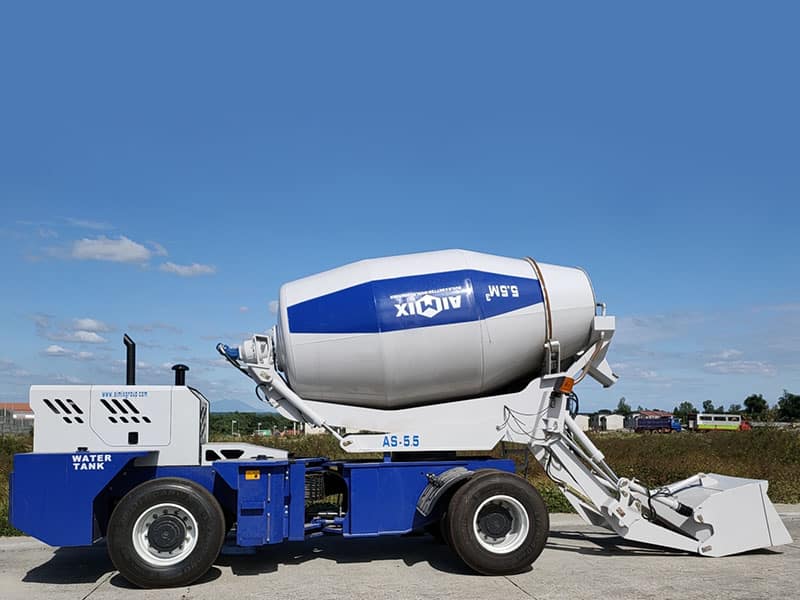

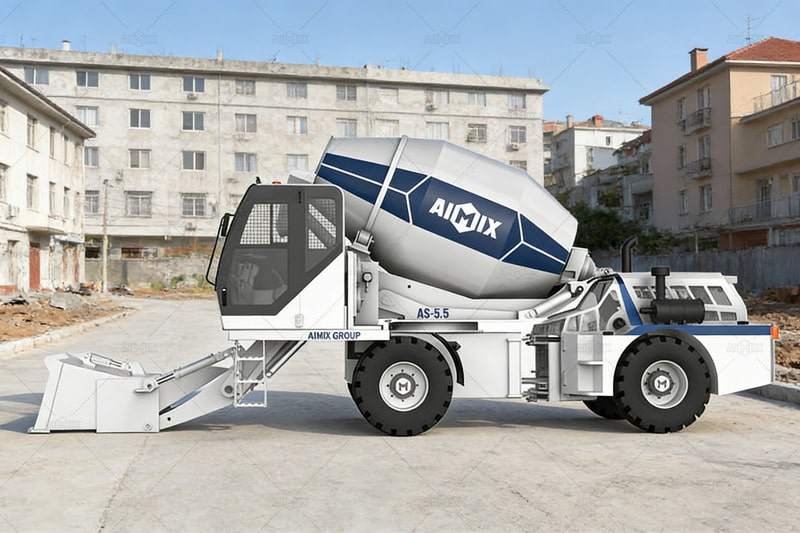

AS-5.5
- Mixer Drum Capacity: 7800L
- Drum Speed:20 r/min
- Max. Gradeability: 30%
- Engine Power: 92kw
- Water Tank: 840L

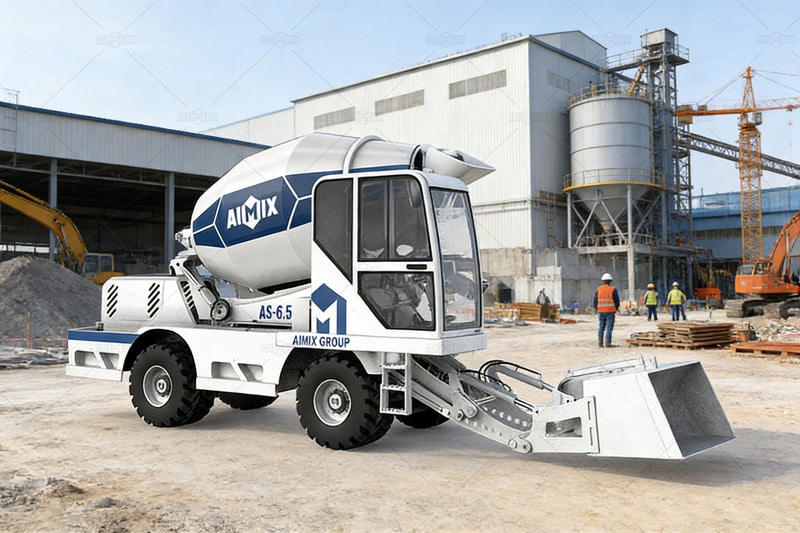

| Model | AS-6.5 | AS-5.5 | AS-4.0 | AS-3.5 | AS-2.6 | AS-1.8 |
| Engine Power(W) | 92 | 92 | 91 | 91 | 78 | 78 |
| Mixer drum capacity (L) | 9000 | 7800 | 6000 | 4740 | 3580 | 2680 |
| Water tank (L) | 1465 | 840 | 920 | 620 | 500 | 400 |
| Weighing method | Automatic hydraulic weighing system | |||||
| Total weight (Kg) | 12520 | 11500 | 9200 | 7900 | 7100 | 6100 |
| Overall size (LxWxH) | 8450x3050x4830 | 8450×3100×4580 | 7640×2870×4750 | 7830×2680×4170 | 7860×2750×4100 | 7300×2650×3750 |
Self Loading Mixer and Concrete Pump Making Mixing and Pumping Work Easier
- Many construction projects need not only mixing work but continuous pumping on-site. Thus, the self loading mixer alone can’t meet the construction demands.
- To solve the problem, some clients have considered a cement mixer pump machine. While this equipment can’t realize concrete mixture mixing and transporting easily. Besides, the concrete mixer and pump has smaller capacities, like 30 and 40 m3/h, that can’t satisfy medium and large-sized construction projects.
- Thereby, AIMIX has launched the combination of self loading concrete mixer with pump. The combination is well-received among global users.
Common Model Collocations
The output of concrete produced by self-loading mixer trucks should match the pumping capacity of concrete pump machine. Therefore, there are several model matches for reference.
Self Loading Concrete Mixer Working in Various Countries All Over The World
Up to now, AIMIX has manufactured and exported countless sets of self loading drum concrete mixers to global customers. Out mixers has spread more than 100 countries all over the world, countries including UK, Germany, France, Mexico, USA, Canada, Peru, Brazil, Algeria, Chile, Philippines, Indonesia, Nigeria, Tanzania, South Africa, Malawi, Zambia, Kenya, Malaysia, Russia, Uzbekistan, Myanmar, Vietnam, Australia, Singapore, Thailand, Laos, Korea, etc. Most customers have positive feedback on our self-loading mixer. You can check some pictures, videos, and reviews here!

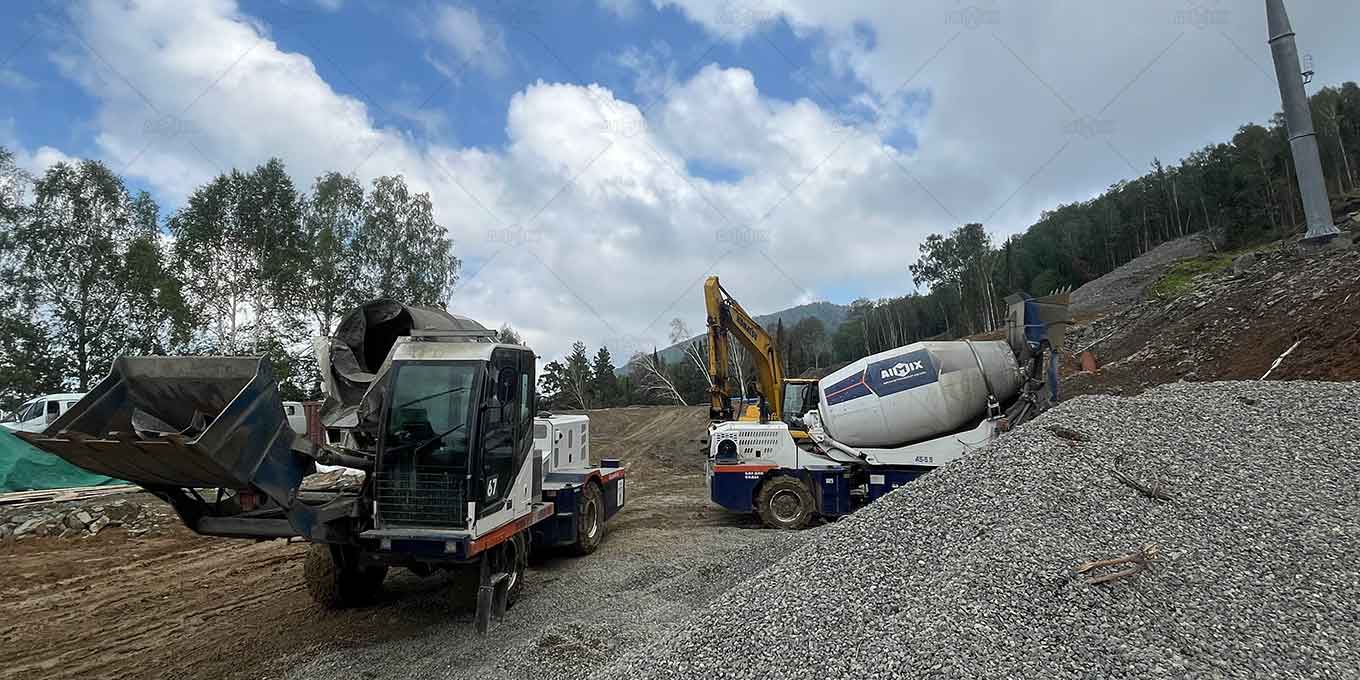

Pictures of Working On-site
Working Videos of Self Loading Mixers
In El Salvador
In Uruguay
In Brazil
Customers Reviews On Self Loading Concrete Mixers
Working efficiently, greatly improve my project schedule.
AIMIX machine is really reliable. I have purchased mixer in AIMIX before! Long service life and stable performance!
Perfect matching self loading concrete mixer and trailer concrete pump; very nice; excellent qualit
perfect combination: self loading mixer and concrete pump; improving working efficiency
pretty good; easy to operate; need less labor
Really save cost, get returns soon
Features of Self Loading Concrete Mixers UK
- 1. The drum tank of self loading mixer can realize 270 degree horizontal rotating.
- 2. 4*4 four wheel drive, hydraulic torque converter transmission with open gear oil pump.
- 3. It uses an accurate loader weighing system to weigh aggregates and cement, which can meet precise concrete formulation requirements.
- 4. High quality engineering tires are suitable for any harsh working condition..
- 5. The self loading concrete mixer truck has high and low speed to operate. The highest speed of self-loading concrete mixer for sale can reach 25km/h.
- 6. Self loading concrete mixer UK uses water flow meter for water flow control. It ensures the good quality of concrete.
- 7. Right-hand driving or left-hand driving are available according to your demands.
Working Processes Of Self Loading Concrete Mixer for Sale UK
The self loading mixer UK is used as a loader to load aggregate and cement into the mixing drum;
With the help of an accurate loader weighing system, the material in each hopper can be accurately weighed;
The water pump and water meter supply the required water or additives to the mixing tank;
The mixing drum of the self loading diesel concrete mixer blends all materials evenly;
Invert the drum, the self-loading concrete mixer will start to discharge concrete mixture;
Rotate the drum 270 degrees, it will unload the concrete to the correct position.
Three Main Factors Influencing The Self Loading Concrete Mixer Prices
The prices of concrete mixer self loading are totally different among various concrete mixer manufacturers and suppliers. While it is not easy for investors to find a good and reliable manufacturer in the market! However, AIMIX can be your ideal choice in the UK market. Because our self loading concrete mixer price is more competitive. In AIMIX, there are mainly three factors that can affect the self loading mixer prices. Check these factors in the following paragraph.
Capacity
One of the most significant factors that can affect the price of a self-loading mixer is its capacity. Generally, the larger the capacity of the mixer, the higher the price will be. This is because larger mixers require more materials and more powerful engines to operate efficiently. Additionally, larger concrete mixers may be built with more durable components to handle the added weight and strain of the larger loads, which can add to the cost. Thus, the prices of AIMIX self loading mixers comparison is as follows:
- AS-6.5 > AS-5.5 > AS-4.0 > AS-3.5 > AS-2.6 > AS-1.8
Configuration
The configuration of the mixer can also affect its price. Different mixers may have different features, such as the rotation angle of mixing drums, the type of engine, the type of transmission, and the type of control system. More advanced features or more powerful engines may add to the cost of the mixer. In AIMIX, there are three styles for each models, like AS-3.5A, AS-3.5B, and AS-3.5C. Prices comparison is as follows:
- AS-3.5C > AS-3.5B > AS-3.5A

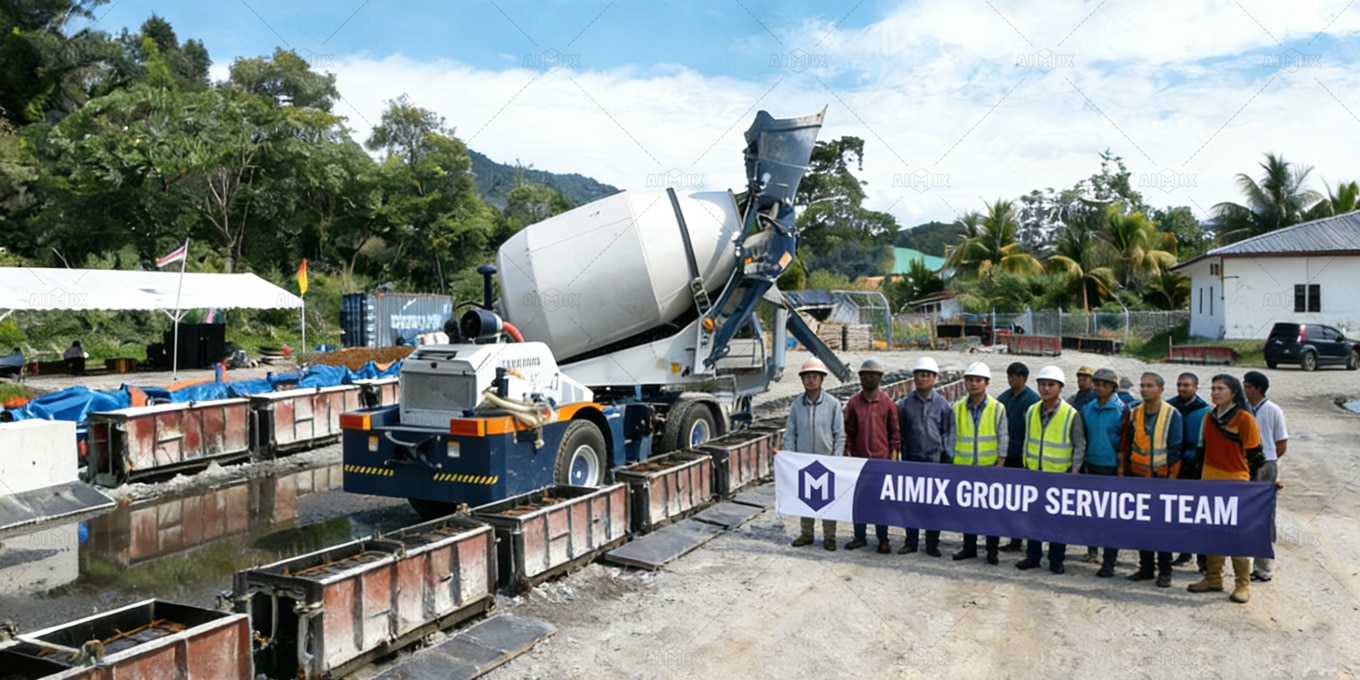

After-sales Service
The quality of after-sales service can also impact the price of a self-loading mixer. AIMIX manufacturer provides better after-sales support, such as warranty coverage, training, and technical assistance. Because they are investing in the long-term satisfaction of our customers and they are willing to stand behind AIMIX products.
Why Choose AIMIX Self Loading Mixer Manufacturer
- 1. AIMIX has focused on self loading manufacturing for decades. We have accumulated advanced technology and mature experience to upgrade the self loader mixer with high quality and stable performance.
- 2. We have gained CE and ISO certificates to guarantee the quality of self loading mixers for sale.
- 3. There are over 6 oversea offices that have been built in the Philippines, Indonesia, Pakistan, Uzbekistan, Sri Lanka, and Malaysia. We can offer prompt and considerate after-sales service for global clients.
- 4. AIMIX has exported countless units of self loading transit mixers all over the world. Clients can visit the working status of self loading mixer nearby conveniently.
If you intend to invest in our self loading mixer, welcome to contact us without doubts. Contact us via the following inquiry form, email, tel, and WhatsApp. Later our sale would reply to you soonest!
