The stationary concrete pump refers to a concrete pump that remains in a fixed, unmoving position during on-site construction. Its stable setup ensures efficient, continuous concrete delivery without the need for relocation throughout the project. Therefore, it is ideal for extensive projects, like expressway construction, tunnel construction, port project, municipal engineering project, building construction, and so on.
Sometimes, it is also called “trailer concrete pump and concrete line pump“. Because it has the same appearance and function as them. Here are some main features of stationary concrete pumps for reference:
Features of Stationary Concrete Pumps
Fixed Location
Unlike mobile concrete pumps, it is designed to remain in one location during operation. In general, it is often mounted on a trailer or a fixed platform.
High Capacity
The stationary concrete pumps for sale can handle large volumes of concrete, making them suitable for big construction projects, especially for high-rise buildings and bridges.
Pipeline System

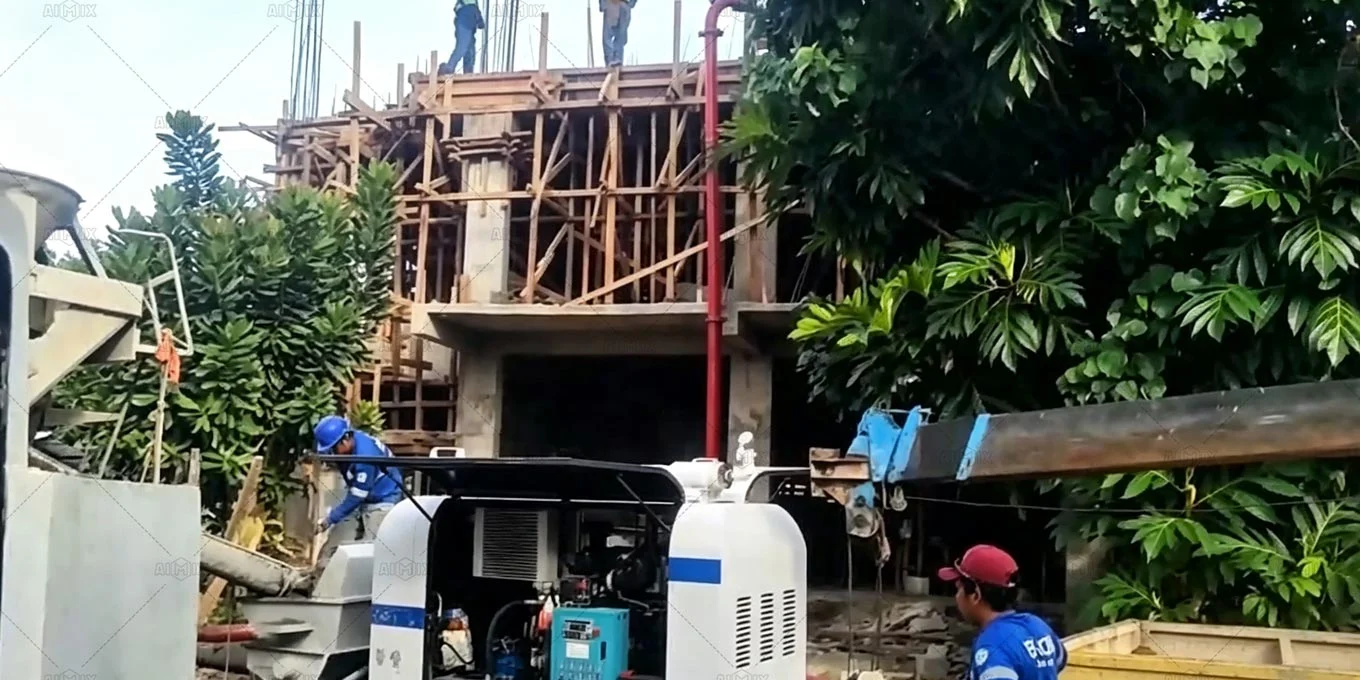

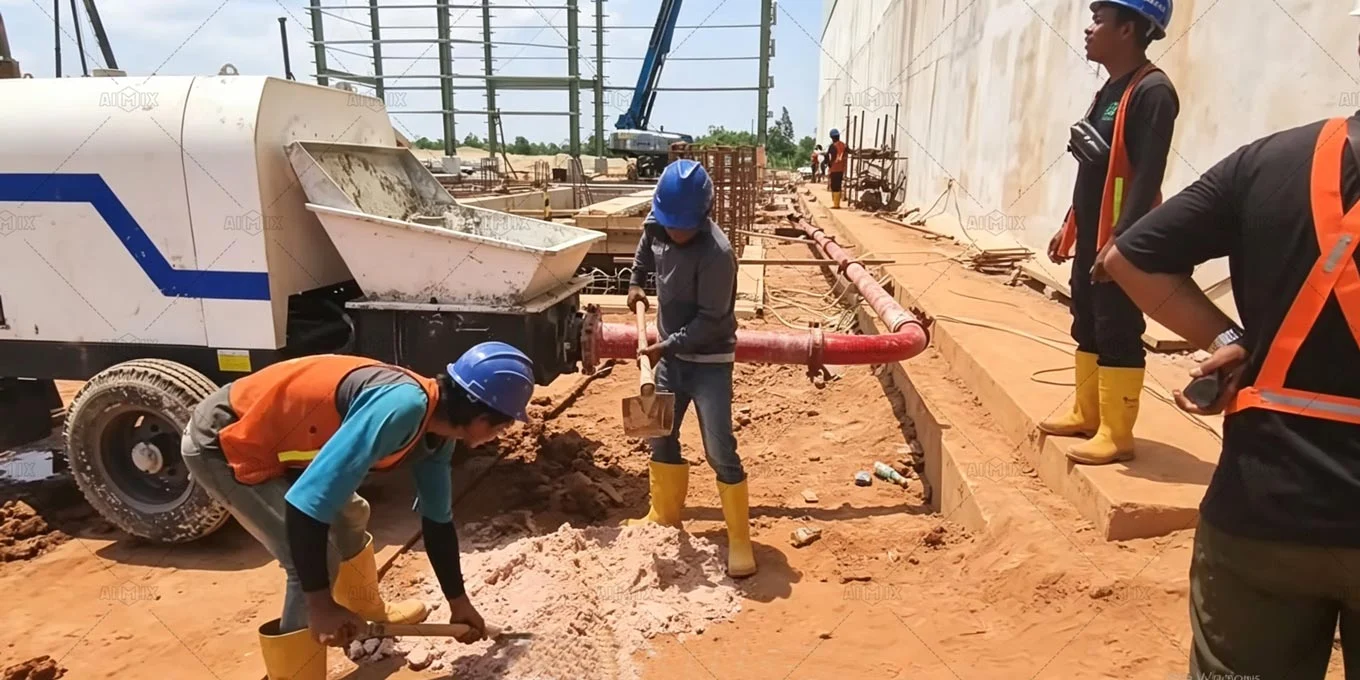

It uses a pipeline system to convey concrete over long distances and heights. This is particularly useful in large-scale construction where concrete needs to be delivered to specific and often elevated locations.
Powerful Mechanism
It is typically employ hydraulic systems to drive the pumping action, ensuring a consistent flow of concrete.
Due to these impressive features, it is clear that why these machines are essential in the construction industry. Their efficiency, durability, and versatility enable them to meet the diverse needs of various projects.
That has been further evidenced by the wide applications of Aimix stationary pumps across the globe, where they are utilized in everything from high-rise building construction to infrastructure development. Let’s delve into its wide applications.

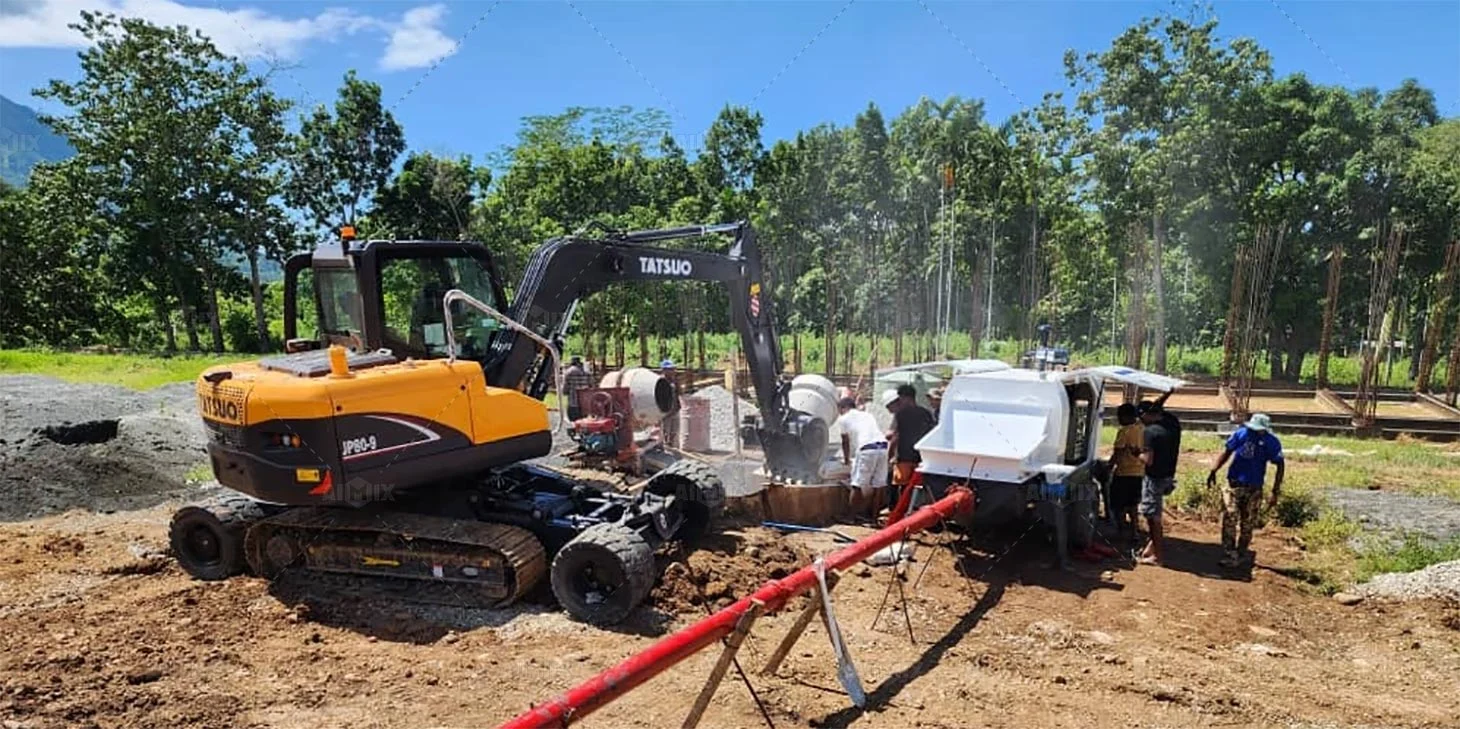

Wide Applications of Aimix Stationary Pumps in Different Construction Fields
Working Site of ABT40C Static Line Concrete Pump In Myanmar for 3-Story Building Construction
ABT40C Diesel Stationary Concrete Pump Working in Indonesia for 4-Story Hotel Building Construction

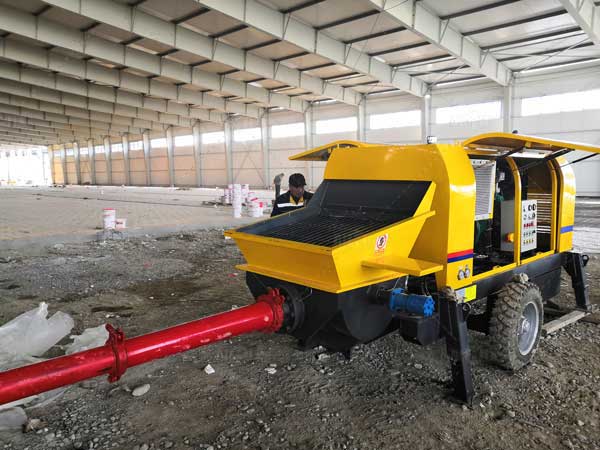

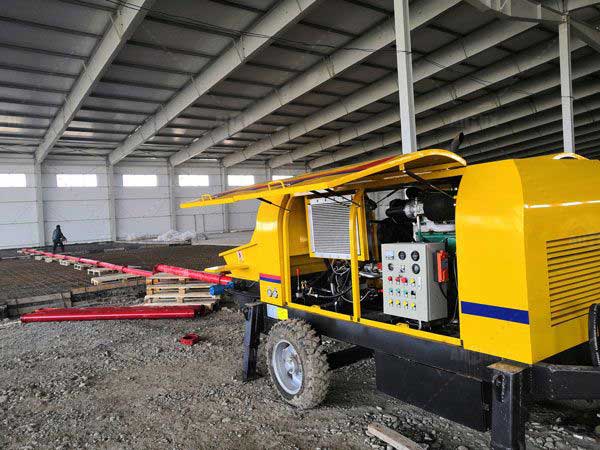

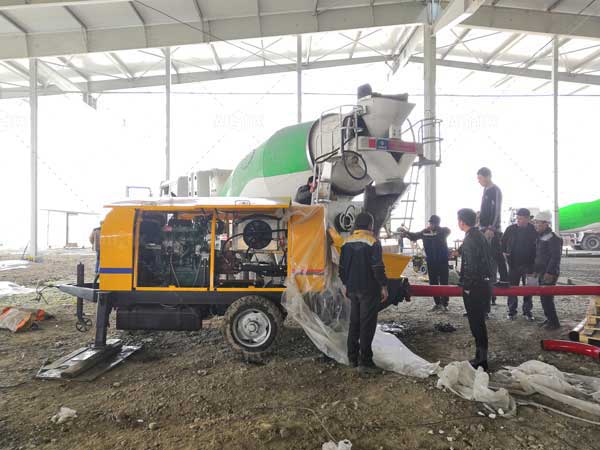

ABT40C Machine Pumping Concrete In Uzbekistan for Factory Warehouse Construction

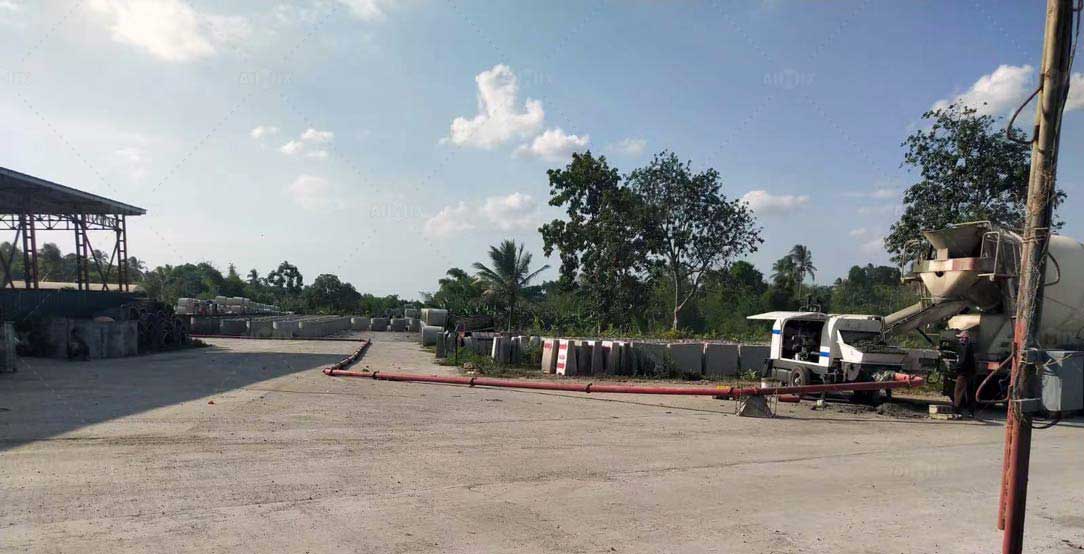

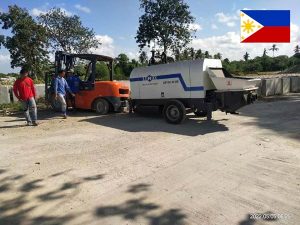

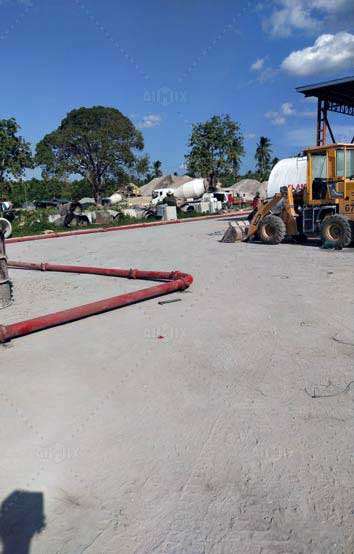

ABT40C Diesel Concrete Pump Static In the Philippines for Factory Warehouse Construction

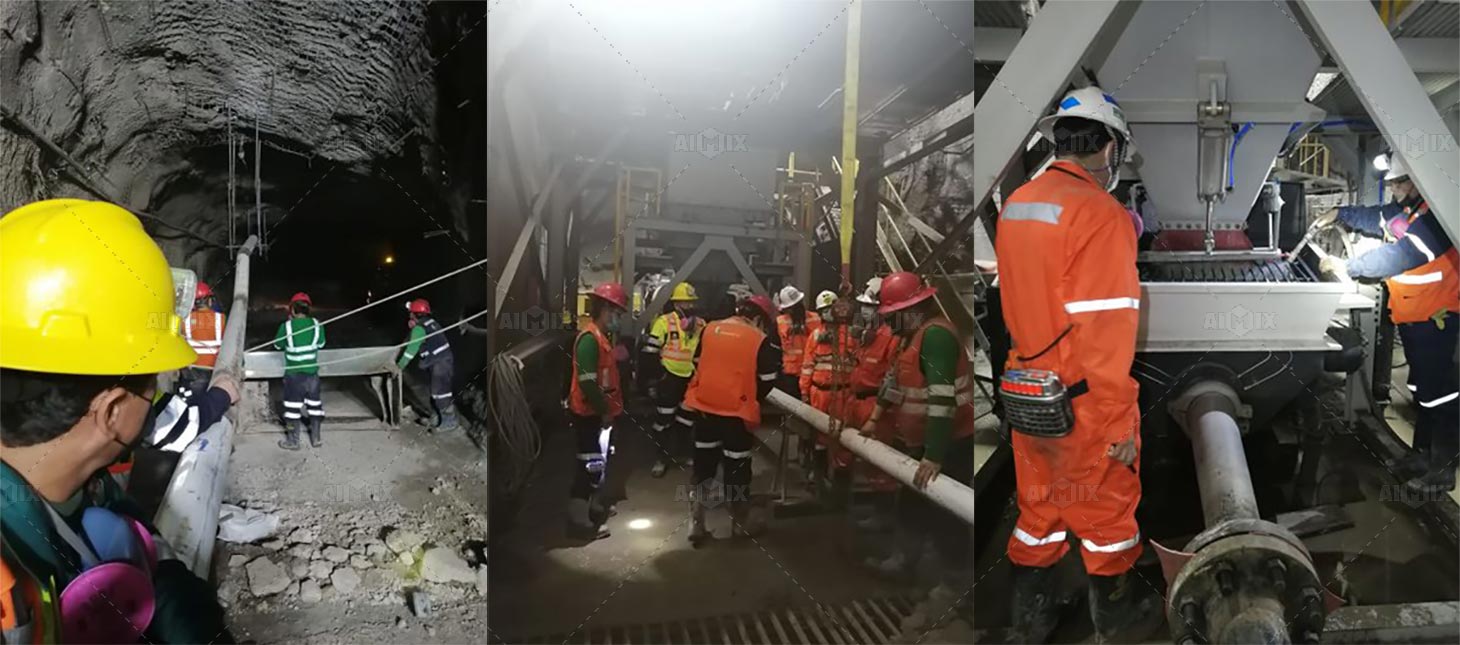

ABT80D Stationary Pump In Peru for Tunnel Construction
From the extensive range of application cases above, it’s clear that the ABT40C model is widely used. In fact, in AIMIX Group, the ABT40C has consistently been a top seller. So, what models does AIMIX offer for you to choose from? Let’s explore them together.
Differnent Model of Aimix Static Concrete Pumps
AIMIX offers a wide range of static concrete pumps to meet the diverse needs of construction projects. The available models include ABT30, ABT40, ABT60, ABT80, and ABT90, each designed with varying capacities and features to suit different operational requirements. Whether you’re working on small-scale residential projects or large-scale industrial constructions, AIMIX has a static concrete pump model that will fit your specific needs.

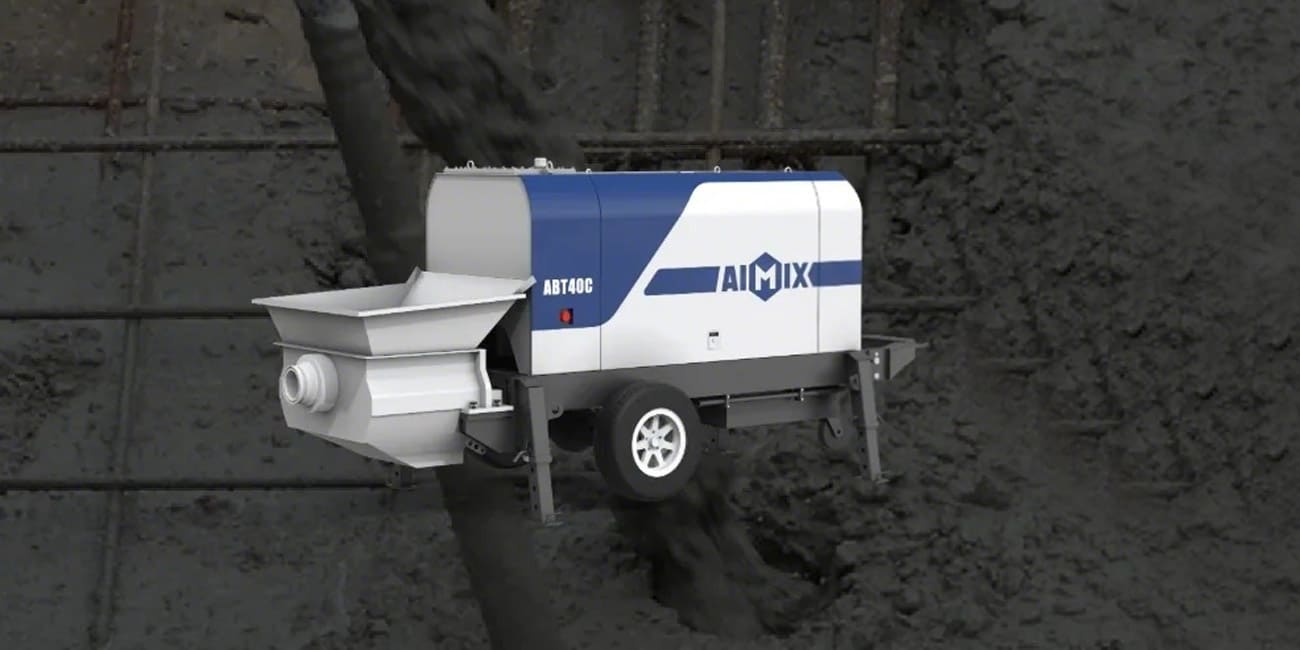

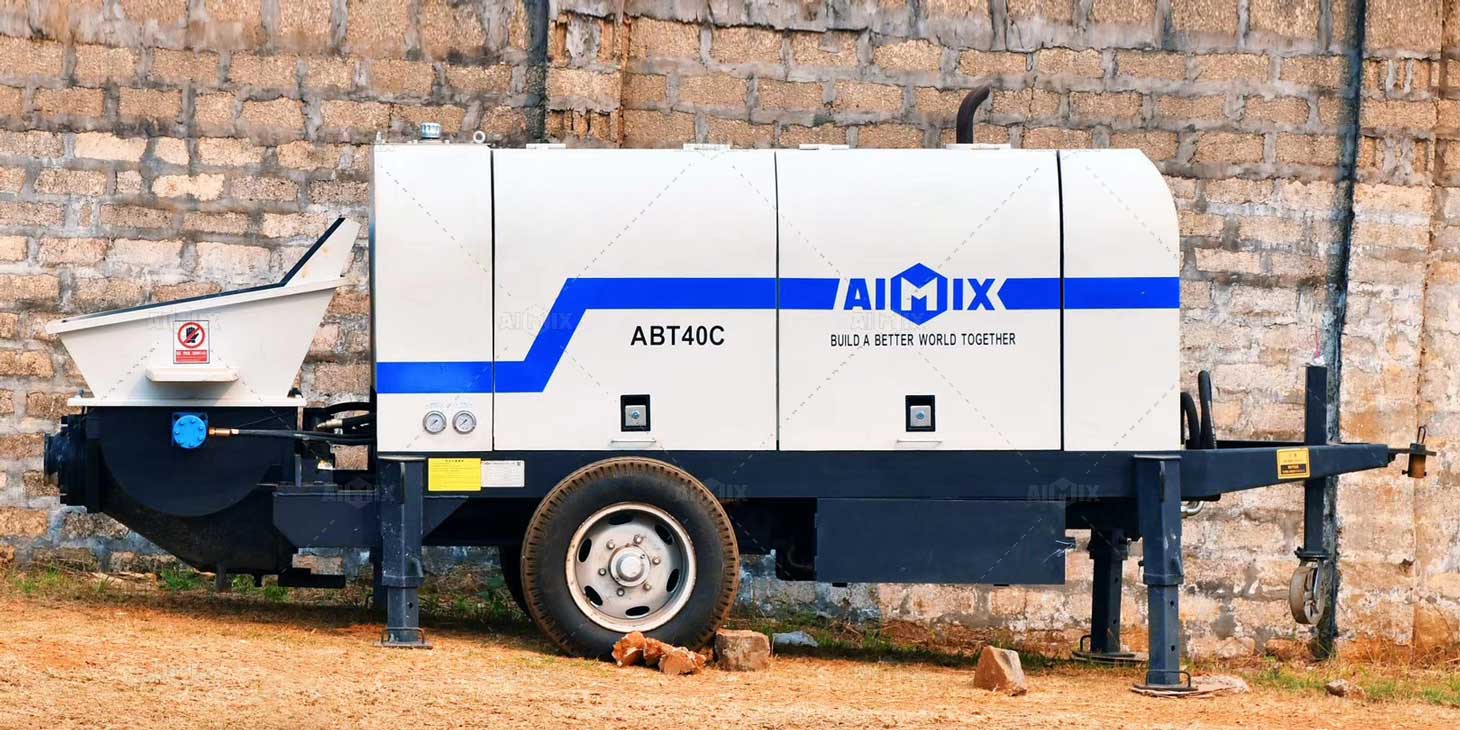

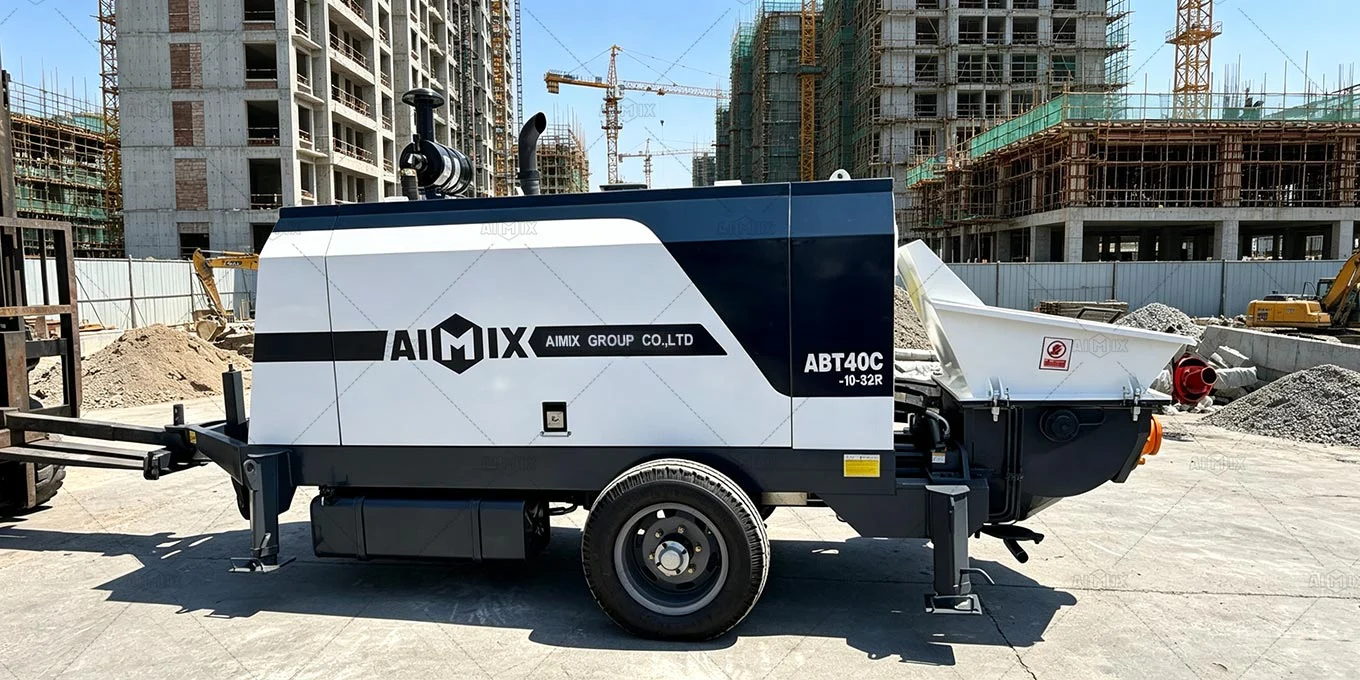

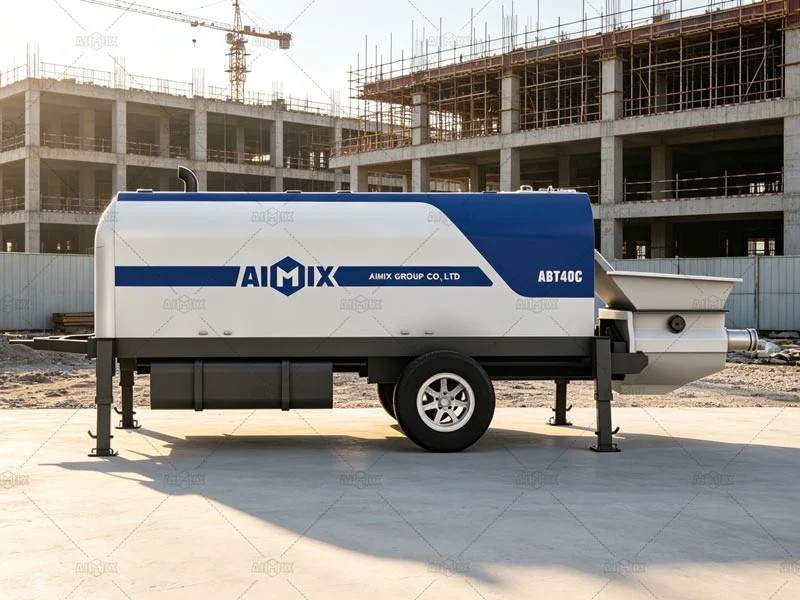

Hot-sale Model – ABT40C

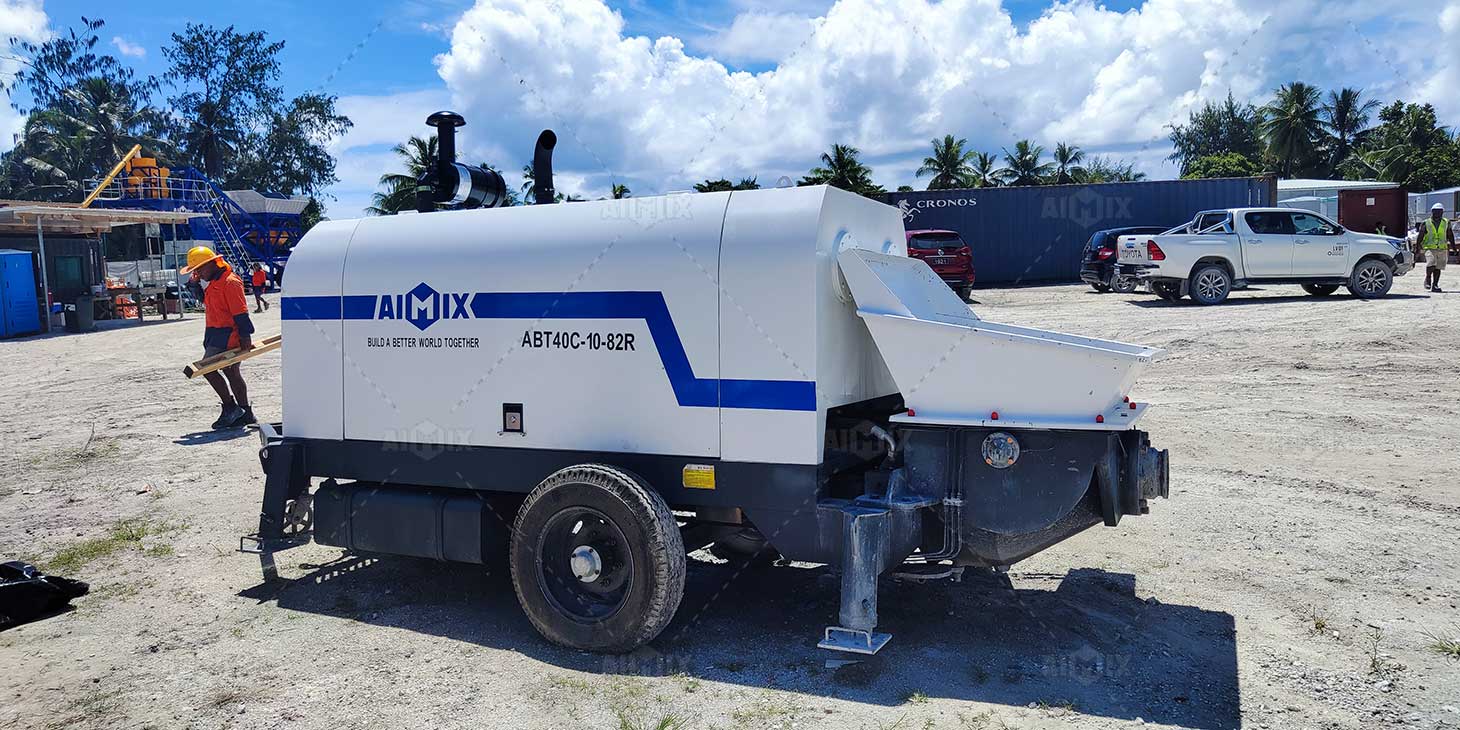

Application and Exporting Cases of ABT40C

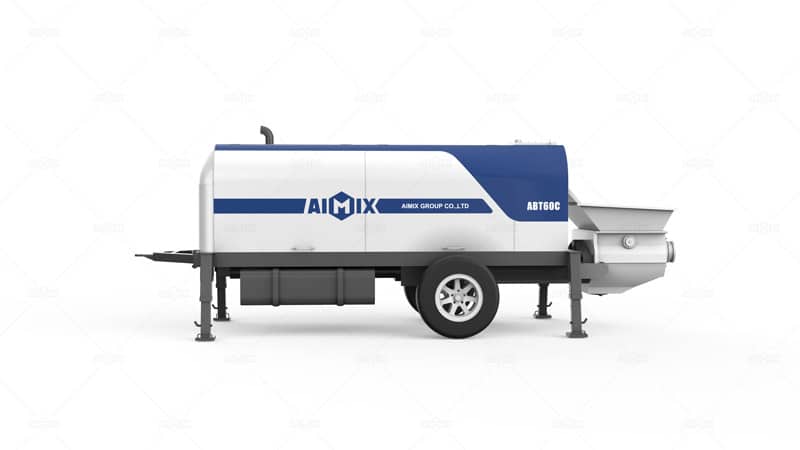

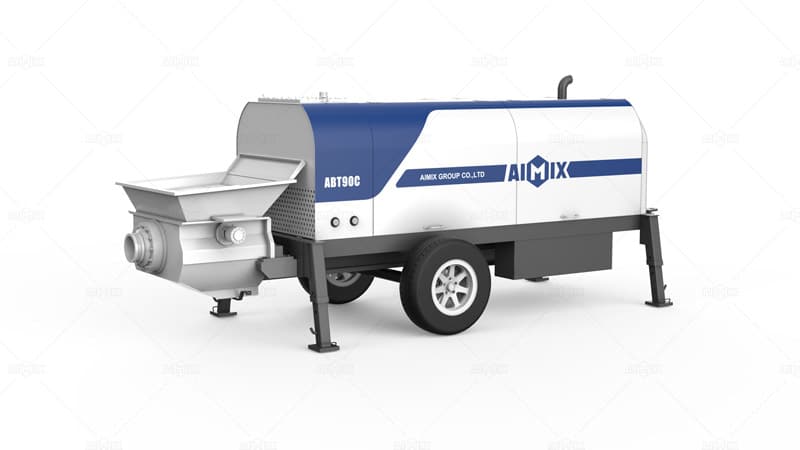

Other Models of Static Concrete Pumps
Apart from popular ABT40C model, there are other choices. Their capacities are about 30 m3/h, 60 m3/h, 80 m3/h and 90 m3/h. Based on the diesel and electric power, model of static concrete pump for sale includes:

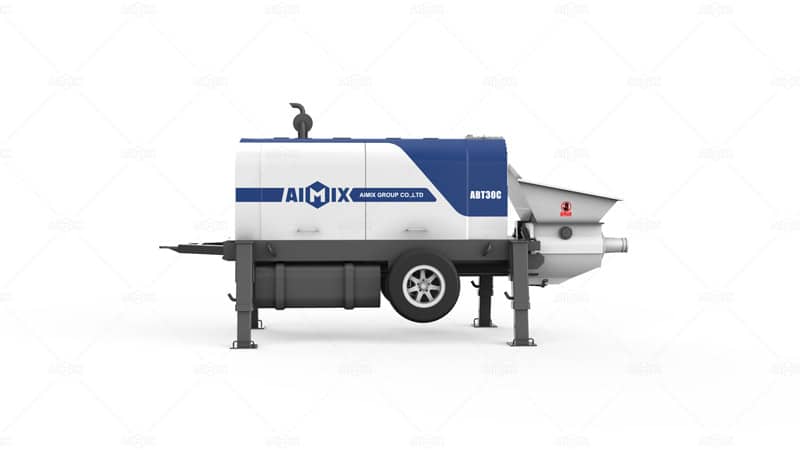

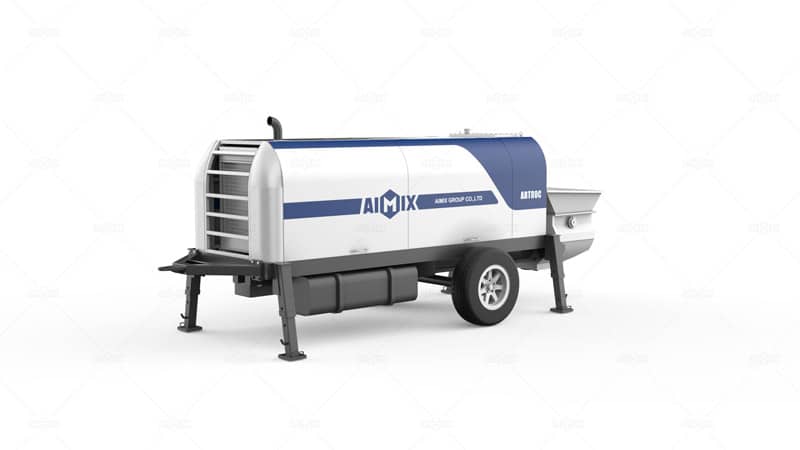

- Diesel Concrete Pump: ABT30C, ABT40C, ABT60C, ABT80C, and ABT90C

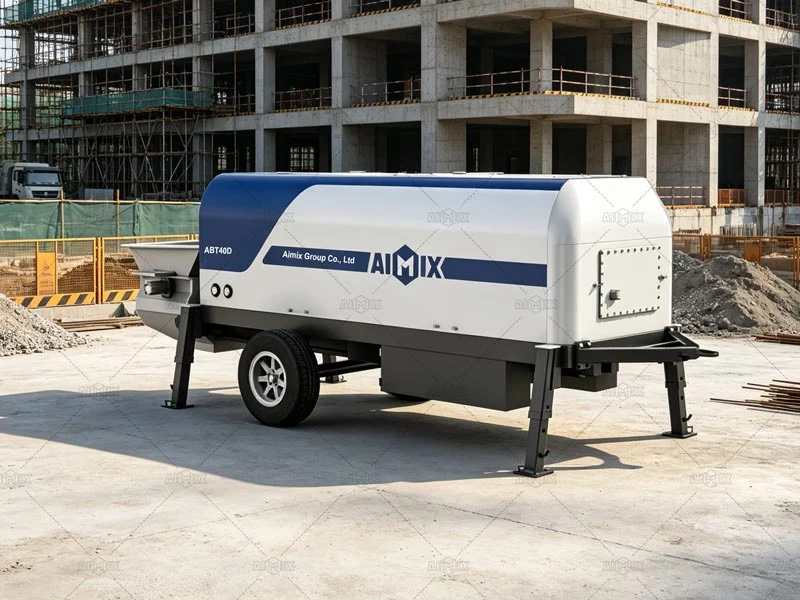

- Electric Concrete Pump: ABT30D, ABT40D, ABT60D, and ABT80D
Stationary Concrete Pump Specification
| Items | Units | ABT40C | ABT60C | ABT80C | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 |
| Items | Units | ABT40D | ABT60D | ABT80D | |
|---|---|---|---|---|---|
| Whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1300 | Φ200×1650 | Φ200×1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 |

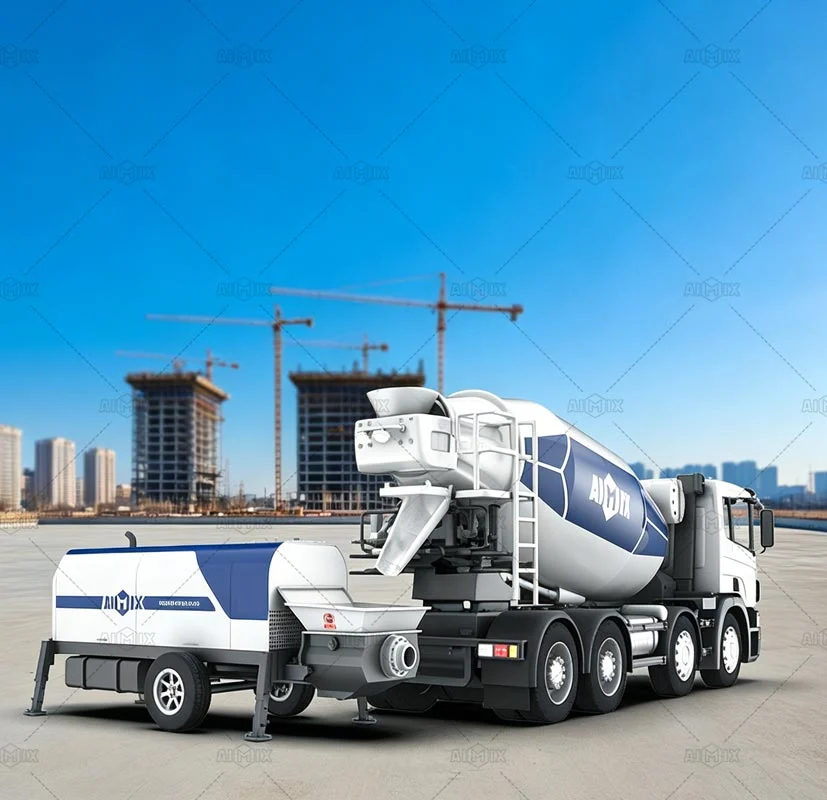

Mix&Pump Solutions: Stationary Pump With Concrete Truck for Construction
The stationary pump for concrete can cooperate with concrete mixer truck for construction projects. After the concrete mixture is blended in the truck, then loaded into the station pump concrete, last transported through pipelines. In this way, they can greatly improve working efficiency and shorten the construction period.

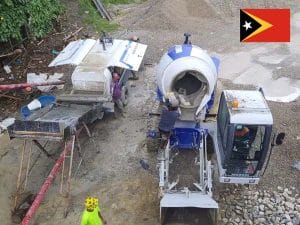

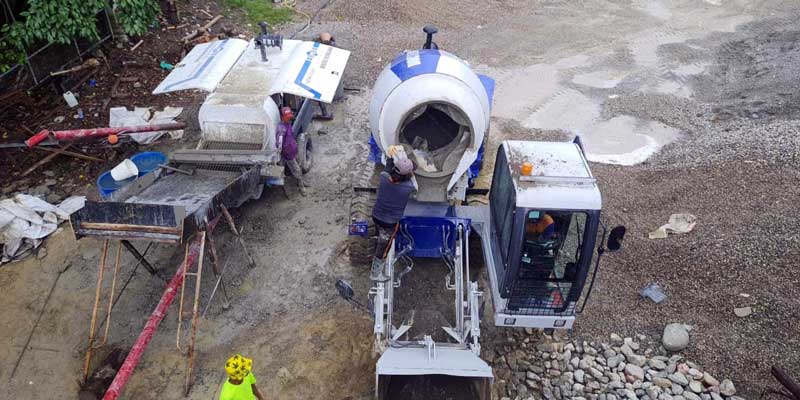

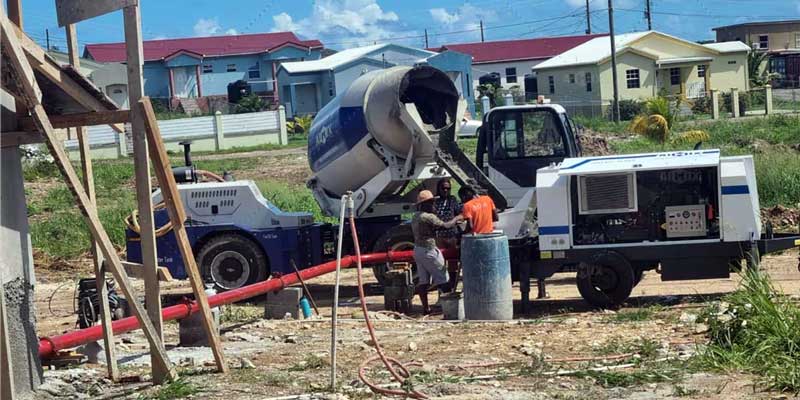

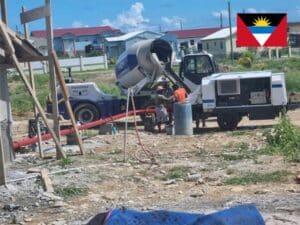

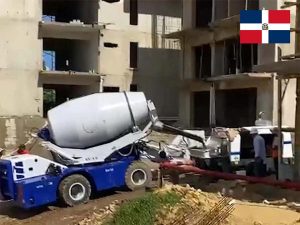

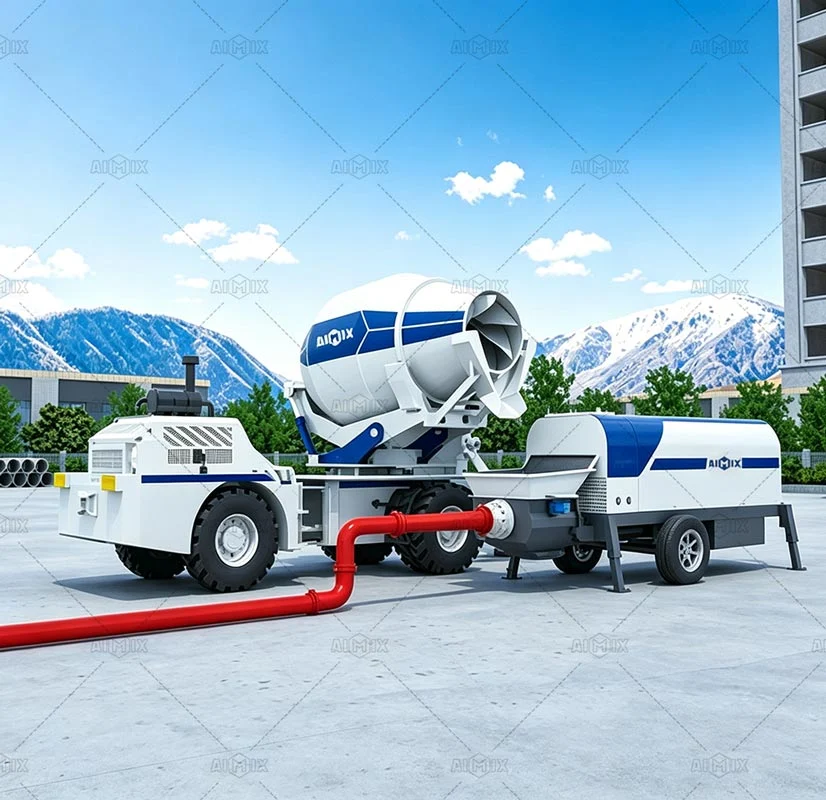

1. With Self Loading Concrete Mixer Truck
- Firstly, the self loading mixer could load the aggregate through the bucket itself. Load the mixture into the mixing drum.
- Secondly, the mixing drum would blend the aggregate evenly. Discharge the mixture into the concrete pump hopper after mixing.
- Last, the static line concrete pump begins to work and pump the concrete mixture to higher and further distances through pumping pipes.

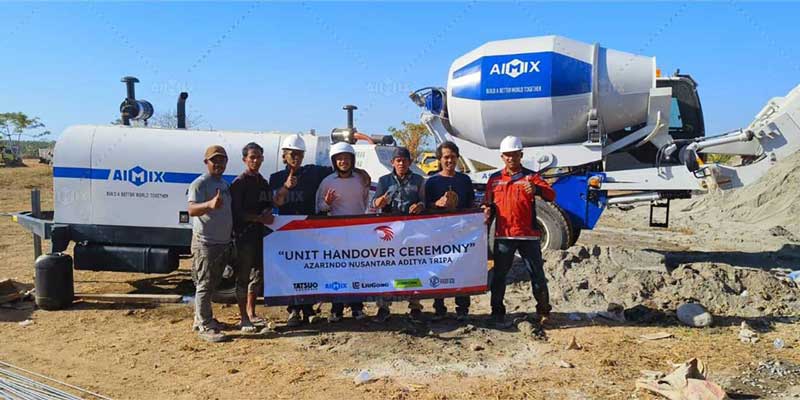

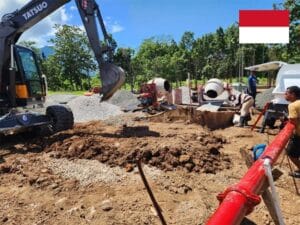

Self Loading concrete mixer with static line pump is a popular combination among clients. Many of them have purchased the self-loading mixer with pump for their construction projects, especially for foundation, house and building construction. You can check some working pictures and videos below.

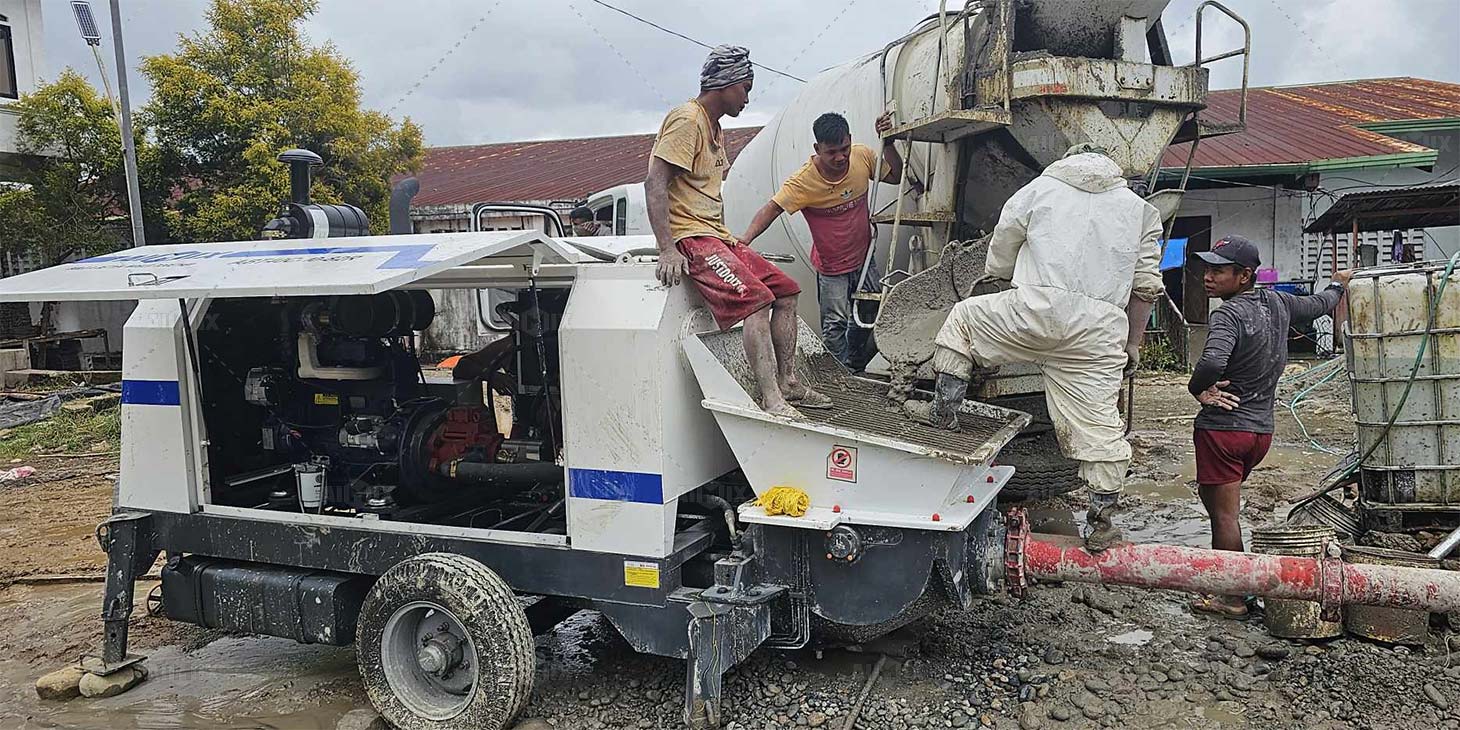

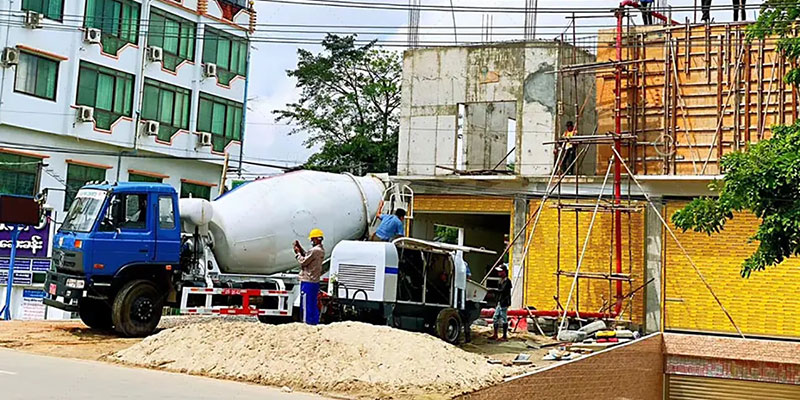

2. With Concrete Mixer Truck
- In general, the concrete mixer truck would load the concrete mixture from the concrete batching plant.
- It would mix the concrete mixture with drum rotating during the process of transportation.
- After arriving at the construction site, it would discharge the mixture into the hopper of the concrete station pump.
- Last, the stationary pump would deliver the mixture through the pipelines.
Here is the working video of the Aimix ABT60C diesel concrete pump with a concrete truck on-site in the Philippines. Customers has chosen the combination for his construction, especially high-rise building construction on site.
Seeing how effectively the concrete pump stationary operates with both self-loading mixers and concrete trucks, it’s clear that choosing concrete solutions can ensure project success.
However, having the right combination of machinery is just one part of the equation. The quality of your station concrete pump is equally important, and that starts with choosing a trustworthy manufacturer. So, how to choose a reliable one and partner with it? Continue to read some suggestions.
How To Choose Credible Stationary Concrete Pump Manufacturers?
Before purchasing a hydraulic stationary pump, you need to look for a credible stationary pump. An excellent concrete machinery manufacturer can not only provide you with a good machine but also affordable stationary concrete pump price. Here are some tips you should consider before making a decision.
Considering The Strength of Company
You can learn a company’s strengths from several different aspects. The quality of concrete pump station is important. You can know how they produce the static concrete pump and how their staff works by visiting their factory and office. As a trustworthy concrete machinery supplier, our Aimix Group is delighted that you can visit our company. What’s more, since Aimix was founded, we have gotten many certificates and have applied for many patents for our technological innovation.
Checking Customers Feedback
You can learn the quality of fixed concrete pump and the company’s strengths through the feedback of their clients. Up to now, our stationary concrete pump for sale has been transported to many countries and cities. Many clients have sent us positive feedback on the equipment. You can get real feedback about us from these clients.
Magic concrete pumping equipment, AIMIX brand is so reliable! Concrete mixer pump price is acceptable.
Powerful with diesel engine; low failure rate
Selamat Sore Ibu Jessica. Kami baru tadi pagi menggunakan pompa beton dan berhasil dengan baik
The quality of the concrete pump is very good, which can perfectly satisfy our construction requirements. If we need other equipment, we will buy again.
Knowing Considerate Service
Suppliers can provide you with pre-sale and on-sale services. But few of them can offer a complete service, including pre-sale, on-sale, and after-sale service. If you choose Aimix concrete pump, the service content has professional advice, accompanying to visit our company, guidance of installation and debugging, training, teaching maintenance and repairing methods, regular visiting, etc. We believe that you will satisfy our sincere and thoughtful service. In addition, Aimix has branch offices in many countries, like the Philippines, Indonesia, Russia, Uzbekistan, Malaysia, etc, for providing professional after-sales service for local customers.
