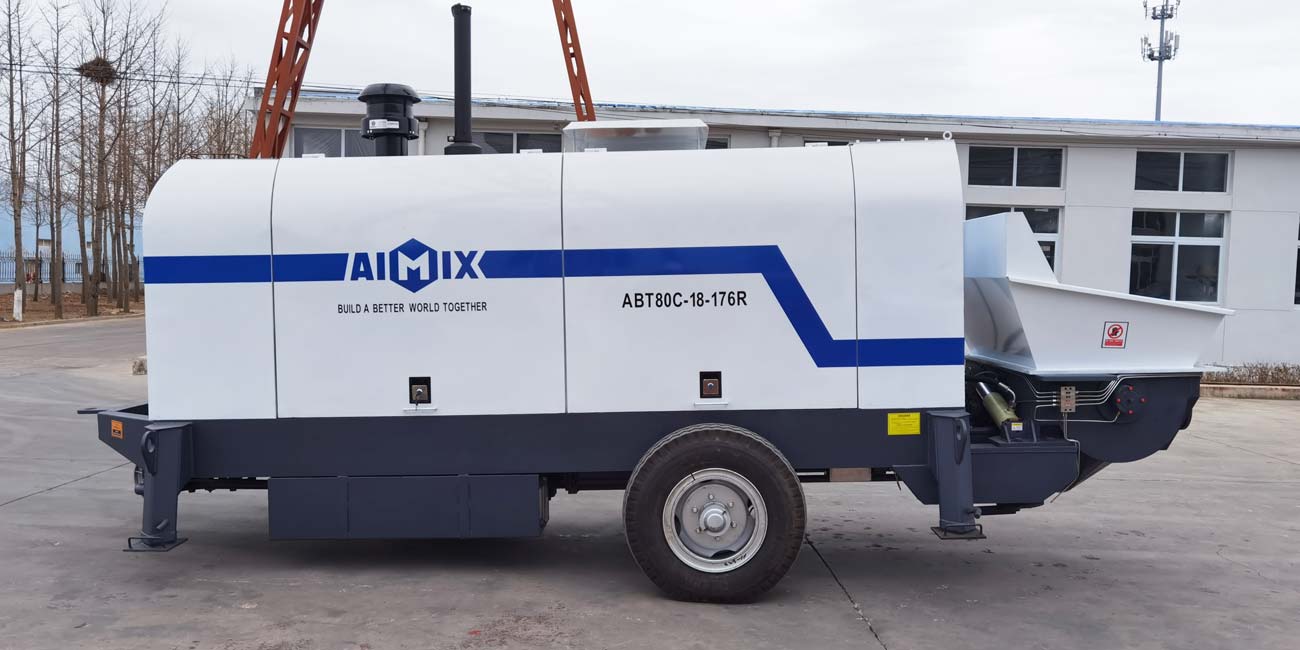

Sending Aimix ABT80C Trailer Pump to Malaysia in March 2022

Congratulations! Aimix has sent one set of ABT80C trailer concrete pump to Malaysia in March 2022. The Malaysian customer made an order in Feb. 2022. He planned it could be put into use at the end of March. After confirming the requirements of construction projects, our sale recommended that he could buy a large model of concrete pump for his construction items. More importantly, the concrete pump price was within budget. Therefore, he decided to purchase one from Aimix without a doubt. After several days of manufacturing and testing, we arranged to export it to Malaysia. Check some loading pictures below.

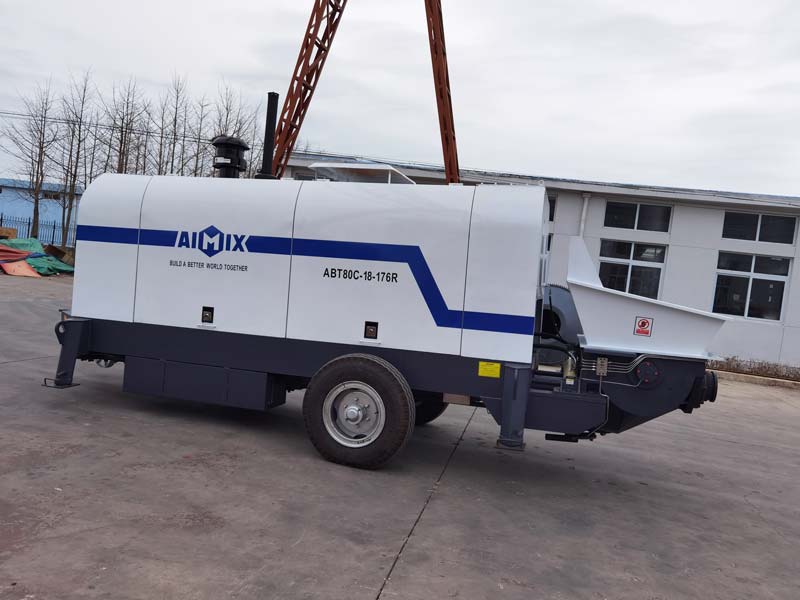

Aimix ABT80C Diesel Trailer Pump to Malaysia

Simple Introduction of ABT80C Trailer Pump

In Aimix, ABT80C is a concrete pump with a diesel engine. The diesel engine can be customized, like Wechai, Cummins, or other designated brands. In addition, it is a large capacity diesel concrete pump for sale. 80 m3/h capacity is suitable for large construction projects, like high-rises buildings, large-scale foundations, roads, tunnels, harbors, etc. The Max. theoretical vertical and Max. theoretical horizontal conveying distances are 260m and 1200m. Besides, Aimix concrete pump has adopted an S valve to ensure a low failure rate when pumping. For more precise parameters, please check the following chart.

Items		Units	Perameters
Items		Units	ABT80C
whole performance of machine	Max. theo. concrete output(L./H)	M3/h	84/45
	Max.concrete pumping pressure(H./L.)	MPa	44758
	Distribution valve type		S Valve
	Concrete cylinder diameter×stroke	mm	Φ200×1800
	Hopper capacity x feeding height	L/mm	800/1400
	Outlet diameter	mm	Φ180
Power system	Diesel engine model		Wechai
	Diesel engineering power	KW	176
	Rotate speed	r/min	2200
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	32
	Mixing system pressure	MPa	10
	Capacity of oil tank	L	560
Other parameters	Max. Theoretical Vertical/Horizontal Conveying Distance	m	260/1200
	Max. aggregate diameter	mm	Slick/scree:40
	Inside diameter of delivering pipe	mm	Φ125
	Dimensions：length×width×height	mm	6300x2100x2350
	Total weight	kg	6900

Electric Control System of Trailer Pump

The electric control system is one of the most important systems for the machine. Thus, Aimix portable concrete pump has used advanced foreign electric control components to prolong its service life. The working process can be controlled by clicking the buttons on the control panel. Besides, equipped with a remote control device, it is convenient and safe for customers to operate and maintain. Check the pictures of the electric control systems below.

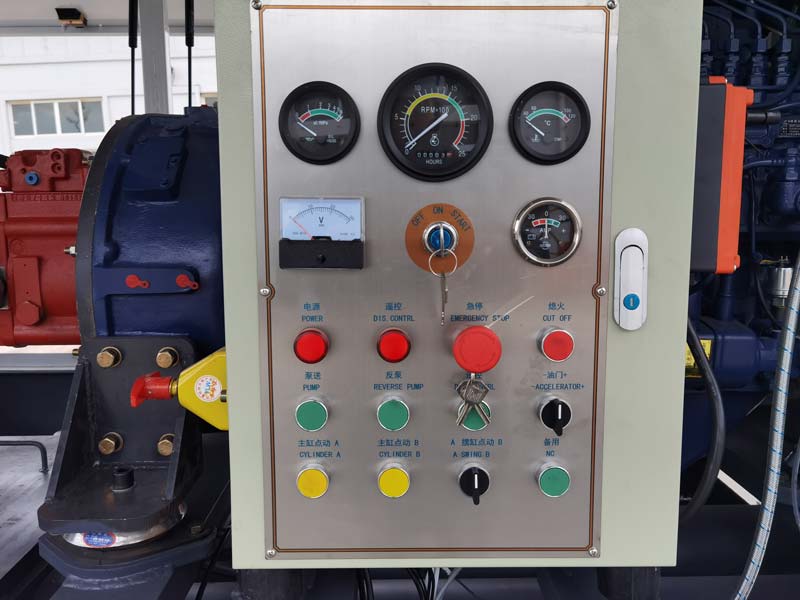

ABT80C Diesel Concrete Pump Electric Control System

If you plan to buy a concrete pump for construction projects, please never miss Aimix. Apart from 80 m3/h capacity, we also have 30, 40, and 60 m3/h. Welcome to contact us for the latest concrete pump price right now. Email: market11@aimixgroup.com.
