Is your concrete paving project battling tight deadlines, budget overruns, and inconsistent quality? The biggest problem lies in your choice of concrete paver machine for sale. Well, AIMIX CP Series concrete slipform paver machine, provides a complete and efficient concrete paving solution. It slashes labor costs, accelerates timelines, and delivers superior, high-strength concrete paving results. If you’re ready to build not just faster, but smarter and stronger, you’ve in right place here. Let’s explore the paver machine that’s setting a new global standard.
What is a Slipform Paver Machine? CP Series Technological Breakdown
A slip form paver machine is a highly automated machine that continuously pours, spreads, consolidates, and finishes concrete in a single operation. Unlike traditional paving methods, it moves forward on tracks, forming the pavement through a precision mold or “slipform.” The AIMIX CP Series concrete paving machine embodies this intelligent design. Its core components work in perfect harmony:
- Feeding System: Consistently supplies concrete to the paving mold.
- Vibration System: Ensures optimal consolidation, eliminating air pockets for maximum density.
- Smoothing & Finishing System: Provides a level, textured, or finished surface ready for curing immediately after paving.
This integrated process makes the AIMIX CP series slipform concrete paver machine a model of efficiency for large-scale concrete road and slab construction.
Innovative Concrete Paving Solutions for Modern Roads: Exploring the AIMIX CP Series
AIMIX has launched several models, including CP4500, CP6000, CP8000, and CP8500. They have covered concrete road paving machine applications from 2.5 meters up to 8.5 meters width. Check these models.

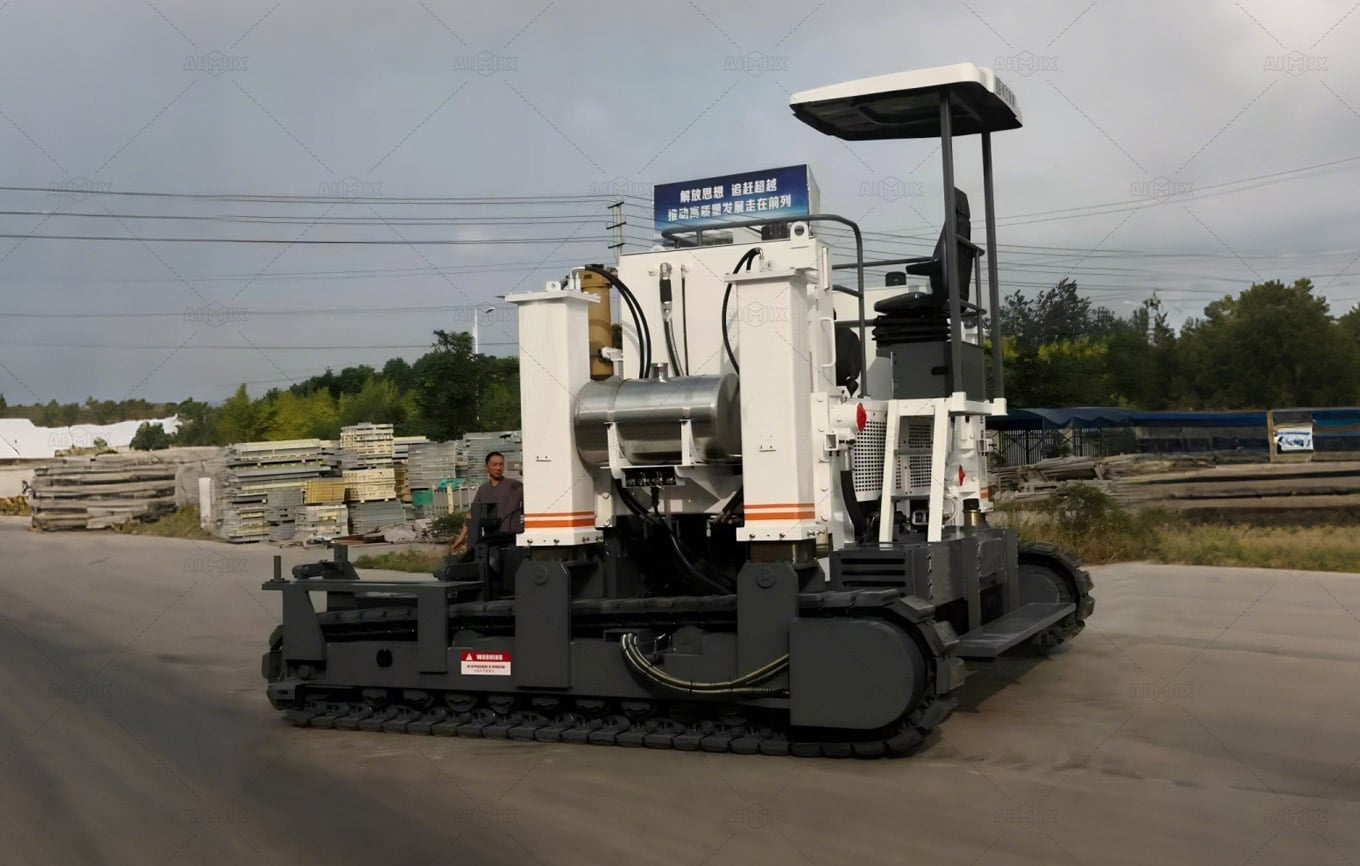

CP4500 – Efficient and Versatile Concrete Paving Machine
- Paving width: 2500~4500 mm
- Paving thickness: 0~350 mm
- Paving flatness: 3mm/3m
- Suitable for: Small to medium road construction projects, residential roads, and lightweight pavement applications.

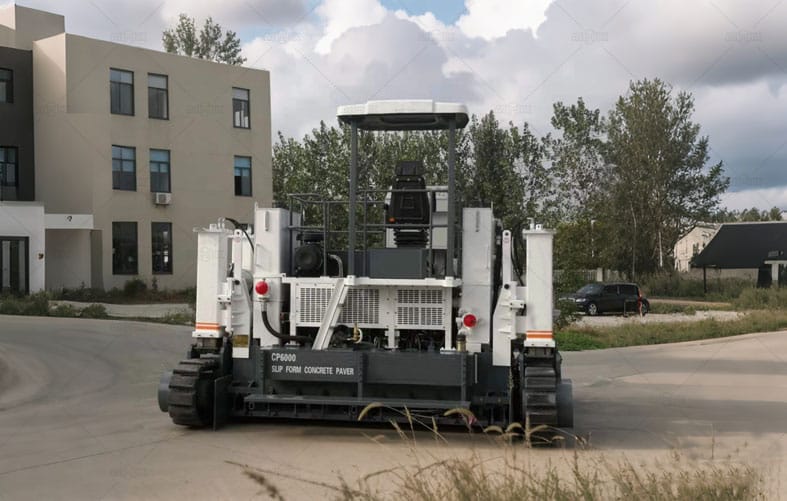

CP6000 – Powerful Paving Capability for Various Applications
- Paving width: 3500~6000 mm
- Paving thickness: 450 mm
- Paving flatness: 3mm/3m
- Suitable for: Medium highways and urban roads, as well as airport runways and parking lots requiring thicker pavements.

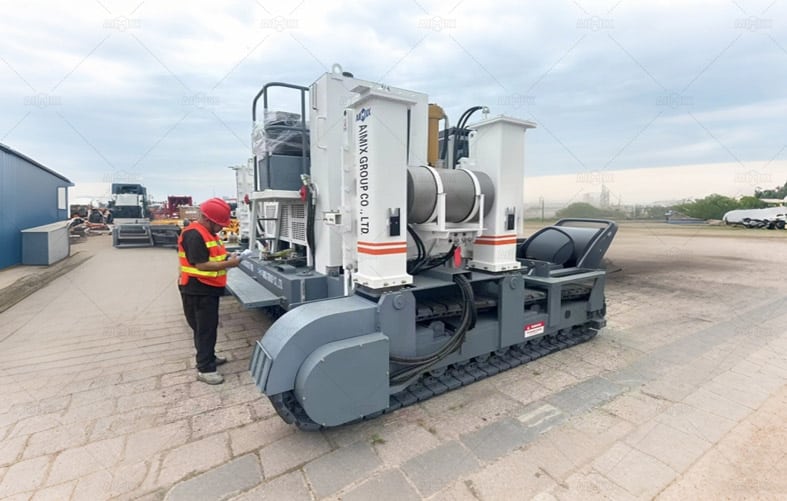

CP8000 – Professional-Grade Wide Concrete Laying for Large Projects
- Paving width: 4250 (3500) ~ 8000 mm
- Paving thickness: 500 mm
- Paving flatness: 3mm/3m
- Suitable for: Large infrastructure projects such as highways, industrial roads, and heavy-duty pavements where durability is critical.
CP8500 – Redefining High-Efficiency Paving Standards with 8.5m Width
- Paving width: 4250 (3500) ~ 8500 mm
- Paving thickness: 500 mm
- Paving flatness: 3mm/3m
- Suitable for: Major highway construction, large airports, and heavy-load commercial areas requiring high stability and strength in pavement.
Detailed Concrete Paving Machine Specifications
| Parameter | CP4500 | CP6000 | CP8000 | CP8500 |
|---|---|---|---|---|
| Paving Width | 2500~4500 mm | 3500~6000 mm | 4250 (3500) ~ 8000 mm | 4250 (3500) ~ 8500 mm |
| Paving Thickness | 0~350 mm | 450 mm | 500 mm | 500 mm |
| Paving Flatness | 3 mm/3 m | 3 mm/3 m | 3 mm/3 m | 3 mm/3 m |
| Paving Speed | 10 m/min | 10 m/min | 10 m/min | 10 m/min |
| Travel Speed | 1.5 km/h | 1.5 km/h | 1.5 km/h | 1.5 km/h |
| Climbing Capacity | 10% | 10% | 10% | 10% |
| Travel Mode | Two tracks | Two tracks | Two tracks | Two tracks |
| Engine | 127 kW (QSB5.9-C130) | 160 kW (VOLVO) | 185 kW (VOLVO) | 210 kW (VOLVO) |
| Hydraulic Vibrating Bar | 167Hz/10 pcs | 167Hz/13 pcs | 167Hz/18 pcs | 167Hz/18 pcs |
| Overall Dimensions | 4150×5790×2770 mm | 4150×7290×2770 mm | 4150×9290×2770 mm | 4150×9790×3100 mm |
| Machine Weight | 20~23 tons | 22~26 tons | 23~28 tons | 23~30 tons |
Global Cases: How AIMIX CP Series Transforms Concrete Road Projects Worldwide
With our concrete paving machines, global users have witnessed firsthand the dramatic impact on efficiency, durability, and cost-effectiveness in their projects. Dive into the tangible results achieved by the concrete pavers machine in diverse working conditions.

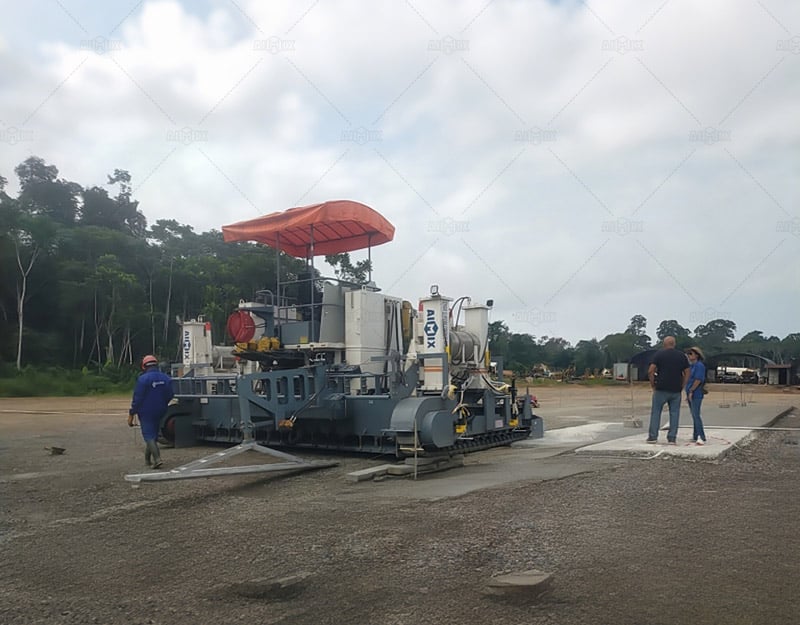

CP6000 in Equatorial Guinea – Coastal Road Construction
- The challenge: Humid conditions and a soft, shifting substrate made it difficult to maintain stability for a 12 km coastal road. Traditional paving equipment struggled with uneven surfaces and quick deterioration.
- The solution: CP6000 with enhanced stabilization technology and adjustable paving thickness settings.
- The result: Successfully paved 12 km of roadway with minimal delay despite challenging ground conditions. Daily output of 600 meters, significantly reducing the planned project timeline.
- Customer Review: “The CP6000 managed the soft ground without issue, delivering consistent results even under pressure.”
CP8000 in Iran – Major Highway Rehabilitation
- The challenge: Extreme weather conditions and heavy vehicular traffic on a crucial highway stretch required renovation without disrupting operations. High temperatures and constant wear from cargo trucks led to rapid deterioration of the existing pavement.
- Paving solution: CP8000 equipped with advanced thickness control and high-performance hydraulic systems.
- The result: Completed 15 km of rehabilitation work in record time, significantly ahead of the original schedule. Zero surface issues reported, demonstrating exceptional durability and performance.
- Customer Review: “The CP8000 has redefined our expectations for concrete paving machinery; it delivered excellence under tough conditions.”
Precision Engineering: How Concrete Paver Machines Achieve Millimeter-Level Tolerance
Our CP Series concrete pavement machine delivers less mm tolerance shift after shift, backed by fully hydraulic drive, microcomputer control, and intelligent diagnostics that keep you in command from the cab.
Full Hydraulic Drive with Microcomputer Constant Speed Control
Consistent speed means consistent pavement. The CP Series is driven by a fully hydraulic closed-loop system, with each track independently powered and microcomputer-controlled for constant speed.
- No speed drift: Whether you are climbing a 3% grade or running on flat ground, the microcomputer maintains your set speed within ±0.5%.
- One-touch speed setting: Dial in your target meters per minute on the digital display. The machine holds it automatically.
- On-board diagnostics: The diagnostics display can alert you to pressure drops, filter blockages, and sensor faults before they cause downtime.
Automatic Stringline Tracking and Self-Leveling
Slipform paving is only as good as your reference. The concrete paving machine for sale features dual-mode automatic tracking that works with both stringline and stringless (3D) systems.
- Automatic steering: Laser receivers or ultrasonic sensors send continuous position data to the microcomputer. The machine steers itself, holding line within ±5mm over a full day’s run.
- Automatic leveling: Four independent hydraulic cylinders at the corners adjust machine height 50 times per second. Incoming grade errors are corrected instantly—you do not see them in the finished slab.
Vibration and Consolidation – Engineered for Density
Surface smoothness is cosmetic. Density is structural. The CP Series vibration system is designed to achieve 98%+ consolidation across the entire width.
- High-frequency vibrators: 8,000–10,000 vpm, each individually adjustable from the cab.
- Spacing logic: Overlapping vibration zones eliminate dead spots—no soft edge, no honeycomb.
- Amplitude consistency: Hydraulically dampened mounts prevent energy loss into the frame. All energy goes into the concrete.
Mold and Extrusion – Built to Hold Edge
A paver is only as good as its mold box. The CP Series extrusion system is engineered for high-volume, high-accuracy production without deformation.
- Heavy-duty mold box: over 10mm steel plate, internally reinforced against deflection. Even at 9 meters width, the center does not sag.
- Wide-width strike-off adjustment: A micro-adjustment mechanism on the finishing plate lets you fine-tune the extrusion profile while the machine is running. No stop-and-check, no wasted time.
- Anti-slump edge control: Proprietary edge retention system prevents the slab corners from rounding off. You get sharp, clean edges without secondary hand-finishing.
These features are far more than just “add-ons.” When bidding against contractors with experience in concrete paving, these high-precision tolerances mean less risk and give you a competitive edge, ensuring maximum project quality and profitability.

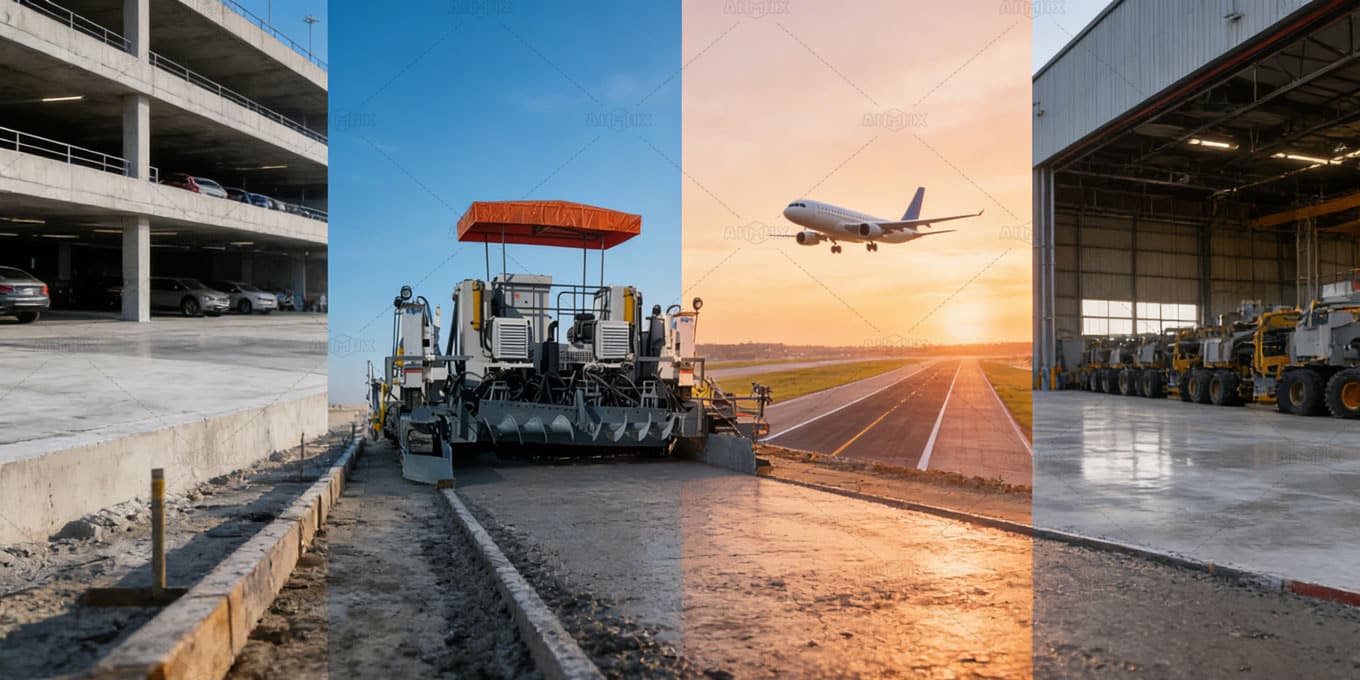

Top Uses of Concrete Pavement Machines That Drive Modern Infrastructure
Concrete paving equipment is integral to a variety of demanding construction projects, thanks to their efficiency and precision. The AIMIX CP series stands out for its robust design and adaptability across different sectors.
Transportation Infrastructure
It plays a vital role in constructing roads and highways. These surfaces need to endure heavy traffic and harsh weather conditions. The durability and longevity provided by high-strength concrete ensure minimal maintenance and optimal performance over time.
Aviation Facilities
In the aviation industry, concrete paving machines for sale are essential for building airport runways and taxiways. They create surfaces that meet strict tolerance and strength standards, capable of withstanding the immense forces of landing aircraft while ensuring passenger safety.
Heavy-Duty Industrial Surfaces
These paver machines are ideal for paving large industrial floors and port pavements. They produce expansive, seamless concrete slabs that can handle the heavy loads of machinery and materials, enhancing operational efficiency in industrial settings.
Multi-Story Parking Structures
Concrete paving machine forsale is also crucial in constructing multi-story parking structures. They provide the strength needed to support high volumes of vehicle traffic while resisting wear and environmental damage, ensuring durability and reducing long-term maintenance costs.
Which Model Fits Your Project? A Practical Selection Guide
After seeing different applications of concrete pavement machines shaping modern infrastructure, but you may be confused: Which model do I need for the project? Here is a clear, no-confusion guide.
What’s your typical paving width?
- Up to 4.5 m: CP4500
- 4.5–6.0 m: CP6000
- 6.0–8.0 m: CP8000
- 8.0–8.5+ m: CP8500
How often do you move between sites?
- Frequent moves, tight access: Choose the smallest model that meets width needs (CP4500 or CP6000)
- Fewer moves, maximize daily output: Consider the next size up (CP6000, CP8000, or CP8500)
Is this a single project or a fleet investment?
- One project: Match the model to your exact min–max width
- Fleet/bid flexibility:Size up one class to expand coverage
If you still not sure yet? You can send us these detailed requirements as lists below. Our AIMIX team will reply within 6 hours with a project‑specific concrete paving solution. In addition, we also offer you the best concrete paver machine price!
- Project type and location
- Min/max paving width and thickness
- Joint plan, tie/dowel requirements
- Expected daily output and schedule
- Site access and transport constraints
- Drawings (PDF/DWG) if available
Conclusion: Start Your Next Project with a Partner Who Knows Concrete
Nowadays, choosing the right partner for your concrete paving project is crucial. AIMIX stands out as a leader in the industry, bringing expertise, innovation, and reliability to every job. Whether you’re looking to pave a driveway, parking lot, or any other surface, AIMIX has the right concrete road paver machine tailored to your needs. Our commitment to customer satisfaction and exceptional service means you can trust us to deliver results that exceed your expectations.
Ready to take the first step toward a successful concrete paving project? Contact us right now to discuss your vision and get a free consultation. Let us be your partner in creating lasting and beautiful surfaces!
