Concrete batching plant Australia has been a popular concrete machine that can produce batching of concrete effectively. The finished fresh concrete mixture has been widely applied for different kinds of construction projects in various cities in Australia, such as Melbourne, Brisbane, Sydney, Perth, Adelaide, etc. Due to its wide range of capacities of from 25 m3/h to 180 m3/h in Aimix Group, the Aimix concrete mixing plant for sale has been widely applied for different projects. Let’s check the application fields below.
Application Fields of Cement Batching Plant in Australia
Almost all large construction projects make heavy use of concrete batch plants Australia. Therefore, it plays a significant role in the process of constructing rivers, bridges, houses, buildings, villas, highways, tunnels, water conservancy projects, etc. Besides, the concrete batch mix plant is also used in the construction of civil engineering, ready mixing, and precast applications.
Stationary Type – AJ35 And AJ90 Concrete Batching Plants for Sale in Australia
- The stationary concrete plant for sale Australia is suitable for commercial concrete sale and various sizes of construction projects because of its wide capacity ranges from 25 m3/h to 180 m3/h.
- In addition, it is more appropriate for projects that have a long construction period because the plant can’t be moved easily once installed on-site.
- Aimix AJ series stationary ready mix concrete batching plant Australia has two kinds of feeding methods, one is skip-hoist type, and the other one is belt feeding type. According to the feeding ways, I would show you the hot-sale model of each type.

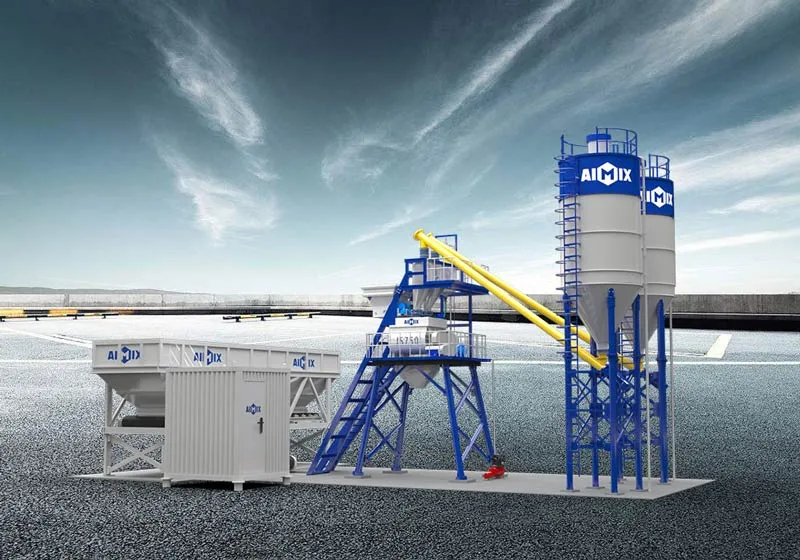

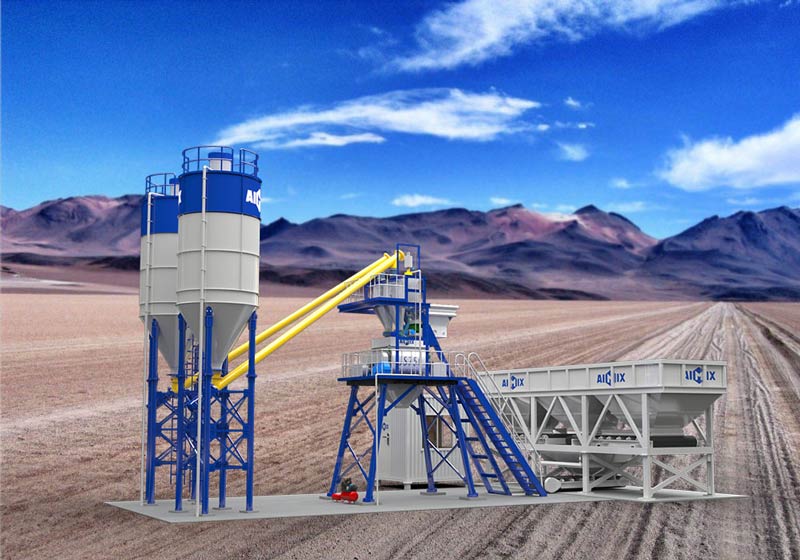

AJ35 Skip Hoist Small Concrete Batch Plant
AJ35 ready mix plant for sale is a small-size complete set of concrete production equipment. It is a type of concrete batching plant Australia that adopts the skip hoist to load the aggregate into the concrete mixer, which has saved the occupied areas and improved land utilization.
Main configurations: Capacity: 35m3/h + Concrete mixer: JS750 + Batching machine: PLD1200 + Cement Silo: 50-200 ton + Total Power: 75kw

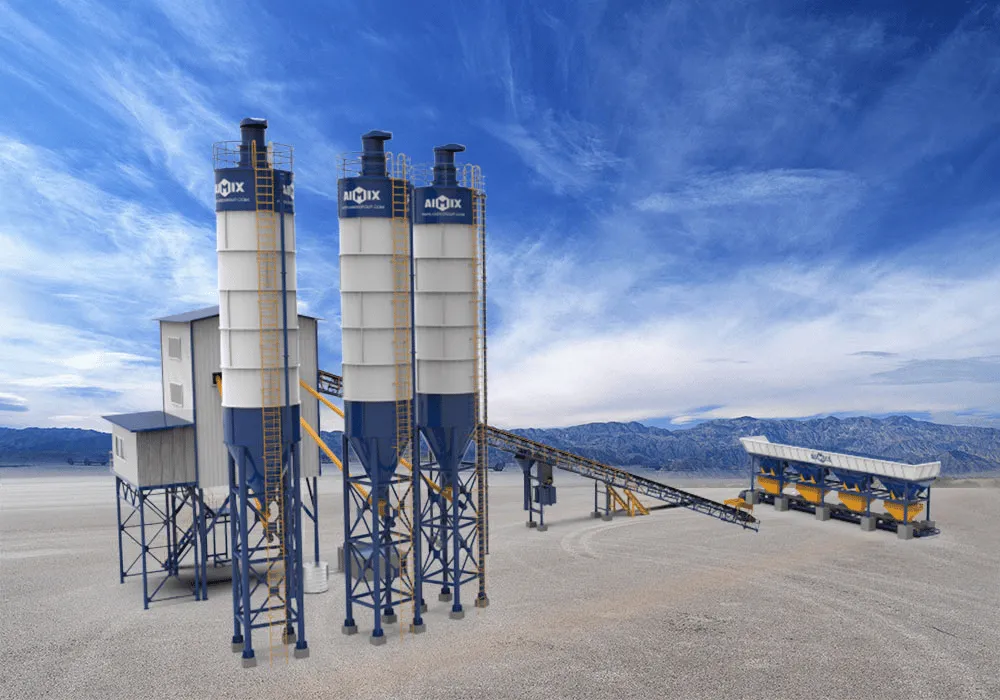

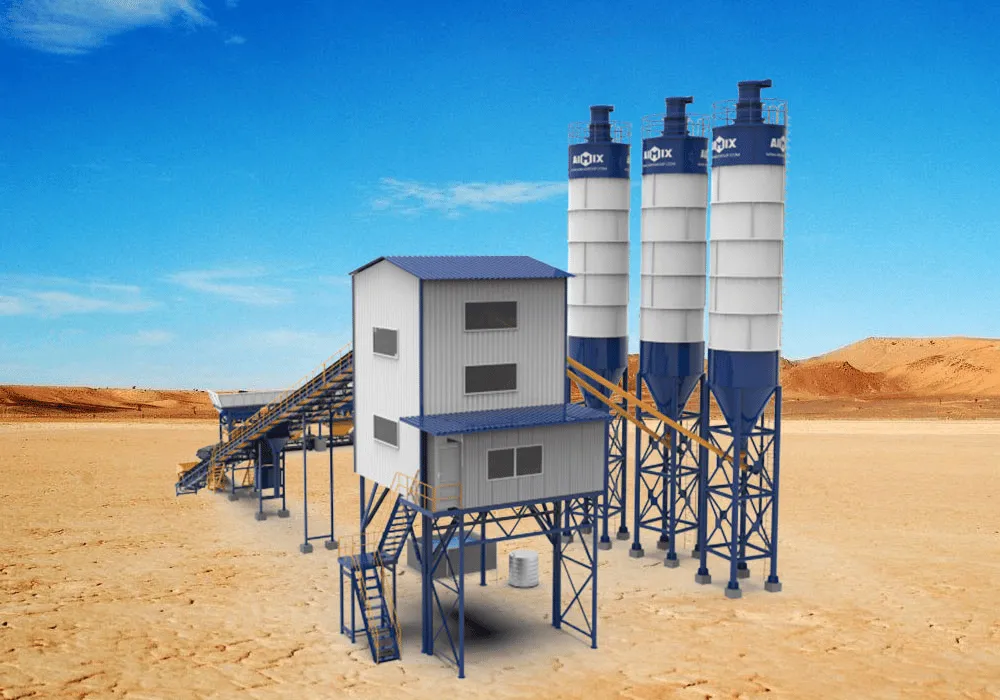

AJ90 Belt Type Concrete Batching Plant Australia
AJ90 is a large-size rmc plant that is more suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy, electric power, railroad, road, tunnel, bridge, harbor, wharf, and so on. It uses the belt to convey the aggregate from the concrete batching machine to the mixer. The feeding way can not only greatly improve working efficiency but reduce dust pollution because the delivery process is in a closed environment.
AJ90 For Hydropower Construction Project
- Main configurations: Capacity: 90 m3/h + Concrete mixer: JS1500 + Batching machine: PLD2400 + Cement Silo: 100-300 ton + Total Power: 195 kw
| Model | Bucket type | Belt type | ||||||
| AJ-25 | AJ-35 | AJ-50 | AJ-75 | AJ-60 | AJ-90 | AJ-120 | AJ-180 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 60 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×30 | 2×18.5 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 67 | 72 | 72 | 72 | 60 | 60 | 65 | 65 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 | Φ80 | Φ60 | Φ80 | Φ80 | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 3×12 | 4×7 | 4×15 | 4×15 | 4×20 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 3/4 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.3 | 4.3 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈30 | ≈40 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | ≈110 | ≈160 | ≈220 | ≈290 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | |||||||
Mobile Type – AJY35
- Mobile concrete batching plant for sale Australia can move easily and conveniently at the construction sites. It can realize movement through a trailer or tractor dragging.
- Thus, it is suitable for contractors who have owned several construction projects, which can be fully used of.
- In general, the mobile batch plants Australia have small and medium capacities from 25 m3/h to 90 m3/h. All of them adopt a belt feeding way to transport the aggregate to the concrete mixer.
- A lot of customers in Australia have bought Aimix portable concrete plants for sale for various kinds of projects, especially the AJY35 model.

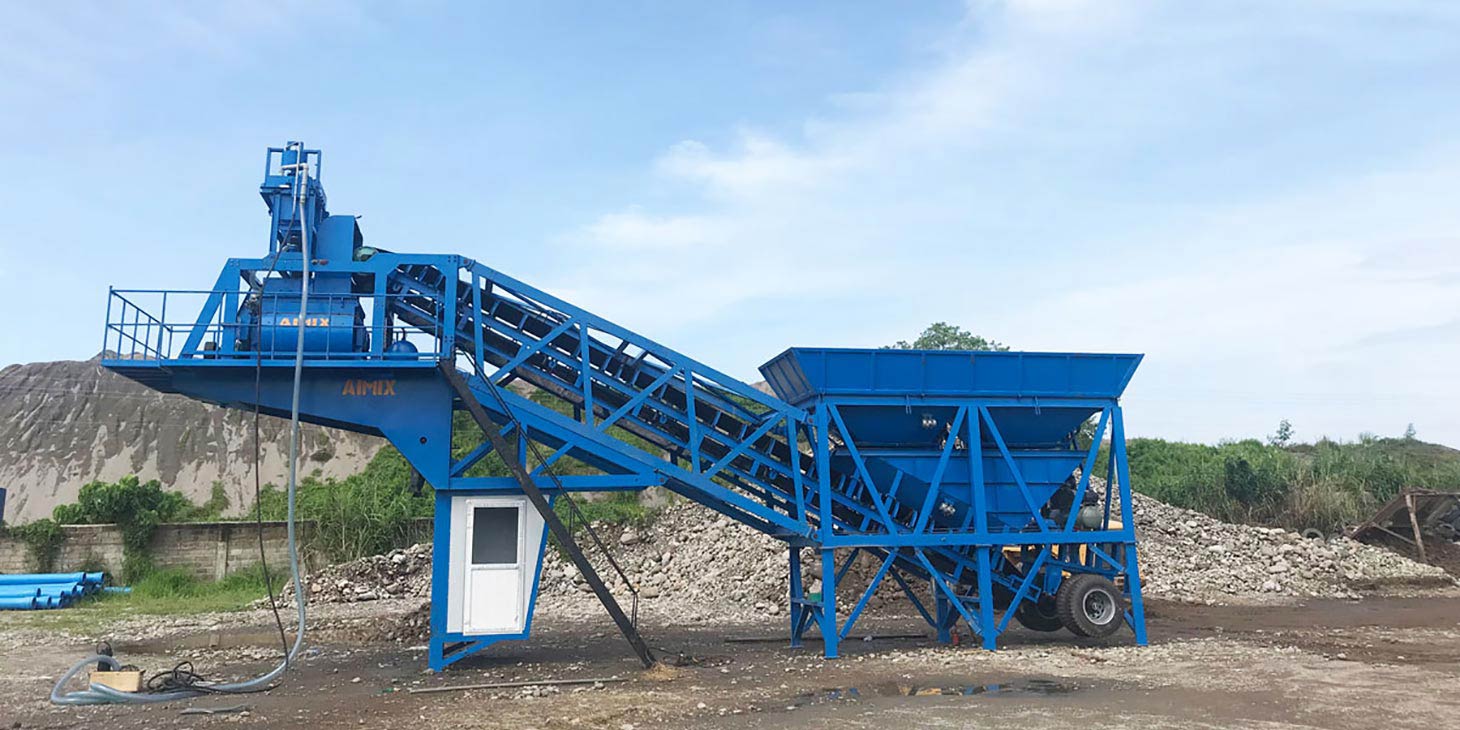

AJY35 Portable Concrete Batch Plant for Sale
AJY35 is a small mobile concrete mixing plant with an output of 35 m3/h. Due to its small size, small volume, and lightweight, it is more appropriate for small and medium-sized projects, especially for houses, buildings, and road construction.

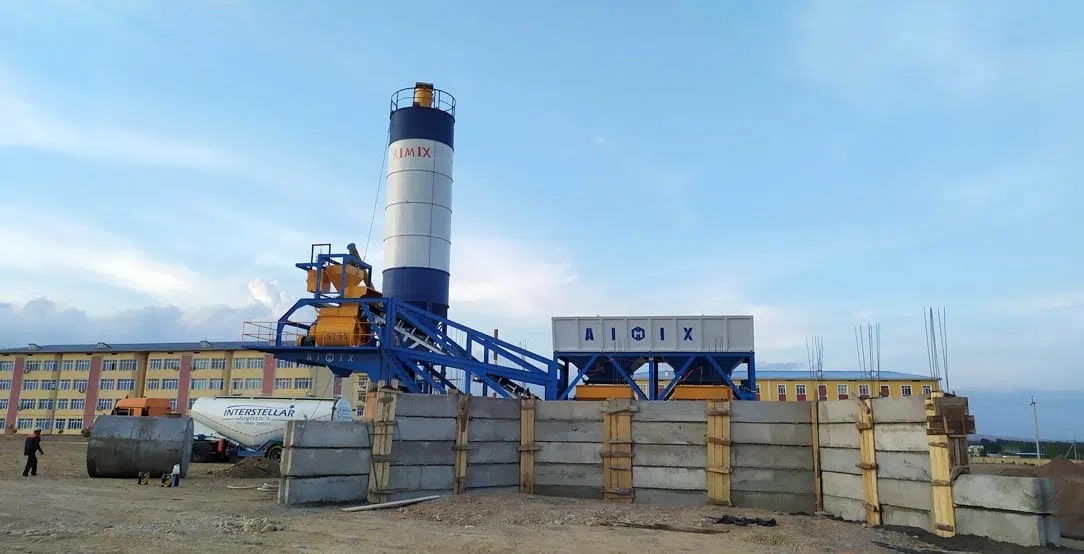

AJY35 For House Construction Project
- Main configurations: Capacity: 35m3/h + Concrete mixer: JS750 + Batching machine: PLD1200 + Cement Silo: 50-200ton + Total Power: 75kw
| Model | Belt Type | ||
| AJY-25 | AJY-35 | AJY-60 | |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 |
| Mixing Cycle Period (s) | 67 | 72 | 72 |
| Max.Aggregate Size (mm) | Φ60 | Φ60 | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 2×3 | 2×5 | 3×5 |
| Category of Aggregate | 2/3/4 | ||
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 |
| Overall Weight (ton) | ≈15 | ≈22 | ≈26 |
| Installation Power (kW) | ≈61 | ≈73 | ≈92 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||

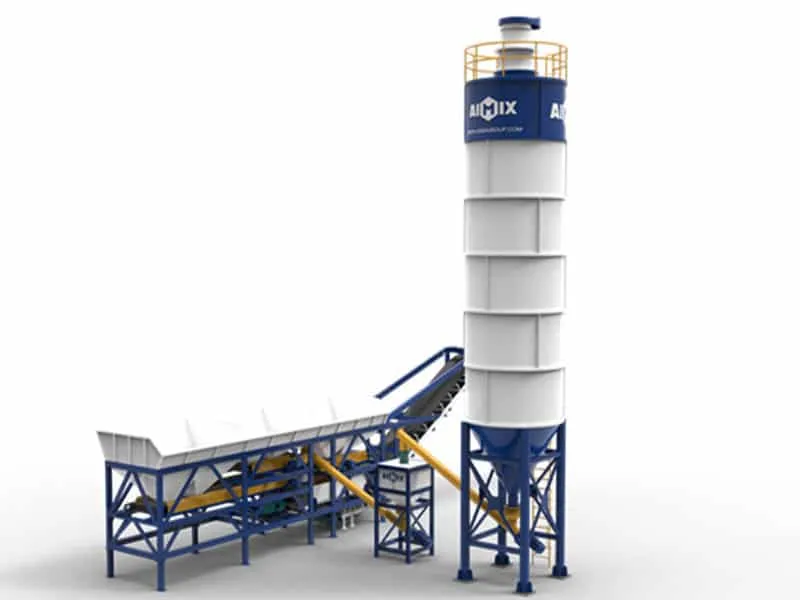

Dry Type
Dry mix concrete batching plant for sale au is also popular in the market. As we all know, the dry batch plant doesn’t consist of a concrete mixer. It is designed to accurately weigh the aggregate and cement in batching machines. Then, they are discharged into the waiting concrete mixer truck. During the transportation, water is added and the mixture is blended in the mixer drum.

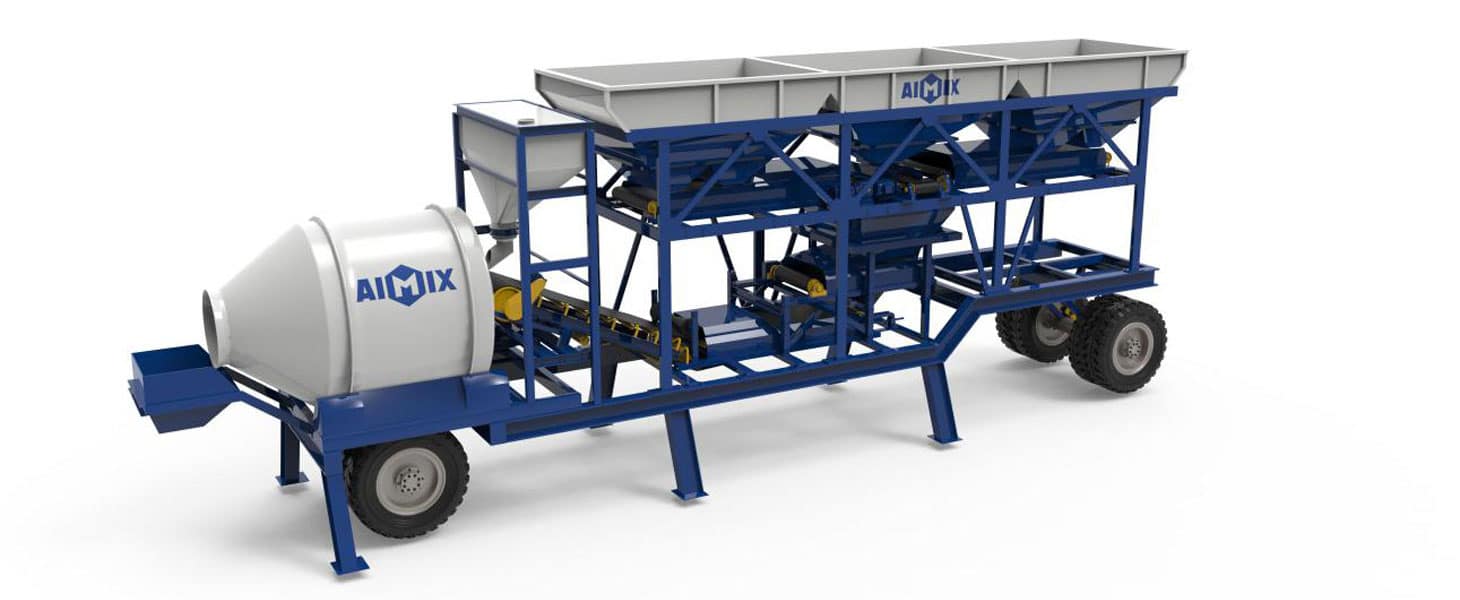

Newly Designed Compact Concrete Batching Plant
- To meet different customers’ construction demands, Aimix has manufactured a new type of concrete batch plant for sale Australia. The biggest special feature is its simplicity. Because it has a simple structure and design.
- Different from ordinary concrete batching plants for sale Australia, it is equipped with a small drum concrete mixer. Thus, it is also named after the mini mobile batching plant.
- The main components of the mini concrete batching plant for sale Australia consist of a concrete batching machine, chassis, simple batching plant silo, and reversible drum mixer.
- Same as other small concrete batch plants for sale, it can produce concrete mixture efficiently. In addition, the batching plant cost is cheaper than ordinary ones, which can help save a lot of costs. You can choose either one according to the actual construction demands.
Working Processes of Batching Plant Australia
Here are several steps to produce the fresh concrete mixture with ready mix concrete batch plant for sale. Check these steps below.
Use the wheel loader to load and transport the aggregate to the concrete batcher.
Weigh the aggregate in the batching machine.
Deliver the aggregate to the concrete mixer through a belt or hopper.
Cement and water respectively get measured, then conveyed to the concrete mixer through screw conveyor and pump
The concrete mixer begins to blend the materials together.
Unload the mixture into the concrete mixer truck. The concrete mixing truck transport the mixture to the construction site.
Please check the following working video that can help you have a good knowledge of the process.
Main Components of Concrete Plant in Australia
Generally, the ready mix batching plant is composed of five systems. There are some important components in each system. The main components include concrete batching machine, belt conveyor(hopper), cement silo, screw conveyor, concrete mixer, electric control panel, etc. Check them in the following picture.
Choose Aimix Manufacturer
There are so many concrete batching plant manufacturers Australia in the market. Therefore, customers have many options when choosing one whether online or offline. As one of the reliable concrete batching plant manufacturers in the Australian market, it is easier for customers to find Aimix manufacturer. If you hesitate to cooperate with us, here are some reasons that can convince you.
- 1. Since 1982, Aimix has accumulated over 30 year’s skillful manufacturing experience and owned advanced manufacturing technology.
- 2. Aimix has gained CE and quality ensured certificates to ensure its quality and performance. Besides, we also have a strict quality team to check before delivering to the customers.
- 3. We have exported over 30 units of concrete batching plants to the Australian market. Most of them still worked well at the construction site. If necessary, customers can visit concrete plants on-site before making an order.
- 4. Aimix promises to provide considerate after-sales service for customers. The service includes transporting tracking, installing, checking, debugging, online training, maintaining, regular visiting, etc.
- 5. To better serve customers, Aimix has established 5 branch offices all over the world in Pakistan, the Philippines, Uzbekistan, Indonesia, and Malaysia.
- 6. To develop a concrete plant business for sale in Australia, we are recruiting an agent in Australia. If anyone wants to be an agent, contact us.
Based on the above reasons, you can choose to cooperate with Aimix manufacturer with safety. Any interest in our concrete batching plant price, welcome to contact our sales for further communication!
