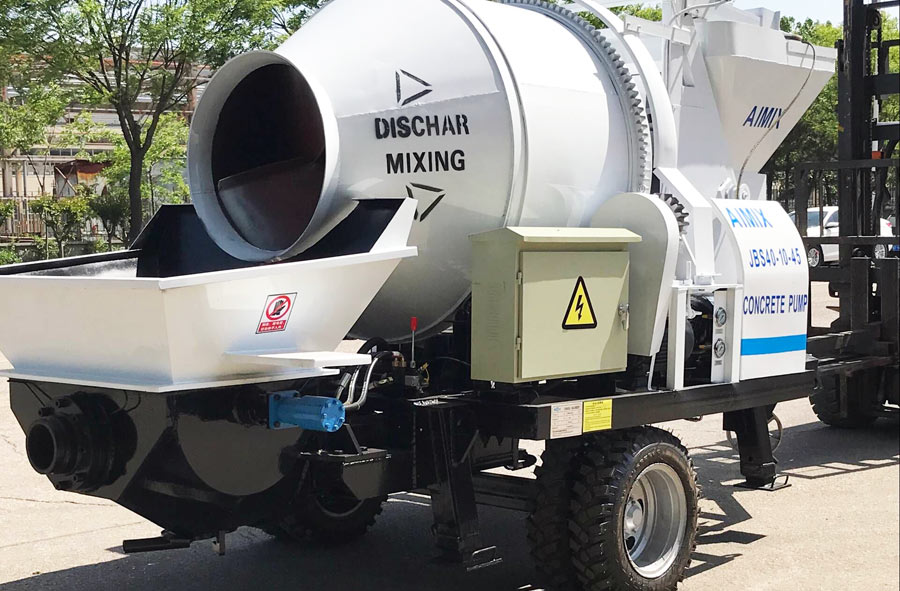

On 24th, May, 2018, our Aimix ABJZ40D concrete mixer pump was ready to Bangladesh. This concrete pump with electric engine can keep good working status under enough electric supplying condition. Therefore, our customer was glad to buy one from Aimix Group.
Indeed, our electric mixer pump is driven by the electric motor and main electric elements are from famous brand – Schneider, so the machine has reliable performance and high efficiency. The adoption of s valve can prolong service life. In addition, the electric mixer with pump is equipped with JZC series concrete mixer. Therefore, it has high mixing quality and high working efficiency.
In Aimix, we have various many kinds ofconcrete mixer pumps for sale, which can divided into electric type and diesel type. If you need electric type, we have ABJZ30D, ABJZ40D, ABJS40D-JS500, ABJS40D-JS750 for your reference. Besides, if there is not enough electricity in construction site, we also have diesel type concrete pump mixer to meet your requirements, there are ABJZ30C and ABJZ40C. Welcome to contact us.
| Items | Units | ABJZ40D |
| Max. theo. concrete output(L./H) | M3/h | 40 |
| Mixer rated feed capacity | m3 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 |
| Distribution valve type | ||
| Concrete cylinder diameter×stroke | mm | Φ180×1000 |
| Hopper capacity | L | 400 |
| Outlet diameter | mm | Φ150 |
| Winding motor power | KW | 5.5 |
| Stir the motorPower | KW | 4.5 |
| Water pump motor powe | KW | 0.55 |
| Electrical engineering power | KW | 45 |
| Rotate speed | r/min | 1480 |
| Circuit type | ||
| Pumping system pressure | MPa | 26 |
| Mixing system pressure | MPa | 6-8 |
| Capacity of oil tank | L | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 |
| Dimensions：length×width×height | mm | 4200x2300x3150 |
| Total weight | kg | 4500 |
